Akrapovic Exhaust System for BMW M2 Competition (F87N)

S-BM/T/3H-KIT

Stock: In Stock

AU$10,179.00 Inc GST
Please make selections below to see final price

Optional Product





Description

Description

Akrapovic Exhaust System for BMW M2 Competition (F87N) (Includes OPF/GPF)

Primary Components:

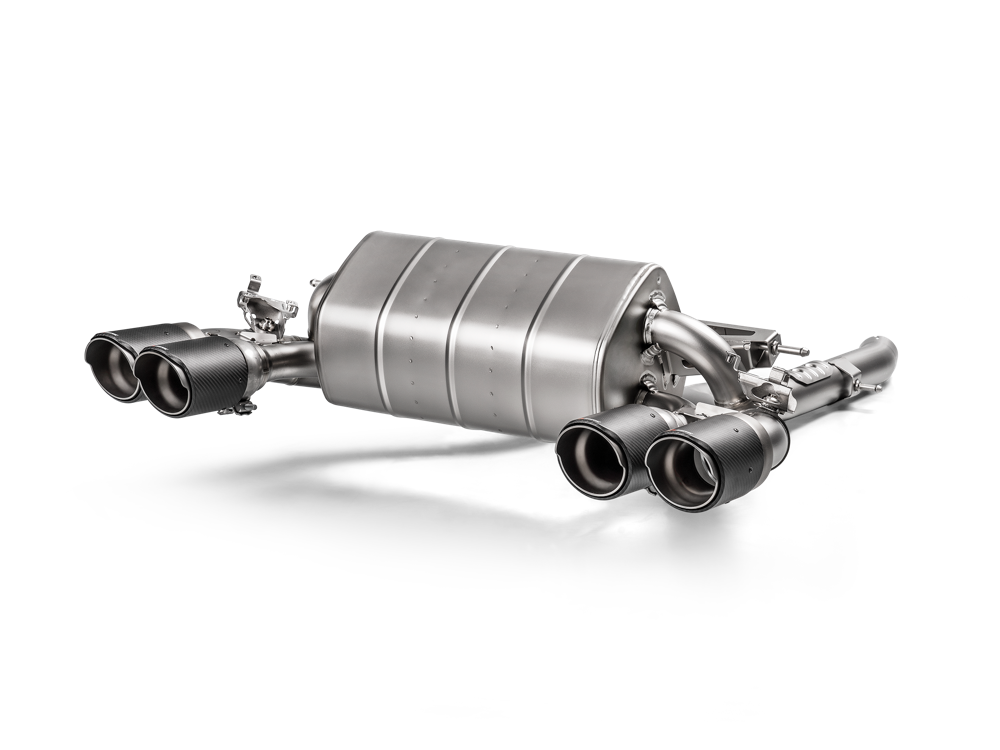

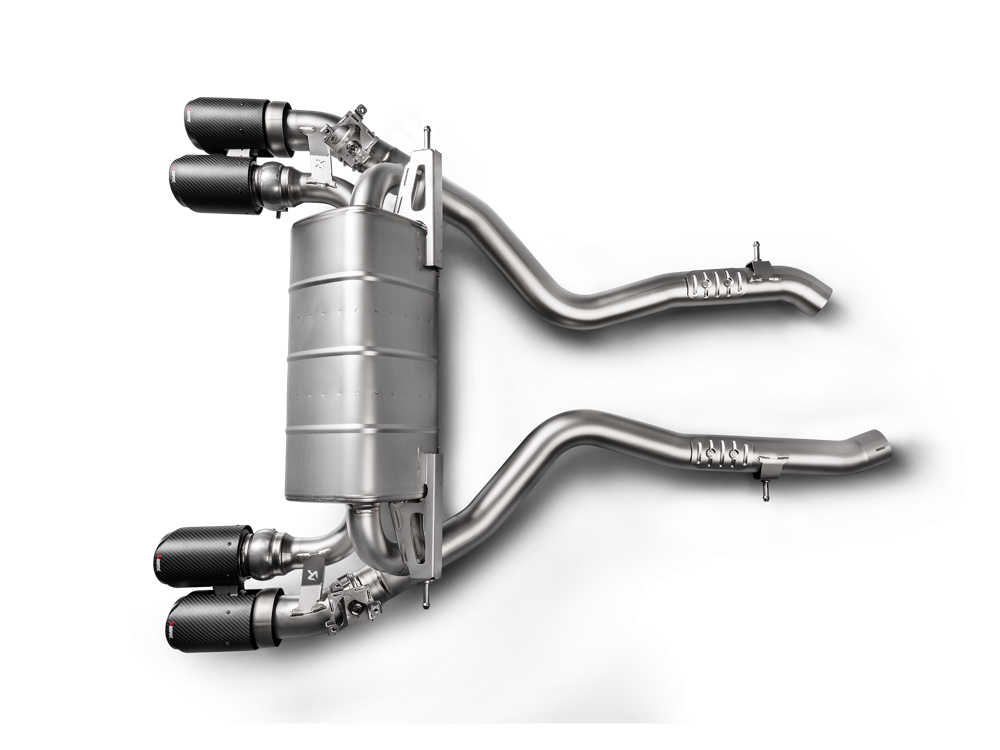

Akrapovic Slip-On Line (Titanium) for BMW F87N M2 Competition / M2CS (S-BM/T/3H)

The system was developed on BMW M2 Competition (F87N) equipped with OPF/GPF, however it fits both versions (OPF and non OPF). ECE type approval is only valid for cars equipped with OPF/GPF.

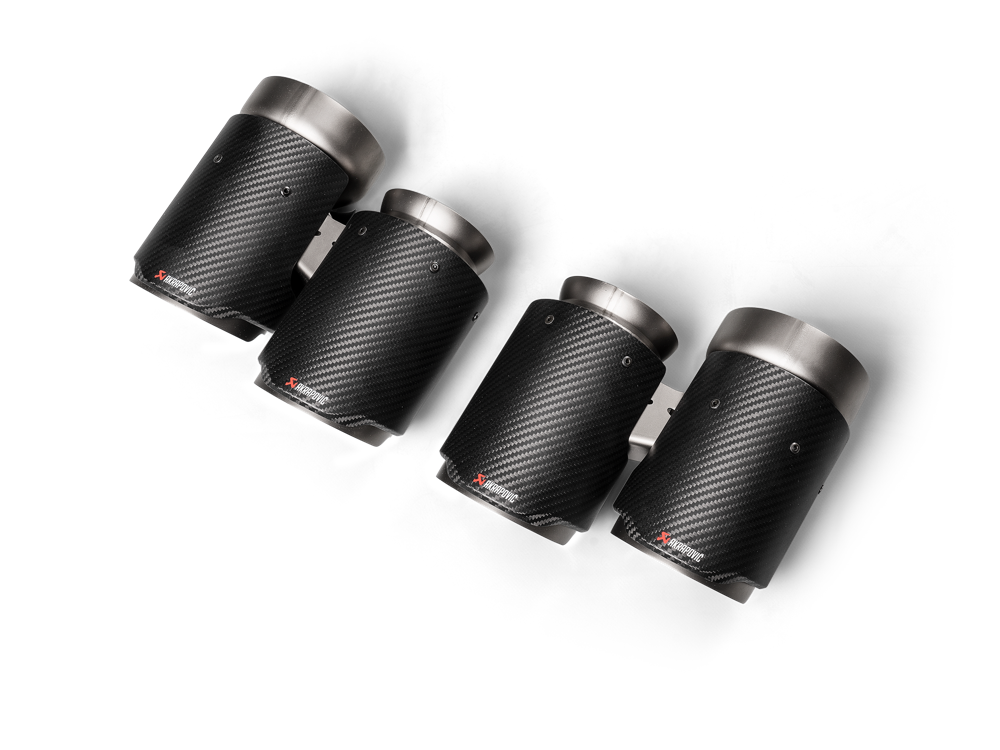

The latest addition to the BMW M series is the awe-inspiring M2 Competition, an exquisite high-performance car that can be made even better by adding an Akrapovic Slip-On exhaust system. Made from titanium – with some parts cast in Akrapovic’s own foundry – this system will reduce exhaust system's weight by over 45% and deliver extra power and lower backpressure. The sound has also been enhanced by Akrapovic’s engineers, delivering a true sporty tone especially in the middle and upper rpm range but without any droning. Carbon-fibre tailpipes give an added look to the rear of the M2 Competition to display its sporting potential. Performance can be further increased with the addition of optional evolution link pipe set. To set off the system to its visual best, optional carbon-fibre diffusers and mirror caps are also available.

The system is a simple plug-and-play operation to fit, and it has been designed to meet ECE type approval.

The optional Akrapovic Sound Kit (P-HF1177) is also available. If upgrading the slip-on system with evolution link pipe, the optional Akrapovic Sound Kit P-HF1177 is not needed - specially developed Akrapovic Sound Kit is already included within the evolution link pipe set. With the use of optional Akrapovic Sound Kit, the ECE homologation is not valid anymore.

For installing the slip-on system, the stock exhaust system has to be cut. Please read the instructions carefully before the start of the installation.

ECE Type Approval is not valid for M2 CS.



Technical Data
Unit Stock Akrapovic Max gain
kW 302.4 / 5550 rpm 304.1 / 5450 rpm + 3.6 / 5100 rpm
HP (m) 411.1 / 5550 rpm 413.5 / 5450 rpm + 4.9 / 5100 rpm
HP (i) 405.5 / 5550 rpm 407.8 / 5450 rpm + 4.8 / 5100 rpm
Nm 570.7 / 2850 rpm 576.5 / 2900 rpm + 6.0 / 5150 rpm
lb-ft 420.9 / 2850 rpm 425.2 / 2900 rpm + 4.4 / 5150 rpm
kg 21.2 11.1 - 10.2
lb 46.7 24.4 - 22.3
% - 47.9
min 180

Optional Components:

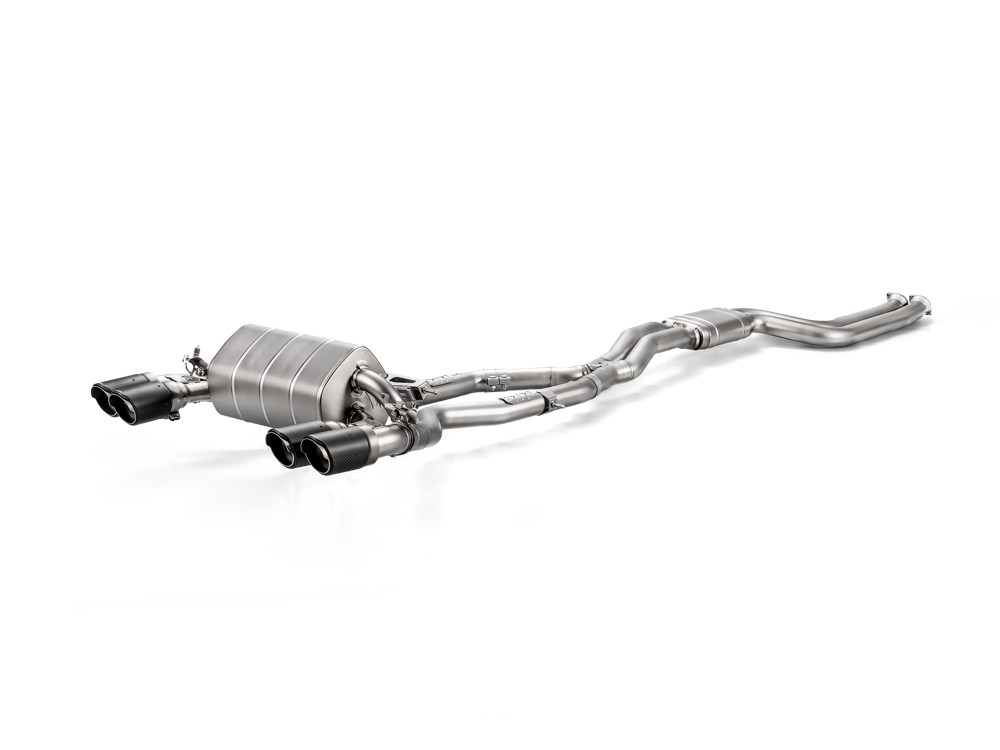

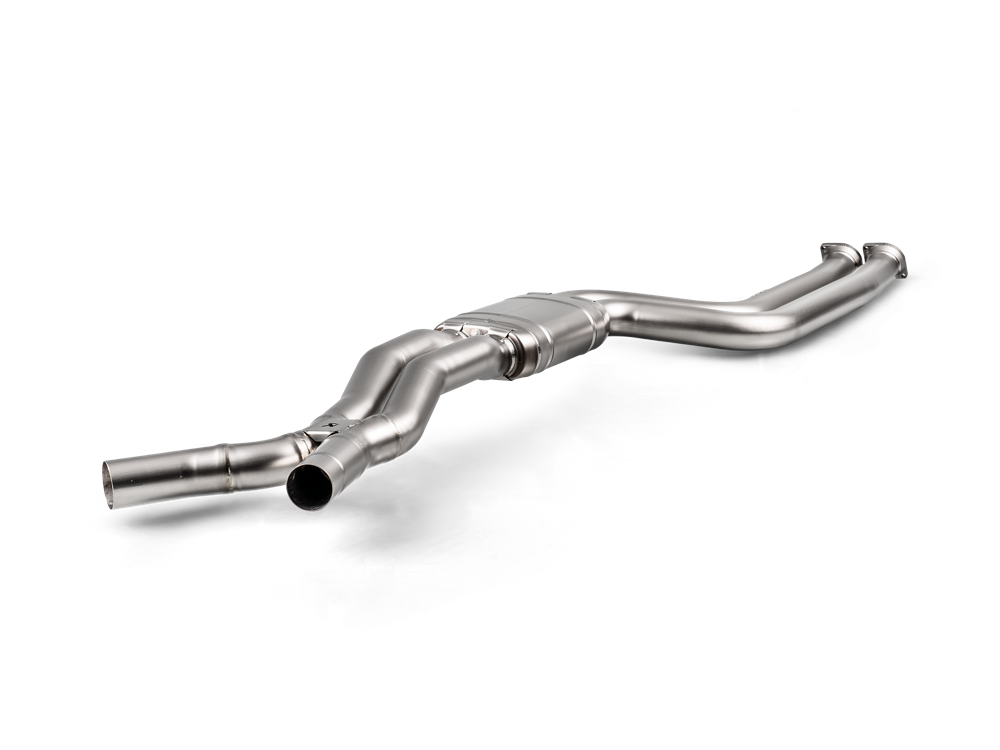

Akrapovic Evolution Link Pipe Set (Titanium) - BMW F87N M2 Competition (E-BM/T/5)

Evolution Link Pipe Set (Titanium) was tested and developed together with Slip-On Line (Titanium).

The system was developed on BMW M2 Competition (F87N) equipped with OPF/GPF, however it fits both versions (OPF and non OPF).

The Evolution link pipe set upgrades the Slip-On system to the Evolution system, which consists of a slip-on rear muffler and larger Evolution link pipe tubes with a middle muffler, all designed to make the performance and workmanship of the complete system as perfect as it looks. It is crafted entirely from titanium. The whole system is designed to provide the smoothest flow. The power and torque gains of the M2 Competition with the combination of the Slip-On Line system and Evolution link pipe set are guaranteed. In-depth engineering has produced a unique sound profile, distinctly different from the stock system, yielding a deep and sporty sound with no unwanted overtones or drone and an almost racing sound, as well as a significant change to the sound with the valves in the open or closed positions.

The control kit to optimize the balance between sportiness and comfort is included, together with the receiver and Sound Remote controller (or smartphone app) to regulate the valves. When installed in combination with BMW M2 CS Slip-On (S-BM/T/26H), the Slip-On´s Control Kit module P-HF1386 must be installed with the Link Pipe Set´s receiver and Key Fob.

When installing the Akrapovic Evolution link pipe set, remapping the ECU is mandatory in order to prevent potential “check engine light” warning signals.

THIS PRODUCT DOES NOT MEET EMISSION COMPLIANCE REQUIREMENTS FOR STREET OR HIGHWAY USE.



Technical Data
Unit Stock Akrapovic Max gain
kW 302.4 / 5550 rpm 310.4 / 6850 rpm + 11.2 / 4800 rpm
HP (m) 411.1 / 5550 rpm 422.0 / 6850 rpm + 15.2 / 4800 rpm
HP (i) 405.5 / 5550 rpm 416.2 / 6850 rpm + 15.0 / 4800 rpm
Nm 570.7 / 2850 rpm 582.6 / 2900 rpm + 23.8 / 4650 rpm
lb-ft 420.9 / 2850 rpm 429.7 / 2900 rpm + 17.6 / 4650 rpm
kg 14.6 7.5 - 7.2
lb 32.2 16.4 - 15.8
% - 49.0
dB 83 / 3750 rpm 93 / 3750 rpm 10
min 90
Yes: For perfect performance, throttle response and durability, special developed mapping has to be used. Yes: For perfect performance, throttle response and durability, special developed mapping has to be used. Yes: For perfect performance, throttle response and durability, special developed mapping has to be used. Yes: For perfect performance, throttle response and durability, special developed mapping has to be used.

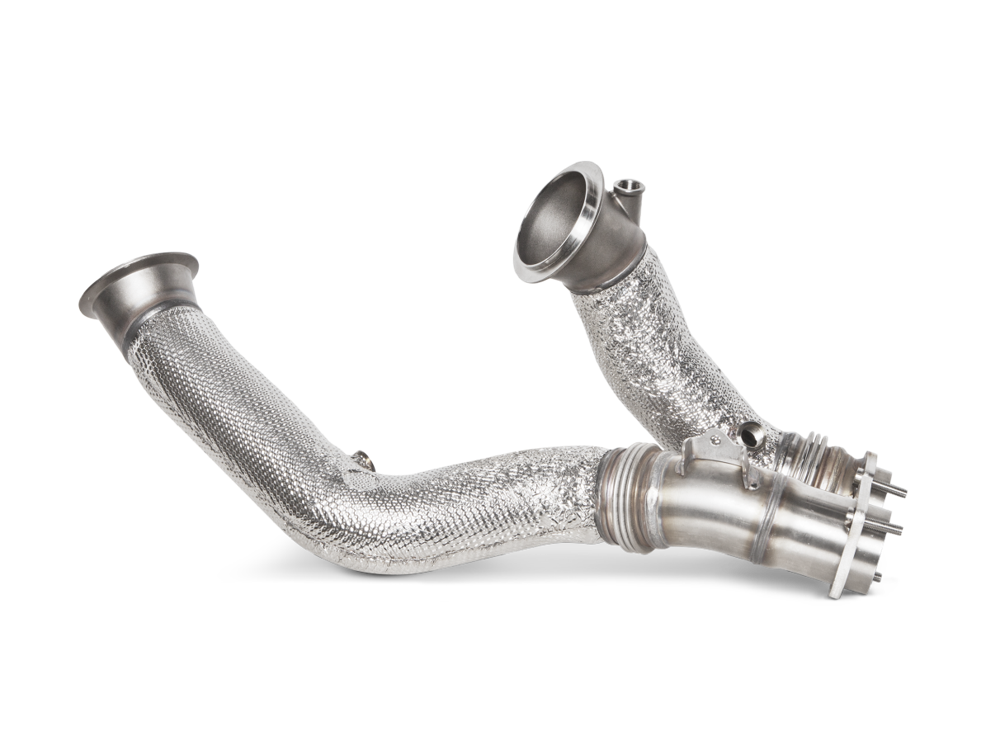

Akrapovic Downpipe (SS) for M2/M3/M4 (F8X) (DP-BM/SS/3)

Downpipe (SS) was tested and developed together with Evolution Line (Titanium) system.

For the ultimate in weight reduction, tuning potential, and racing sound, Akrapovic offers stainless steel, cat-less downpipes to make the BMW an even more powerful machine. This setup is intended for dedicated track-day cars and enthusiasts, and it will also add to the overall experience of what’s already a stunning performance car for any discerning driver. Delivering great sound, without creating unwanted cabin noise, these beautifully-crafted downpipes offer an upgrade to Akrapovic’s Evolution exhaust system.

When installing Akrapovic aftermarket optional down pipes , which are developed for use on closed tracks only, remapping the ECU is mandatory, in order to prevent potential »check engine light« warning signals.

Downpipes also fit to M3/M4 CS (Sport Club) and GTS version.

THIS PRODUCT DOES NOT MEET EMISSION COMPLIANCE REQUIREMENTS FOR STREET OR HIGHWAY USE.

Technical Data
Unit Stock Akrapovic Max gain
kW 343.0 / 6650 rpm 355.9 / 6550 rpm + 17.2 / 5800 rpm
HP (m) 466.3 / 6650 rpm 483.9 / 6550 rpm + 23.4 / 5800 rpm
HP (i) 459.9 / 6650 rpm 477.3 / 6550 rpm + 23.1 / 5800 rpm
Nm 584.9 / 4200 rpm 602.6 / 4950 rpm + 28.7 / 4950 rpm
lb-ft 431.4 / 4200 rpm 444.5 / 4950 rpm + 21.2 / 4950 rpm
kg 7.1 3.9 - 3.2
lb 15.7 8.6 - 7.1
% - 45.1
dB 94 / 3750 rpm 100.5 / 3750 rpm 6.5
min 60

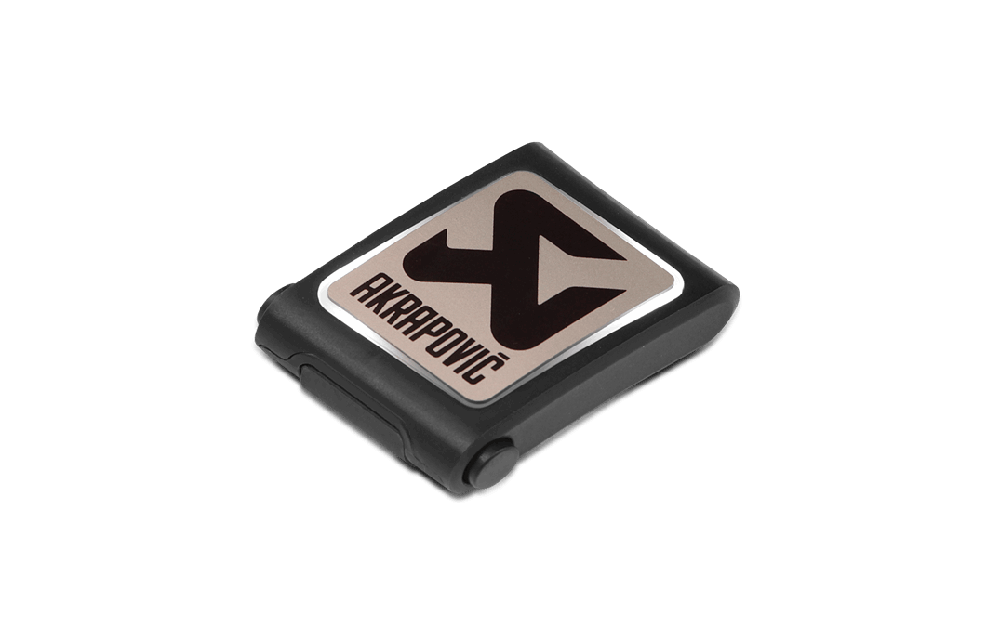

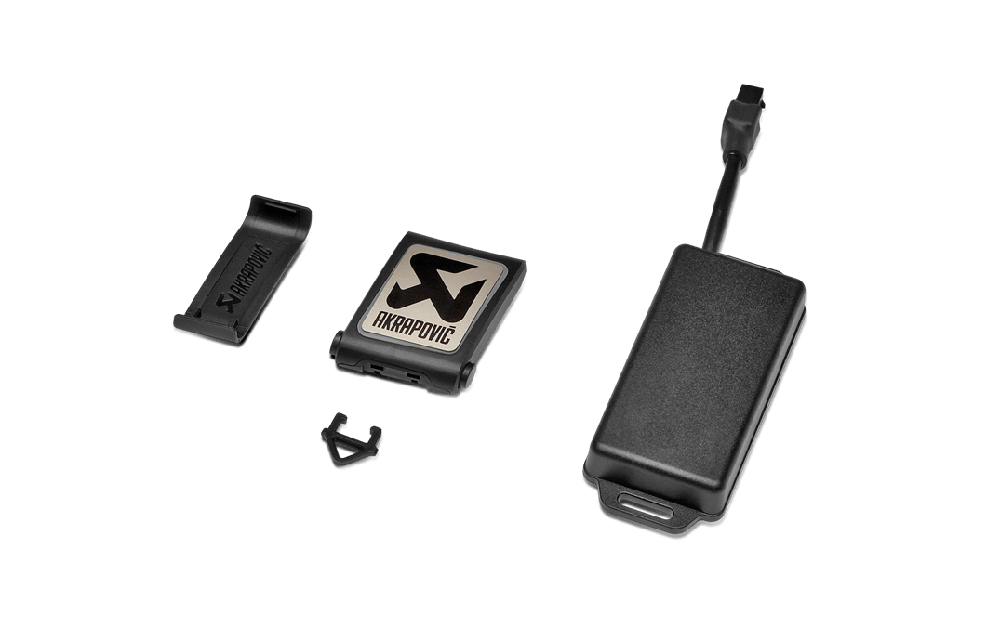

Akrapovic Sound Kit for BMW F87N M2 Competition (P-HF1177)

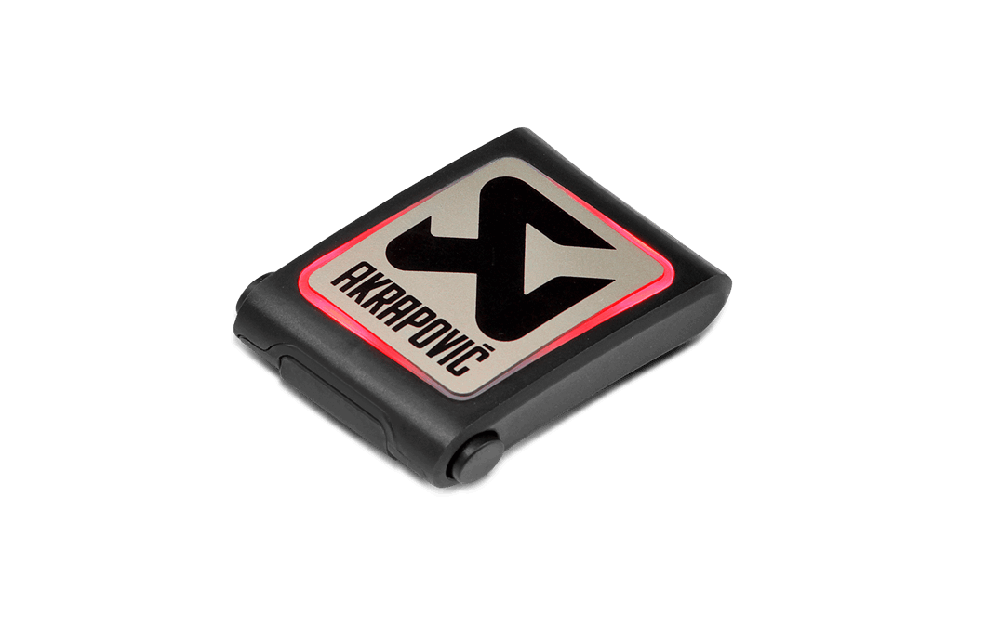

The optional Akrapovic Sound Kit enables owners of selected Akrapovic car exhausts to control the sound of the system from the cockpit of their machine. Using Akrapovic technology, drivers can easily switch between the quiet mode and a sportier sound. With the use of a receiver to drive the actuators that open or close the valves at the end of the exhaust system, drivers can use the Sound Remote Controller to regulate the valves.

Akrapovic Sound Kit P-HF1177 is developed for use with Slip-On Line (Titanium) only. If upgrading the slip-on system with evolution link pipe, specially developed Akrapovic Sound Kit is already included within the evolution link pipe set.

With the use of the optional Akrapovic Sound Kit, the ECE type approval is no longer valid.

Pictures are symbolic.

Technical Data
Unit Stock Akrapovic Max gain
min 30

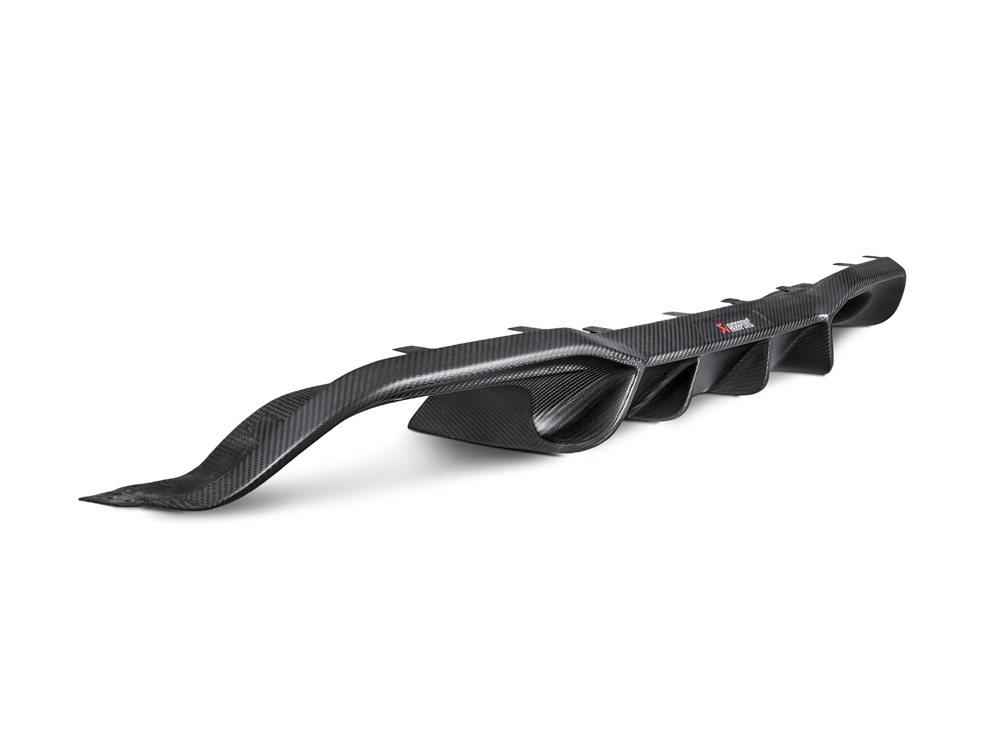

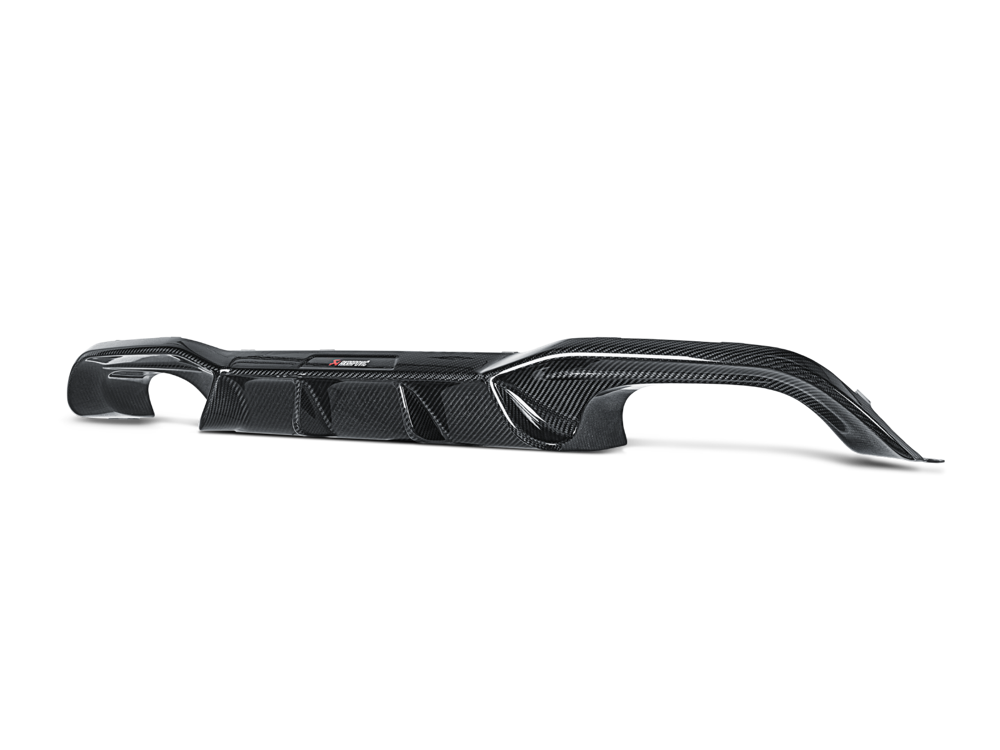

Akrapovic Rear Carbon Fibre Diffuser - Gloss for M2 (F87) (DI-BM/CA/3/G)

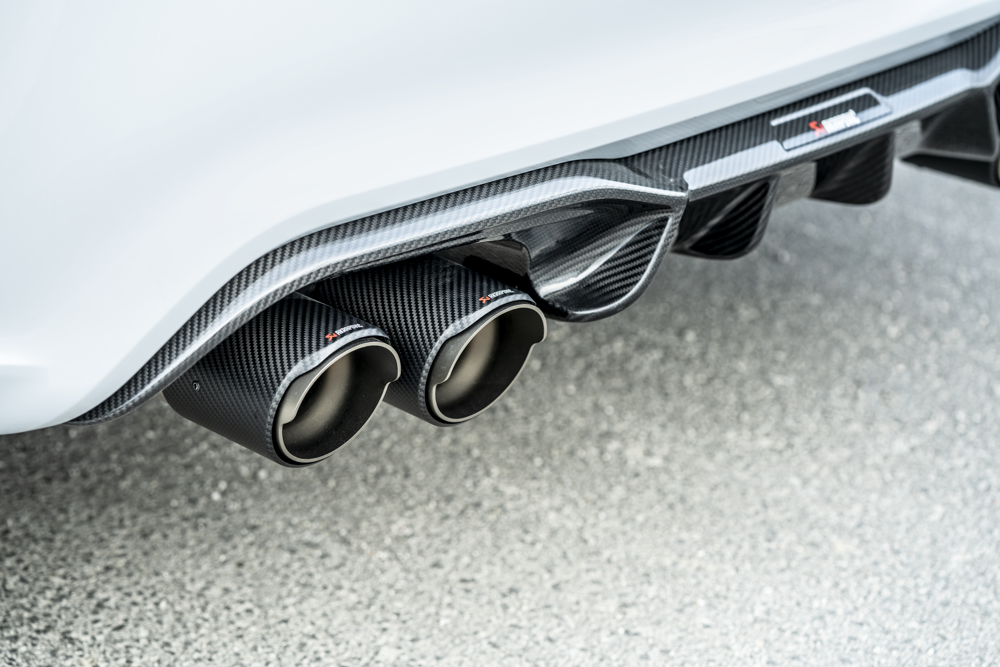

The stunning carbon fibre diffuser is offered as an option with the choice of a high-gloss or matt finish. It is a completely new design from the one that comes as standard on the car, and it gives the rear of the M2 a more aggressive and sporty feel. It shows off the tailpipes to their full extent and is a perfect accompaniment to the side mirror caps.

Technical Data
Unit Stock Akrapovic Max gain
kg 0.8 0.7 - 0.1
lb 1.8 1.5 - 0.3
% - 12.5
min 60.0

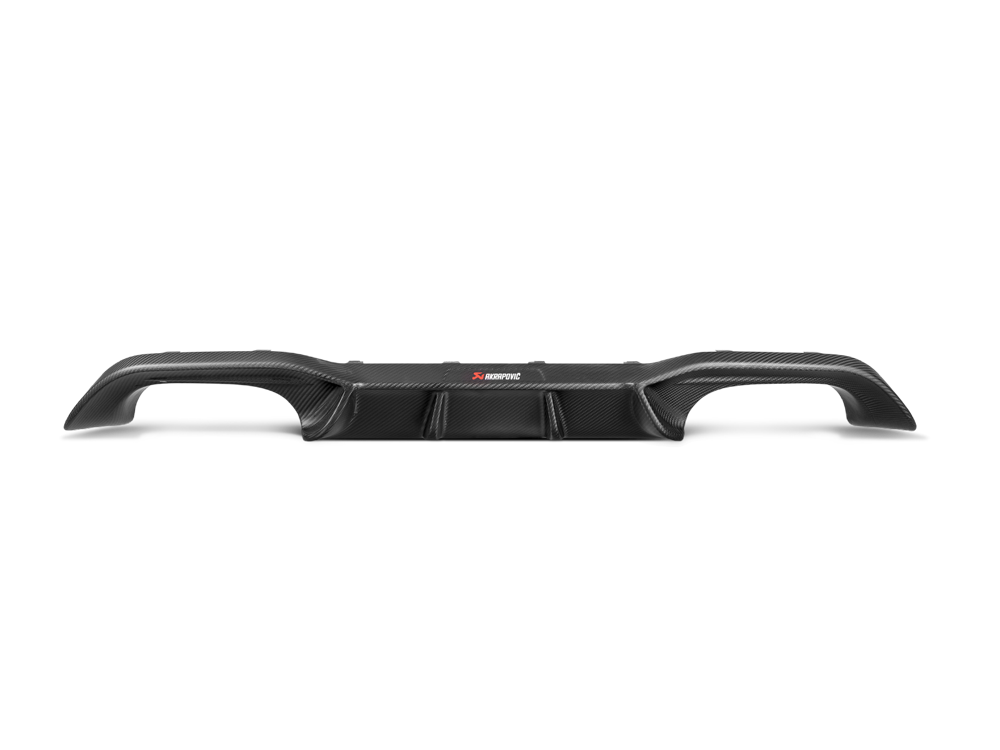

Akrapovic Rear Carbon Fibre Diffuser - Matte for M2 (F87) (DI-BM/CA/3/M)

The stunning carbon fibre diffuser is offered as an option with the choice of a high-gloss or matt finish. It is a completely new design from the one that comes as standard on the car, and it gives the rear of the M2 a more aggressive and sporty feel. It shows off the tailpipes to their full extent and is a perfect accompaniment to the side mirror caps.

Technical Data
Unit Stock Akrapovic Max gain
kg 0.8 0.7 - 0.1
lb 1.8 1.5 - 0.3
% - 12.5
min 60.0

Fitment

Fitment

Akrapovic Exhaust System for BMW M2 Competition (F87N) - AKRA-BMW-14-KIT

Primary Components Fitment:

S-BM/T/3H
  • BMW - M2 Competition (F87N) (2018 - 2020)
  • BMW - M2 Competition (F87N) - OPF/GPF (2018 - 2020)
  • BMW - M2 CS (F87N) (2020 - 2021)

Optional Components Fitment:

E-BM/T/5
  • BMW - M2 Competition (F87N) (2018 - 2020)
  • BMW - M2 Competition (F87N) - OPF/GPF (2018 - 2020)
  • BMW - M2 CS (F87N) (2020 - 2021)
  • BMW - M2 CS (F87N) - OPF/GPF (2020 - 2021)
DP-BM/SS/3
  • BMW - M4 (F82, F83) - OPF/GPF (2018 - 2020)
  • BMW - M2 Competition (F87N) (2018 - 2020)
  • BMW - M2 Competition (F87N) - OPF/GPF (2018 - 2020)
  • BMW - M2 CS (F87N) (2020 - 2021)
  • BMW - M2 CS (F87N) - OPF/GPF (2020 - 2021)
  • BMW - M3 (F80) (2014 - 2018)
  • BMW - M4 (F82, F83) (2014 - 2020)
P-HF1177
  • BMW - M2 Competition (F87N) (2018 - 2020)
  • BMW - M2 Competition (F87N) - OPF/GPF (2018 - 2020)
  • BMW - M2 CS (F87N) (2020 - 2021)
DI-BM/CA/3/G
  • BMW - M2 Competition (F87N) (2018 - 2020)
  • BMW - M2 Competition (F87N) - OPF/GPF (2018 - 2020)
  • BMW - M2 CS (F87N) (2020 - 2021)
  • BMW - M2 CS (F87N) - OPF/GPF (2020 - 2021)
  • BMW - M2 (F87) (2016 - 2017)
DI-BM/CA/3/M
  • BMW - M2 Competition (F87N) (2018 - 2020)
  • BMW - M2 Competition (F87N) - OPF/GPF (2018 - 2020)
  • BMW - M2 CS (F87N) (2020 - 2021)
  • BMW - M2 CS (F87N) - OPF/GPF (2020 - 2021)
  • BMW - M2 (F87) (2016 - 2017)

Media

Media

Akrapovic Exhaust System for BMW M2 Competition (F87N) (Includes OPF/GPF) - AKRA-BMW-14-KIT


Primary Components:

Akrapovic Slip-On Line (Titanium) for BMW F87N M2 Competition / M2CS (S-BM/T/3H)
Schematic new version:
ECE Type-Approval Certificate:
Performance graph:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
POS HF:

STOCK EXHAUST; BMW M2 COMPETITION

SLIP-ON; BMW M2 COMPETITION

Optional Components:

Akrapovic Evolution Link Pipe Set (Titanium) - BMW F87N M2 Competition (E-BM/T/5)
Schematic new version:
Installation instructions - EN:
Performance graph:
POS HF:

STOCK EXHAUST; BMW M2 COMPETITION

EVOLUTION LINK PIPE SET; BMW M2 COMPETITION

Akrapovic Downpipe (SS) for M2/M3/M4 (F8X) (DP-BM/SS/3)
Schematic new version:
Performance graph:
Installation instructions - EN:
POS HF:

DOWNPIPE; BMW M4

STOCK EXHAUST; BMW M4

Akrapovic Sound Kit for BMW F87N M2 Competition (P-HF1177)
Schematic new version:
User manual - EN:
User manual - DE, IT, FR, ES, PT, SI:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
User manual - EN:
POS HF:
Akrapovic Rear Carbon Fibre Diffuser - Gloss for M2 (F87) (DI-BM/CA/3/G)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
ABE Type-Approval Certificate:
POS HF:
Akrapovic Rear Carbon Fibre Diffuser - Matte for M2 (F87) (DI-BM/CA/3/M)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
ABE Type-Approval Certificate:
POS HF:
