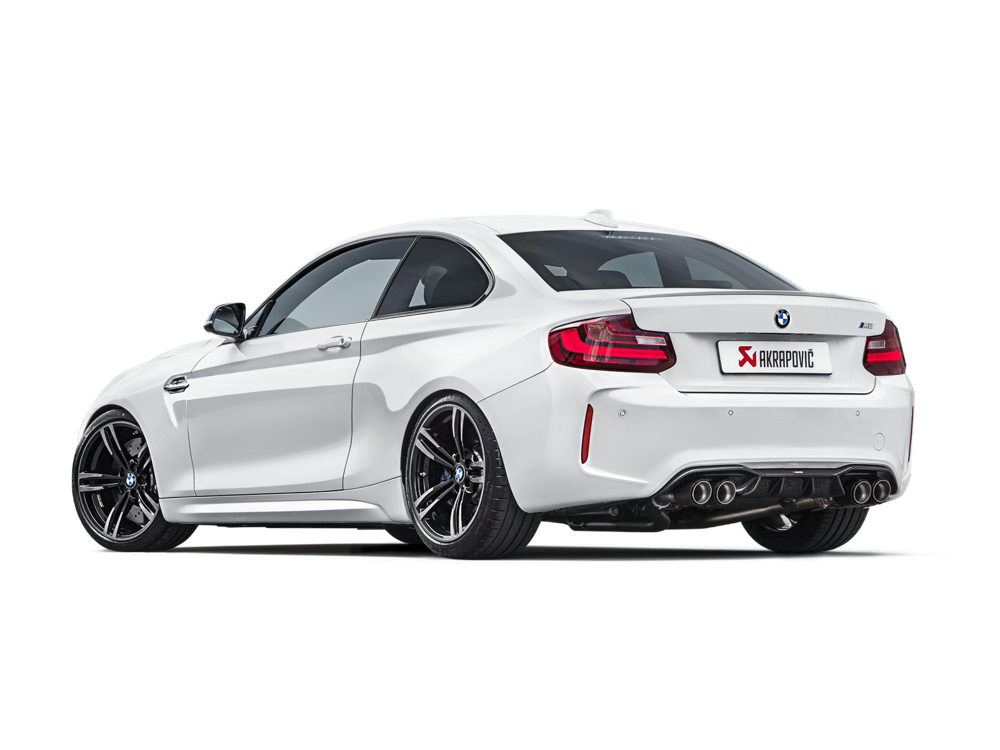

Akrapovic Exhaust System for BMW M2 (F87)

ME-BM/T/8H-KIT

Stock: Backorder Available

AU$12,099.00 Inc GST
Please make selections below to see final price

Optional Product




Description

Description

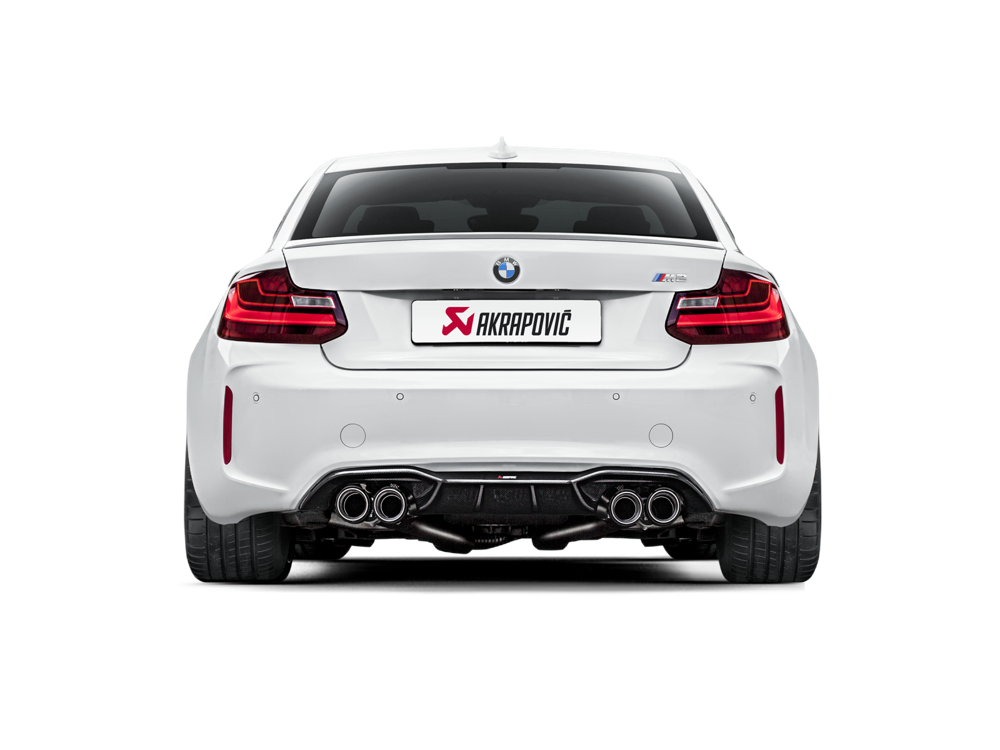

Akrapovic Exhaust System for BMW M2 (F87)

Primary Components:

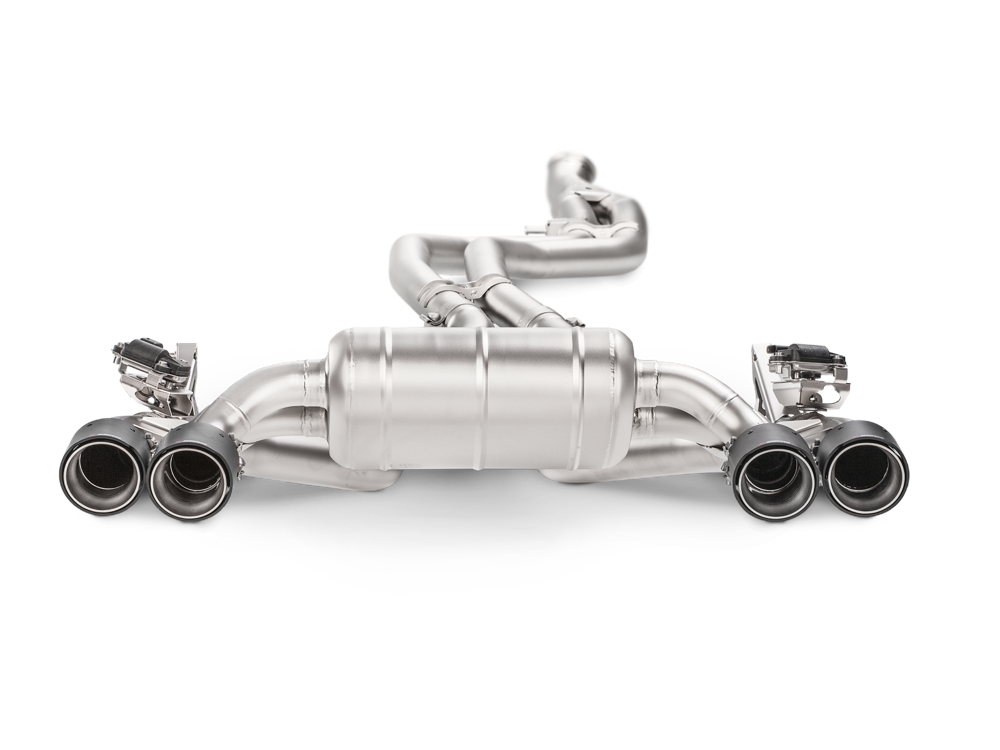

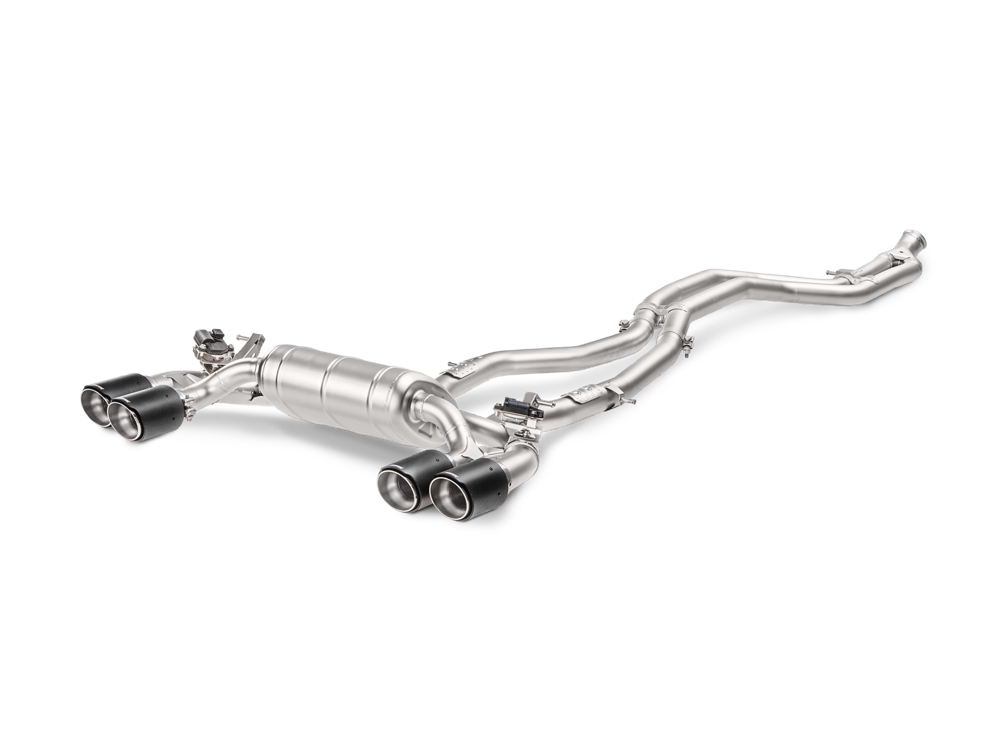

Akrapovic Evolution Line (Titanium) for BMW M2 F87 (ME-BM/T/8H)

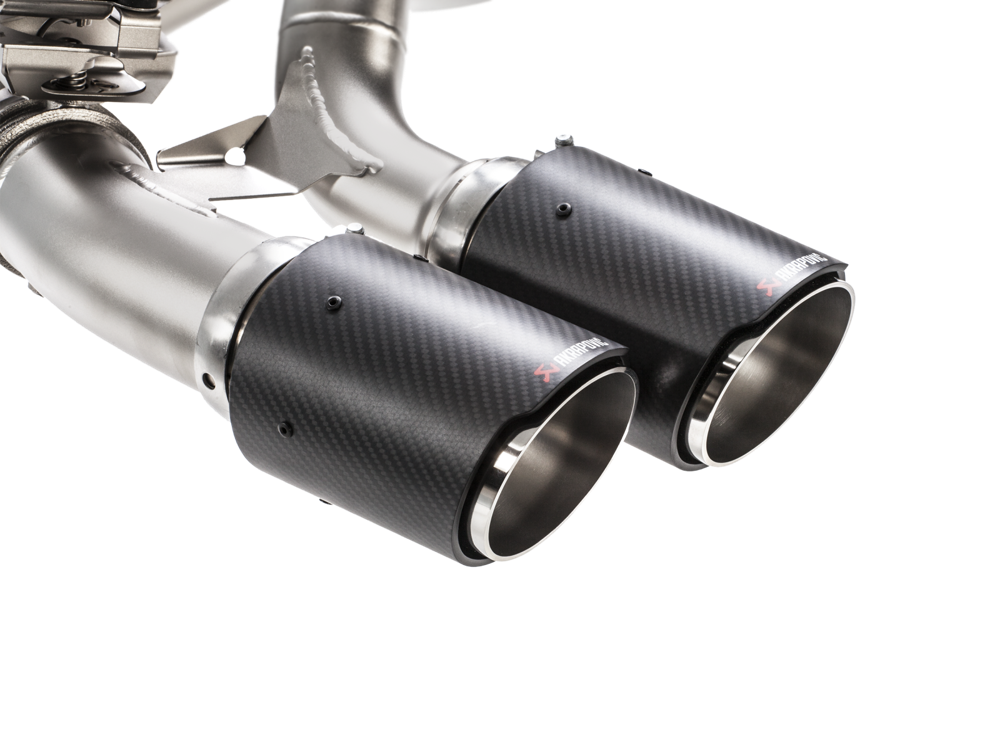

Made from ultra-lightweight high-grade titanium, which will lower the overall weight of the car and improve handling. This perfectly finished ECE-approved system has been tuned to get the most from the TwinPower Turbo six-cylinder engine of the M2 and is designed to deliver more power all the way across the rev range. This new system features two separate tubes from the downpipe to the muffler – unlike the car’s original single-tube configuration. It is perfectly routed and shaped to provide optimum gas flow from the M2’s stunning engine and deliver a noticeable performance increase. The sound has also been enhanced by Akrapovic’s engineers; the unique external sound is higher in pitch, giving a true racing feel in the upper rpm range. The Evolution Line is perfect for everyday use, with low-rpm driving smooth and refined, but still showing the true potential of the system – and, when higher revs are hit and the valves are permanently open, the sound has an exciting racing tone. A simple plug-and-play system offers a superb addition to improve the performance of the BMW M2. Carbon-fibre tailpipes give an added look to the rear of the M2, to display its sporting potential. Performance can be further increased with the addition of the optional downpipes, which can be purchased with or without cats. To set off the system to its visual best, optional parts are also available.

Fitment notice: This system does not fit on vehicles equipped with Otto particulate filter (OPF).

Technical Data
Unit Stock Akrapovic Max gain
kW 284.3 / 5500 rpm 290.2 / 6050 rpm + 6.8 / 6150 rpm
HP (m) 386.5 / 5500 rpm 394.5 / 6050 rpm + 9.3 / 6150 rpm
HP (i) 381.2 / 5500 rpm 389.1 / 6050 rpm + 9.2 / 6150 rpm
Nm 558.8 / 2500 rpm 564.0 / 2600 rpm + 8.8 / 4300 rpm
lb-ft 412.1 / 2500 rpm 416.0 / 2600 rpm + 6.5 / 4300 rpm
kg 21.7 16.4 - 5.3
lb 47.8 36.2 - 11.6
% - 24.4
min 180

Optional Components:

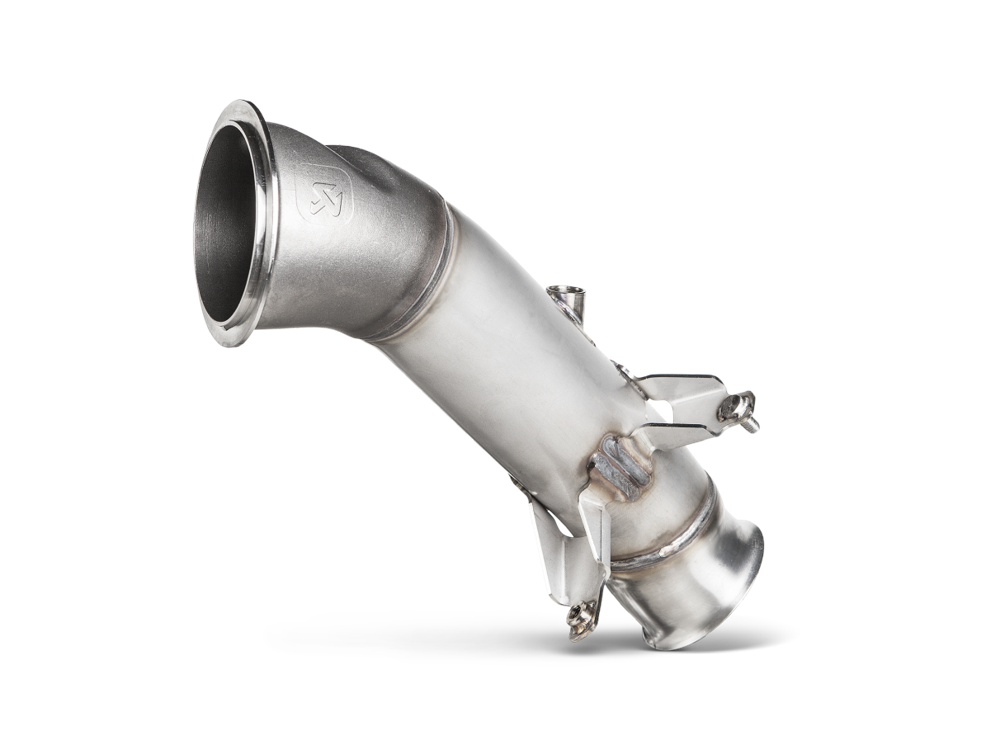

Akrapovic Downpipe w/o Cat (SS) for BMW F87 M2 (DP-BM/SS/4)

Downpipe w Cat (SS) was tested and developed

together with Evolution Line (Titanium) system.

The next step in the exhaust-tuning process is the addition of a stainless-steel downpipe without a catalytic converter. This will provide the best sound optimisation and increase the performance of the car. Designed primarily for track use, the ECU will need to be remapped when this downpipe is fitted to the Evolution Line exhaust system.



THIS PRODUCT DOES NOT MEET EMISSION COMPLIANCE REQUIREMENTS FOR STREET OR HIGHWAY USE.

Technical Data
Unit Stock Akrapovic Max gain
kg 3.4 1.7 - 1.7
lb 7.5 3.7 - 3.8
% - 50.0
min 120.0

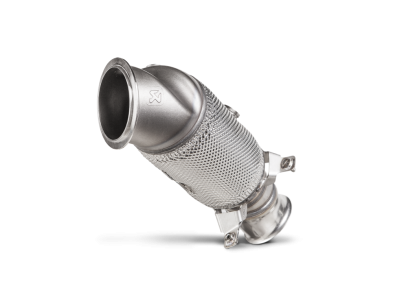

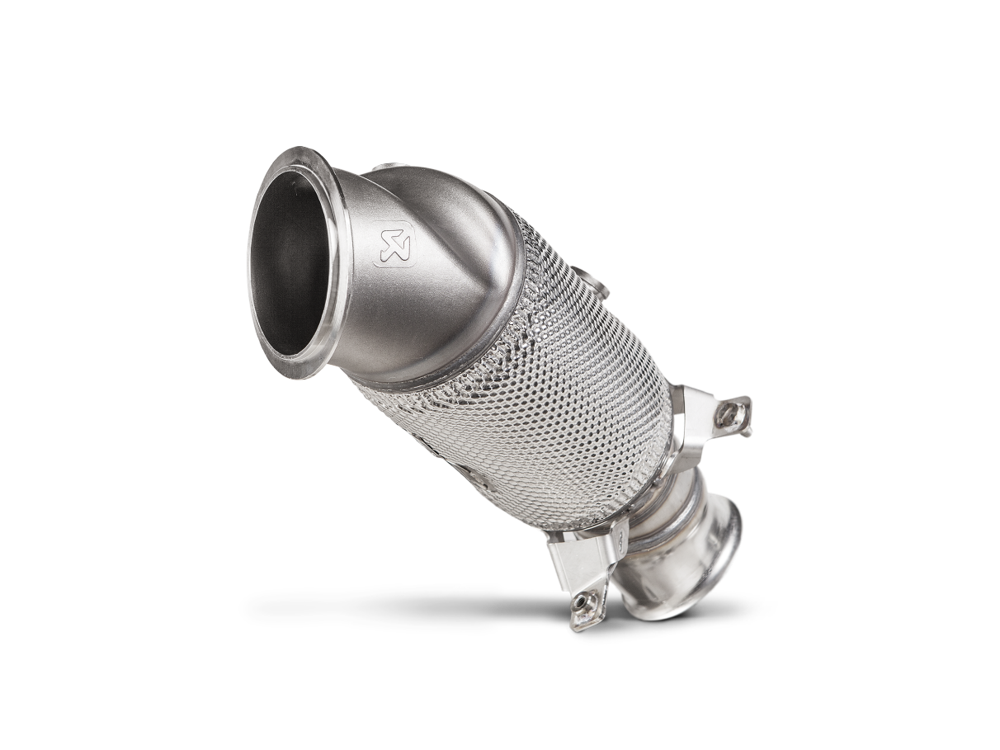

Akrapovic Downpipe w Cat (SS) for BMW F87 M2 (DP-BM/SS/4/H)

Downpipe w Cat (SS) was tested and developed together with Evolution Line (Titanium) system.

Made from high-quality stainless steel and fitted with a sporty catalytic converter, no remapping is needed for this performance upgrade. The high-flow downpipe produces an enhanced sound that delivers a pure racing emotion and fantastic feedback at high revs, without any unwanted drone.





Technical Data
Unit Stock Akrapovic Max gain
kW 284.3 / 6000 rpm 292.2 / 6100 rpm + 9.6 / 6200 rpm
HP (m) 386.5 / 6000 rpm 397.3 / 6100 rpm + 13.1 / 6200 rpm
HP (i) 381.2 / 6000 rpm 391.9 / 6100 rpm + 12.9 / 6200 rpm
Nm 558.8 / 2500 rpm 563.6 / 2600 rpm + 21.7 / 4300 rpm
lb-ft 412.1 / 2500 rpm 415.7 / 2600 rpm + 16.0 / 4300 rpm
min 120

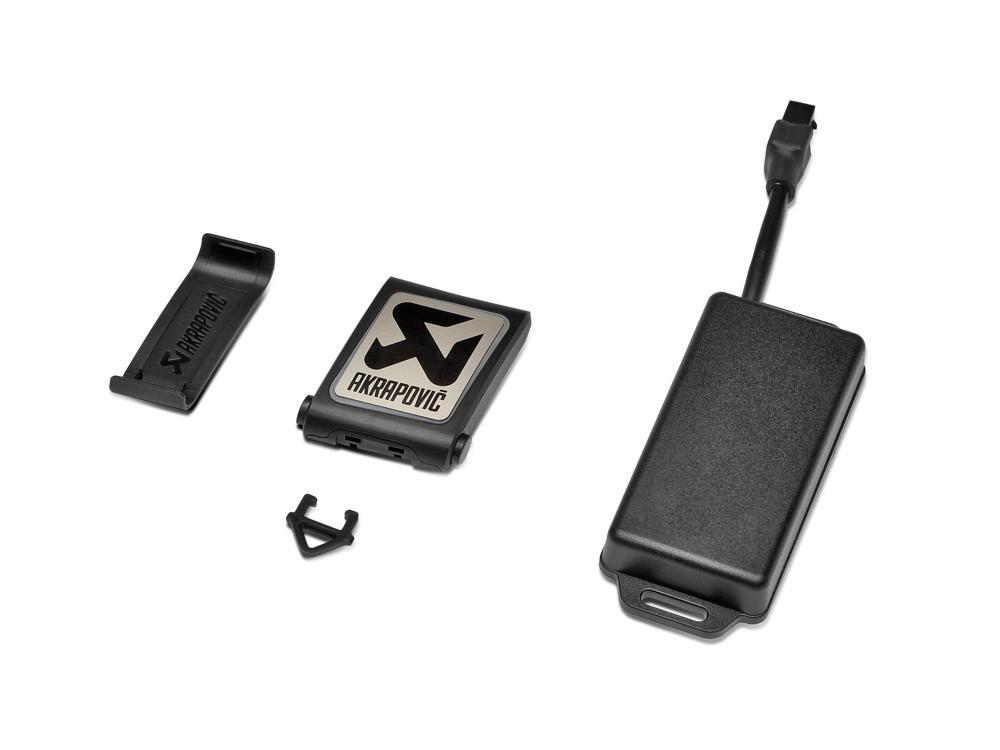

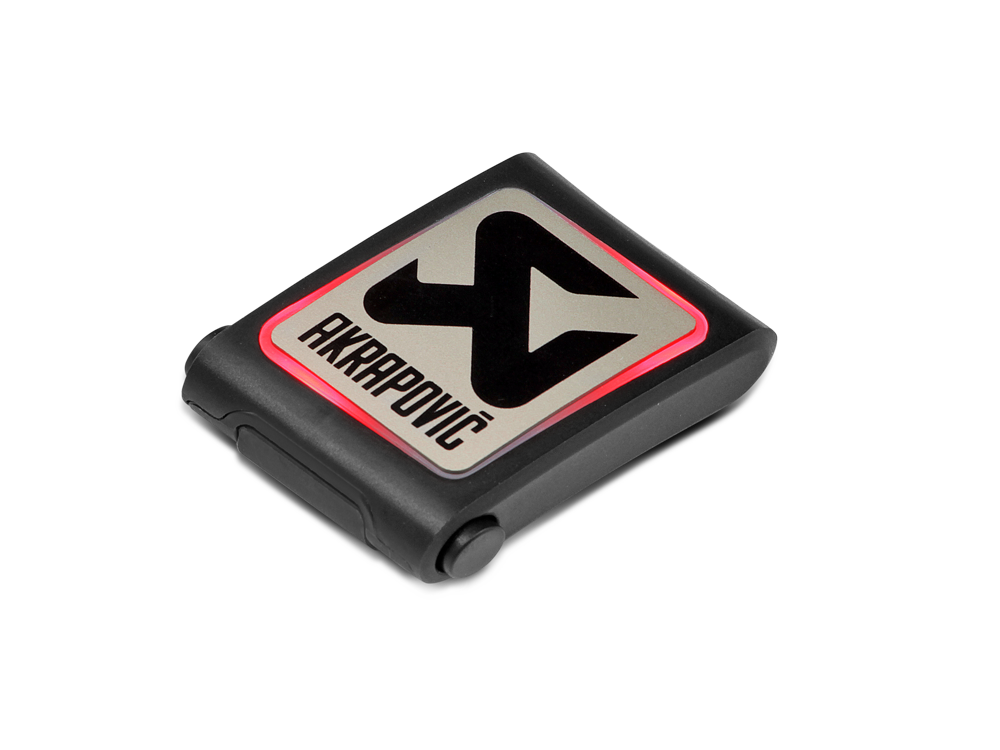

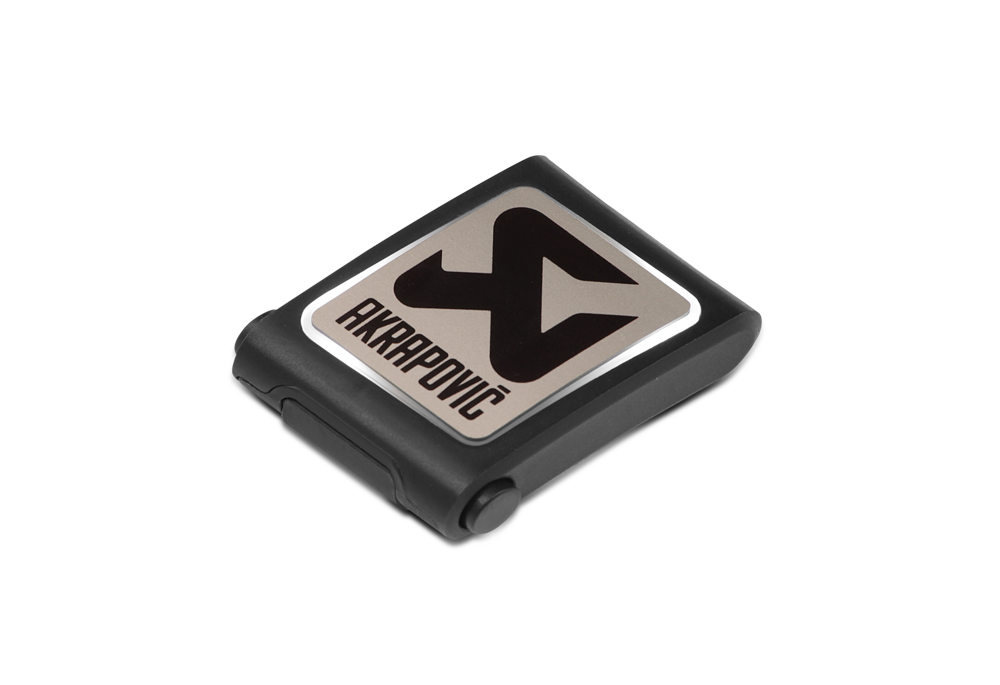

Akrapovic Sound Kit for BMW M2 (F87) (P-HF977)

The sound of the superb Evolution Line (Titanium) exhaust system can be further controlled by adding the optional Akrapovic Sound Kit. This easy-to-install option makes possible louder or quieter settings of the Evolution Line. It has a special program for valve management (in quiet and loud mode) that is different from the stock version and controls the valves according to rpm, gear, and car mode.

Pictures are symbolic.

Technical Data
Unit Stock Akrapovic Max gain
min 60

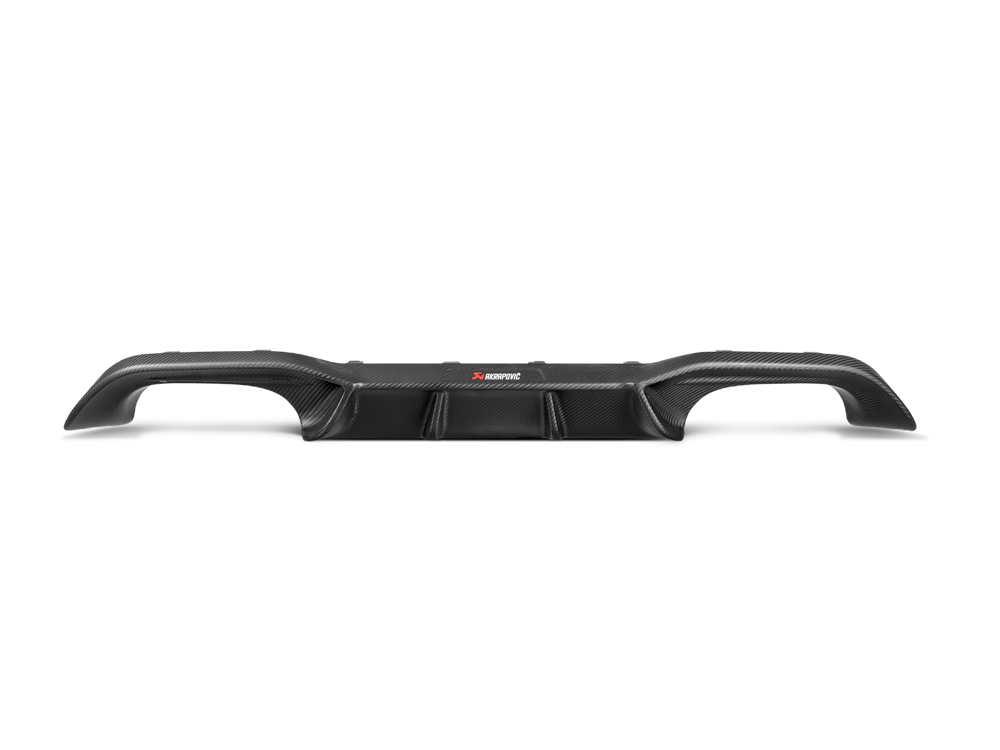

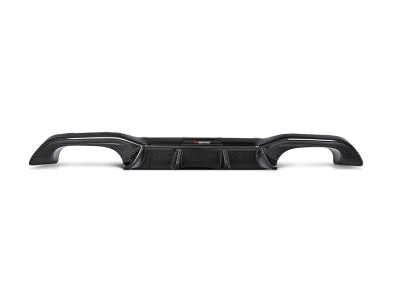

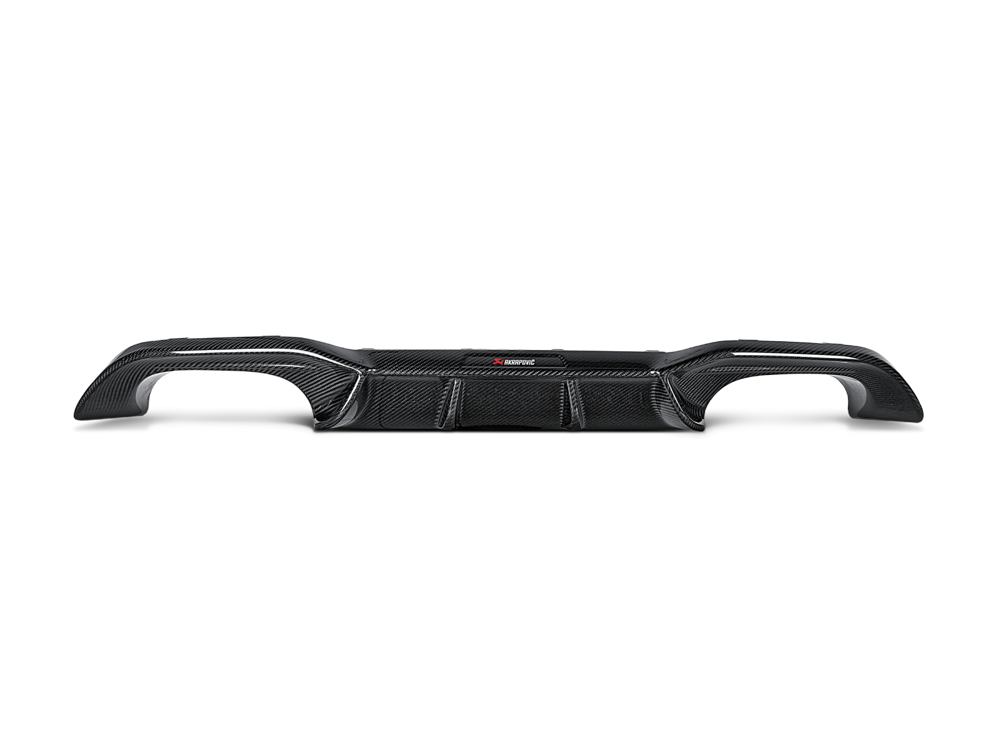

Akrapovic Rear Carbon Fibre Diffuser - Gloss for M2 (F87) (DI-BM/CA/3/G)

The stunning carbon fibre diffuser is offered as an option with the choice of a high-gloss or matt finish. It is a completely new design from the one that comes as standard on the car, and it gives the rear of the M2 a more aggressive and sporty feel. It shows off the tailpipes to their full extent and is a perfect accompaniment to the side mirror caps.

Technical Data
Unit Stock Akrapovic Max gain
kg 0.8 0.7 - 0.1
lb 1.8 1.5 - 0.3
% - 12.5
min 60.0

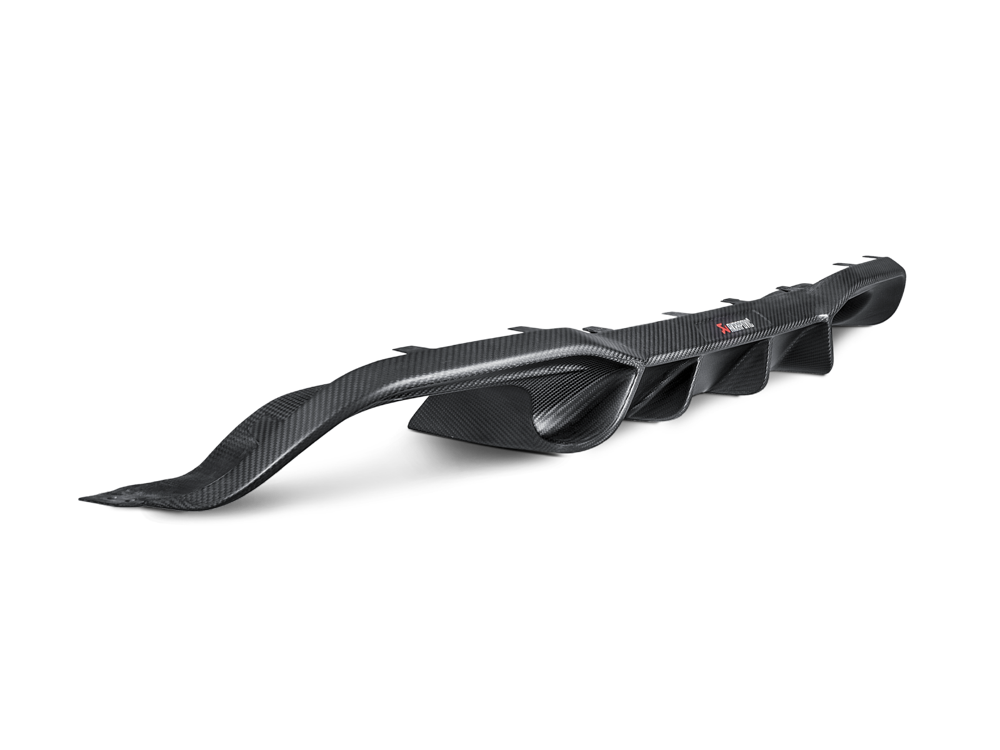

Akrapovic Rear Carbon Fibre Diffuser - Matte for M2 (F87) (DI-BM/CA/3/M)

The stunning carbon fibre diffuser is offered as an option with the choice of a high-gloss or matt finish. It is a completely new design from the one that comes as standard on the car, and it gives the rear of the M2 a more aggressive and sporty feel. It shows off the tailpipes to their full extent and is a perfect accompaniment to the side mirror caps.

Technical Data
Unit Stock Akrapovic Max gain
kg 0.8 0.7 - 0.1
lb 1.8 1.5 - 0.3
% - 12.5
min 60.0

Fitment

Fitment

Akrapovic Exhaust System for BMW M2 (F87) - AKRA-BMW-17-KIT

Primary Components Fitment:

ME-BM/T/8H
  • BMW - M2 (F87) (2016 - 2017)

Optional Components Fitment:

DP-BM/SS/4
  • BMW - M2 (F87) (2016 - 2017)
DP-BM/SS/4/H
  • BMW - M2 (F87) (2016 - 2017)
P-HF977
  • BMW - M2 (F87) (2016 - 2017)
DI-BM/CA/3/G
  • BMW - M2 Competition (F87N) (2018 - 2020)
  • BMW - M2 Competition (F87N) - OPF/GPF (2018 - 2020)
  • BMW - M2 CS (F87N) (2020 - 2021)
  • BMW - M2 CS (F87N) - OPF/GPF (2020 - 2021)
  • BMW - M2 (F87) (2016 - 2017)
DI-BM/CA/3/M
  • BMW - M2 Competition (F87N) (2018 - 2020)
  • BMW - M2 Competition (F87N) - OPF/GPF (2018 - 2020)
  • BMW - M2 CS (F87N) (2020 - 2021)
  • BMW - M2 CS (F87N) - OPF/GPF (2020 - 2021)
  • BMW - M2 (F87) (2016 - 2017)

Media

Media

Akrapovic Exhaust System for BMW M2 (F87) - AKRA-BMW-17-KIT


Primary Components:

Akrapovic Evolution Line (Titanium) for BMW M2 F87 (ME-BM/T/8H)
Schematic new version:
Performance graph:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
ECE Type-Approval Certificate:
User manual - EN - Operating of the valves:
POS HF:

STOCK EXHAUST; BMW M2 (F87)

EVOLUTION; BMW M2 (F87)

Optional Components:

Akrapovic Downpipe w/o Cat (SS) for BMW F87 M2 (DP-BM/SS/4)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
POS HF:

STOCK EXHAUST; BMW M2 (F87)

DOWNPIPE W/O CAT; BMW M2 (F87)

Akrapovic Downpipe w Cat (SS) for BMW F87 M2 (DP-BM/SS/4/H)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
POS HF:

STOCK EXHAUST; BMW M2 (F87)

DOWNPIPE W CAT; BMW M2 (F87)

Akrapovic Sound Kit for BMW M2 (F87) (P-HF977)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
User manual - EN:
User manual - DE, IT, FR, ES, PT, SI:
POS HF:
Akrapovic Rear Carbon Fibre Diffuser - Gloss for M2 (F87) (DI-BM/CA/3/G)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
ABE Type-Approval Certificate:
POS HF:
Akrapovic Rear Carbon Fibre Diffuser - Matte for M2 (F87) (DI-BM/CA/3/M)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
ABE Type-Approval Certificate:
POS HF:
