Akrapovic Exhaust System for BMW M4 (F82, F83) OPF/GPF

S-BM/T/4H-KIT

Stock: Backorder Available

AU$10,489.00 Inc GST
Please make selections below to see final price

Mandatory Product


Optional Product




Description

Description

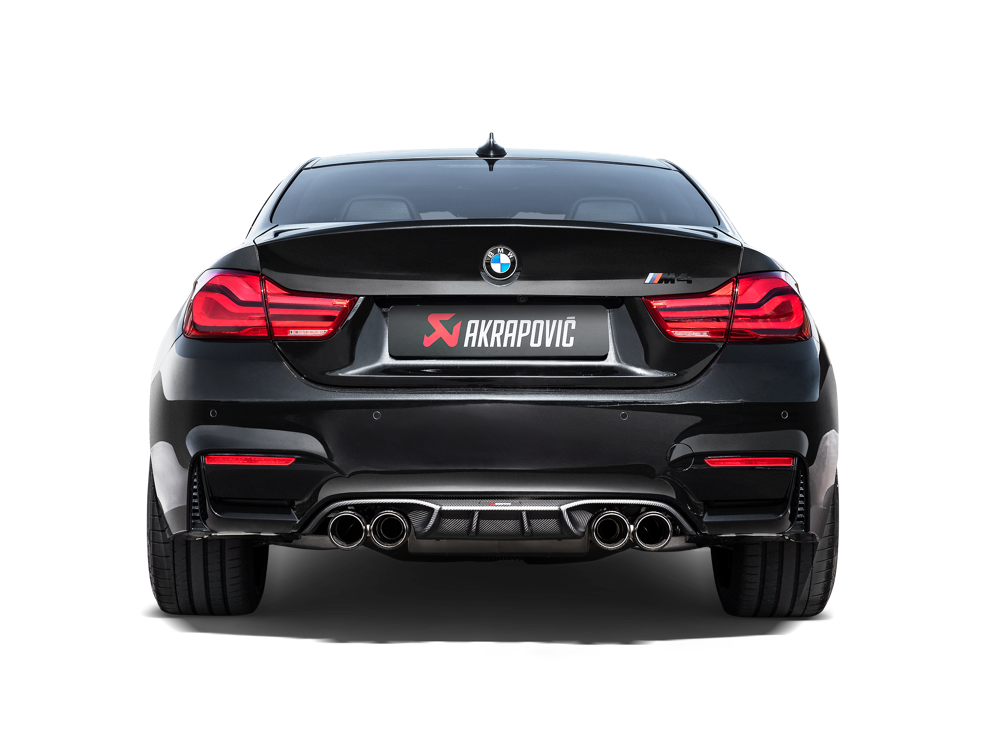

Akrapovic Exhaust System for BMW M4 (F82, F83) OPF/GPF

Primary Components:

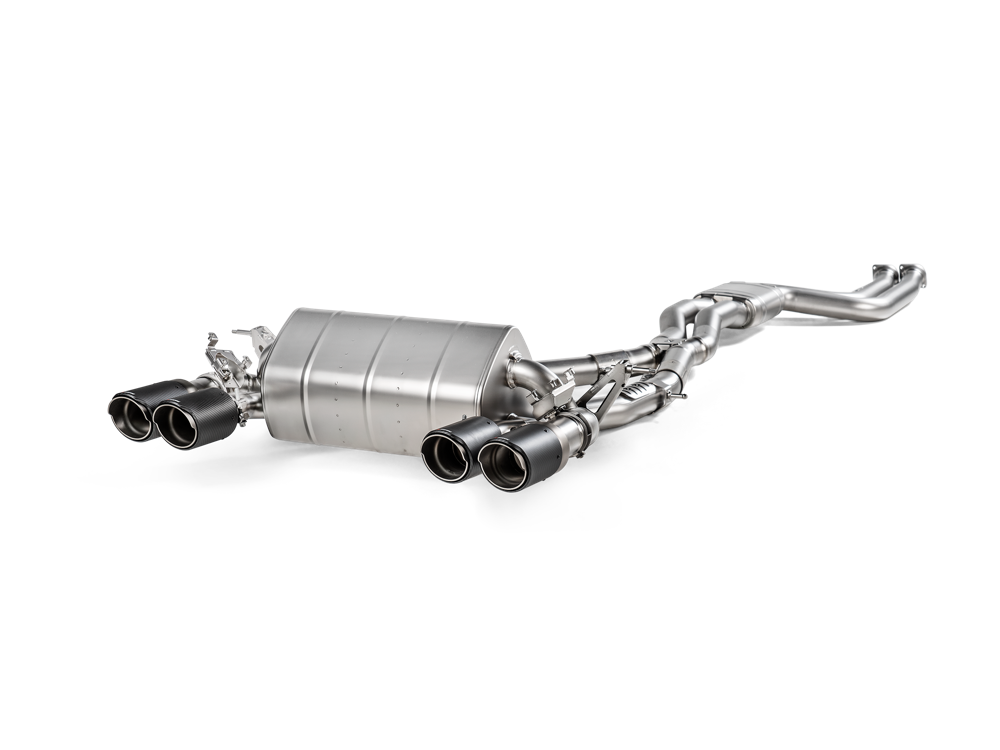

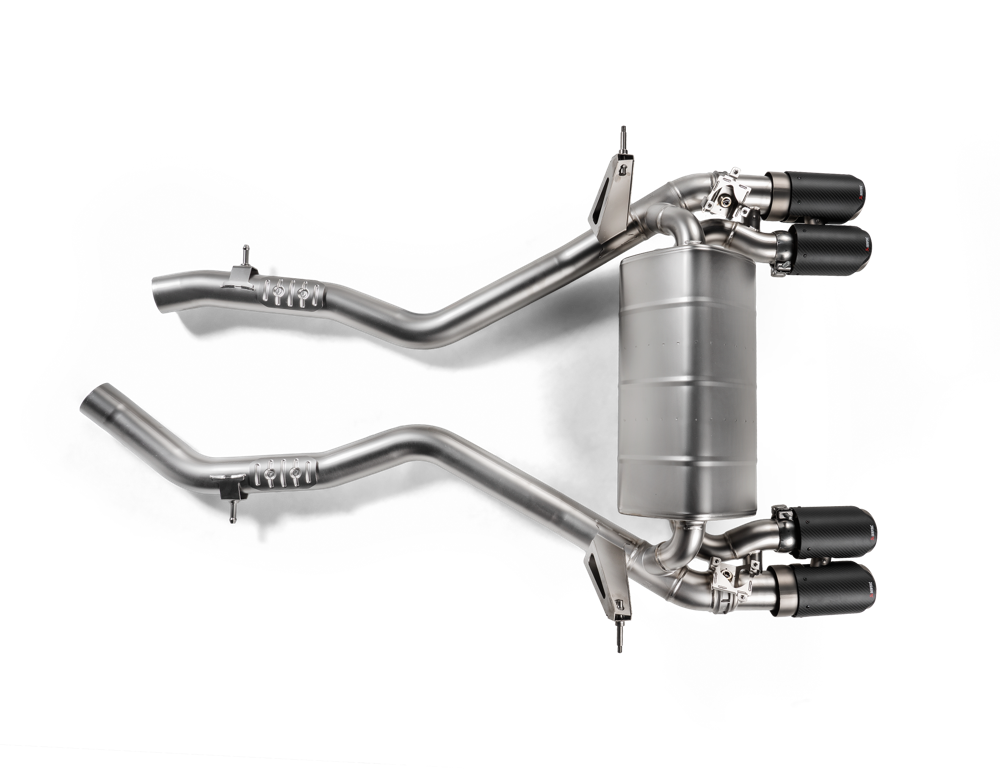

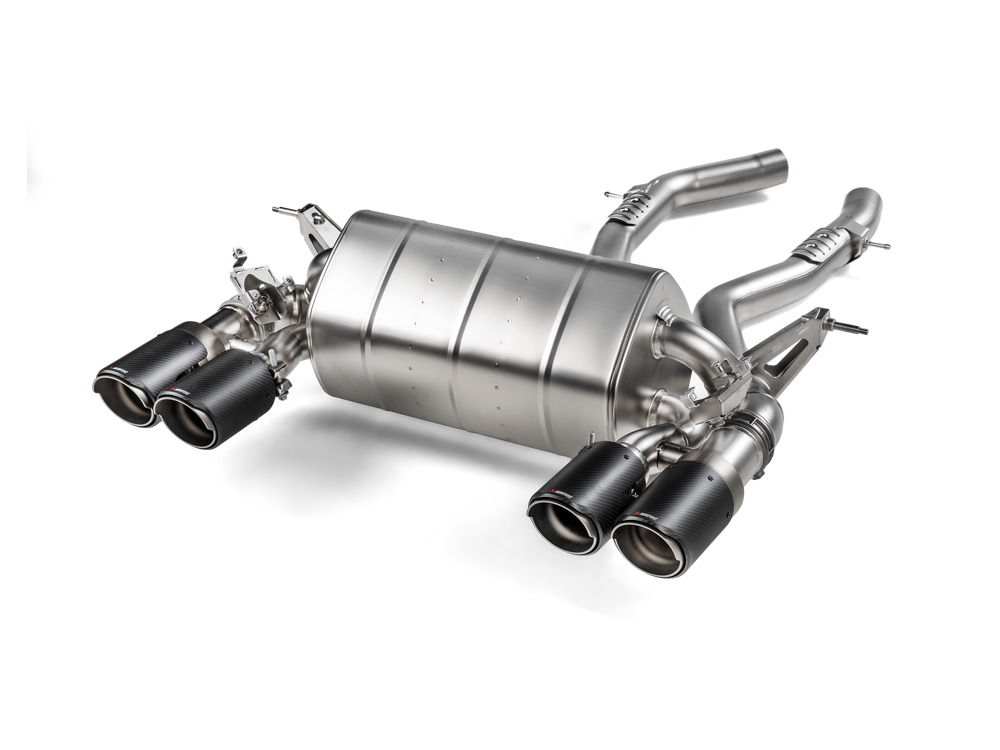

Akrapovic Slip-On Line (Titanium) for OPF BMW M4 (F82, F83) (S-BM/T/4H)

Constructed from lightweight high-grade titanium – with complex parts made in Akrapovic’s in-house foundry – the Slip-On Line provides over 45 % weight saving over the stock system. It is fully ECE compliant. The system is tuned to provide a perfect sound accompaniment inside as well as outside the car's cabin and is perfectly finished with hand-crafted carbon-fibre tailpipes to offer a beautiful visual appeal. To set off the system to its visual best, optional carbon-fibre diffusers and mirror caps are also available.

The optional Akrapovic Sound Kit (P-HF1194) is also available. If upgrading the slip-on system with evolution link pipe, the optional Akrapovic Sound Kit P-HF1194 is not needed - specially developed Akrapovic Sound Kit is already included within the evolution link pipe set. With the use of optional Akrapovic Sound Kit, the ECE homologation is not valid anymore.

For installing the slip-on system, the stock exhaust system has to be cut. Please read the instructions carefully before the start of the installation.

Technical Data
Unit Stock Akrapovic Max gain
kW 328.5 / 6600 rpm 328.8 / 6700 rpm + 2.5 / 5450 rpm
HP (m) 446.7 / 6600 rpm 447.1 / 6700 rpm + 3.4 / 5450 rpm
HP (i) 440.6 / 6600 rpm 441.0 / 6700 rpm + 3.4 / 5450 rpm
Nm 587.1 / 2850 rpm 583.0 / 2900 rpm + 4.3 / 3900 rpm
lb-ft 433.0 / 2850 rpm 430.0 / 2900 rpm + 3.2 / 3900 rpm
kg 20.6 11.6 - 9.0
lb 45.4 25.6 - 19.8
% - 43.7
min 180

Mandatory Components:

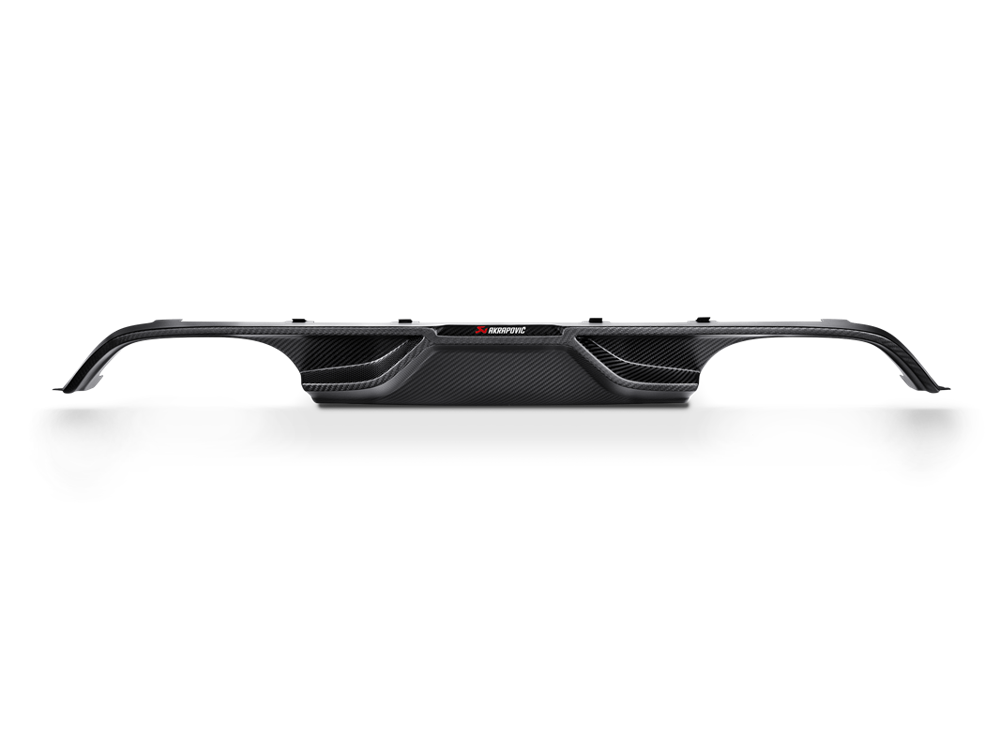

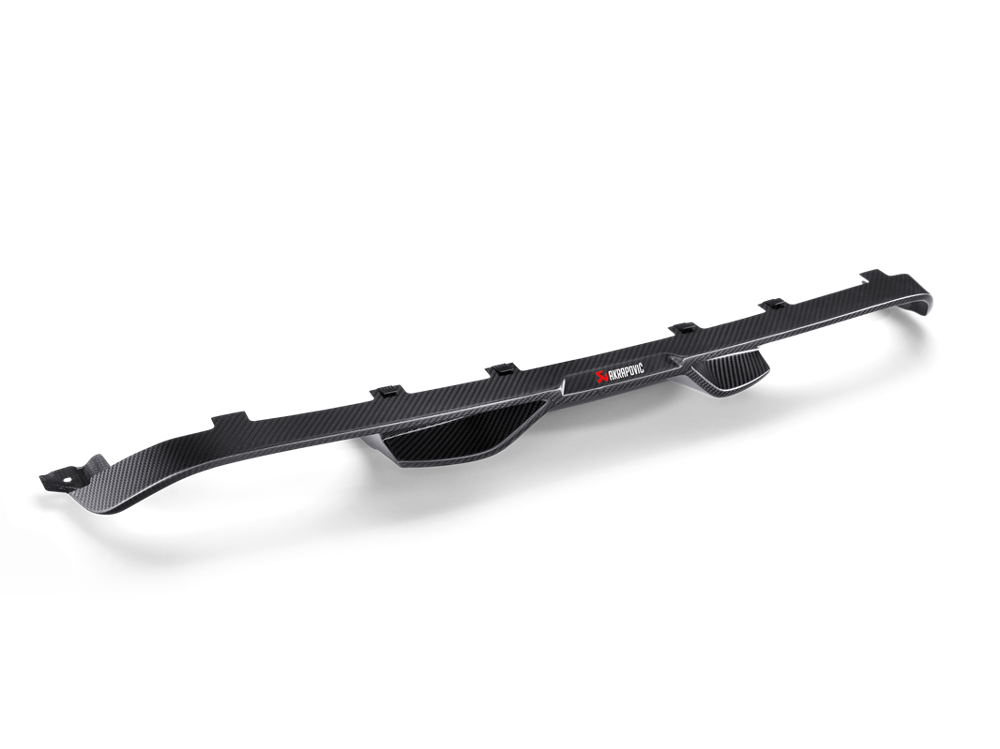

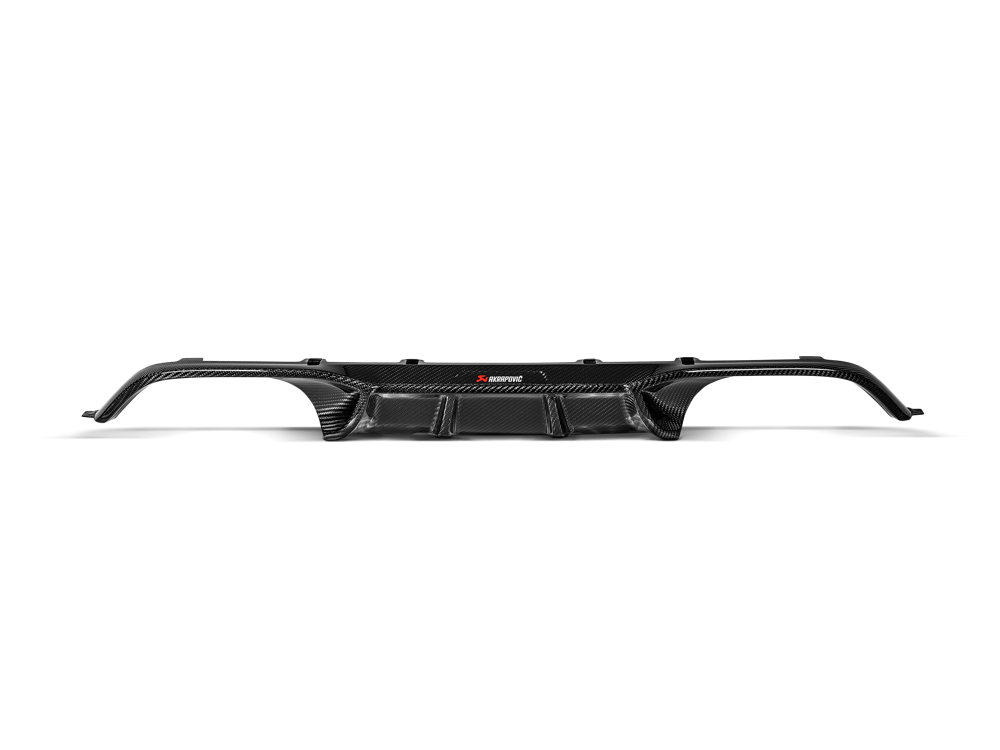

Akrapovic Rear Carbon Fibre Diffuser - Matte for M3/M4 (F8X) (DI-BM/CA/1)

The Akrapovic Evolution and Slip-On line exhaust systems can be further enhanced with an optional hand-crafted carbon fibre rear diffuser. Developed by Akrapovic’s Design Department, this stunning diffuser, crafted from materials developed through Akrapovic’s racing involvement, is designed to perfectly fit the lines of the unique tailpipes of the Slip-On or Evolution systems, as well as complement the sleek and sporty shape of the BMW.

When mounting Akrapovic rear carbon fiber diffuser BMW comfort access system will not work.



Technical Data
Unit Stock Akrapovic Max gain
kg 0.4 0.3 - 0.1
lb 0.9 0.7 - 0.2
% - 25.0
min 30.0

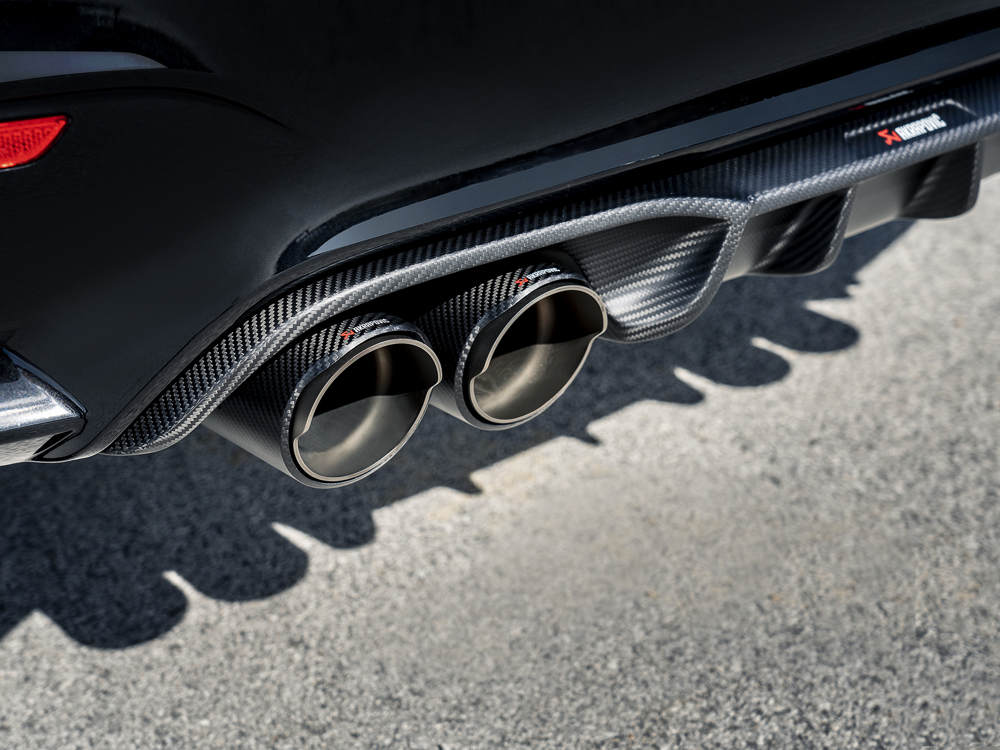

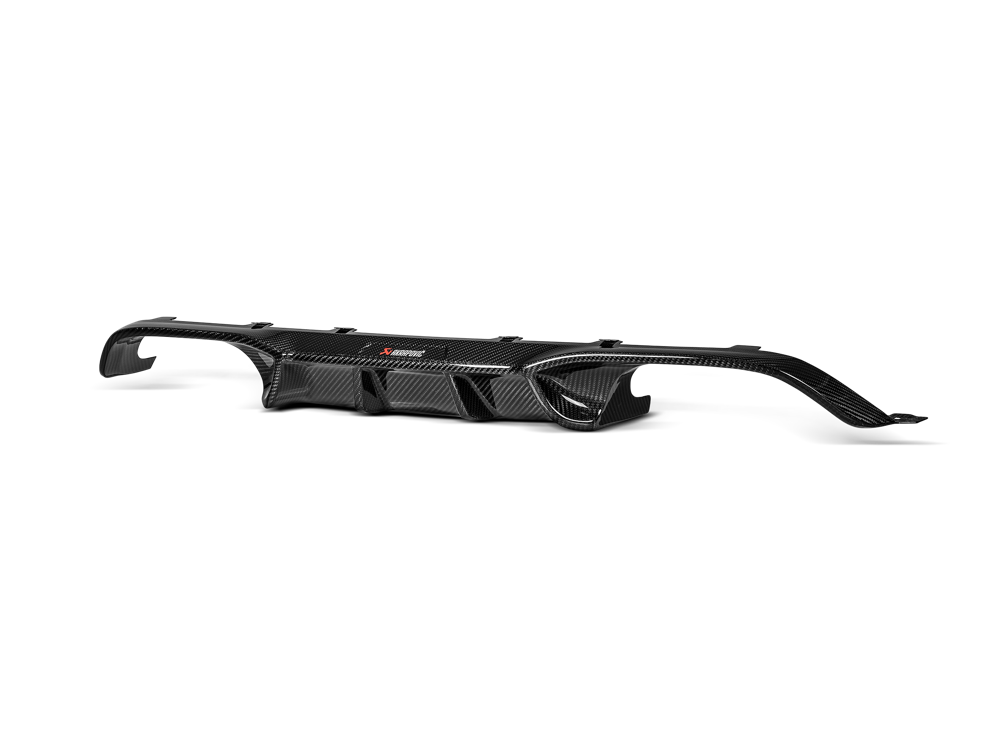

Akrapovic Rear Carbon Fibre Diffuser - Gloss for M3/M4 (F8X) (DI-BM/CA/4/G)

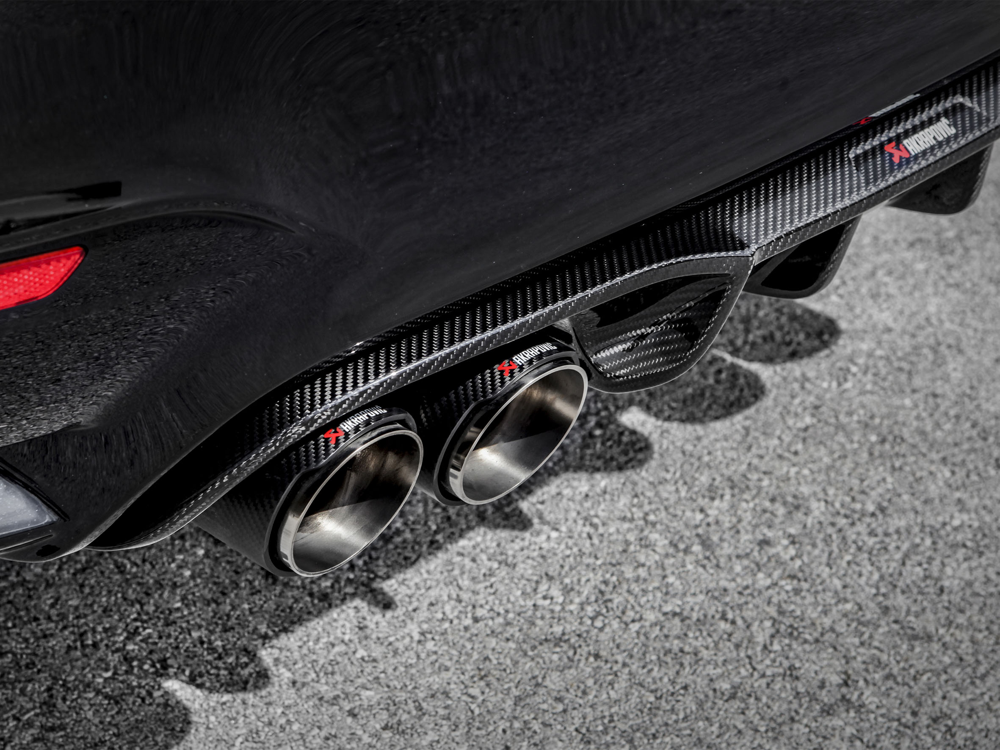

Beautifully crafted hand-laid high-quality carbon fibre diffusers are perfectly styled to enrich the Akrapovic tailpipes and the rear of the car. The sporty and aggressive design adds an extra dimension to the whole package and shows the exhaust system off to its best. Available in high-gloss or matte finish.

Diffuser also fits to M3/M4 CS (Sport Club) and GTS version.

Optional Components:

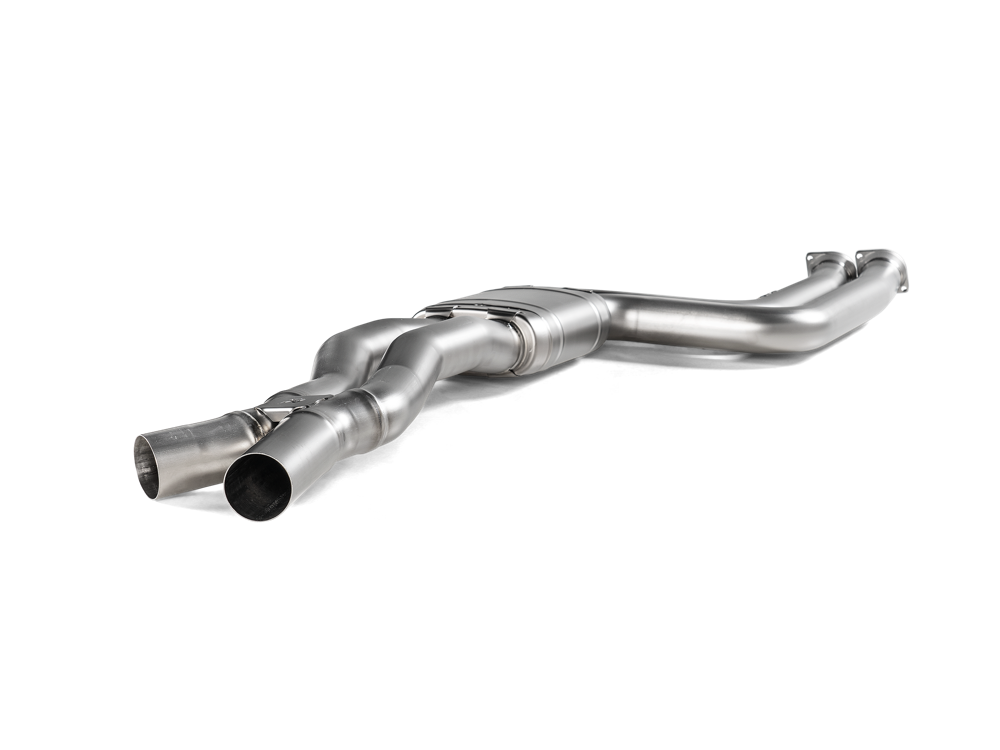

Akrapovic Evolution Link Pipe Set (Titanium) for OPF BMW M4 (F82, F83) (E-BM/T/6)

Evolution Link Pipe Set (Titanium) was tested and developed together with Evolution Line (Titanium).

The Evolution link pipe set upgrades the Slip-On system to the Evolution system, which consists of a slip-on rear muffler and larger Evolution link pipe tubes with a middle muffler, all designed to make the performance and workmanship of the complete system as perfect as it looks. It is crafted entirely from titanium. The whole system is designed to provide the smoothest flow. The power and torque gains of the M4 with the combination of the Slip-On Line system and Evolution link pipe set are guaranteed. In-depth engineering has produced a unique sound profile, distinctly different from the stock system, yielding a deep and sporty sound with no unwanted overtones or drone and an almost racing sound, as well as a significant change to the sound with the valves in the open or closed positions.

The control kit to optimize the balance between sportiness and comfort is included, together with the receiver and Sound Remote controller (or smartphone app) to regulate the valves.

When installing the Akrapovic Evolution link pipe set, remapping the ECU is mandatory in order to prevent potential “check engine light” warning signals.

THIS PRODUCT DOES NOT MEET EMISSION COMPLIANCE REQUIREMENTS FOR STREET OR HIGHWAY USE.

Technical Data
Unit Stock Akrapovic Max gain
kW 328.5 / 6600 rpm 336.8 / 6700 rpm + 8.8 / 6600 rpm
HP (m) 446.7 / 6600 rpm 457.9 / 6700 rpm + 12.0 / 6600 rpm
HP (i) 440.6 / 6600 rpm 451.6 / 6700 rpm + 11.8 / 6600 rpm
Nm 587.1 / 2850 rpm 581.5 / 2770 rpm + 11.9 / 5150 rpm
lb-ft 433.0 / 2850 rpm 428.9 / 2770 rpm + 8.8 / 5150 rpm
kg 14.5 7.1 - 7.4
lb 32.0 15.6 - 16.4
% - 51.3
dB 86 / 3750 rpm 95 / 3750 rpm 9
min 120
Yes: For perfect performance, throttle response and durability, special developed mapping has to be used. Yes: For perfect performance, throttle response and durability, special developed mapping has to be used. Yes: For perfect performance, throttle response and durability, special developed mapping has to be used. Yes: For perfect performance, throttle response and durability, special developed mapping has to be used.

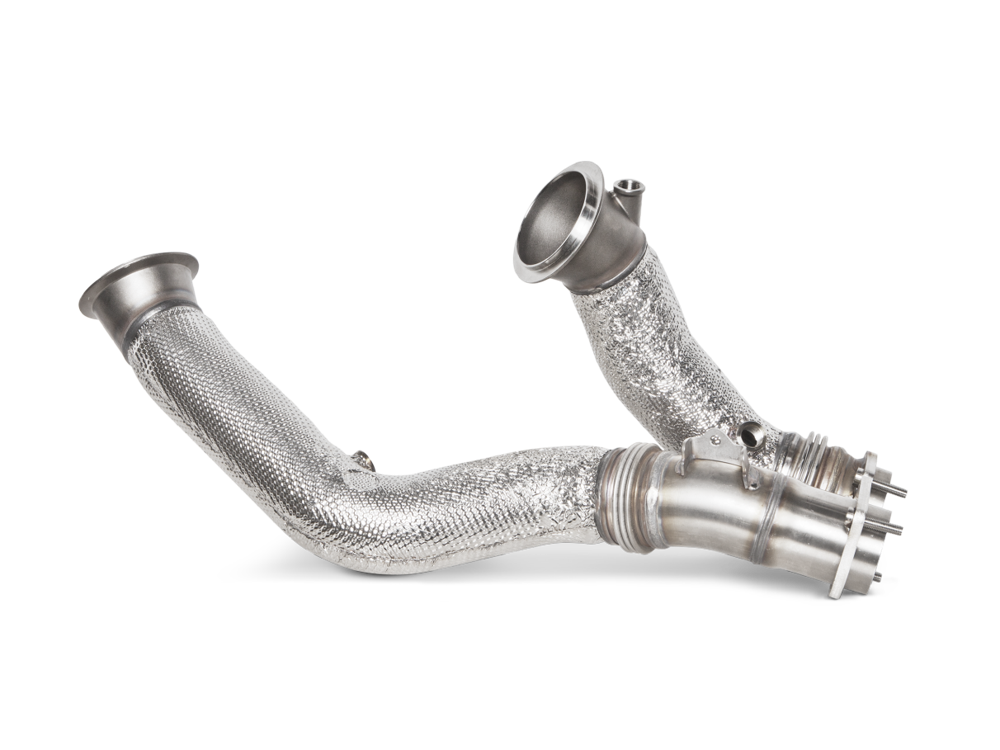

Akrapovic Downpipe (SS) for M2/M3/M4 (F8X) (DP-BM/SS/3)

Downpipe (SS) was tested and developed together with Evolution Line (Titanium) system.

For the ultimate in weight reduction, tuning potential, and racing sound, Akrapovic offers stainless steel, cat-less downpipes to make the BMW an even more powerful machine. This setup is intended for dedicated track-day cars and enthusiasts, and it will also add to the overall experience of what’s already a stunning performance car for any discerning driver. Delivering great sound, without creating unwanted cabin noise, these beautifully-crafted downpipes offer an upgrade to Akrapovic’s Evolution exhaust system.

When installing Akrapovic aftermarket optional down pipes , which are developed for use on closed tracks only, remapping the ECU is mandatory, in order to prevent potential »check engine light« warning signals.

Downpipes also fit to M3/M4 CS (Sport Club) and GTS version.

THIS PRODUCT DOES NOT MEET EMISSION COMPLIANCE REQUIREMENTS FOR STREET OR HIGHWAY USE.

Technical Data
Unit Stock Akrapovic Max gain
kW 343.0 / 6650 rpm 355.9 / 6550 rpm + 17.2 / 5800 rpm
HP (m) 466.3 / 6650 rpm 483.9 / 6550 rpm + 23.4 / 5800 rpm
HP (i) 459.9 / 6650 rpm 477.3 / 6550 rpm + 23.1 / 5800 rpm
Nm 584.9 / 4200 rpm 602.6 / 4950 rpm + 28.7 / 4950 rpm
lb-ft 431.4 / 4200 rpm 444.5 / 4950 rpm + 21.2 / 4950 rpm
kg 7.1 3.9 - 3.2
lb 15.7 8.6 - 7.1
% - 45.1
dB 94 / 3750 rpm 100.5 / 3750 rpm 6.5
min 60

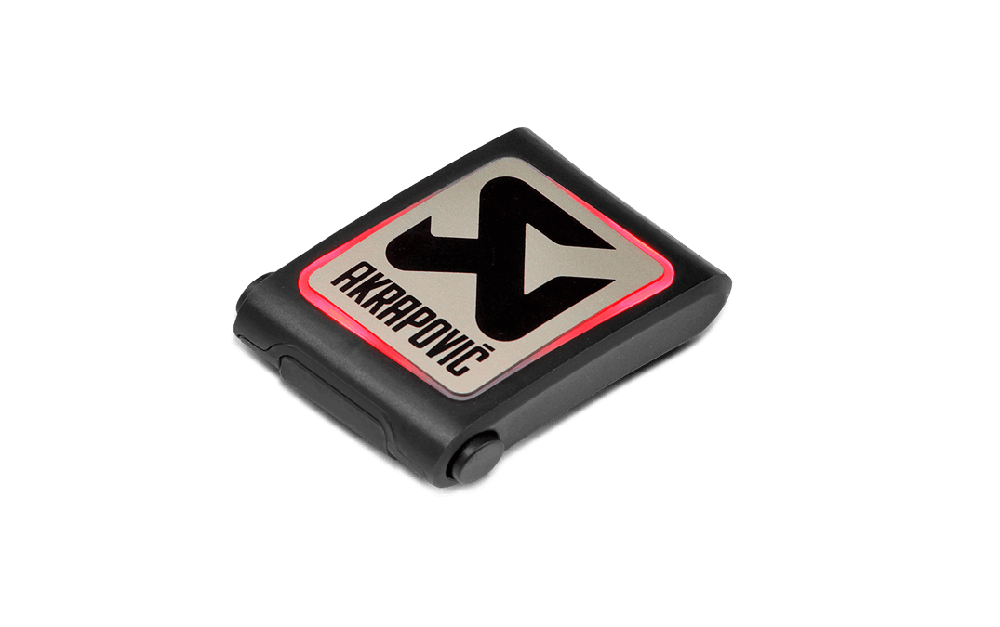

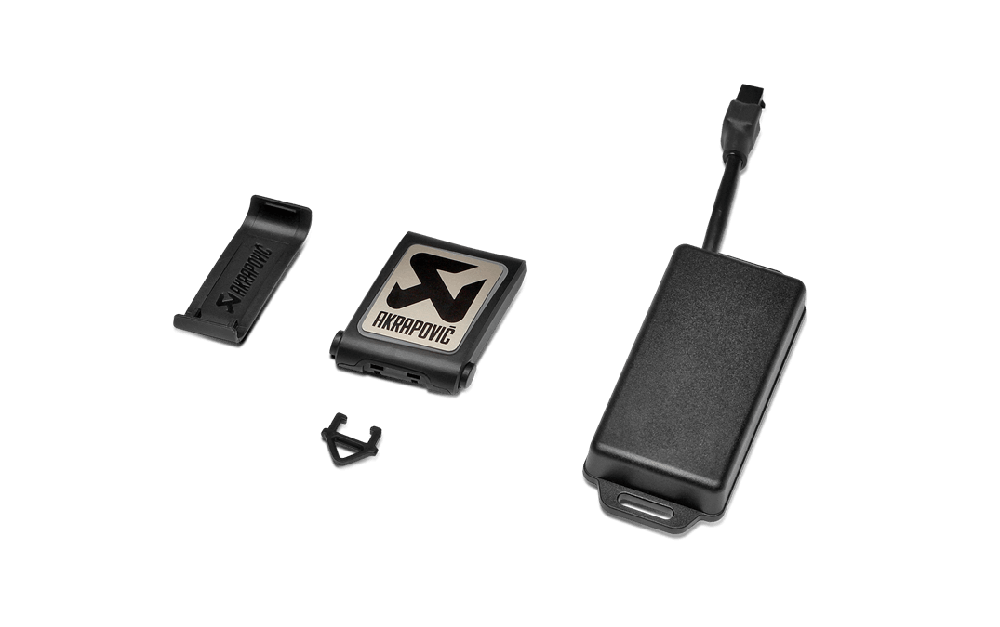

Akrapovic Sound Kit for OPF BMW M4 (F82, F83) (P-HF1194)

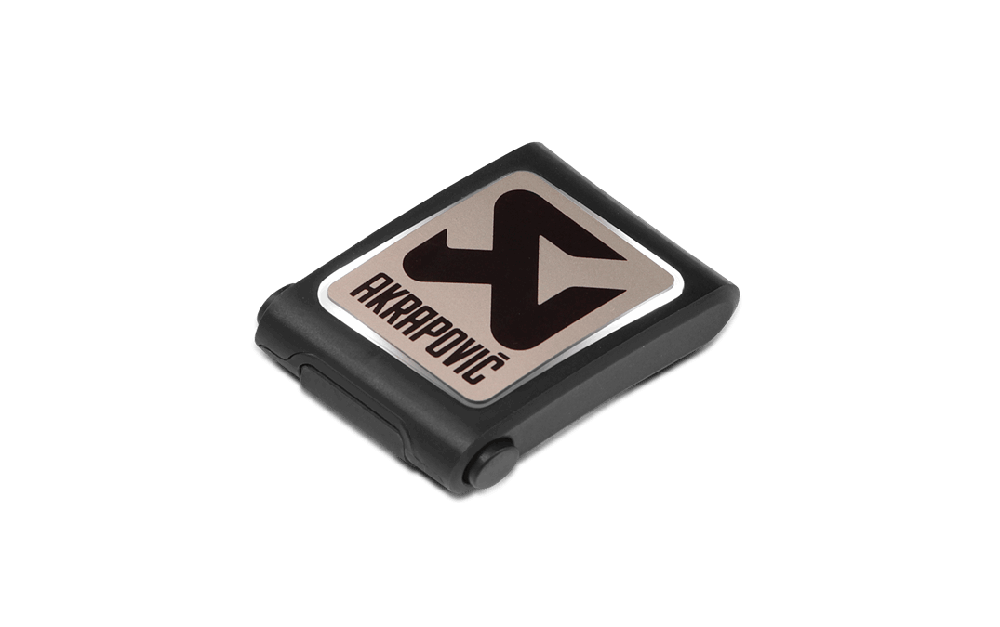

The optional Akrapovic Sound Kit enables owners of selected Akrapovic car exhausts to control the sound of the system from the cockpit of their machine. Using Akrapovic technology, drivers can easily switch between the quiet mode and a sportier sound. With the use of a receiver to drive the actuators that open or close the valves at the end of the exhaust system, drivers can use the Sound Remote Controller to regulate the valves.

Akrapovic Sound Kit P-HF1194 is developed for use with Slip-On Line (Titanium) only. If upgrading the slip-on system with evolution link pipe, specially developed Akrapovic Sound Kit is already included within the evolution link pipe set.

With the use of the optional Akrapovic Sound Kit, the ECE type approval is no longer valid.

Pictures are symbolic.

Technical Data
Unit Stock Akrapovic Max gain
min 135

Fitment

Fitment

Akrapovic Exhaust System for BMW M4 (F82, F83) OPF/GPF - AKRA-BMW-28-KIT

Primary Components Fitment:

S-BM/T/4H
  • BMW - M4 (F82, F83) - OPF/GPF (2018 - 2020)

Mandatory Components Fitment:

DI-BM/CA/1
  • BMW - M3 (F80) (2014 - 2018)
  • BMW - M4 (F82, F83) (2014 - 2020)
  • BMW - M4 (F82, F83) - OPF/GPF (2018 - 2020)
DI-BM/CA/4/G
  • BMW - M3 (F80) (2014 - 2018)
  • BMW - M4 (F82, F83) (2014 - 2020)
  • BMW - M4 (F82, F83) - OPF/GPF (2018 - 2020)

Optional Components Fitment:

E-BM/T/6
  • BMW - M4 (F82, F83) - OPF/GPF (2018 - 2020)
DP-BM/SS/3
  • BMW - M4 (F82, F83) - OPF/GPF (2018 - 2020)
  • BMW - M2 Competition (F87N) (2018 - 2020)
  • BMW - M2 Competition (F87N) - OPF/GPF (2018 - 2020)
  • BMW - M2 CS (F87N) (2020 - 2021)
  • BMW - M2 CS (F87N) - OPF/GPF (2020 - 2021)
  • BMW - M3 (F80) (2014 - 2018)
  • BMW - M4 (F82, F83) (2014 - 2020)
P-HF1194
  • BMW - M4 (F82, F83) - OPF/GPF (2018 - 2020)

Media

Media

Akrapovic Exhaust System for BMW M4 (F82, F83) OPF/GPF - AKRA-BMW-28-KIT


Primary Components:

Akrapovic Slip-On Line (Titanium) for OPF BMW M4 (F82, F83) (S-BM/T/4H)
Schematic new version:
ECE Type-Approval Certificate:
Performance graph:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
POS HF:

STOCK EXHAUST; BMW M4 (OPF)

SLIP-ON; BMW M4 (OPF)

Mandatory Components:

Akrapovic Rear Carbon Fibre Diffuser - Matte for M3/M4 (F8X) (DI-BM/CA/1)
Schematic new version:
Installation instructions - EN:
ABE Type-Approval Certificate:
POS HF:
Akrapovic Rear Carbon Fibre Diffuser - Gloss for M3/M4 (F8X) (DI-BM/CA/4/G)
Schematic new version:
ABE Type-Approval Certificate:

Optional Components:

Akrapovic Evolution Link Pipe Set (Titanium) for OPF BMW M4 (F82, F83) (E-BM/T/6)
Schematic new version:
Installation instructions - EN:
Performance graph:
Installation instructions - DE, IT, FR, ES, PT, SI:
POS HF:

STOCK EXHAUST; BMW M4 (OPF)

EVOLUTION LINK PIPE SET; BMW M4 (OPF)

Akrapovic Downpipe (SS) for M2/M3/M4 (F8X) (DP-BM/SS/3)
Schematic new version:
Performance graph:
Installation instructions - EN:
POS HF:

DOWNPIPE; BMW M4

STOCK EXHAUST; BMW M4

Akrapovic Sound Kit for OPF BMW M4 (F82, F83) (P-HF1194)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
User manual - EN:
User manual - DE, IT, FR, ES, PT, SI:
POS HF:
