Akrapovic Exhaust System for BMW M5/M5 Competition (F90) OPF/GPF

TP-CT/47/RS-KIT

Stock: Backorder Available

AU$3,359.00 Inc GST
Please make selections below to see final price

Mandatory Product


Optional Product




Description

Description

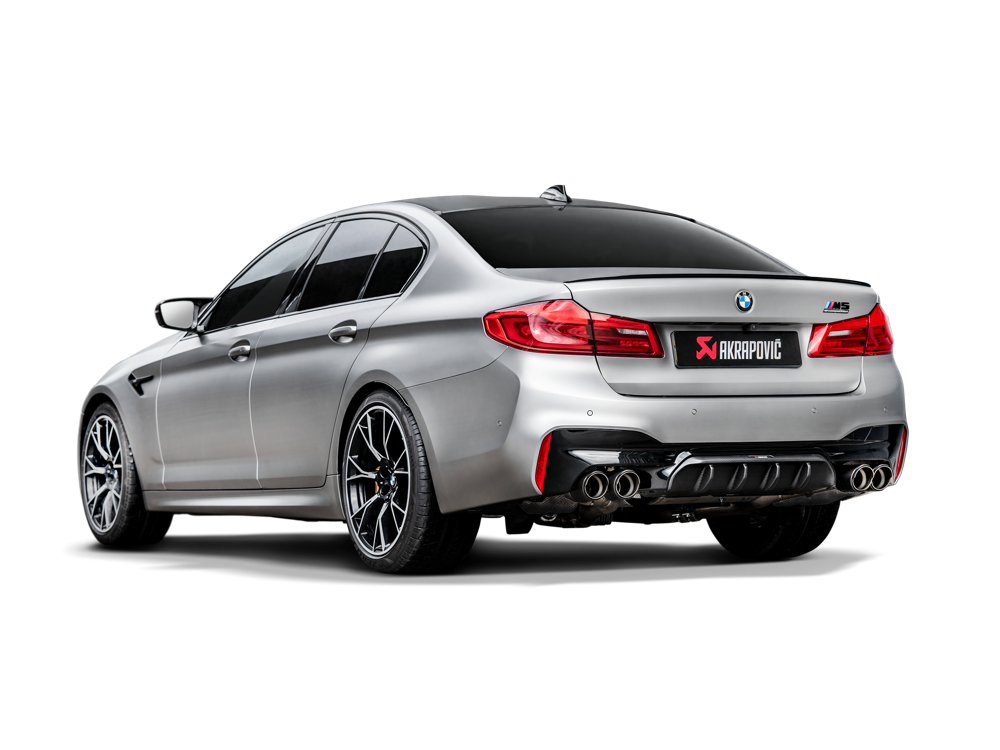

Akrapovic Exhaust System for BMW M5/M5 Competition (F90) OPF/GPF

Primary Components:

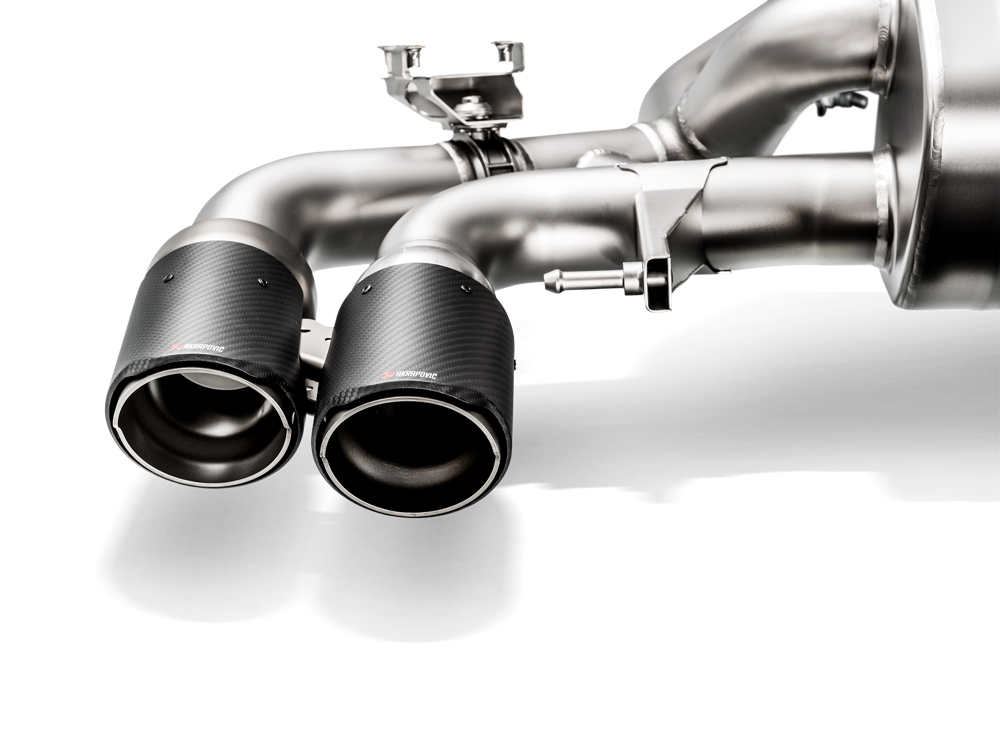

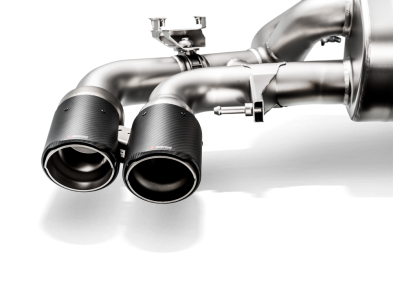

Akrapovic Carbon Tail Pipe Set for BMW M5 / M5 Competition (F90) (TP-CT/47/RS)

As the most visible part of an exhaust system, we pay the utmost attention to the tailpipes. Akrapovic has created hand-crafted carbon-fibre tailpipes to enrich the visual enjoyment of the Slip-On or Evolution exhaust systems. Sporting the unique Akrapovic round design, the carbon- version has sandblasted titanium inner parts with a bigger diameter than stock tailpipes to make them stand out from the crowd even more. The new model was unveiled with distinctive Akrapovic design elements, and these beautifully crafted additions are designed to fit perfectly with the carbon- diffuser.



This Carbon Tail pipe set, comes with red/white Akrapovic logo.

Mandatory Components:

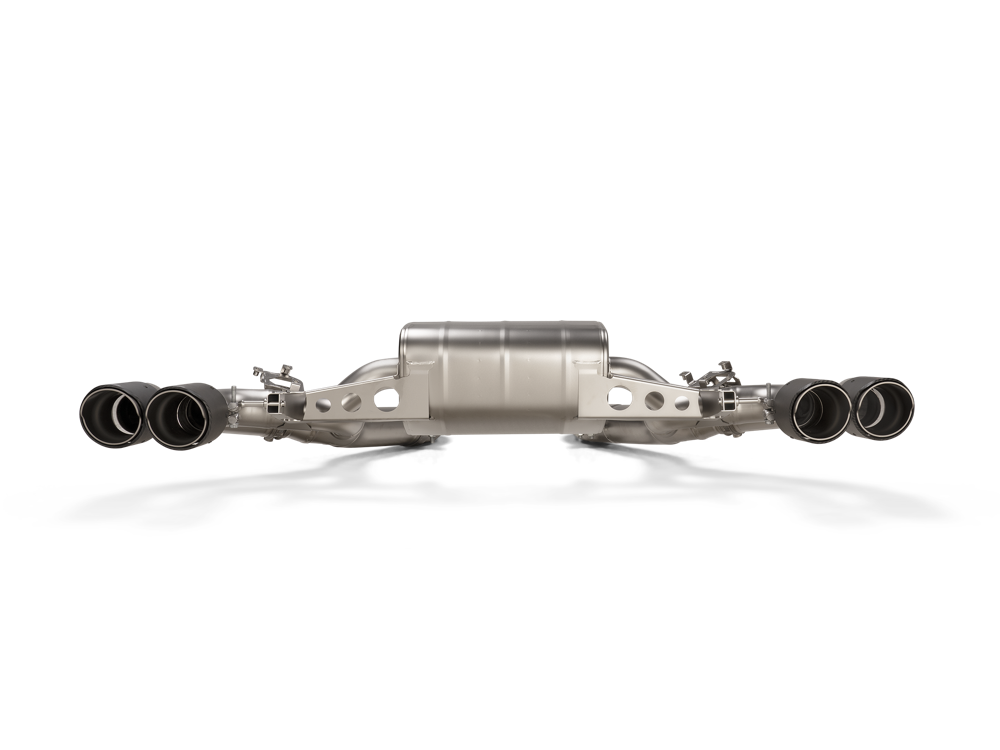

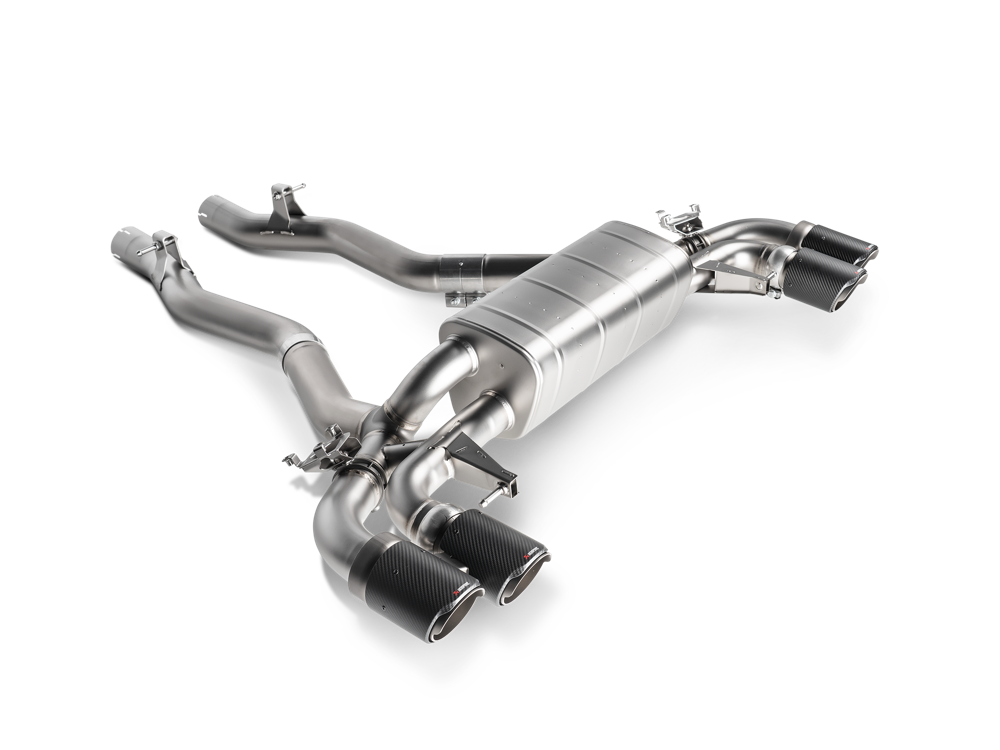

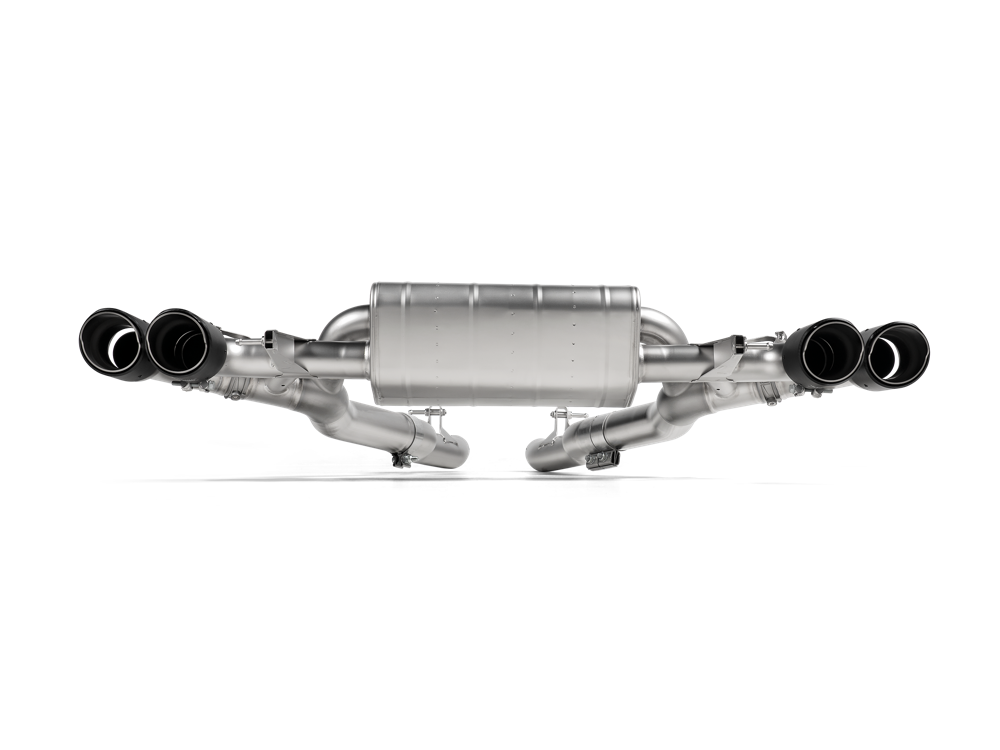

Akrapovic Slip-On Line (Titanium) for OPF BMW F90 M5 / M5 Competition (S-BM/T/27H)

Built from high-grade lightweight titanium – with some parts cast in Akrapovic’s own foundry – this system will reduce exhaust system's weight. Developed to deliver both power and torque gains throughout the range with most gain in lower rpm will improve responsiveness and drivability. The system delivers distinctly different sound from the stock system, most noticeable at shifting, backfiring and accelerating. The carbon-fibre tailpipes have been perfectly crafted and designed to fit beautifully within the optional carbon-fibre diffuser. Optional carbon-fibre mirror caps are also available to further enhance the car's appearance.

The system is a simple plug-and-play operation to fit, and has been designed to meet ECE type approval. The optional Akrapovic Sound Kit is also available.

For installing the slip-on system, the stock exhaust system has to be cut. Please read the instructions carefully before the start of the installation.

This product fits also on BMW M5 Competition and CS 2022 models equipped with OPF/GPF.

Technical Data
Unit Stock Akrapovic Max gain
kW 464.4 / 6300 rpm 471.1 / 6300 rpm + 8.0 / 6150 rpm
HP (m) 631.4 / 6300 rpm 640.5 / 6300 rpm + 10.9 / 6150 rpm
HP (i) 622.8 / 6300 rpm 631.8 / 6300 rpm + 10.7 / 6150 rpm
Nm 818.3 / 2850 rpm 822.9 / 2850 rpm + 14.7 / 3250 rpm
lb-ft 603.5 / 2850 rpm 606.9 / 2850 rpm + 10.8 / 3250 rpm
kg 16.5 12.6 - 3.9
lb 36.3 27.7 - 8.6
% - 23.7
min 270

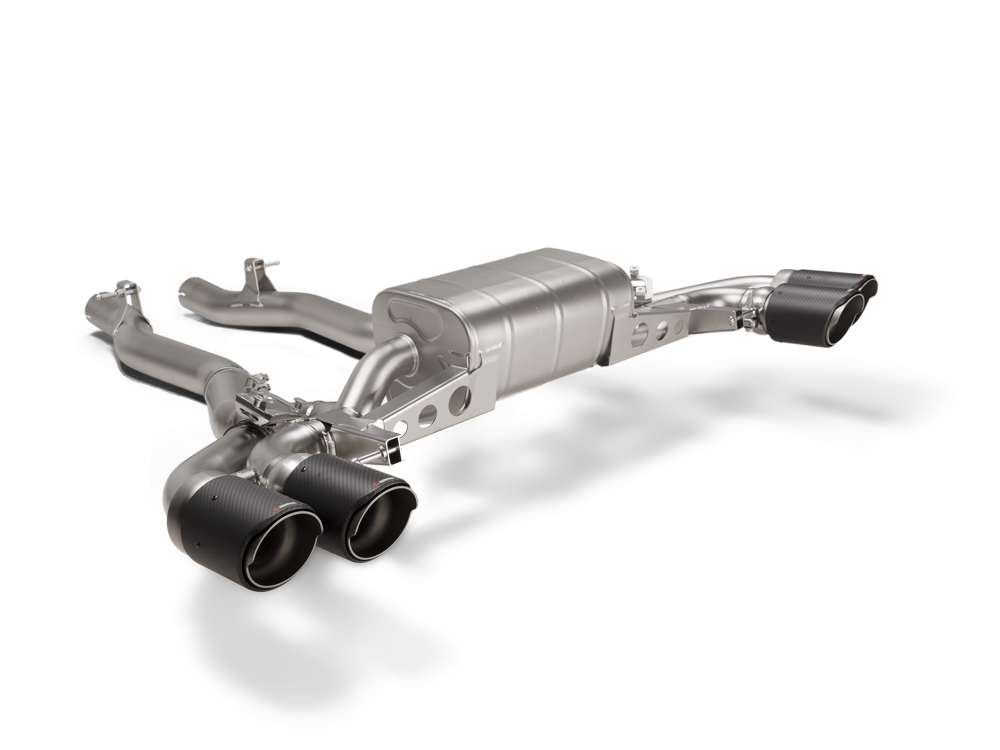

Akrapovic Slip-On Line (Titanium) for OPF BMW F90 M5 / M5 Competition (S-BM/T/7H)

Built from high-grade lightweight titanium – with some parts cast in Akrapovic’s own foundry – this system will reduce exhaust system's weight. Developed to deliver both power and torque gains throughout the range with most gain in lower rpm will improve responsiveness and drivability. The system delivers distinctly different sound from the stock system, most noticeable at shifting, backfiring and accelerating. The carbon-fibre tailpipes have been perfectly crafted and designed to fit beautifully within the optional carbon-fibre diffuser. Optional carbon-fibre mirror caps are also available to further enhance the car's appearance.

The system is a simple plug-and-play operation to fit, and has been designed to meet ECE type approval. The optional Akrapovic Sound Kit is also available.

For installing the slip-on system, the stock exhaust system has to be cut. Please read the instructions carefully before the start of the installation.

Technical Data
Unit Stock Akrapovic Max gain
kW 458.4 / 6500 rpm 459.1 / 6450 rpm + 5.3 / 2500 rpm
HP (m) 623.2 / 6500 rpm 624.2 / 6450 rpm + 7.2 / 2500 rpm
HP (i) 614.7 / 6500 rpm 615.7 / 6450 rpm + 7.1 / 2500 rpm
Nm 788.0 / 2850 rpm 795.6 / 2750 rpm + 24.3 / 2500 rpm
lb-ft 581.2 / 2850 rpm 586.8 / 2750 rpm + 17.9 / 2500 rpm
kg 16.5 12.2 - 4.3
lb 36.3 26.8 - 9.5
% - 26.1
min 270

Optional Components:

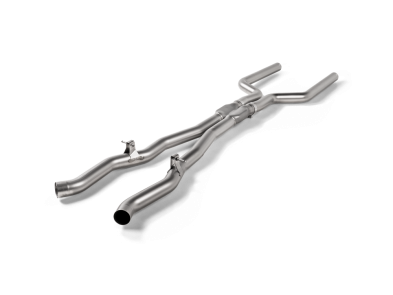

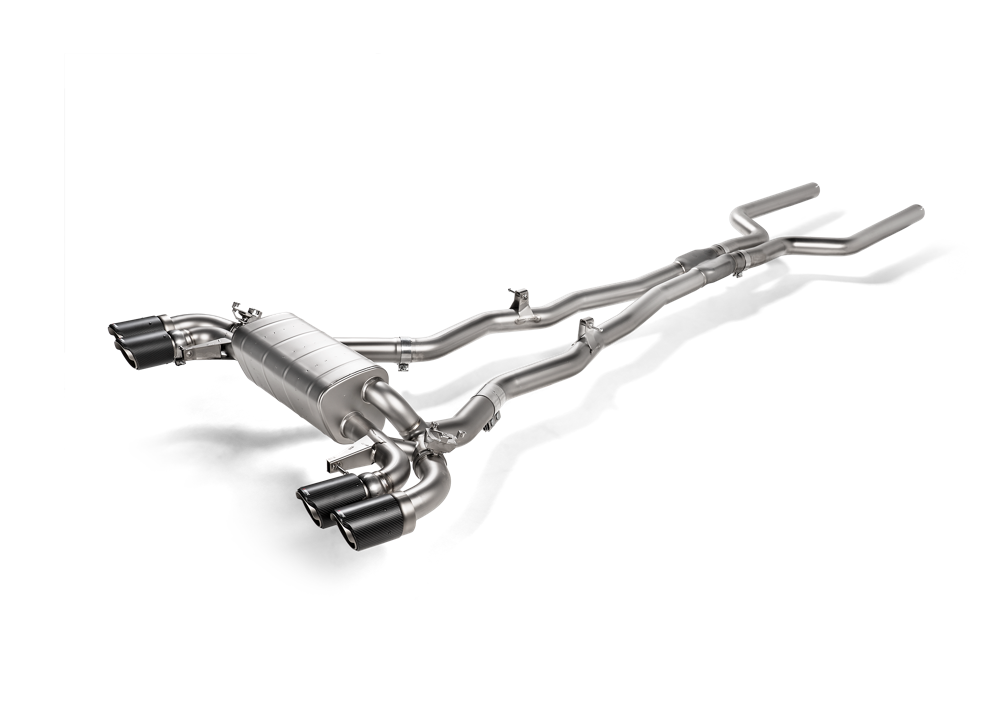

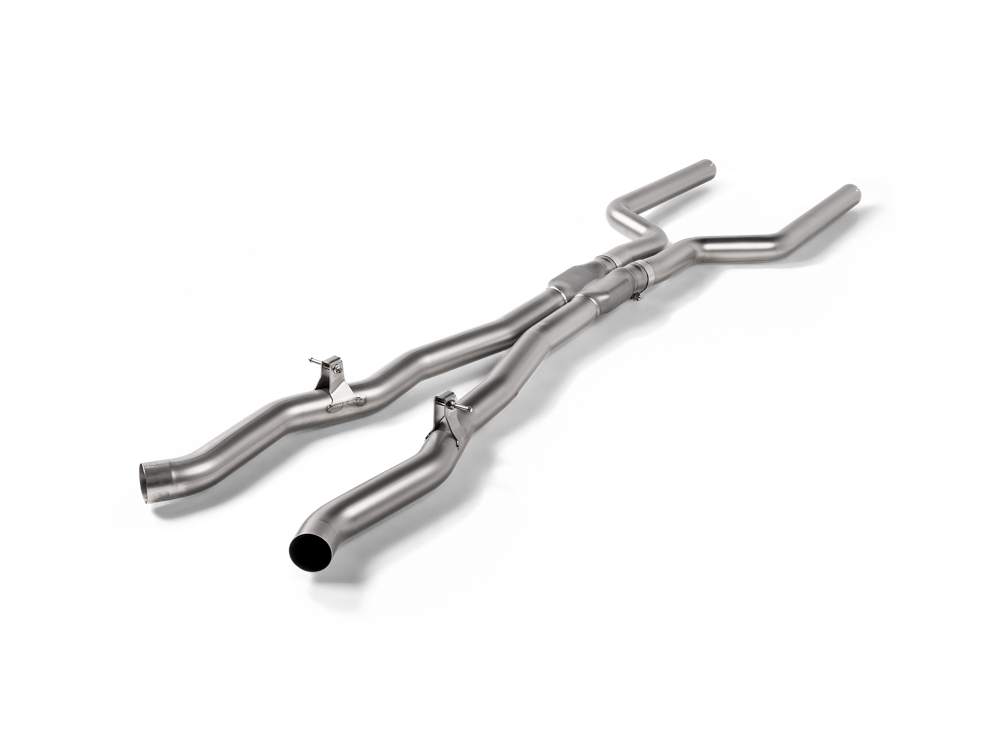

Akrapovic Evolution Link Pipe Set (Titanium) for OPF BMW F90 M5 / M5 Competition (E-BM/T/7)

Evolution Link Pipe Set (Titanium) was tested and developed together with Evolution Line (Titanium).

The Evolution link pipe set upgrades the Slip-On system to the Evolution system and is constructed from high-quality lightweight titanium. It is designed to increase power and torque and drastically reduce the backpressure. The system has been perfectly tuned to deliver the very best sound experience in all modes – enormous effort was invested to give it a sporty, deep higher-frequency V8 sound with an unmistakable Akrapovic character, while keeping it smooth and eliminating any drone for maximum everyday comfort.

When installing the Akrapovic Evolution link pipe set, remapping the ECU is mandatory in order to prevent potential “check engine light” warning signals.

THIS PRODUCT DOES NOT MEET EMISSION COMPLIANCE REQUIREMENTS FOR STREET OR HIGHWAY USE.

Technical Data
Unit Stock Akrapovic Max gain
kW 458.4 / 6500 rpm 463.0 / 6550 rpm + 7.5 / 5600 rpm
HP (m) 623.2 / 6500 rpm 629.5 / 6550 rpm + 10.2 / 5600 rpm
HP (i) 614.7 / 6500 rpm 620.9 / 6550 rpm + 10.1 / 5600 rpm
Nm 788.0 / 2850 rpm 798.5 / 2700 rpm + 24.6 / 2600 rpm
lb-ft 581.2 / 2850 rpm 588.9 / 2700 rpm + 18.1 / 2600 rpm
kg 15.9 9.6 - 6.3
lb 35.1 21.2 - 13.9
% - 39.5
dB 95 / 3750 rpm 102 / 3750 rpm 7
min 120

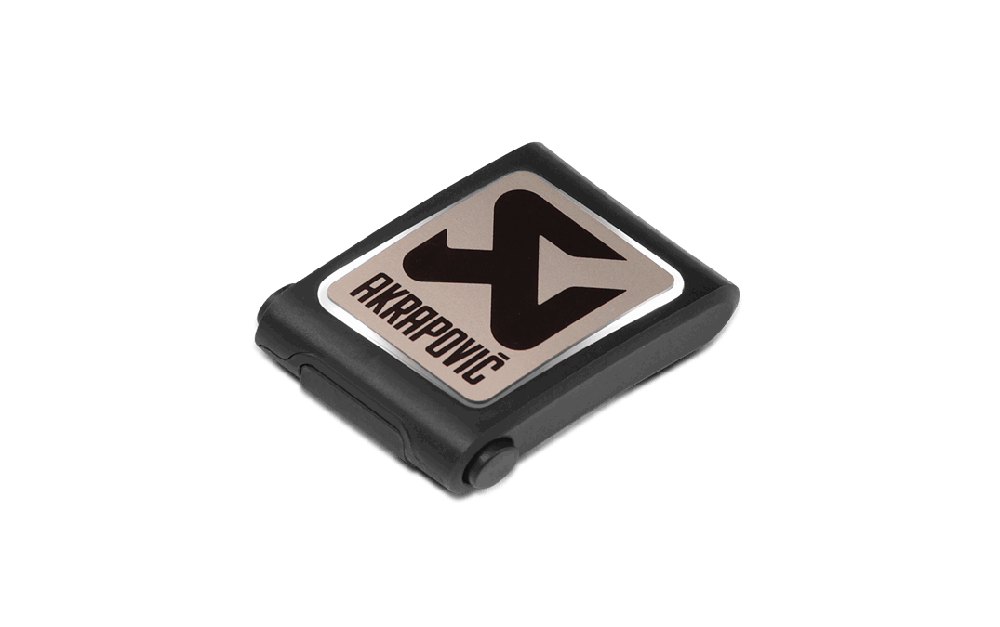

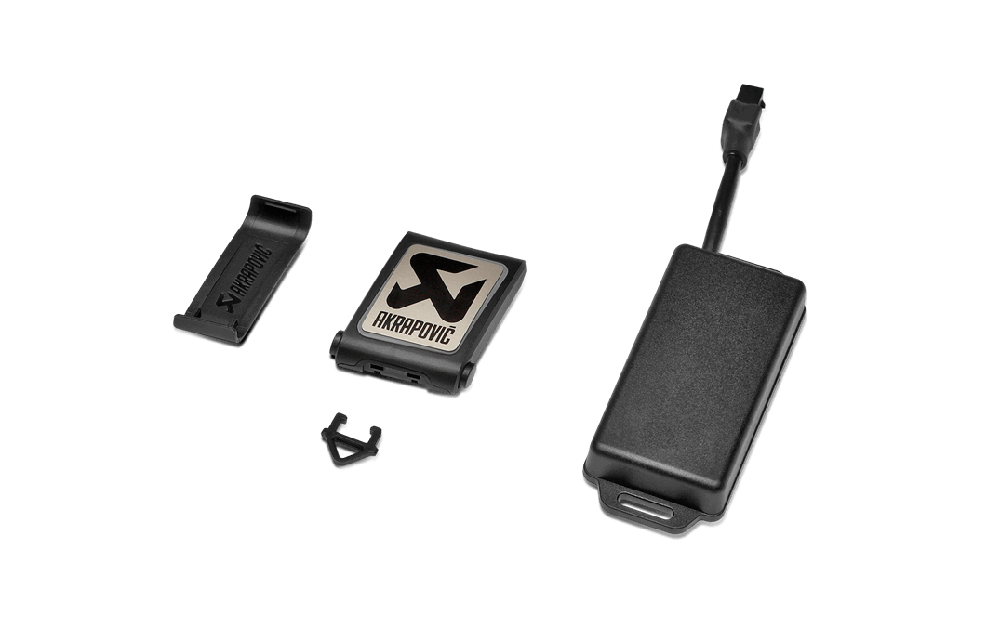

Akrapovic Sound Kit for BMW F90 M5 (P-HF1132)

The optional Akrapovic Sound Kit enables owners of selected Akrapovic car exhausts to control the sound of the system from the cockpit of their machine. Using Akrapovic technology, drivers can easily switch between the quiet mode and a sportier sound. With the use of a receiver (already included in evolution system) to drive the actuators that open or close the valves at the end of the exhaust system, drivers can use the Sound Remote Controller to regulate the valves.

With the use of the optional Akrapovic Sound Kit, the ECE type approval is no longer valid.

Pictures are symbolic.

Technical Data
Unit Stock Akrapovic Max gain
min 120

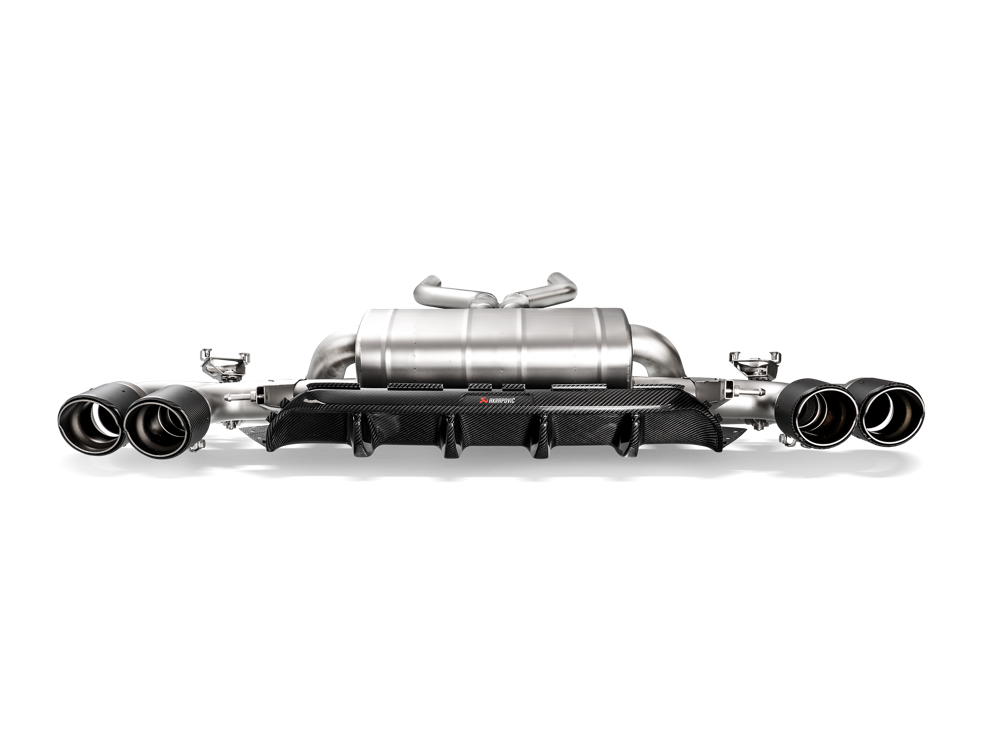

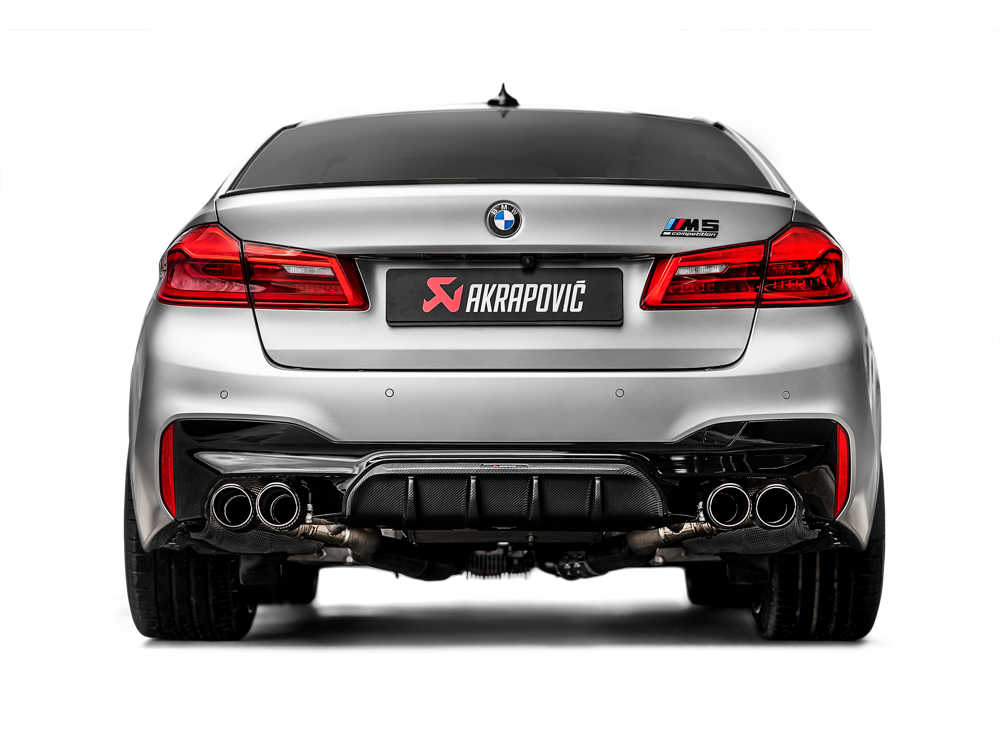

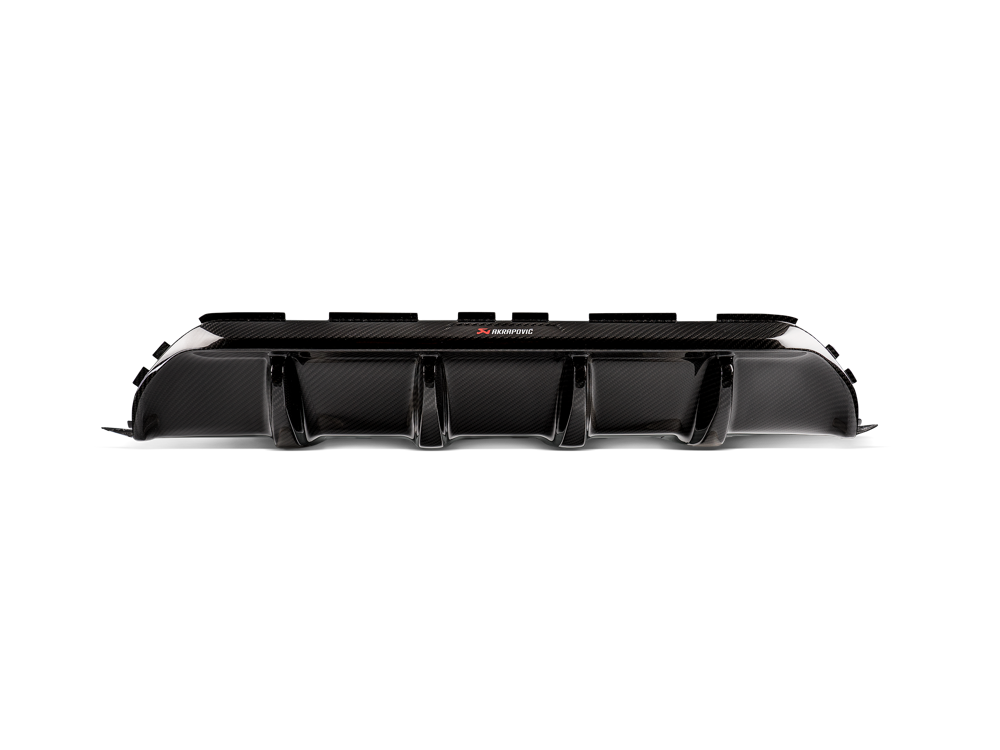

Akrapovic Rear Carbon Fibre Diffuser with Red/White Logo - Gloss for M5 (F90) (DI-BM/CA/5/G/RS)

The stunning carbon fibre diffuser is offered as an option with the choice of a high-gloss or matt finish. It is a completely new design from the one that comes as standard on the car, and it gives the rear of the M5 a more aggressive and sporty feel. It shows off the tailpipes to their full extent and is a perfect accompaniment to the side mirror caps.

This Rear Carbon Fiber Diffuser - High Glossy, comes with red/white Akrapovic logo.

Fitment notice: The diffuser cannot fit with genuine trailer tow hitch.

With Akrapovic diffuser, hands-free trunk-lid opening/closing sensor is not working.





Technical Data
Unit Stock Akrapovic Max gain
kg 0.7 0.5 - 0.3
lb 1.6 1.0 - 0.6
% - 36.1
min 30.0
Akrapovic Carbon Fibre Mirror Cap Set - Matte for BMW M5 / M5 Competition (F90) (WM-BM/CA/3/M)

The eye-catching hand-made carbon fibre mirror caps add a visual improvement to the stylish lines of the car. Beautifully designed and finished in either a high-gloss or matte finish, these mirror caps will enhance the car’s appearance and add a perfect match for the Akrapovic carbon fibre diffuser.

Mirror cap set does not fit on right-hand drive vehicles.

Technical Data
Unit Stock Akrapovic Max gain
kg 0.2 0.1 - 0.1
lb 0.3 0.2 - 0.1
% - 33.3
min 45.0

Fitment

Fitment

Akrapovic Exhaust System for BMW M5/M5 Competition (F90) OPF/GPF - AKRA-BMW-31-KIT

Primary Components Fitment:

TP-CT/47/RS
  • BMW - M5 / M5 Competition (F90) (2018 - 2023)
  • BMW - M5 / M5 Competition (F90) - OPF/GPF (2018 - 2023)

Mandatory Components Fitment:

S-BM/T/27H
  • BMW - M5 / M5 Competition (F90) - OPF/GPF (2021 - 2023)
S-BM/T/7H
  • BMW - M5 / M5 Competition (F90) - OPF/GPF (2018 - 2020)

Optional Components Fitment:

E-BM/T/7
  • BMW - M5 / M5 Competition (F90) - OPF/GPF (2018 - 2020)
P-HF1132
  • BMW - M5 / M5 Competition (F90) (2018 - 2023)
  • BMW - M5 / M5 Competition (F90) - OPF/GPF (2018 - 2023)
DI-BM/CA/5/G/RS
  • BMW - M5 / M5 Competition (F90) (2018 - 2023)
  • BMW - M5 / M5 Competition (F90) - OPF/GPF (2018 - 2023)
WM-BM/CA/3/M
  • BMW - M5 / M5 Competition (F90) (2018 - 2023)
  • BMW - M5 / M5 Competition (F90) - OPF/GPF (2018 - 2023)
  • BMW - M8 / M8 Competition (F91, F92) (2020 - 2025)
  • BMW - M8 / M8 Competition (F91, F92) - OPF/GPF (2020 - 2025)
  • BMW - M8 / M8 Competition Gran Coupe (F93) (2020 - 2025)
  • BMW - M8 / M8 Competition Gran Coupe (F93) - OPF/GPF (2020 - 2025)

Media

Media

Akrapovic Exhaust System for BMW M5/M5 Competition (F90) OPF/GPF - AKRA-BMW-31-KIT


Primary Components:

Akrapovic Carbon Tail Pipe Set for BMW M5 / M5 Competition (F90) (TP-CT/47/RS)
Schematic new version:

Mandatory Components:

Akrapovic Slip-On Line (Titanium) for OPF BMW F90 M5 / M5 Competition (S-BM/T/27H)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
ECE Type-Approval Certificate:
POS HF:
Akrapovic Slip-On Line (Titanium) for OPF BMW F90 M5 / M5 Competition (S-BM/T/7H)
Schematic new version:
ECE Type-Approval Certificate:
Performance graph:
Installation instructions - DE, IT, FR, ES, PT, SI:
Installation instructions - EN:
POS HF:

Optional Components:

Akrapovic Evolution Link Pipe Set (Titanium) for OPF BMW F90 M5 / M5 Competition (E-BM/T/7)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
Performance graph:
POS HF:
Akrapovic Sound Kit for BMW F90 M5 (P-HF1132)
Schematic new version:
User manual - EN:
User manual - DE, IT, FR, ES, PT, SI:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
POS HF:
Akrapovic Rear Carbon Fibre Diffuser with Red/White Logo - Gloss for M5 (F90) (DI-BM/CA/5/G/RS)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
ABE Type-Approval Certificate:
POS HF:
Akrapovic Carbon Fibre Mirror Cap Set - Matte for BMW M5 / M5 Competition (F90) (WM-BM/CA/3/M)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
POS HF:
