Clubsport top mount FA right (with camber adjustment)

19000854
KW Suspension

Stock: Backorder Available

AU$539.00 Inc GST
  • Only be used in combination with KW clubsport coilover kit

Description

Description

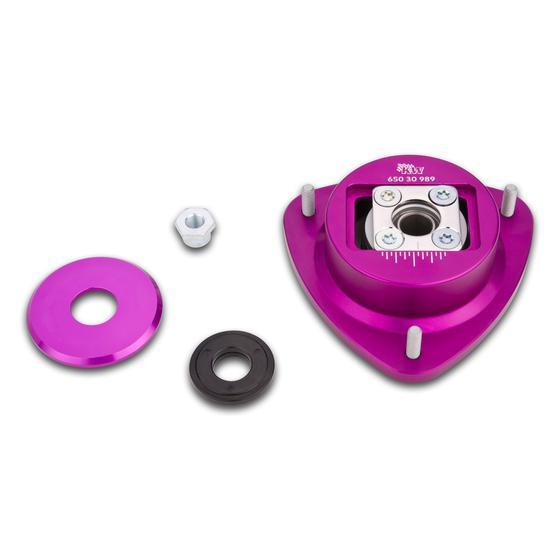

Clubsport top mount FA right (with camber adjustment)

KW Clubsport aluminium unibal top mounts have been tranfered from motorsports to the street.
We also offer adjustable top mounts made from high tensile aluminium alloy for our KW Clubsport kits. Camber and caster (optional) adjustments are available on certain applications.

Designed for the toughest race track in the world: the Nürburgring Nordschleife
A special KW sealing system avoids an intrusion of dirt and water into the free of play and preloaded unibal bearings. Furthermore axial bearings allow rotation of springs at McPherson struts.

- Scaled camber adjustment
- Sealed and preloaded spherical bearing
- Axial bearings allow rotation of springs at McPherston struts
- Made of tool steel (100Cr6): 58 to 64 HRC - hard chrome plated
- PTFE surface inlay, stainless steel outer ring (X20Cr13)

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
BMW1 (F20) 1K4 07/2011-06/2019114 dHatchbackDiesel7014963Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019114 dHatchbackDiesel7015984Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019114 iHatchbackPetrol7515984Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019116 dHatchbackDiesel8514963Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019116 dHatchbackDiesel8515984Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019116 dHatchbackDiesel8519954Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019116 iHatchbackPetrol8014993Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019116 iHatchbackPetrol10015984Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019118 dHatchbackDiesel10019954Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019118 dHatchbackDiesel10519954Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019118 dHatchbackDiesel11019954Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019118 d xDriveHatchbackDiesel10519954All-wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019118 d xDriveHatchbackDiesel11019954All-wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019118 iHatchbackPetrol10014993Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019118 iHatchbackPetrol10015984Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019118 iHatchbackPetrol12515984Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019120 dHatchbackDiesel12019954Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019120 dHatchbackDiesel13519954Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019120 dHatchbackDiesel14019954Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019120 dHatchbackDiesel14719954Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019120 dHatchbackDiesel15119954Rear-Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019120 d xDriveHatchbackDiesel13519954All-wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019120 d xDriveHatchbackDiesel14019954All-wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019120 d xDriveHatchbackDiesel14719954All-wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019120 d xDriveHatchbackDiesel15119954All-wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019120 iHatchbackPetrol13015984Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019120 iHatchbackPetrol13519984Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019125 dHatchbackDiesel15519954Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019125 dHatchbackDiesel16019954Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019125 dHatchbackDiesel16519954Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019125 iHatchbackPetrol16019974Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019125 iHatchbackPetrol16519984Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019125 iHatchbackPetrol17519974Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019M 135 iHatchbackPetrol23529796Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019M 135 iHatchbackPetrol24029796Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019M 135 i xDriveHatchbackPetrol23529796All-wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019M 135 i xDriveHatchbackPetrol24029796All-wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019M 140 iHatchbackPetrol25029986Rear Wheel Drive
BMW1 (F20) 1K4 07/2011-06/2019M 140 i xDriveHatchbackPetrol25029986All-wheel Drive
BMW1 (F21) 1K2 12/2011-114 dHatchbackDiesel7014963Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-114 dHatchbackDiesel7015984Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-114 iHatchbackPetrol7515984Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-116 dHatchbackDiesel8514963Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-116 dHatchbackDiesel8515984Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-116 dHatchbackDiesel8519954Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-116 iHatchbackPetrol8014993Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-116 iHatchbackPetrol10015984Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-118 dHatchbackDiesel10019954Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-118 dHatchbackDiesel10519954Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-118 dHatchbackDiesel11019954Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-118 d xDriveHatchbackDiesel10519954All-wheel Drive
BMW1 (F21) 1K2 12/2011-118 d xDriveHatchbackDiesel11019954All-wheel Drive
BMW1 (F21) 1K2 12/2011-118 iHatchbackPetrol10014993Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-118 iHatchbackPetrol10015984Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-118 iHatchbackPetrol12515984Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-120 dHatchbackDiesel12019954Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-120 dHatchbackDiesel13519954Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-120 dHatchbackDiesel14019954Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-120 dHatchbackDiesel14719954Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-120 dHatchbackDiesel15119954Rear-Wheel Drive
BMW1 (F21) 1K2 12/2011-120 d xDriveHatchbackDiesel13519954All-wheel Drive
BMW1 (F21) 1K2 12/2011-120 d xDriveHatchbackDiesel14019954All-wheel Drive
BMW1 (F21) 1K2 12/2011-120 d xDriveHatchbackDiesel14719954All-wheel Drive
BMW1 (F21) 1K2 12/2011-120 d xDriveHatchbackDiesel15119954All-wheel Drive
BMW1 (F21) 1K2 12/2011-120 iHatchbackPetrol13015984Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-120 iHatchbackPetrol13519984Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-125 dHatchbackDiesel15519954Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-125 dHatchbackDiesel16019954Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-125 dHatchbackDiesel16519954Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-125 iHatchbackPetrol16019974Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-125 iHatchbackPetrol16519984Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-125 iHatchbackPetrol17519974Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-M 135 iHatchbackPetrol23529796Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-M 135 iHatchbackPetrol24029796Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-M 135 i xDriveHatchbackPetrol23529796All-wheel Drive
BMW1 (F21) 1K2 12/2011-M 135 i xDriveHatchbackPetrol24029796All-wheel Drive
BMW1 (F21) 1K2 12/2011-M 140 iHatchbackPetrol25029986Rear Wheel Drive
BMW1 (F21) 1K2 12/2011-M 140 i xDriveHatchbackPetrol25029986All-wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-218 dCoupeDiesel10019954Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-218 dCoupeDiesel10519954Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-218 dCoupeDiesel11019954Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-218 iCoupePetrol10014993Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-220 dCoupeDiesel12019954Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-220 dCoupeDiesel13519954Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-220 dCoupeDiesel14019954Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-220 dCoupeDiesel14719954Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-220 dCoupeDiesel15119954Rear-Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-220 d xDriveCoupeDiesel12019954All-wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-220 d xDriveCoupeDiesel14019954All-wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-220 d xDriveCoupeDiesel15119954All-wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-220 iCoupePetrol10014993Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-220 iCoupePetrol13519974Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-220 iCoupePetrol13519984Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-225 dCoupeDiesel16019954Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-225 dCoupeDiesel16519954Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-225 iCoupePetrol13519984Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-228 iCoupePetrol17919974Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-228 iCoupePetrol18019974Rear Wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-228 i xDriveCoupePetrol18019974All-wheel Drive
BMW2 Coupe (F22, F87) 1C, M3 10/2012-230 iCoupePetrol18519984Rear Wheel Drive
