Clubsport top mount FA (with camber adjustment)

19000857

Stock: Backorder Available

AU$519.00 Inc GST

Qty:

Only be used in combination with KW clubsport coilover kit

Description

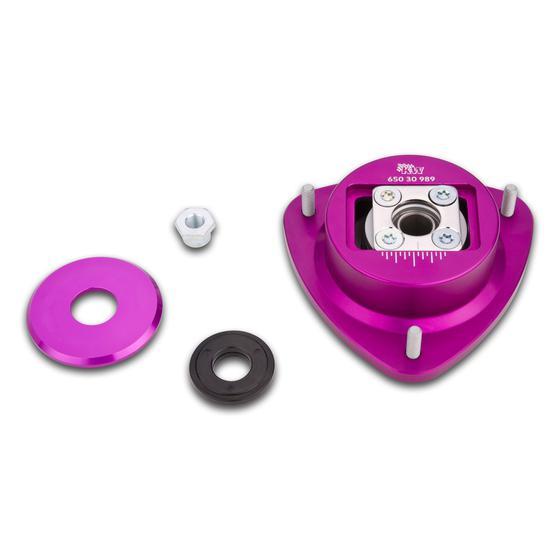

Clubsport top mount FA (with camber adjustment)

KW Clubsport aluminium unibal top mounts have been tranfered from motorsports to the street.
We also offer adjustable top mounts made from high tensile aluminium alloy for our KW Clubsport kits. Camber and caster (optional) adjustments are available on certain applications.

Designed for the toughest race track in the world: the Nürburgring Nordschleife
A special KW sealing system avoids an intrusion of dirt and water into the free of play and preloaded unibal bearings. Furthermore axial bearings allow rotation of springs at McPherson struts.

- Scaled camber adjustment
- Sealed and preloaded spherical bearing
- Axial bearings allow rotation of springs at McPherston struts
- Made of tool steel (100Cr6): 58 to 64 HRC - hard chrome plated
- PTFE surface inlay, stainless steel outer ring (X20Cr13)

Fitment

Make	Model	Type	Body Type	Aspiration	KW	CCM	Cyl	Drivetrain
SCION	FR-S Coupe 09/2011-	2.0 S	Coupe	Petrol	149	1998	4	Rear Wheel Drive
SUBARU	BRZ (Z2) 10/2021-	2.4	Coupe	Petrol	172	2387	4	Rear-Wheel Drive
SUBARU	BRZ (ZC) 06/2012-07/2020	2	Coupe	Petrol	152	1998	4	Rear Wheel Drive
SUBARU	BRZ (ZC) 06/2012-07/2020	2	Coupe	Petrol	153	1998	4	Rear Wheel Drive
SUBARU	BRZ (ZC) 06/2012-07/2020	2.0	Coupe	Petrol	147	1998	4	Rear Wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	1.5 AWD	Saloon	Petrol	77	1498	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	1.5 AWD	Saloon	Petrol	81	1498	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	1.6 AWD	Saloon	Petrol	70	1597	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.0 AWD	Saloon	Petrol	184	1994	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.0 AWD (GDB)	Saloon	Petrol	206	1994	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.0 i AWD	Saloon	Petrol	150	1994	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.0 i AWD (GD9)	Saloon	Petrol	92	1994	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.0 i R AWD (GD9)	Saloon	Petrol	118	1994	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.0 i WRX AWD (GDA)	Saloon	Petrol	168	1994	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.0 WRX STi AWD (GDB)	Saloon	Petrol	195	1994	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.0 WRX Turbo AWD	Saloon	Petrol	165	1994	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.0 WRX Turbo AWD (GDA)	Saloon	Petrol	160	1994	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.2 AWD	Saloon	Petrol	106	2212	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.5 AWD	Saloon	Petrol	123	2458	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.5 AWD	Saloon	Petrol	130	2457	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.5 AWD	Saloon	Petrol	221	2457	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.5 i AWD (GDE)	Saloon	Petrol	112	2457	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.5 i WRX AWD (GDG)	Saloon	Petrol	169	2457	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.5 i WRX STI AWD	Saloon	Petrol	195	2457	4	All-wheel Drive
SUBARU	IMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/2009	2.5 WRX STi AWD (GDF)	Saloon	Petrol	206	2457	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	1.5 AWD	Estate	Petrol	77	1498	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	1.5 AWD	Estate	Petrol	81	1498	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	1.6 AWD	Estate	Petrol	70	1597	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.0 AWD	Estate	Petrol	92	1994	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.0 AWD	Estate	Petrol	184	1994	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.0 i R AWD (GG9)	Estate	Petrol	118	1994	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.0 Turbo AWD (GGA)	Estate	Petrol	160	1994	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.0 WRX AWD	Estate	Petrol	169	1994	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.0 WRX STi AWD	Estate	Petrol	206	1994	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.0 WRX Turbo AWD	Estate	Petrol	165	1994	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.2 AWD	Estate	Petrol	106	2212	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.5 AWD	Hatchback	Petrol	112	2457	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.5 AWD	Estate	Petrol	123	2457	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.5 GB270 AWD	Estate	Petrol	198	2457	4	All-wheel Drive
SUBARU	IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008	2.5 WRX AWD (GGG)	Estate	Petrol	169	2457	4	All-wheel Drive
TOYOTA	GR 86 Coupe (ZN8) 09/2021-	2.4	Coupe	Petrol	172	2387	4	Rear-Wheel Drive
TOYOTA	GT 86 Coupe (ZN6_, GC/GF) 03/2012-03/2021	2.0 (ZN6)	Coupe	Petrol	149	1998	4	Rear Wheel Drive
TOYOTA	GT 86 Coupe (ZN6_, GC/GF) 03/2012-03/2021	2.0 (ZN6AC_, ZN6BC_)	Coupe	Petrol	147	1998	4	Rear Wheel Drive
TOYOTA	GT 86 Coupe (ZN6_, GC/GF) 03/2012-03/2021	2.0 (ZN6EY_)	Coupe	Petrol	152	1998	4	Rear Wheel Drive
