Clubsport top mount FA (with camber and castor adjustment)

Clubsport top mount FA (with camber and castor adjustment)

19000757

Stock: Backorder Available

AU$519.00 Inc GST

Qty:

Only be used in combination with KW clubsport coilover kit

Description

Clubsport top mount FA (with camber and castor adjustment)

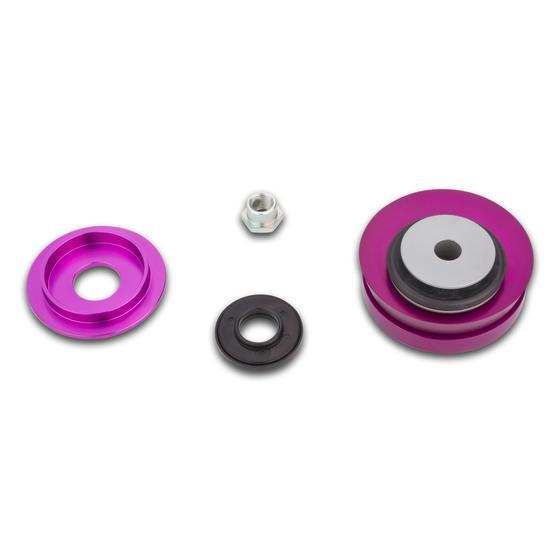

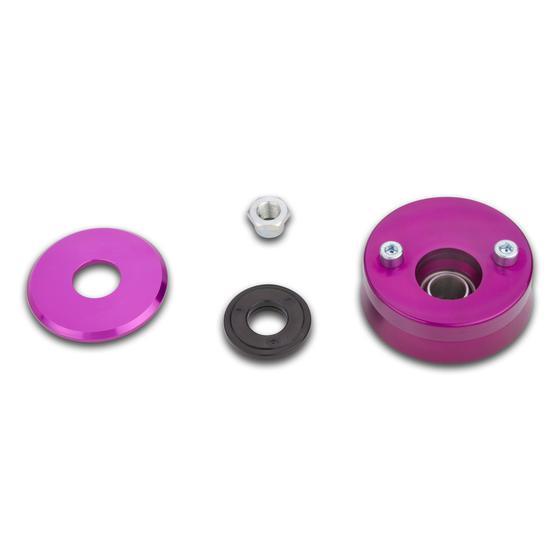

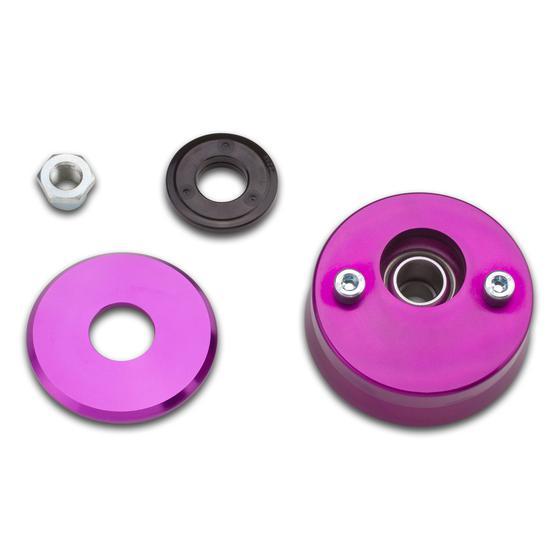

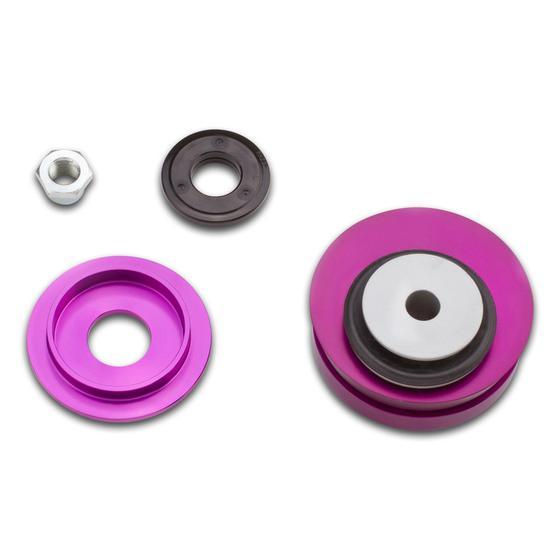

KW Clubsport aluminium unibal top mounts have been tranfered from motorsports to the street.
We also offer adjustable top mounts made from high tensile aluminium alloy for our KW Clubsport kits. Camber and caster (optional) adjustments are available on certain applications.

Designed for the toughest race track in the world: the Nürburgring Nordschleife
A special KW sealing system avoids an intrusion of dirt and water into the free of play and preloaded unibal bearings. Furthermore axial bearings allow rotation of springs at McPherson struts.

- Scaled camber adjustment
- Sealed and preloaded spherical bearing
- Axial bearings allow rotation of springs at McPherston struts
- Made of tool steel (100Cr6): 58 to 64 HRC - hard chrome plated
- PTFE surface inlay, stainless steel outer ring (X20Cr13)

Fitment

Make	Model	Type	Body Type	Aspiration	KW	CCM	Cyl	Drivetrain
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.0	Hatchback	Petrol	33	1043	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.0	Hatchback	Petrol	37	1043	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.3	Hatchback	Petrol	37	1272	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.3	Hatchback	Petrol	40	1272	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.3	Hatchback	Petrol	43	1272	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.3 Cat	Hatchback	Petrol	40	1272	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.6	Hatchback	Petrol	51	1595	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.6	Hatchback	Petrol	51	1595	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.6	Hatchback	Petrol	53	1595	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.6	Hatchback	Petrol	55	1595	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.6 D	Hatchback	Diesel	37	1588	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.6 D	Hatchback	Diesel	40	1588	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.6 TD	Hatchback	Diesel	44	1589	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.6 TD	Hatchback	Diesel	51	1588	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.6 TD	Hatchback	Diesel	55	1588	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.6 TD	Hatchback	Diesel	59	1588	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8	Hatchback	Petrol	51	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8	Hatchback	Petrol	62	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8	Hatchback	Petrol	66	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 GTI	Hatchback	Petrol	77	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 GTI	Hatchback	Petrol	79	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 GTI	Hatchback	Petrol	82	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 GTI 16V	Hatchback	Petrol	95	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 GTI 16V	Hatchback	Petrol	100	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 GTI 16V	Hatchback	Petrol	102	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 GTI Cat	Hatchback	Petrol	79	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 GTI G60	Hatchback	Petrol	118	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 GTI G60 Syncro	Hatchback	Petrol	118	1781	4	All-wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 i Cat	Hatchback	Petrol	66	1781	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 i Cat Syncro	Hatchback	Petrol	66	1781	4	All-wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 Syncro	Hatchback	Petrol	62	1781	4	All-wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 Syncro	Hatchback	Petrol	62	1781	4	All-wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 Syncro	Hatchback	Petrol	66	1781	4	All-wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	1.8 Syncro	Hatchback	Petrol	72	1781	4	All-wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	2.0	Hatchback	Petrol	57	1968	4	Front Wheel Drive
VW	GOLF II (19E_, 1G1) 08/1983-12/1992	2.0 GTI	Hatchback	Petrol	100	1984	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.3	Hatchback	Petrol	40	1272	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.4	Hatchback	Petrol	40	1390	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.4	Hatchback	Petrol	44	1390	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.6	Hatchback	Petrol	55	1598	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.6	Hatchback	Petrol	74	1595	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.8	Hatchback	Petrol	55	1781	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.8	Hatchback	Petrol	66	1781	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.8 Syncro (1HX1)	Hatchback	Petrol	66	1781	4	All-wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.9 D	Hatchback	Diesel	47	1896	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.9 SDI	Hatchback	Diesel	47	1896	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.9 TD,GTD	Hatchback	Diesel	55	1896	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.9 TDI	Hatchback	Diesel	66	1896	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.9 TDI	Hatchback	Diesel	81	1896	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	1.9 TDI Syncro (1HX1)	Hatchback	Diesel	66	1896	4	All-wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	2.0	Hatchback	Petrol	62	1968	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	2.0	Hatchback	Petrol	85	1984	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	2.0 GL	Hatchback	Petrol	79	1984	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	2.0 GTI 16V	Hatchback	Petrol	110	1984	4	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	2.0 Syncro (1HX1)	Hatchback	Petrol	85	1984	4	All-wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	2.8 VR6	Hatchback	Petrol	120	2792	6	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	2.8 VR6	Hatchback	Petrol	128	2792	6	Front Wheel Drive
VW	GOLF III (1H_) 08/1991-07/1998	2.9 VR6 Syncro (1HX1)	Hatchback	Petrol	140	2861	6	All-wheel Drive
VW	GOLF III Estate (1H_) 07/1993-04/1999	1.8 Syncro	Estate	Petrol	66	1781	4	All-wheel Drive
VW	GOLF III Estate (1H_) 07/1993-04/1999	1.9 TDI Syncro	Estate	Diesel	66	1896	4	All-wheel Drive
VW	GOLF III Estate (1H_) 07/1993-04/1999	2.0 Syncro	Estate	Petrol	85	1984	4	All-wheel Drive
VW	GOLF III Estate (1H_) 07/1993-04/1999	2.9 VR6 Syncro	Estate	Petrol	140	2861	6	All-wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.3	Saloon	Petrol	40	1272	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.3	Saloon	Petrol	43	1272	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.3 Cat	Saloon	Petrol	40	1272	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.6	Saloon	Petrol	51	1595	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.6	Saloon	Petrol	53	1595	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.6	Saloon	Petrol	55	1595	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.6 D	Saloon	Diesel	40	1588	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.6 TD	Saloon	Diesel	44	1589	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.6 TD	Saloon	Diesel	51	1588	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.6 TD	Saloon	Diesel	59	1588	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.7	Saloon	Petrol	57	1715	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8	Saloon	Petrol	51	1781	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8	Saloon	Petrol	62	1781	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8	Saloon	Petrol	66	1781	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8	Saloon	Petrol	77	1781	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8	Saloon	Petrol	79	1781	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8	Saloon	Petrol	82	1781	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8 16V	Saloon	Petrol	95	1781	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8 16V	Saloon	Petrol	102	1781	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8 Cat	Saloon	Petrol	66	1781	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8 Cat	Saloon	Petrol	79	1781	4	Front Wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8 Syncro	Saloon	Petrol	62	1781	4	All-wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8 Syncro	Saloon	Petrol	66	1781	4	All-wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	1.8 Syncro	Saloon	Petrol	72	1781	4	All-wheel Drive
VW	JETTA II (19E_, 1G2, 165) 08/1983-12/1992	2.0	Saloon	Petrol	100	1984	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	1.4	Saloon	Petrol	40	1390	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	1.4	Saloon	Petrol	44	1390	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	1.6	Saloon	Petrol	55	1598	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	1.6	Saloon	Petrol	74	1595	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	1.8	Saloon	Petrol	55	1781	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	1.8	Saloon	Petrol	66	1781	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	1.9 D	Saloon	Diesel	48	1896	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	1.9 SDI	Saloon	Diesel	47	1896	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	1.9 TD	Saloon	Diesel	55	1896	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	1.9 TDI	Saloon	Diesel	66	1896	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	1.9 TDI	Saloon	Diesel	81	1896	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	2.0	Saloon	Petrol	85	1984	4	Front Wheel Drive
VW	VENTO (1H2, 1H, 1HX0) 11/1991-09/1998	2.0 GL	Saloon	Petrol	62	1968	4	Front Wheel Drive
