KW Coilover Kit V2 Comfort for 03/2005-10/2014 VW Passat w/ Deactivation For Electronic Dampers

18080105

Stock: Backorder Available

AU$3,729.00 Inc GST

Description

Description

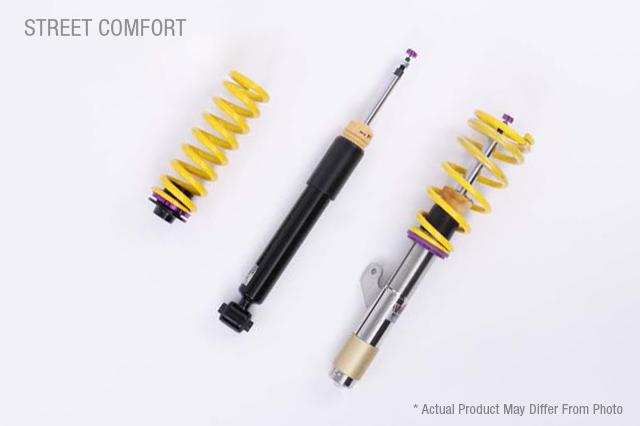

Coilover suspension V2 comfort (incl. deactivation for electronic dampers)

The KW V2 Comfort coilovers, for your comfort-oriented driving pleasure.

If your original suspension is too hard for your everyday life or even the comfort of your installed aftermarket suspension kit KW V2 Comfort sport suspension is the perfect solution for more driving comfort. It combines a minimal lowering within the vehicle-specific adjustment range of ten to 40 mm with a comfort-oriented damper setup developed from KW test engineers in numerous test runs in everyday life and on our KW 7-post rig.

Suspension too hard? KW Street Comfort is the answer
Whether on long trips on the motorway, or many miles on country roads, with KW V2 Comfort coilovers you can enjoy a comfortable setup. The shorter KW damper housings enable a comfortable setup despite the lowering. The KW V2 Comfort coilovers include comfort-oriented damping and spring characteristics which are perfectly adjusted to each other. Additionally the KW V2 Comfort coilovers allow you to individually adjust the rebound damping to suit your driving style and your sense of comfort.

Adjustable comfort - "no more hard times"
With KW V2 Comfort coilovers you can influence the handling and comfort by the individually adjustable rebound damping. With 16 precise clicks, you can adjust the KW dampers to a be more comfortable or a little firmer without affecting the compression damping. By increasing the rebound force with the adjustment wheel, the body movements are reduced. Your has more directional and cornering stability. If you change to bigger wheels than the wheel / tire combination which came from the car manufacturer, you can adapt the rebound damping to the driving behaviour of your car and your new alloy rims perfectly. Or you can reduce the rebound forces with a few clicks to gain even more comfort - just as you have always desired from a sport suspension.

Lowering of 10 to 40 mm

The KW V2 Comfort coilovers made in stainless steel technology "inox-line" enable a vehicle-specific lowering within the tested adjustment range of 10 to 40 mm. So you do not have to accept a fix lowering of a conventional spring kit any more. Due to the delicate processing and use of high quality components, the KW V2 Comfort coilover struts in stainless steel are 100 per cent corrosion-resistant and have an unlimited life.

The functioning of the lowering in connection with the dirt restistand trapezoid thread and the composite collar will not be affected even after many years of driving. With the individual lowering adjustment range, you can emphasize the sportiness of your vehicle visually.

- stainless steel technology "inox-line"
- minimum lowering
- tested adjustment range
- high quality components for a long life
- comfort-oriented damper setup
- adjustable rebound damping


Setup - Adjustable rebound damping with 16 clicks.
KW V2 Comfort coilovers are produced to focus solely on your driving pleasure. That´s why our test engineers are testing on numerous motorways and country roads for you. The KW V2 Comfort coilovers are suitable for all frequent travellers and families who want to combine the pleasure of minimal lowering and driving comfort.

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
VWCC (3CC, 358) 11/2011-12/20161.8 TSICoupePetrol11217984Front Wheel Drive
VWCC (3CC, 358) 11/2011-12/20162.0 TDICoupeDiesel10019684Front Wheel Drive
VWCC (3CC, 358) 11/2011-12/20162.0 TDICoupeDiesel10319684Front Wheel Drive
VWCC (3CC, 358) 11/2011-12/20162.0 TDICoupeDiesel11019684Front Wheel Drive
VWCC (3CC, 358) 11/2011-12/20162.0 TDICoupeDiesel12519684Front Wheel Drive
VWCC (3CC, 358) 11/2011-12/20162.0 TDICoupeDiesel13019684Front Wheel Drive
VWCC (3CC, 358) 11/2011-12/20162.0 TDICoupeDiesel13519684Front Wheel Drive
VWCC (3CC, 358) 11/2011-12/20162.0 TDI 4motionCoupeDiesel10319684All-wheel Drive
VWCC (3CC, 358) 11/2011-12/20162.0 TDI 4motionCoupeDiesel12519684All-wheel Drive
VWCC (3CC, 358) 11/2011-12/20162.0 TDI 4motionCoupeDiesel13019684All-wheel Drive
VWCC (3CC, 358) 11/2011-12/20162.0 TSICoupePetrol14719844Front Wheel Drive
VWCC (3CC, 358) 11/2011-12/20162.0 TSICoupePetrol15519844Front Wheel Drive
VWCC (3CC, 358) 11/2011-12/20163.6 FSICoupePetrol20635806Front Wheel Drive
VWCC (3CC, 358) 11/2011-12/20163.6 FSI 4motionCoupePetrol20635806All-wheel Drive
VWCC (3CC, 358) 11/2011-12/20163.6 FSI 4motionCoupePetrol22035976All-wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20151.6 TDISaloonDiesel7715984Front Wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20151.8 TSISaloonPetrol11217984Front Wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20151.8 TSISaloonPetrol11817984Front Wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20152.0 TDISaloonDiesel10019684Front Wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20152.0 TDISaloonDiesel10319684Front Wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20152.0 TDISaloonDiesel12519684Front Wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20152.0 TDISaloonDiesel13019684Front Wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20152.0 TDI 4motionSaloonDiesel10319684All-wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20152.0 TDI 4motionSaloonDiesel12519684All-wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20152.0 TDI 4motionSaloonDiesel13019684All-wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20152.0 TSISaloonPetrol15519844Front Wheel Drive
VWPASSAT 362 (3c) 08/2010-12/20153.6 FSI 4motionSaloonPetrol22035976All-wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20101.8 TSISaloonPetrol11217984Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20101.8 TSISaloonPetrol11817984Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 BlueTDISaloonDiesel10519684Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 FSISaloonPetrol12519844Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 FSISaloonPetrol14719844Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 TDISaloonDiesel8119684Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 TDISaloonDiesel8819684Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 TDISaloonDiesel9019684Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 TDISaloonDiesel10019684Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 TDISaloonDiesel10319684Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 TDISaloonDiesel12019684Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 TDISaloonDiesel12519684Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 TDI 16VSaloonDiesel10319684Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 TDI 16V 4motionSaloonDiesel10319684All-wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 TDI 4motionSaloonDiesel10319684All-wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20102.0 TDI 4motionSaloonDiesel12519684All-wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20103.2 FSI 4motionSaloonPetrol18431686All-wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20103.6 FSISaloonPetrol20635806Front Wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20103.6 FSI 4motionSaloonPetrol20635806All-wheel Drive
VWPASSAT 3C2 (3C) 03/2005-12/20103.6 R36 4motionSaloonPetrol22035976All-wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20121.8 TSICoupePetrol11217984Front Wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20122.0 BlueTDICoupeDiesel10519684Front Wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20122.0 TDICoupeDiesel10019684Front Wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20122.0 TDICoupeDiesel10319684Front Wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20122.0 TDICoupeDiesel12019684Front Wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20122.0 TDICoupeDiesel12519684Front Wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20122.0 TDI 4motionCoupeDiesel10319684All-wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20122.0 TDI 4motionCoupeDiesel12519684All-wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20122.0 TSICoupePetrol14719844Front Wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20122.0 TSICoupePetrol15519844Front Wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20123.6 FSICoupePetrol20635806Front Wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20123.6 FSI 4motionCoupePetrol20635806All-wheel Drive
VWPASSAT CC 357 (3CC) 02/2008-01/20123.6 FSI 4motionCoupePetrol22035976All-wheel Drive
VWPASSAT Estate 365 (3c) 08/2010-12/20151.6 TDIEstateDiesel7715984Front Wheel Drive
VWPASSAT Estate 365 (3c) 08/2010-12/20151.8 TSIEstatePetrol11217984Front Wheel Drive
VWPASSAT Estate 365 (3c) 08/2010-12/20151.8 TSIEstatePetrol11817984Front Wheel Drive
VWPASSAT Estate 365 (3c) 08/2010-12/20152.0 TDIEstateDiesel10019684Front Wheel Drive
VWPASSAT Estate 365 (3c) 08/2010-12/20152.0 TDIEstateDiesel10319684Front Wheel Drive
VWPASSAT Estate 365 (3c) 08/2010-12/20152.0 TDIEstateDiesel12519684Front Wheel Drive
VWPASSAT Estate 365 (3c) 08/2010-12/20152.0 TDIEstateDiesel13019684Front Wheel Drive
VWPASSAT Estate 365 (3c) 08/2010-12/20152.0 TSIEstatePetrol15519844Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20111.8 TSIEstatePetrol11217984Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20111.8 TSIEstatePetrol11817984Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20112.0EstatePetrol10019844Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20112.0 BlueTDIEstateDiesel10519684Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20112.0 TDIEstateDiesel8119684Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20112.0 TDIEstateDiesel8819684Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20112.0 TDIEstateDiesel9019684Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20112.0 TDIEstateDiesel10019684Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20112.0 TDIEstateDiesel10319684Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20112.0 TDIEstateDiesel12019684Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20112.0 TDIEstateDiesel12519684Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20112.0 TDI 16VEstateDiesel10319684Front Wheel Drive
VWPASSAT Estate 3C5 (3C) 08/2005-11/20113.6 FSIEstatePetrol20635806Front Wheel Drive

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
