KW Coilover Kit V2 Comfort for 04/2008-09/2015 Audi A4 Allroad (8KH, B8)

18010078

Stock: Backorder Available

AU$3,659.00 Inc GST

Description

Description

Coilover suspension V2 comfort

The KW V2 Comfort coilovers, for your comfort-oriented driving pleasure.

If your original suspension is too hard for your everyday life or even the comfort of your installed aftermarket suspension kit KW V2 Comfort sport suspension is the perfect solution for more driving comfort. It combines a minimal lowering within the vehicle-specific adjustment range of ten to 40 mm with a comfort-oriented damper setup developed from KW test engineers in numerous test runs in everyday life and on our KW 7-post rig.

Suspension too hard? KW Street Comfort is the answer
Whether on long trips on the motorway, or many miles on country roads, with KW V2 Comfort coilovers you can enjoy a comfortable setup. The shorter KW damper housings enable a comfortable setup despite the lowering. The KW V2 Comfort coilovers include comfort-oriented damping and spring characteristics which are perfectly adjusted to each other. Additionally the KW V2 Comfort coilovers allow you to individually adjust the rebound damping to suit your driving style and your sense of comfort.

Adjustable comfort - "no more hard times"
With KW V2 Comfort coilovers you can influence the handling and comfort by the individually adjustable rebound damping. With 16 precise clicks, you can adjust the KW dampers to a be more comfortable or a little firmer without affecting the compression damping. By increasing the rebound force with the adjustment wheel, the body movements are reduced. Your has more directional and cornering stability. If you change to bigger wheels than the wheel / tire combination which came from the car manufacturer, you can adapt the rebound damping to the driving behaviour of your car and your new alloy rims perfectly. Or you can reduce the rebound forces with a few clicks to gain even more comfort - just as you have always desired from a sport suspension.

Lowering of 10 to 40 mm

The KW V2 Comfort coilovers made in stainless steel technology "inox-line" enable a vehicle-specific lowering within the tested adjustment range of 10 to 40 mm. So you do not have to accept a fix lowering of a conventional spring kit any more. Due to the delicate processing and use of high quality components, the KW V2 Comfort coilover struts in stainless steel are 100 per cent corrosion-resistant and have an unlimited life.

The functioning of the lowering in connection with the dirt restistand trapezoid thread and the composite collar will not be affected even after many years of driving. With the individual lowering adjustment range, you can emphasize the sportiness of your vehicle visually.

- stainless steel technology "inox-line"
- minimum lowering
- tested adjustment range
- high quality components for a long life
- comfort-oriented damper setup
- adjustable rebound damping

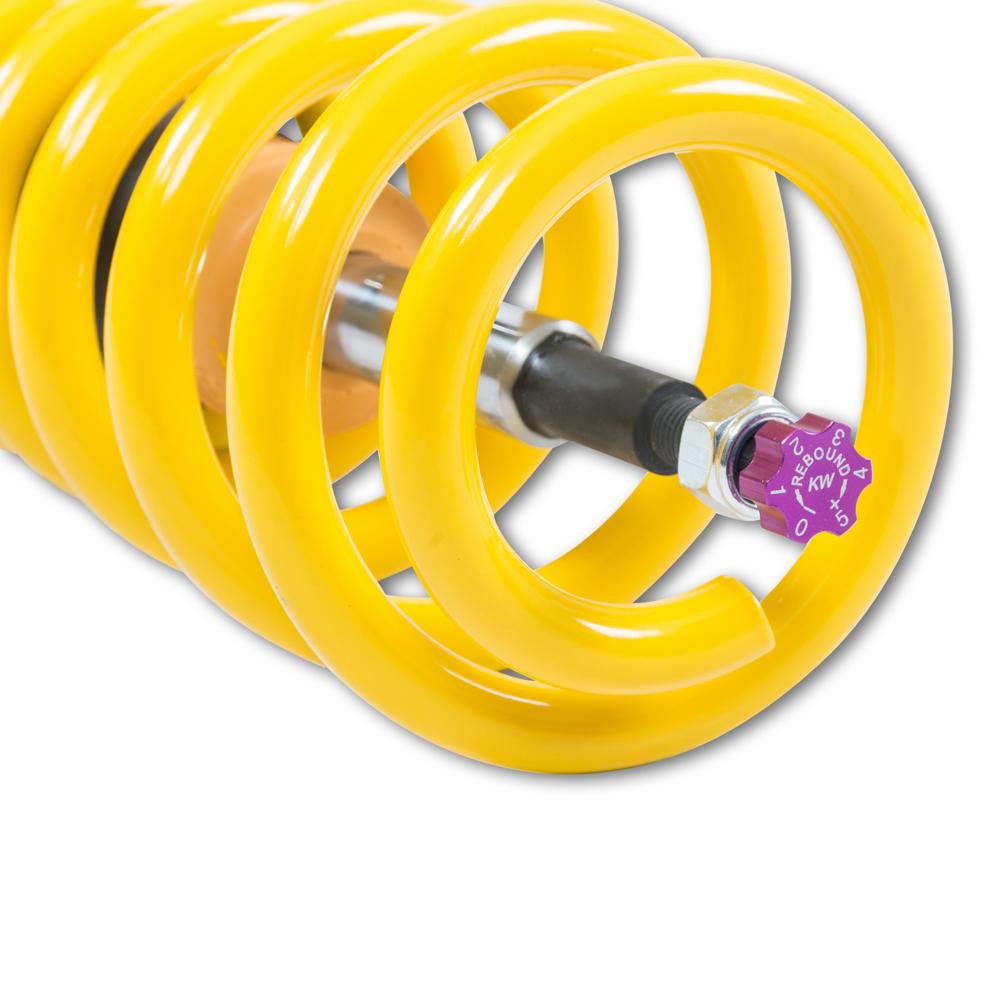

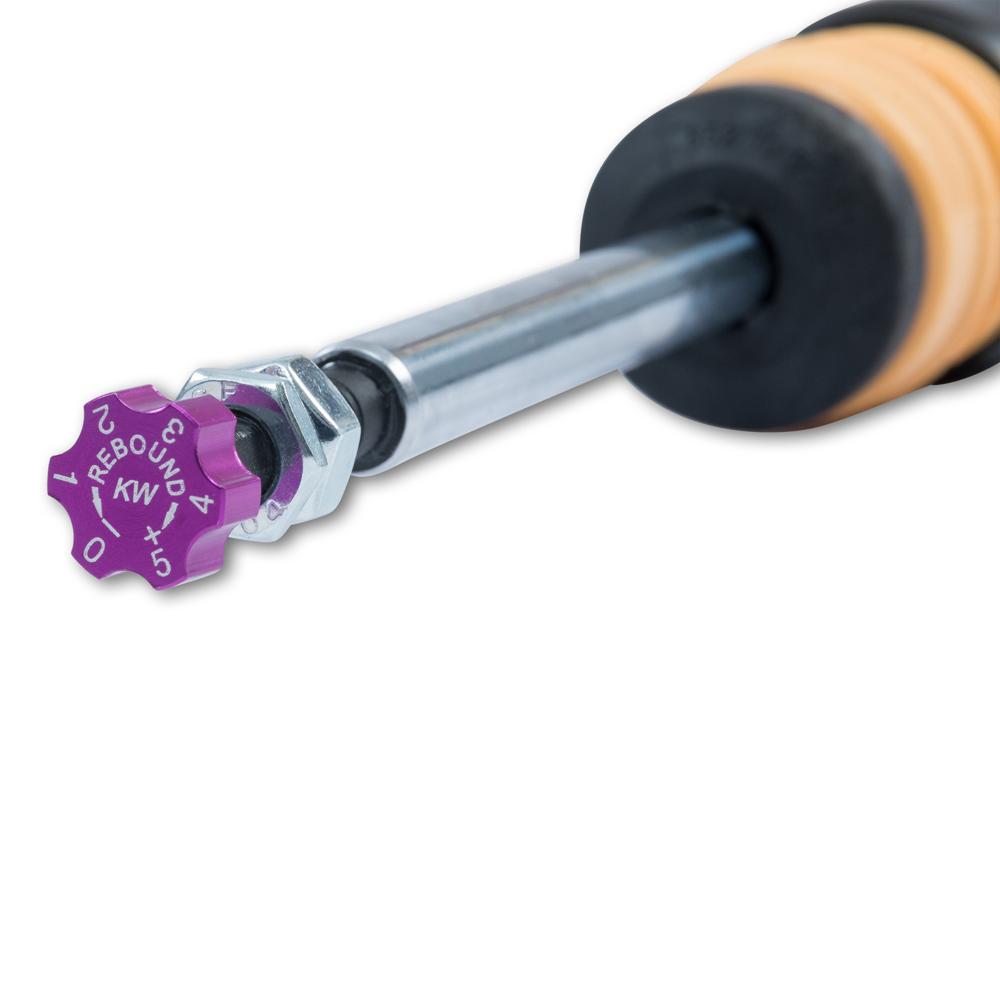

Setup - Adjustable rebound damping with 16 clicks.
KW V2 Comfort coilovers are produced to focus solely on your driving pleasure. That´s why our test engineers are testing on numerous motorways and country roads for you. The KW V2 Comfort coilovers are suitable for all frequent travellers and families who want to combine the pleasure of minimal lowering and driving comfort.

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel10019684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel10519684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel11019684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel12019684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel12519684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel13019684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel14019684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TFSI quattroEstatePetrol15519844All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TFSI quattroEstatePetrol16219844All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TFSI quattroEstatePetrol16519844All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20163.0 TDI quattroEstateDiesel17629676All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20163.0 TDI quattroEstateDiesel18029676All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TDIEstateDiesel10019684Front Wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TDIEstateDiesel10519684Front Wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TDIEstateDiesel11019684Front Wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TDIEstateDiesel12019684Front Wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TDIEstateDiesel13019684Front Wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TDIEstateDiesel14019684Front Wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TDI quattroEstateDiesel10519684All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TDI quattroEstateDiesel11019684All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TDI quattroEstateDiesel12519684All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TDI quattroEstateDiesel13019684All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TDI quattroEstateDiesel14019684All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TFSI quattroEstatePetrol15519844All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.0 TFSI quattroEstatePetrol16519844All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.7 TDIEstateDiesel12026986Front Wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20152.7 TDIEstateDiesel14026986Front Wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20153.0 TDIEstateDiesel15029676Front Wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20153.0 TDI quattroEstateDiesel15529676All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20153.0 TDI quattroEstateDiesel17629676All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20153.0 TDI quattroEstateDiesel18029676All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20153.0 TFSI quattroEstatePetrol20029956All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20153.2 FSIEstatePetrol19531976Front Wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/20153.2 FSI quattroEstatePetrol19531976All-wheel Drive
AUDIA4 Avant (B8) 8K5 11/2007-12/2015S4 quattroEstatePetrol24529956All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20181.8 TFSIHatchbackPetrol14017984Front Wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20182.0 TFSIHatchbackPetrol18519844Front Wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20182.0 TFSI quattroHatchbackPetrol18319844All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20182.0 TFSI quattroHatchbackPetrol18519844All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20182.5 FSIHatchbackPetrol15024986Front Wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20182.8 FSIHatchbackPetrol15027736Front Wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20182.8 FSI quattroHatchbackPetrol15027736All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20182.8 FSI quattroHatchbackPetrol16227736All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDIHatchbackDiesel14029676Front Wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDIHatchbackDiesel15029676Front Wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDIHatchbackDiesel15529676Front Wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDIHatchbackDiesel16029676Front Wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDI quattroHatchbackDiesel14029676All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDI quattroHatchbackDiesel15029676All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDI quattroHatchbackDiesel15529676All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDI quattroHatchbackDiesel16029676All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDI quattroHatchbackDiesel17629676All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDI quattroHatchbackDiesel18029676All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDI quattroHatchbackDiesel20029676All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDI quattroHatchbackDiesel23029676All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDI quattroHatchbackDiesel23529676All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TDI quattroHatchbackDiesel24029676All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TFSI quattroHatchbackPetrol22029956All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TFSI quattroHatchbackPetrol22829956All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TFSI quattroHatchbackPetrol24529956All-wheel Drive
AUDIA7 Sportback (4G) 4GA, 4GF 07/2010-05/20183.0 TFSI QUATTROHatchbackPetrol25029956All-wheel Drive

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
  • Note 62: Not for cars with electronic damping
  • Note 8: Not for vehicles with automatic self leveling control / air suspension
