KW Coilover Kit V2 Comfort for 05/2000+ Mercedes Benz C-Class T-Model (S203)

18025002

Stock: Backorder Available

AU$3,699.00 Inc GST

Description

Description

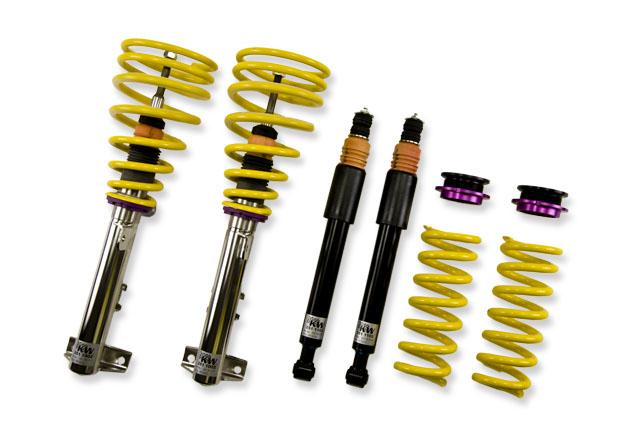

Coilover suspension V2 comfort

The KW V2 Comfort coilovers, for your comfort-oriented driving pleasure.

If your original suspension is too hard for your everyday life or even the comfort of your installed aftermarket suspension kit KW V2 Comfort sport suspension is the perfect solution for more driving comfort. It combines a minimal lowering within the vehicle-specific adjustment range of ten to 40 mm with a comfort-oriented damper setup developed from KW test engineers in numerous test runs in everyday life and on our KW 7-post rig.

Suspension too hard? KW Street Comfort is the answer
Whether on long trips on the motorway, or many miles on country roads, with KW V2 Comfort coilovers you can enjoy a comfortable setup. The shorter KW damper housings enable a comfortable setup despite the lowering. The KW V2 Comfort coilovers include comfort-oriented damping and spring characteristics which are perfectly adjusted to each other. Additionally the KW V2 Comfort coilovers allow you to individually adjust the rebound damping to suit your driving style and your sense of comfort.

Adjustable comfort - "no more hard times"
With KW V2 Comfort coilovers you can influence the handling and comfort by the individually adjustable rebound damping. With 16 precise clicks, you can adjust the KW dampers to a be more comfortable or a little firmer without affecting the compression damping. By increasing the rebound force with the adjustment wheel, the body movements are reduced. Your has more directional and cornering stability. If you change to bigger wheels than the wheel / tire combination which came from the car manufacturer, you can adapt the rebound damping to the driving behaviour of your car and your new alloy rims perfectly. Or you can reduce the rebound forces with a few clicks to gain even more comfort - just as you have always desired from a sport suspension.

Lowering of 10 to 40 mm

The KW V2 Comfort coilovers made in stainless steel technology "inox-line" enable a vehicle-specific lowering within the tested adjustment range of 10 to 40 mm. So you do not have to accept a fix lowering of a conventional spring kit any more. Due to the delicate processing and use of high quality components, the KW V2 Comfort coilover struts in stainless steel are 100 per cent corrosion-resistant and have an unlimited life.

The functioning of the lowering in connection with the dirt restistand trapezoid thread and the composite collar will not be affected even after many years of driving. With the individual lowering adjustment range, you can emphasize the sportiness of your vehicle visually.

- stainless steel technology "inox-line"
- minimum lowering
- tested adjustment range
- high quality components for a long life
- comfort-oriented damper setup
- adjustable rebound damping


Setup - Adjustable rebound damping with 16 clicks.
KW V2 Comfort coilovers are produced to focus solely on your driving pleasure. That´s why our test engineers are testing on numerous motorways and country roads for you. The KW V2 Comfort coilovers are suitable for all frequent travellers and families who want to combine the pleasure of minimal lowering and driving comfort.

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 220 CDI (203.006)SaloonDiesel10021484Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 220 CDI (203.008)SaloonDiesel11021484Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 230 (203.052)SaloonPetrol15024966Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 240 (203.061)SaloonPetrol12525976Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 270 CDI (203.016)SaloonDiesel12026855Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 270 CDI (203.016)SaloonDiesel12526855Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 280 (203.054)SaloonPetrol17029966Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 30 CDI AMG (203.018)SaloonDiesel17029505Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 32 AMG Kompressor (203.065)SaloonPetrol26031996Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 320 (203.064)SaloonPetrol16031996Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 320 CDI (203.020)SaloonDiesel16529876Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 350 (203.056)SaloonPetrol20034986Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 55 AMGSaloonPetrol26054398Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 55 AMGSaloonPetrol27054398Rear Wheel Drive
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 55 AMG (203.076)SaloonPetrol27054398Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 220 CDI (203.206)EstateDiesel10521484Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 220 CDI (203.208)EstateDiesel10021494Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 220 CDI (203.208)EstateDiesel11021484Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 230 (203.252)EstatePetrol15024966Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 240 (203.261)EstatePetrol12525976Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 270 CDI (203.216)EstateDiesel12026855Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 270 CDI (203.216)EstateDiesel12526855Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 280 (203.254)EstatePetrol17029966Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 30 CDI AMG (203.218)EstateDiesel17029505Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 32 AMG Kompressor (203.265)EstatePetrol26031996Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 320 (203.264)EstatePetrol16031996Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 320 CDI (203.220)EstateDiesel16529876Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 350 (203.256)EstatePetrol20034986Rear Wheel Drive
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 55 AMG (203.276)EstatePetrol27054398Rear Wheel Drive

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 8: Not for vehicles with automatic self leveling control / air suspension
  • Note 6: When using original tires, wheel offset spacers may be required
  • Note 94: Specific damping variants only available while stocks last. For further information please send an email to sales@scuderia-autoart.com
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
