KW Coilover Kit V2 Comfort for 05/2007-12/2016 Audi A5 Sportback (8TA) w/ Deactivation For Electronic Dampers

18010097

Stock: Backorder Available

AU$4,059.00 Inc GST

Description

Description

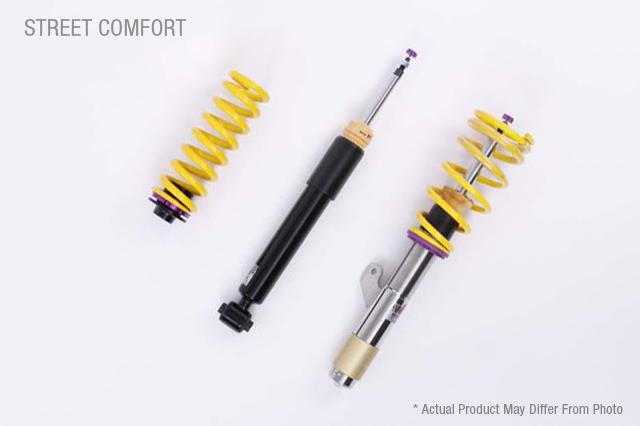

Coilover suspension V2 comfort (incl. deactivation for electronic dampers)

The KW V2 Comfort coilovers, for your comfort-oriented driving pleasure.

If your original suspension is too hard for your everyday life or even the comfort of your installed aftermarket suspension kit KW V2 Comfort sport suspension is the perfect solution for more driving comfort. It combines a minimal lowering within the vehicle-specific adjustment range of ten to 40 mm with a comfort-oriented damper setup developed from KW test engineers in numerous test runs in everyday life and on our KW 7-post rig.

Suspension too hard? KW Street Comfort is the answer
Whether on long trips on the motorway, or many miles on country roads, with KW V2 Comfort coilovers you can enjoy a comfortable setup. The shorter KW damper housings enable a comfortable setup despite the lowering. The KW V2 Comfort coilovers include comfort-oriented damping and spring characteristics which are perfectly adjusted to each other. Additionally the KW V2 Comfort coilovers allow you to individually adjust the rebound damping to suit your driving style and your sense of comfort.

Adjustable comfort - "no more hard times"
With KW V2 Comfort coilovers you can influence the handling and comfort by the individually adjustable rebound damping. With 16 precise clicks, you can adjust the KW dampers to a be more comfortable or a little firmer without affecting the compression damping. By increasing the rebound force with the adjustment wheel, the body movements are reduced. Your has more directional and cornering stability. If you change to bigger wheels than the wheel / tire combination which came from the car manufacturer, you can adapt the rebound damping to the driving behaviour of your car and your new alloy rims perfectly. Or you can reduce the rebound forces with a few clicks to gain even more comfort - just as you have always desired from a sport suspension.

Lowering of 10 to 40 mm

The KW V2 Comfort coilovers made in stainless steel technology "inox-line" enable a vehicle-specific lowering within the tested adjustment range of 10 to 40 mm. So you do not have to accept a fix lowering of a conventional spring kit any more. Due to the delicate processing and use of high quality components, the KW V2 Comfort coilover struts in stainless steel are 100 per cent corrosion-resistant and have an unlimited life.

The functioning of the lowering in connection with the dirt restistand trapezoid thread and the composite collar will not be affected even after many years of driving. With the individual lowering adjustment range, you can emphasize the sportiness of your vehicle visually.

- stainless steel technology "inox-line"
- minimum lowering
- tested adjustment range
- high quality components for a long life
- comfort-oriented damper setup
- adjustable rebound damping


Setup - Adjustable rebound damping with 16 clicks.
KW V2 Comfort coilovers are produced to focus solely on your driving pleasure. That´s why our test engineers are testing on numerous motorways and country roads for you. The KW V2 Comfort coilovers are suitable for all frequent travellers and families who want to combine the pleasure of minimal lowering and driving comfort.

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel10019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel10519684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel11019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel12019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel13019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel14019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel10519684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel11019684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel12519684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel13019684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel14019684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSISaloonPetrol16219844Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol13219844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol15519844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol16219844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol16519844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.7 TDISaloonDiesel12026986Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.7 TDISaloonDiesel14026986Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDISaloonDiesel15029676Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDI quattroSaloonDiesel15529676All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDI quattroSaloonDiesel17629676All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDI quattroSaloonDiesel18029676All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TFSI quattroSaloonPetrol20029956All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.2 FSISaloonPetrol19531976Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.2 FSI quattroSaloonPetrol19531976All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/2015S4 quattroSaloonPetrol24529956All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDICoupeDiesel12019684Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDICoupeDiesel13019684Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDICoupeDiesel14019684Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDI quattroCoupeDiesel13019684All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDI quattroCoupeDiesel14019684All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TFSI quattroCoupePetrol16219844All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.7 TDICoupeDiesel12026986Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.7 TDICoupeDiesel14026986Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TDICoupeDiesel15029676Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TDI quattroCoupeDiesel15529676All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TDI quattroCoupeDiesel16029676All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TDI quattroCoupeDiesel17629676All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TDI quattroCoupeDiesel18029676All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TFSI quattroCoupePetrol20029956All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.2 FSICoupePetrol19531976Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.2 FSI quattroCoupePetrol19531976All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/2017S5 quattroCoupePetrol24529956All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/2017S5 quattroCoupePetrol24929956All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/2017S5 quattroCoupePetrol26041638All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20171.8 TFSIConvertiblePetrol12517984Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20171.8 TFSIConvertiblePetrol13017984Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel10519684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel11019684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel12019684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel12519684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel13019684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel14019684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDI quattroConvertibleDiesel13019684All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDI quattroConvertibleDiesel14019684All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol13219844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol15519844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol16219844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol16519844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol16919844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol15519844All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol16219844All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol16219844All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol16519844All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol16919844All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.7 TDIConvertibleDiesel12026986Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.7 TDIConvertibleDiesel14026986Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.0 TDIConvertibleDiesel15029676Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.0 TDI quattroConvertibleDiesel16029676All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.0 TDI quattroConvertibleDiesel17629676All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.0 TDI quattroConvertibleDiesel18029676All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.0 TFSI quattroConvertiblePetrol20029956All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.2 FSIConvertiblePetrol19531976Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.2 FSI quattroConvertiblePetrol19531976All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/2017S5 quattroConvertiblePetrol24529956All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel10019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel10519684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel11019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel12019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel12519684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel13019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel14019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDI quattroHatchbackDiesel12519684All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDI quattroHatchbackDiesel13019684All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDI quattroHatchbackDiesel14019684All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSI quattroHatchbackPetrol15519844All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSI quattroHatchbackPetrol16519844All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSI quattroHatchbackPetrol16919844All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.7 TDIHatchbackDiesel12026986Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.7 TDIHatchbackDiesel14026986Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.0 TDIHatchbackDiesel15029676Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.0 TDI quattroHatchbackDiesel16029676All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.0 TDI quattroHatchbackDiesel17629676All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.0 TDI quattroHatchbackDiesel18029676All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.0 TFSI quattroHatchbackPetrol20029956All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.2 FSI quattroHatchbackPetrol19531976All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/2017S5 quattroHatchbackPetrol24529956All-wheel Drive

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
  • Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
