KW Coilover Kit V2 Comfort for 09/2006+ BMW 3 Series Coupe (E92)

18020032

Stock: Backorder Available

AU$3,529.00 Inc GST

Description

Description

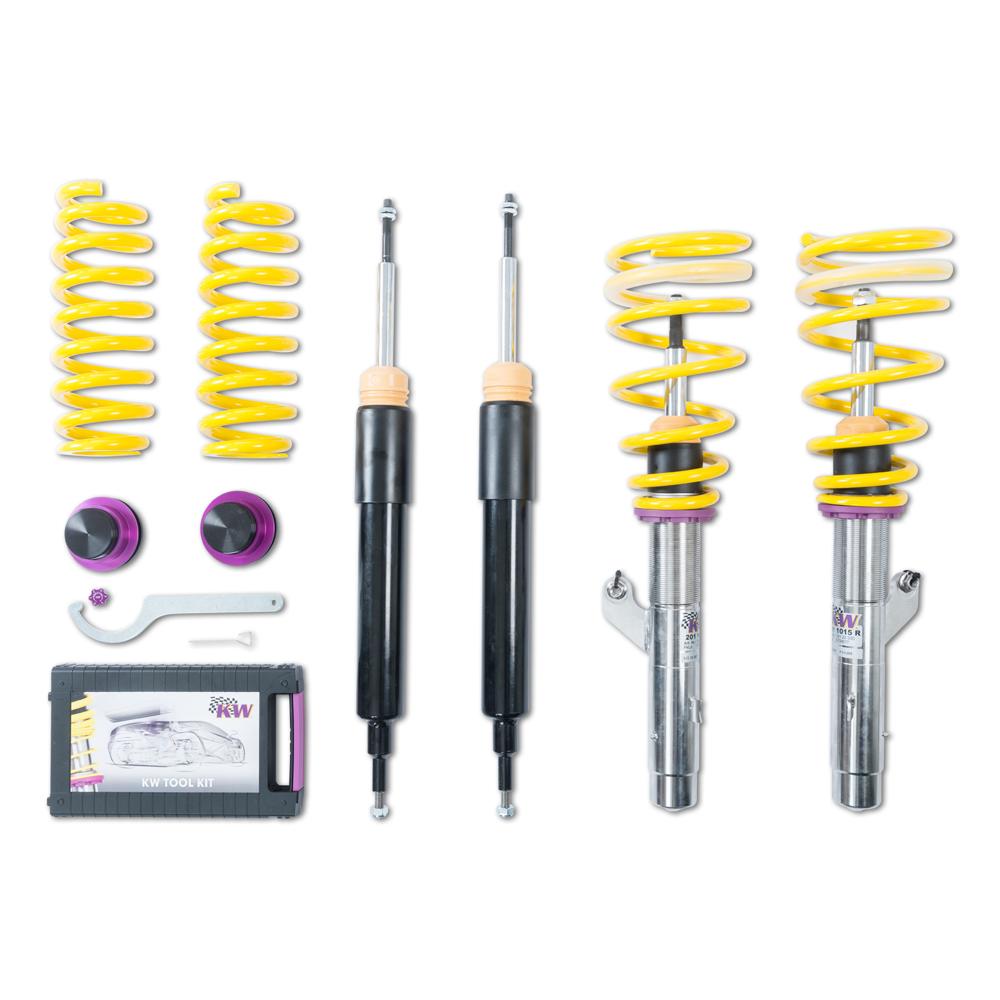

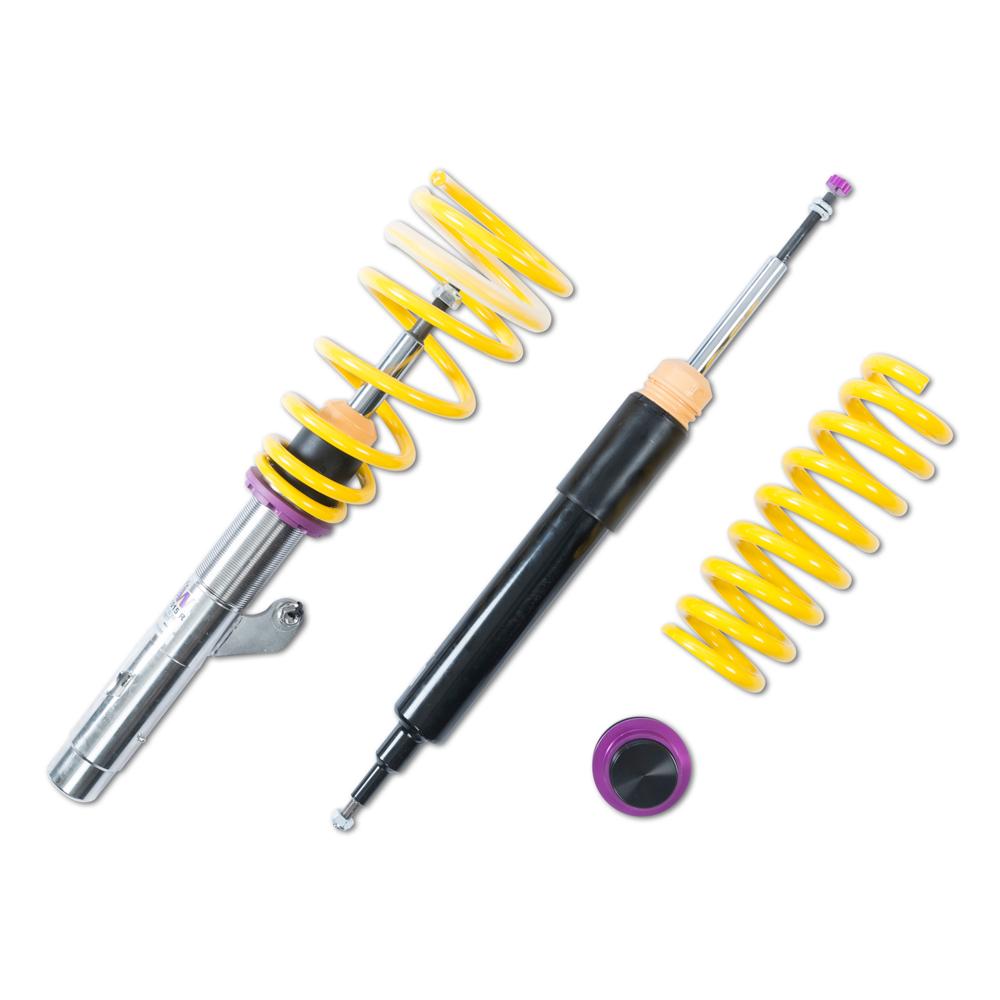

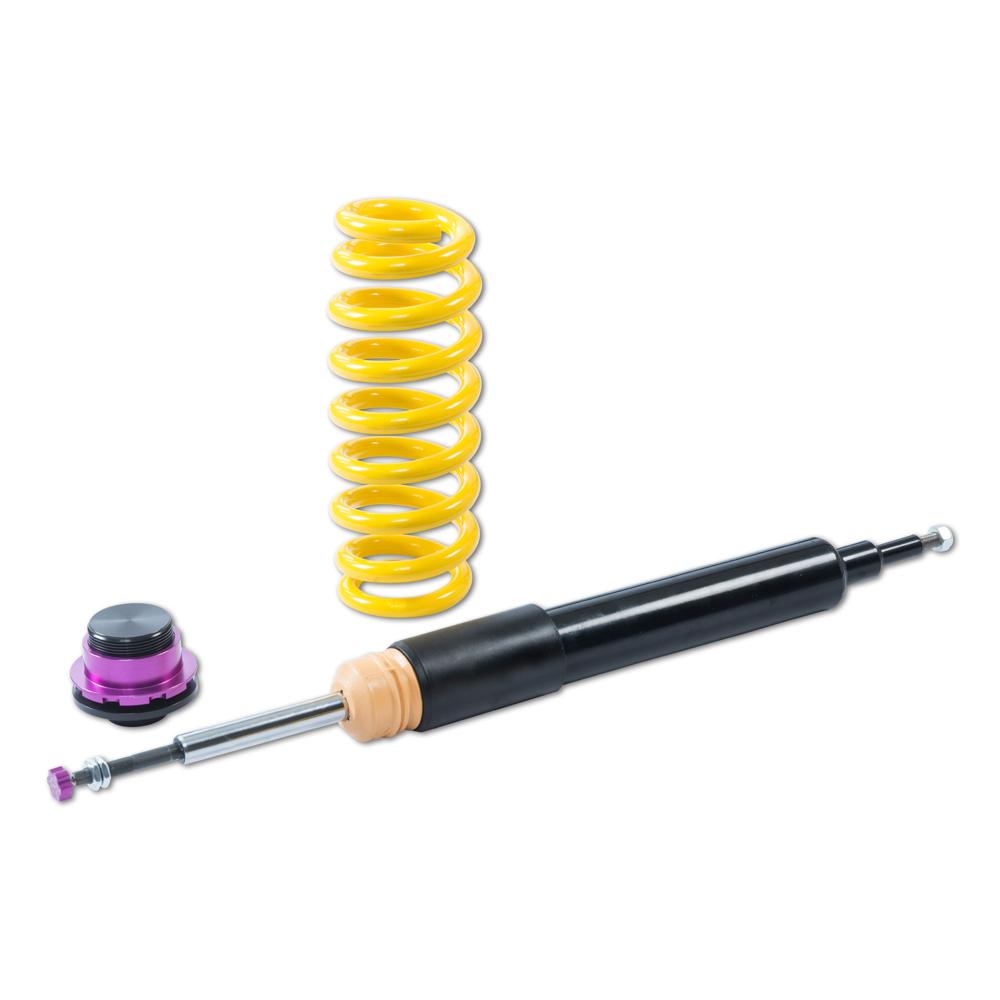

Coilover suspension V2 comfort

The KW V2 Comfort coilovers, for your comfort-oriented driving pleasure.

If your original suspension is too hard for your everyday life or even the comfort of your installed aftermarket suspension kit KW V2 Comfort sport suspension is the perfect solution for more driving comfort. It combines a minimal lowering within the vehicle-specific adjustment range of ten to 40 mm with a comfort-oriented damper setup developed from KW test engineers in numerous test runs in everyday life and on our KW 7-post rig.

Suspension too hard? KW Street Comfort is the answer
Whether on long trips on the motorway, or many miles on country roads, with KW V2 Comfort coilovers you can enjoy a comfortable setup. The shorter KW damper housings enable a comfortable setup despite the lowering. The KW V2 Comfort coilovers include comfort-oriented damping and spring characteristics which are perfectly adjusted to each other. Additionally the KW V2 Comfort coilovers allow you to individually adjust the rebound damping to suit your driving style and your sense of comfort.

Adjustable comfort - "no more hard times"

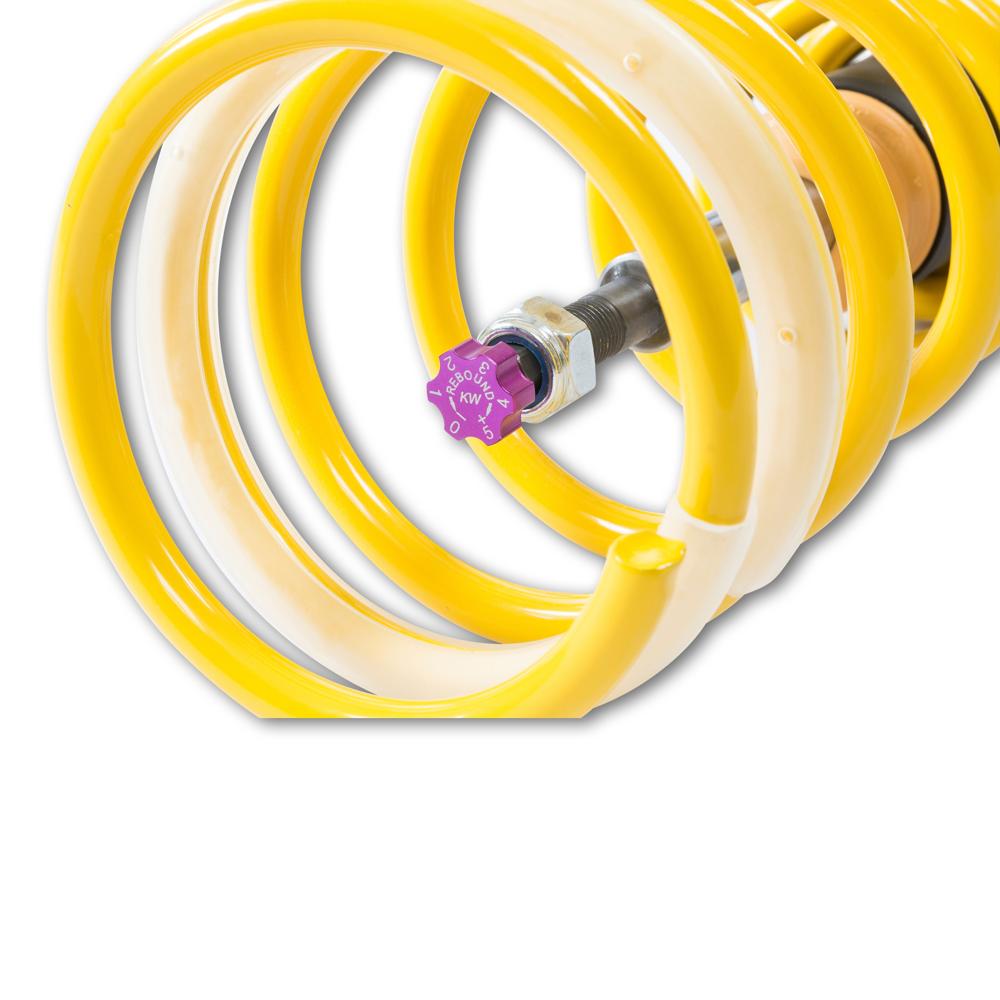

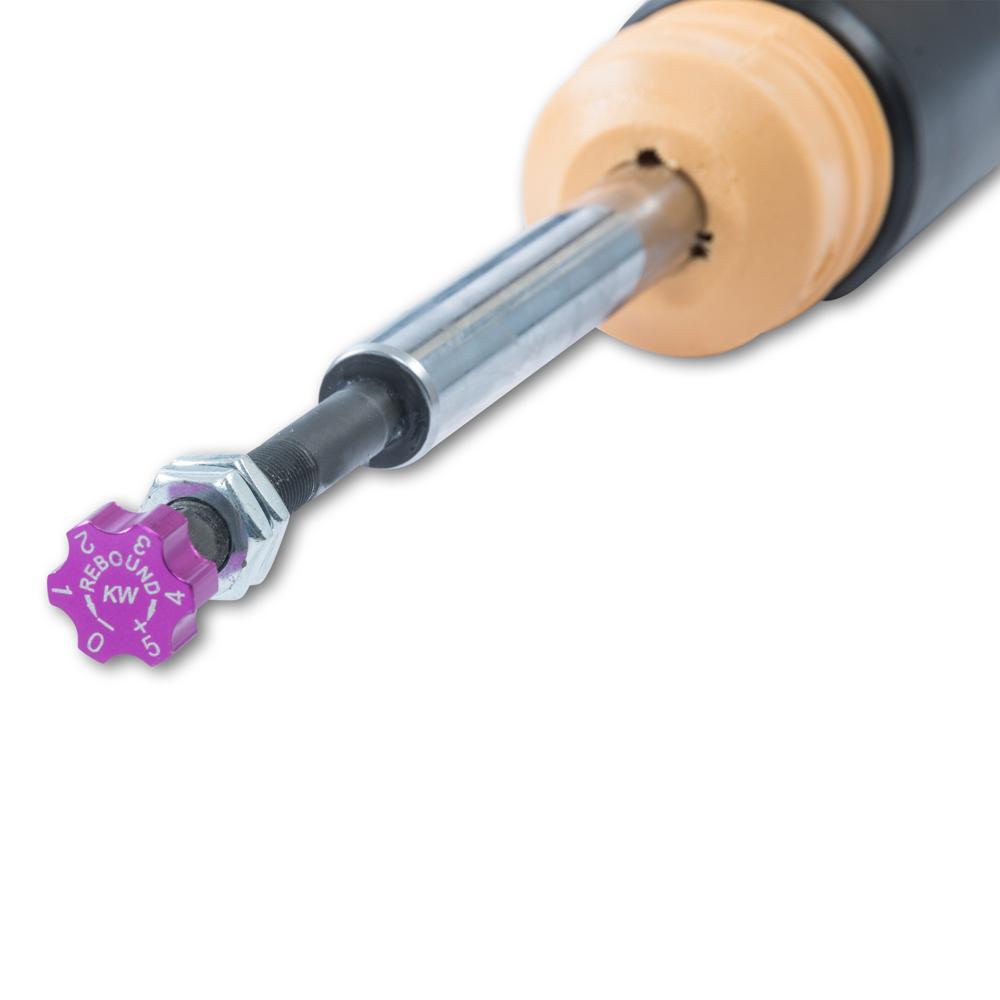

With KW V2 Comfort coilovers you can influence the handling and comfort by the individually adjustable rebound damping. With 16 precise clicks, you can adjust the KW dampers to a be more comfortable or a little firmer without affecting the compression damping. By increasing the rebound force with the adjustment wheel, the body movements are reduced. Your has more directional and cornering stability. If you change to bigger wheels than the wheel / tire combination which came from the car manufacturer, you can adapt the rebound damping to the driving behaviour of your car and your new alloy rims perfectly. Or you can reduce the rebound forces with a few clicks to gain even more comfort - just as you have always desired from a sport suspension.

Lowering of 10 to 40 mm

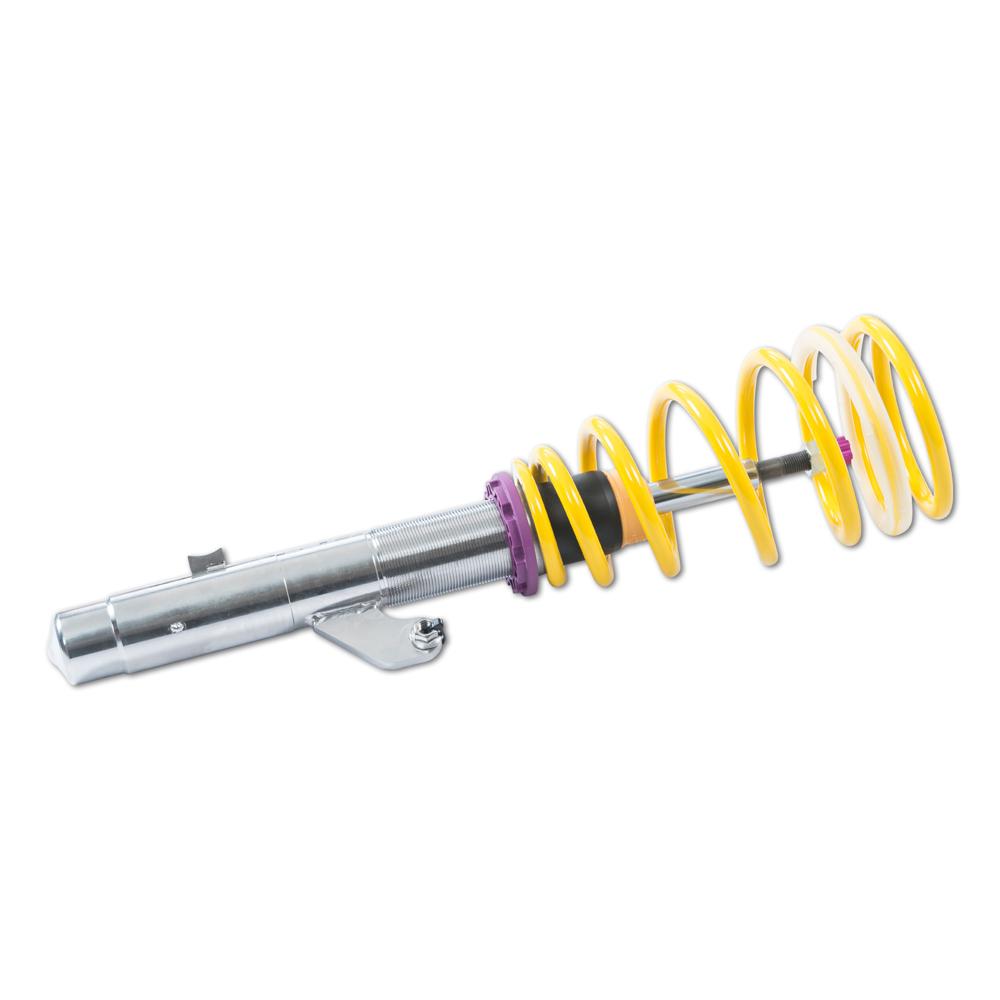

The KW V2 Comfort coilovers made in stainless steel technology "inox-line" enable a vehicle-specific lowering within the tested adjustment range of 10 to 40 mm. So you do not have to accept a fix lowering of a conventional spring kit any more. Due to the delicate processing and use of high quality components, the KW V2 Comfort coilover struts in stainless steel are 100 per cent corrosion-resistant and have an unlimited life.

The functioning of the lowering in connection with the dirt restistand trapezoid thread and the composite collar will not be affected even after many years of driving. With the individual lowering adjustment range, you can emphasize the sportiness of your vehicle visually.

- stainless steel technology "inox-line"
- minimum lowering
- tested adjustment range
- high quality components for a long life
- comfort-oriented damper setup
- adjustable rebound damping


Setup - Adjustable rebound damping with 16 clicks.
KW V2 Comfort coilovers are produced to focus solely on your driving pleasure. That´s why our test engineers are testing on numerous motorways and country roads for you. The KW V2 Comfort coilovers are suitable for all frequent travellers and families who want to combine the pleasure of minimal lowering and driving comfort.

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012316 dSaloonDiesel8519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012316 iSaloonPetrol8515964Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012316 iSaloonPetrol9015994Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 dSaloonDiesel9019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 dSaloonDiesel10019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 dSaloonDiesel10519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 iSaloonPetrol9519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 iSaloonPetrol10019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 iSaloonPetrol10519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel11019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel11519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel12019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel12519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel13019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel13519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 iSaloonPetrol11019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 iSaloonPetrol11519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 iSaloonPetrol12019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 iSaloonPetrol12519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 siSaloonPetrol12719974Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012323 iSaloonPetrol13024976Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012323 iSaloonPetrol14024976Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 dSaloonDiesel14529936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 dSaloonDiesel15029936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 iSaloonPetrol15524976Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 iSaloonPetrol15529966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 iSaloonPetrol16024976Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 iSaloonPetrol16029966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 iSaloonPetrol16324976Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012328 iSaloonPetrol17229966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 dSaloonDiesel15529936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 dSaloonDiesel17029936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 dSaloonDiesel18029936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 iSaloonPetrol19029966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 iSaloonPetrol20029966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 iSaloonPetrol20029966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 dSaloonDiesel19829936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 dSaloonDiesel21029936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 iSaloonPetrol22029796Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 iSaloonPetrol22429796Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 iSaloonPetrol22529796Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 iSaloonPetrol24029796Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013316 iCoupePetrol9015994Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013318 iCoupePetrol10519954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 dCoupeDiesel12019954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 dCoupeDiesel13019954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 dCoupeDiesel13519954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 dCoupeDiesel14519954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 dCoupeDiesel14719954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 iCoupePetrol11019954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 iCoupePetrol11219954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 iCoupePetrol11519954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 iCoupePetrol12019954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 iCoupePetrol12519954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013323 iCoupePetrol13024976Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013323 iCoupePetrol14024976Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 dCoupeDiesel14529936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 dCoupeDiesel15029936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 dCoupeDiesel15529936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 iCoupePetrol15024976Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 iCoupePetrol15524976Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 iCoupePetrol15529966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 iCoupePetrol16024976Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 iCoupePetrol16029966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013328 iCoupePetrol17129966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013328 iCoupePetrol17229966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 dCoupeDiesel17029936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 dCoupeDiesel18029936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 iCoupePetrol19029966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 iCoupePetrol20029966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 iCoupePetrol20029966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 dCoupeDiesel21029936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 iCoupePetrol22429796Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 iCoupePetrol22529796Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 iCoupePetrol24029796Rear Wheel Drive

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 6: When using original tires, wheel offset spacers may be required
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
