KW Coilover Kit V2 for 03/2010+ BMW 5 Series (F10) w/ Deactivation For Electronic Dampers

15220090

Stock: Backorder Available

AU$4,689.00 Inc GST

Description

Description

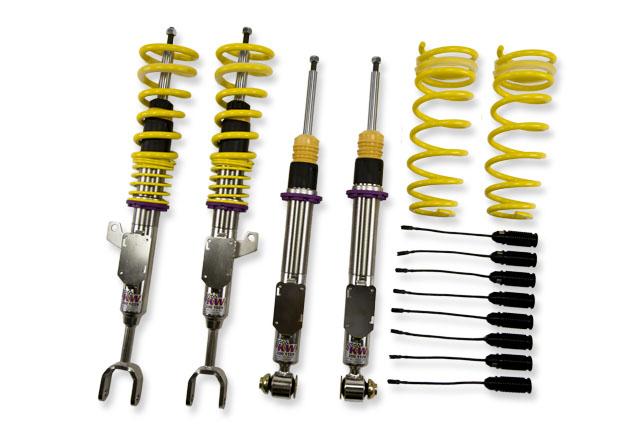

Coilover suspension V2 inox (incl. deactivation for electronic dampers)

For more stability and driving comfort. With adjustable rebound damping.
Drivers who want more than just an outstanding look and lowering within the tested adjustment range, will find the perfect suspension solution with our KW V2. Not only stainless steel struts, corrosion-resistant components great durability, you have the possiblity to adjust the dampers to your own requirements in rebound (16 clicks) are good reasons to buy the KW V2 coilover kit.

More comfort or more sportiness - you decide!
As with all KW coilovers our engineers develop vehicle specific damper settings which undergo comprehensive test cycles in the Nürburgring Nordschleife and on our KW 7-post driving dynamic centre. With a KW coilover kit the driving experience is more dynamic and direct. Because of the rebound adjustablility with our KW V2 coilovers you can have more influence in handling and comfort of the car. With 16 precise click you can adjust the KW dampers (firmer or more comfortable) without affecting the bottom vlave of the compression damping.

Depending on vehicle type, the rebound valves of the KW twin-tube dampers have to be adjusted at the upper end of the piston rod with an integrated adjustment wheel or the twist-adjuster which is part of the delivery content. By increasing the rebound force via the adjustment wheel, the body movements are reduced. Your car will stay in line and you will have more stability at increased corner speed. If you change for example the wheel / tire combination (approved by the car manufacturer) to larger wheels, then with a KW V2 you will be able to adjust the car's handling and the new wheels perfectly to each other.


KW Quality - Your satisfaction is our motivation
At our headquarters in Fichtenberg each KW V2 coilover kit is subject to extensive stress tests during production to meet the high standards of our KW quality management. Every single damper and suspension kit is tested thoroughly. Of course, we give as a German manufacturer a 2-year warranty on our more than 4600 applications suspension solutions, which exceed OEM quality. The warranty will increase up to 5 years when the kit has been installed at one of our KW specialist dealers.

KW coilover struts are 100% rust-free and have an unlimited life time under all weather conditions. All parts are designed for long term use. After a salt spray test the KW coilover struts were free of oxidation. Even after years the height adjustment will not be affected.

- Rebound adjustable damper technology with 16 precise clicks
- Stainless steel technology "inox-line"
- Individual, continuous lowering
- tested adjustment range
- Ready to install complete solution
- High quality components for a long life
- Complete documentation for an easy installation


Setup - Adjustable rebound damping with 16 clicks.
You have 16 clicks of adjustments with a KW V2. The rebound adjustment changes the driving dynamics if the change the complete wheel set or install a set of winter tires. You can adjust the damping characteristics of the weather-resistant KW V2 to be firmer or more comfortable, according to your own needs. The suspension is suitable for all competitive drivers who want more than just continous lowering for their driving pleasure.

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016518 dSaloonDiesel10019954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016518 dSaloonDiesel10519954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016518 dSaloonDiesel11019954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016518 dSaloonDiesel12019954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016520 dSaloonDiesel10019954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016520 dSaloonDiesel12019954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016520 dSaloonDiesel13519954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016520 dSaloonDiesel14019954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016520 dSaloonDiesel14719954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016520 dSaloonDiesel15119954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016520 dSaloonDiesel15519954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016520 iSaloonPetrol12019974Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016520 iSaloonPetrol12515924Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016520 iStufenheckBenzin13515924Heckantrieb
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016520 iSaloonPetrol13519974Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016523 iSaloonPetrol15024976Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016523 iSaloonPetrol15029966Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016523 iSaloonPetrol15529966Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016525 dSaloonDiesel15029936Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016525 dSaloonDiesel15519954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016525 dSaloonDiesel16019954Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016528 iSaloonPetrol17929966Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016528 iSaloonPetrol18019974Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016528 iSaloonPetrol19029966Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016530 dSaloonDiesel18029936Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016530 dSaloonDiesel19029936Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016530 dSaloonDiesel21029936Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016530 iSaloonPetrol19029966Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016530 iSaloonPetrol20029966Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016535 dSaloonDiesel22029936Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016535 dSaloonDiesel23029936Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016535 iSaloonPetrol22429796Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016535 iSaloonPetrol22529796Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016535 iSaloonPetrol24029796Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016550 iSaloonPetrol29843958Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016550 iSaloonPetrol30043958Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016550 iSaloonPetrol33043958Rear Wheel Drive
BMW5 (F10) 5L, GT, HY, KL, M5/M6 01/2009-10/2016550 iSaloonPetrol33243958Rear Wheel Drive
BMW6 Gran Coupe (F06) 6C, M5/M6 03/2012-10/2018640 dCoupeDiesel23029936Rear Wheel Drive
BMW6 Gran Coupe (F06) 6C, M5/M6 03/2012-10/2018640 iCoupePetrol23529796Rear Wheel Drive
BMW6 Gran Coupe (F06) 6C, M5/M6 03/2012-10/2018650 iCoupePetrol33043958Rear Wheel Drive
BMW6 Gran Coupe (F06) 6C, M5/M6 03/2012-10/2018650 iCoupePetrol33243958Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015730 dSaloonDiesel15529936Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015730 dSaloonDiesel18029936Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015730 dSaloonDiesel19029936Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015730 i, LiSaloonPetrol19029966Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015740 dSaloonDiesel22529936Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015740 dSaloonDiesel23029936Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015740 i, LiSaloonPetrol22429796Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015740 i, LiSaloonPetrol23529796Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015740 i, LiSaloonPetrol24029796Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015750 iSaloonPetrol33143958Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015750 i, LiSaloonPetrol30043958Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015750 i, LiSaloonPetrol33043958Rear Wheel Drive
BMW7 (F01, F02, F03, F04) 701, 7L, HY 02/2008-12/2015750 LiSaloonPetrol29843958Rear Wheel Drive

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
  • Note 8: Not for vehicles with automatic self leveling control / air suspension
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings)
