KW Coilover Kit V3 Clubsport for 01/1975+ Porsche 911 w/ Top Mounts

35271861

Stock: Backorder Available

AU$10,619.00 Inc GST

Description

Description

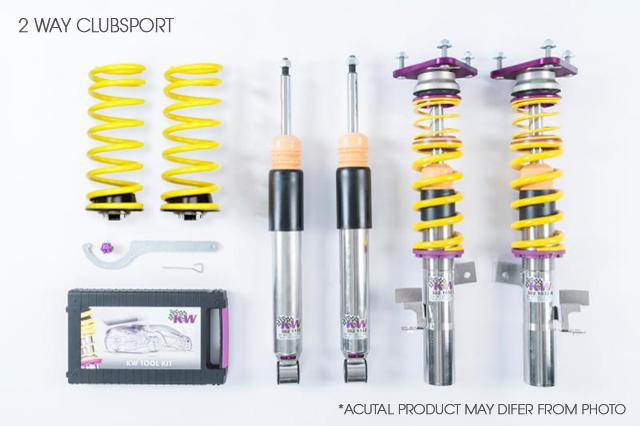

Coilover suspension V3 Clubsport incl. top mounts

The KW Clubsport coilovers utilize the uncompromising transfer of technology from the world of motorsports to track day/street driving.
The KW Clubsport coilovers combine KW's high-end racing technology with maintenance-free KW OEM components and part certificate.

This will provide you the ideal product to take full potential of your sports car during track days, sports car driving clinics, enthusiast drives on Grand Prix circuits and on tracks such as the Nürburgring Nordschleife.


Designed on the toughest race track in the world: The Nürburgring Nordschleife
The KW Clubsport coilovers provide the ability to adjust for different track surfaces, sharp turns and abrupt elevation changes. The KW Clubsport is in its home environment on the famous twists and turns of the 20.8 km long Nürburgring Nordschleife circuit.

As a supporting suspension manufacturer to numerous different racing series. KW had claimed 6 ADAC Zurich 24-hour victories within 10 years at the famous Nürburgring circuit and the ADAC GT Masters 2011 Championship. More then 70 race teams are equipped with KW coilover systems in the VLN Endurance Championship series. These race teams rely on KW's racing expertise and experience for their vehicle setup. This information is mirrored in the development of the KW Clubsport coilover systems.

The KW V3 Clubsports and KW V4 Clubsport provides the user numerous adjustment settings. This allows to user to dial the suspension setup to his/hers driving style and to adjust or match the tire/wheel setup of the vehicle.

Rebound and compression dampening is independently adjustable by hand via the integrated click adjusters. Adjustable top mounts are optional on certain applications.


KW V3 Clubsport Racing Technology
The rebound adjuster knob provides 16 precise clicks to personally dial in your desired vehicle setup. Thus allowing you the possibility to influence wheel/tire loads or take into concern chassis characteristics. Independent from rebound adjustment is the compression dampening, 12 precise adjustment clicks are provided to adjust the low-speed dampening. Most notably used to dial in wheel/tire setup.

These adjustment features allow the user to dial in vehicle weight, wheel/tire combinations, various road surfaces and environmental conditions.

- independently adjustable rebound and compression damping technology
- stainless steel technology "inox-line"
- continuous lowering
- tested adjustment range
- high-quality components for a long-term durability
- adjustable rebound damping with 16 precise clicks
- adjustable compression damping with 12 precise clicks
- unique, independent damping force adjustment
- optional spherical bearing aluminum top mounts


Setup: Application and damper settings
The KW V3 Clubsport coilovers provide the ideal adjustment range for race tracks such as the Nürburgring Nordschleife and other racing circuits.

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
PORSCHE911 01/1963-11/19902.7CoupePetrol11026876Rear Wheel Drive
PORSCHE911 01/1963-11/19902.7CoupePetrol12126876Rear Wheel Drive
PORSCHE911 01/1963-11/19902.7 S CarreraCoupePetrol12926876Rear Wheel Drive
PORSCHE911 01/1963-11/19902.7 SC Carrera RSCoupePetrol15426876Rear Wheel Drive
PORSCHE911 01/1963-11/19903.0CoupePetrol16929996Rear Wheel Drive
PORSCHE911 01/1963-11/19903.0 SCCoupePetrol15029936Rear Wheel Drive
PORSCHE911 01/1963-11/19903.0 SC CarreraCoupePetrol13229936Rear Wheel Drive
PORSCHE911 01/1963-11/19903.0 SC CarreraCoupePetrol13829936Rear Wheel Drive
PORSCHE911 01/1963-11/19903.0 SC CarreraCoupePetrol14729936Rear Wheel Drive
PORSCHE911 01/1963-11/19903.0 SC CarreraCoupePetrol15429936Rear Wheel Drive
PORSCHE911 01/1963-11/19903.0 TurboCoupePetrol17429936Rear Wheel Drive
PORSCHE911 01/1963-11/19903.0 TurboCoupePetrol19129936Rear Wheel Drive
PORSCHE911 01/1963-11/19903.2CoupePetrol16031646Rear Wheel Drive
PORSCHE911 01/1963-11/19903.2 SC CarreraCoupePetrol15231646Rear Wheel Drive
PORSCHE911 01/1963-11/19903.2 SC CarreraCoupePetrol17031646Rear Wheel Drive
PORSCHE911 01/1963-11/19903.3 SC TurboCoupePetrol22132996Rear Wheel Drive
PORSCHE911 01/1963-11/19903.3 TurboCoupePetrol19532996Rear Wheel Drive
PORSCHE911 01/1963-11/19903.3 TurboCoupePetrol21032996Rear Wheel Drive
PORSCHE911 01/1963-11/19903.3 TurboCoupePetrol22132996Rear Wheel Drive
PORSCHE911 01/1963-11/19903.3 TurboCoupePetrol24332996Rear Wheel Drive
PORSCHE911 Convertible 08/1982-08/19893.0ConvertiblePetrol16929996Rear Wheel Drive
PORSCHE911 Convertible 08/1982-08/19893.0 SCConvertiblePetrol15029936Rear Wheel Drive
PORSCHE911 Convertible 08/1982-08/19893.2 Carrera SpeedsterConvertiblePetrol16031646Rear Wheel Drive
PORSCHE911 Convertible 08/1982-08/19893.2 Carrera SpeedsterConvertiblePetrol17031646Rear Wheel Drive
PORSCHE911 Convertible 08/1982-08/19893.2 SC CarreraConvertiblePetrol15231646Rear Wheel Drive
PORSCHE911 Convertible 08/1982-08/19893.2 SC CarreraConvertiblePetrol17031646Rear Wheel Drive
PORSCHE911 Convertible 08/1982-08/19893.3 TurboConvertiblePetrol22132996Rear Wheel Drive
PORSCHE911 Convertible 08/1982-08/19893.3 Turbo CarreraConvertiblePetrol21032946Rear Wheel Drive
PORSCHE911 Targa 11/1964-11/19902.7TargaPetrol11026876Rear Wheel Drive
PORSCHE911 Targa 11/1964-11/19902.7TargaPetrol12126876Rear Wheel Drive
PORSCHE911 Targa 11/1964-11/19902.7 STargaPetrol12926876Rear Wheel Drive
PORSCHE911 Targa 11/1964-11/19902.7 SC Carrera RSTargaPetrol15426876Rear Wheel Drive
PORSCHE911 Targa 11/1964-11/19903.0 SC CarreraTargaPetrol13229936Rear Wheel Drive
PORSCHE911 Targa 11/1964-11/19903.0 SC CarreraTargaPetrol13829936Rear Wheel Drive
PORSCHE911 Targa 11/1964-11/19903.0 SC CarreraTargaPetrol14729936Rear Wheel Drive
PORSCHE911 Targa 11/1964-11/19903.2 CarreraTargaPetrol15231646Rear Wheel Drive
PORSCHE911 Targa 11/1964-11/19903.2 CarreraTargaPetrol16031646Rear Wheel Drive
PORSCHE911 Targa 11/1964-11/19903.3 TurboTargaPetrol22132996Rear Wheel Drive

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 419: Only for cars with the S model caliper (whole center distance caliper 89 mm)
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 408: Front axle coilovers incl. Knuckle in galvanized steel
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings)
  • Note 97: Clubsport coilover with top mount: only with front axle top mount available
