KW Coilover Kit V3 Clubsport for 10/2008+ VW Golf VI (5K1) w/ Top Mounts

35280842

Stock: Backorder Available

AU$6,029.00 Inc GST

Description

Description

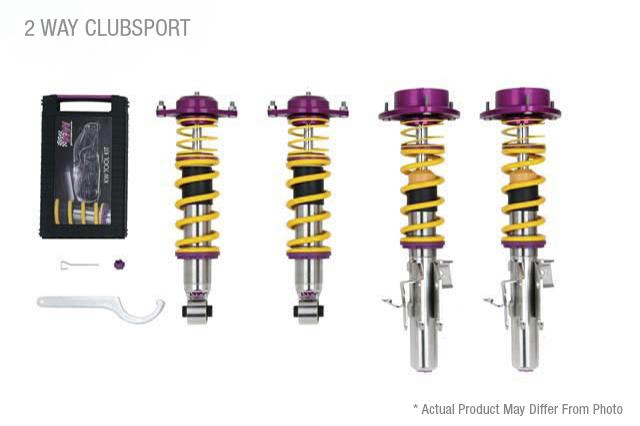

Coilover suspension V3 Clubsport incl. top mounts

The KW Clubsport coilovers utilize the uncompromising transfer of technology from the world of motorsports to track day/street driving.
The KW Clubsport coilovers combine KW's high-end racing technology with maintenance-free KW OEM components and part certificate.

This will provide you the ideal product to take full potential of your sports car during track days, sports car driving clinics, enthusiast drives on Grand Prix circuits and on tracks such as the Nürburgring Nordschleife.


Designed on the toughest race track in the world: The Nürburgring Nordschleife
The KW Clubsport coilovers provide the ability to adjust for different track surfaces, sharp turns and abrupt elevation changes. The KW Clubsport is in its home environment on the famous twists and turns of the 20.8 km long Nürburgring Nordschleife circuit.

As a supporting suspension manufacturer to numerous different racing series. KW had claimed 6 ADAC Zurich 24-hour victories within 10 years at the famous Nürburgring circuit and the ADAC GT Masters 2011 Championship. More then 70 race teams are equipped with KW coilover systems in the VLN Endurance Championship series. These race teams rely on KW's racing expertise and experience for their vehicle setup. This information is mirrored in the development of the KW Clubsport coilover systems.

The KW V3 Clubsports and KW V4 Clubsport provides the user numerous adjustment settings. This allows to user to dial the suspension setup to his/hers driving style and to adjust or match the tire/wheel setup of the vehicle.

Rebound and compression dampening is independently adjustable by hand via the integrated click adjusters. Adjustable top mounts are optional on certain applications.


KW V3 Clubsport Racing Technology
The rebound adjuster knob provides 16 precise clicks to personally dial in your desired vehicle setup. Thus allowing you the possibility to influence wheel/tire loads or take into concern chassis characteristics. Independent from rebound adjustment is the compression dampening, 12 precise adjustment clicks are provided to adjust the low-speed dampening. Most notably used to dial in wheel/tire setup.

These adjustment features allow the user to dial in vehicle weight, wheel/tire combinations, various road surfaces and environmental conditions.

- independently adjustable rebound and compression damping technology
- stainless steel technology "inox-line"
- continuous lowering
- tested adjustment range
- high-quality components for a long-term durability
- adjustable rebound damping with 16 precise clicks
- adjustable compression damping with 12 precise clicks
- unique, independent damping force adjustment
- optional spherical bearing aluminum top mounts


Setup: Application and damper settings
The KW V3 Clubsport coilovers provide the ideal adjustment range for race tracks such as the Nürburgring Nordschleife and other racing circuits.

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDITT (8J) 8J3 07/2006-01/20151.8 TFSICoupePetrol11817984Front Wheel Drive
AUDITT (8J) 8J3 07/2006-01/20152.0 TDI quattroCoupeDiesel12519684All-wheel Drive
AUDITT (8J) 8J3 07/2006-01/20152.0 TFSICoupePetrol14719844Front Wheel Drive
AUDITT (8J) 8J3 07/2006-01/20152.0 TFSICoupePetrol14919844Front Wheel Drive
AUDITT (8J) 8J3 07/2006-01/20152.0 TFSICoupePetrol15519844Front Wheel Drive
AUDITT (8J) 8J3 07/2006-01/20152.0 TFSI quattroCoupePetrol14719844All-wheel Drive
AUDITT (8J) 8J3 07/2006-01/20152.0 TFSI quattroCoupePetrol15519844All-wheel Drive
AUDITT (8J) 8J3 07/2006-01/20152.0 TTS quattroCoupePetrol19519844All-wheel Drive
AUDITT (8J) 8J3 07/2006-01/20152.0 TTS quattroCoupePetrol20019844All-wheel Drive
AUDITT (8J) 8J3 07/2006-01/20153.2 V6 quattroCoupePetrol18431896All-wheel Drive
AUDITT Roadster (8J) 8J9 03/2007-06/20141.8 TFSIConvertiblePetrol11817984Front Wheel Drive
AUDITT Roadster (8J) 8J9 03/2007-06/20142.0 TDI quattroConvertibleDiesel12519684All-wheel Drive
AUDITT Roadster (8J) 8J9 03/2007-06/20142.0 TFSIConvertiblePetrol14719844Front Wheel Drive
AUDITT Roadster (8J) 8J9 03/2007-06/20142.0 TFSIConvertiblePetrol15519844Front Wheel Drive
AUDITT Roadster (8J) 8J9 03/2007-06/20142.0 TFSI quattroConvertiblePetrol14719844All-wheel Drive
AUDITT Roadster (8J) 8J9 03/2007-06/20142.0 TFSI quattroConvertiblePetrol15519844All-wheel Drive
AUDITT Roadster (8J) 8J9 03/2007-06/20142.0 TTS quattroConvertiblePetrol19519844All-wheel Drive
AUDITT Roadster (8J) 8J9 03/2007-06/20142.0 TTS quattroConvertiblePetrol20019844All-wheel Drive
AUDITT Roadster (8J) 8J9 03/2007-06/20143.2 V6 quattroConvertiblePetrol18431896All-wheel Drive
SEATLEON (1P1) 05/2005-12/20131.2 TSIHatchbackPetrol7711974Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20131.4 16VHatchbackPetrol6313904Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20131.4 TSIHatchbackPetrol9213904Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20131.6HatchbackPetrol7515954Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20131.6 TDIHatchbackDiesel6615984Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20131.6 TDIHatchbackDiesel7715984Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20131.8 TSIHatchbackPetrol11817984Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20131.9 TDIHatchbackDiesel6618964Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20131.9 TDIHatchbackDiesel7718964Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20132.0 Cupra RHatchbackPetrol19519844Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20132.0 FSIHatchbackPetrol11019844Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20132.0 TDIHatchbackDiesel10019684Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20132.0 TDIHatchbackDiesel10319684Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20132.0 TDIHatchbackDiesel12519684Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20132.0 TDI 16VHatchbackDiesel10319684Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20132.0 TFSIHatchbackPetrol13619844Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20132.0 TFSIHatchbackPetrol14719844Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20132.0 TFSIHatchbackPetrol15519844Front Wheel Drive
SEATLEON (1P1) 05/2005-12/20132.0 TFSIHatchbackPetrol17719844Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.2 TSIHatchbackPetrol6311974Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.2 TSIHatchbackPetrol7711974Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.4 16VHatchbackPetrol5513904Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.4 16VHatchbackPetrol5913904Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.4 FSIHatchbackPetrol6613904Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.4 TSIHatchbackPetrol9013904Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.4 TSIHatchbackPetrol10313904Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.4 TSIHatchbackPetrol11813904Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.4 TSIHatchbackPetrol12513904Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.6HatchbackPetrol7515954Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.6 FSIHatchbackPetrol8515984Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.6 TDIHatchbackDiesel6615984Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.6 TDIHatchbackDiesel7715984Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.9 TDIHatchbackDiesel6618964Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.9 TDIHatchbackDiesel7718964Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20132.0 FSIHatchbackPetrol11019844Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20132.0 TDIHatchbackDiesel8119684Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20132.0 TDIHatchbackDiesel9619684Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20132.0 TDIHatchbackDiesel10019684Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20132.0 TDIHatchbackDiesel10319684Front Wheel Drive
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20132.0 TDI 16VHatchbackDiesel10319684Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20091.4 16VHatchbackPetrol5513904Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20091.4 16VHatchbackPetrol5913904Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20091.4 FSIHatchbackPetrol6613904Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20091.4 TSIHatchbackPetrol9013904Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20091.4 TSIHatchbackPetrol10313904Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20091.4 TSIHatchbackPetrol12513904Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20091.6HatchbackPetrol7515954Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20091.6 FSIHatchbackPetrol8515984Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20091.9 TDIHatchbackDiesel6618964Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20091.9 TDIHatchbackDiesel7718964Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20092.0HatchbackPetrol8519844Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20092.0 FSIHatchbackPetrol11019844Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20092.0 GTIHatchbackPetrol14719844Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20092.0 GTIHatchbackPetrol16919844Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20092.0 SDIHatchbackDiesel5519684Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20092.0 TDIHatchbackDiesel10019684Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20092.0 TDIHatchbackDiesel10319684Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20092.0 TDIHatchbackDiesel12519684Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20092.0 TDI 16VHatchbackDiesel10319684Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20092.5HatchbackPetrol11224805Front Wheel Drive
VWGOLF V (1K_) 10/2003-02/20093.2 R32 4motionHatchbackPetrol18431896All-wheel Drive
VWGOLF V (1K_) 10/2003-02/2009RABBIT 2.5HatchbackPetrol12524805Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20091.4EstatePetrol5913904Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20091.4 TSIEstatePetrol9013904Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20091.4 TSIEstatePetrol10313904Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20091.4 TSIEstatePetrol11813904Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20091.4 TSIEstatePetrol12513904Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20091.6EstatePetrol7515954Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20091.9 TDIEstateDiesel7718964Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20092.0EstatePetrol14719844Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20092.0 TDIEstateDiesel10019684Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20092.0 TDIEstateDiesel10319684Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20092.0 TDI 16VEstateDiesel10319684Front Wheel Drive
VWGOLF V Estate (1K_) 01/2007-07/20092.5EstatePetrol12524805Front Wheel Drive
VWGOLF VI (5K1, 1K_) 10/2008-12/20141.2 TSIHatchbackPetrol6311974Front Wheel Drive
VWGOLF VI (5K1, 1K_) 10/2008-12/20141.2 TSIHatchbackPetrol7711974Front Wheel Drive
VWGOLF VI (5K1, 1K_) 10/2008-12/20141.4HatchbackPetrol5913904Front Wheel Drive
VWGOLF VI (5K1, 1K_) 10/2008-12/20141.4 TSIHatchbackPetrol9013904Front Wheel Drive
VWGOLF VI (5K1, 1K_) 10/2008-12/20141.4 TSIHatchbackPetrol11813904Front Wheel Drive
VWGOLF VI (5K1, 1K_) 10/2008-12/20141.6HatchbackPetrol7515954Front Wheel Drive
VWGOLF VI (5K1, 1K_) 10/2008-12/20141.6 TDIHatchbackDiesel6615984Front Wheel Drive

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 97: Clubsport coilover with top mount: only with front axle top mount available
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
  • Note 6: When using original tires, wheel offset spacers may be required
