KW Coilover Kit V4 for 04/2009-04/2015 Audi R8 (422, 423)

3A711004
KW Suspension

Stock: Backorder Available

AU$11,919.00 Inc GST
  • For cars without magnetic ride control

Description

Description

Coilover suspension V4

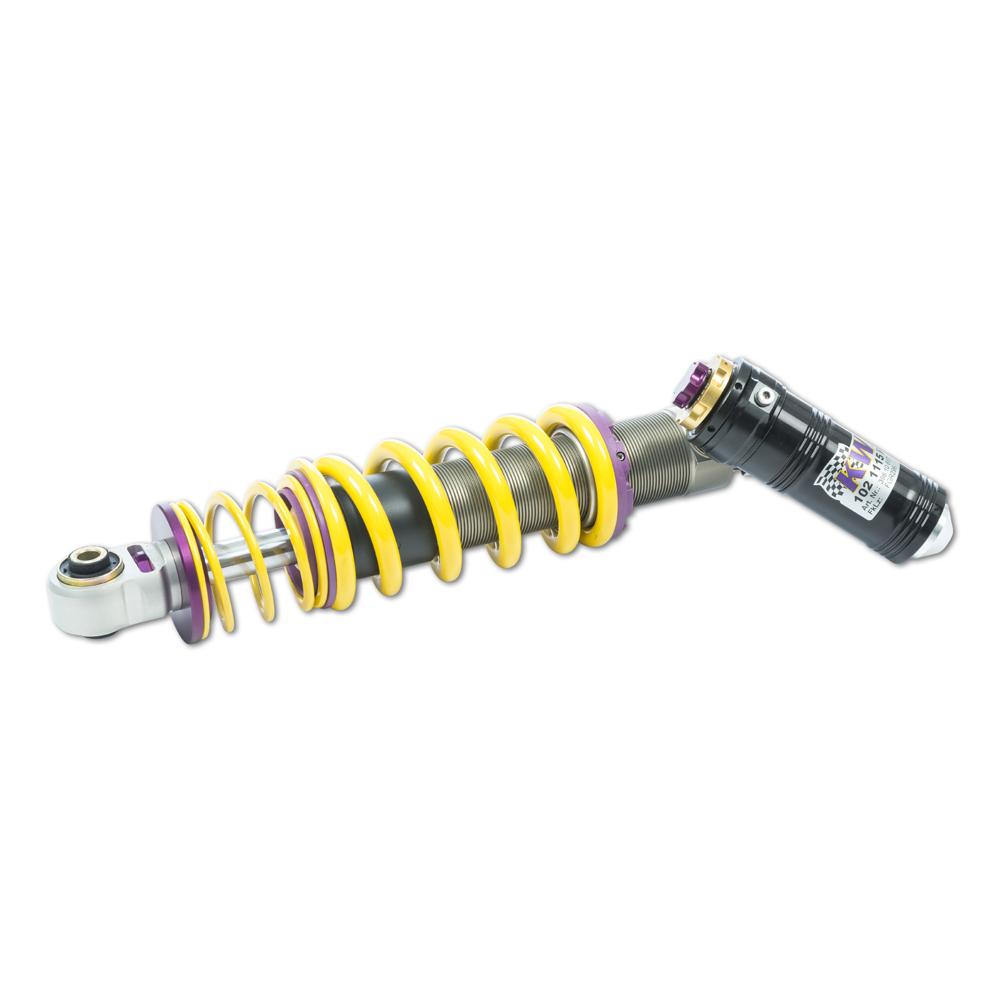

With the KW V4 coilover kit with its coilover struts made of stainless steel, you will give your super sports car the necessary reserves to further increase the driving dynamics. The three way adjustable high-performance shock absorbers with their independent adjustment of the rebound and low speed as well as high speed compression damping are based on the successful racing technology of the multiple overall winners of the ADAC Zurich 24h Nürburgring and depending on the vehicle-specific design, they also feature aluminum top mounts. The KW V4 is developed exclusively for selected high-performance vehicles, which can be driven more safely at the driving dynamics limit with our KW suspension technology.

- 3-way adjustable high-performance dampers with coilover struts made of stainless steel
- Separate and independent damper setup in:
- Rebound damping with 16 exact clicks + (tighter) / - (more comfortable)
- Low speed damping with 6 exact clicks + (tighter) / - (more comfortable)
- High speed damping with 14 exact clicks + (tighter) / - (more comfortable)
- Two basic setups with comfort adjustment and performance setup
- Depending on the car, the aluminium top mounts are an integral part of the delivery

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIR8 (42) 42A, 422, 423 04/2007-07/20154.2 FSI quattroCoupePetrol30941638All-wheel Drive
AUDIR8 (42) 42A, 422, 423 04/2007-07/20154.2 FSI quattroCoupePetrol31641638All-wheel Drive
AUDIR8 (42) 42A, 422, 423 04/2007-07/20155.2 FSI quattroCoupePetrol386520410All-wheel Drive
AUDIR8 (42) 42A, 422, 423 04/2007-07/20155.2 FSI quattroCoupePetrol404520410All-wheel Drive
AUDIR8 (42) 42A, 422, 423 04/2007-07/20155.2 FSI quattroCoupePetrol412520410All-wheel Drive
AUDIR8 (42) 42A, 422, 423 04/2007-07/20155.2 FSI quattroCoupePetrol419520410All-wheel Drive
AUDIR8 (42) Spyder 42A, 427, 429 02/2010-07/20154.2 FSI quattroConvertiblePetrol31641638All-wheel Drive
AUDIR8 (42) Spyder 42A, 427, 429 02/2010-07/20155.2 FSIConvertiblePetrol404520410All-wheel Drive
AUDIR8 (42) Spyder 42A, 427, 429 02/2010-07/20155.2 FSIConvertiblePetrol419520410All-wheel Drive
AUDIR8 (42) Spyder 42A, 427, 429 02/2010-07/20155.2 FSI quattroConvertiblePetrol386520410All-wheel Drive
AUDIR8 (42) Spyder 42A, 427, 429 02/2010-07/20155.2 FSI quattroConvertiblePetrol412520410All-wheel Drive
LAMBORGHINIGALLARDO (140) 08/2003-12/20145.2 LP560-4CoupePetrol412520410All-wheel Drive
LAMBORGHINIGALLARDO SPYDER (140) 08/2005-12/20145.2 LP560-4ConvertiblePetrol412520410All-wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 90: Aluminium suspensions struts
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings)
