KW Leveling suspension V3 03/2011-10/2018 for BMW 3 (F30, F80)

352082000F
KW Suspension

Stock: Backorder Available

AU$4,819.00 Inc GST

Description

Description

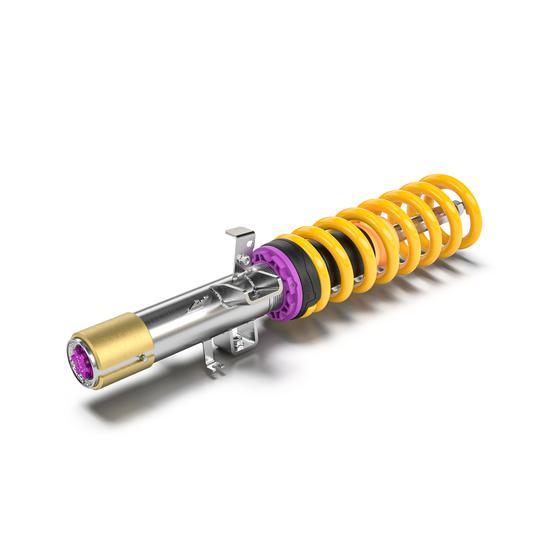

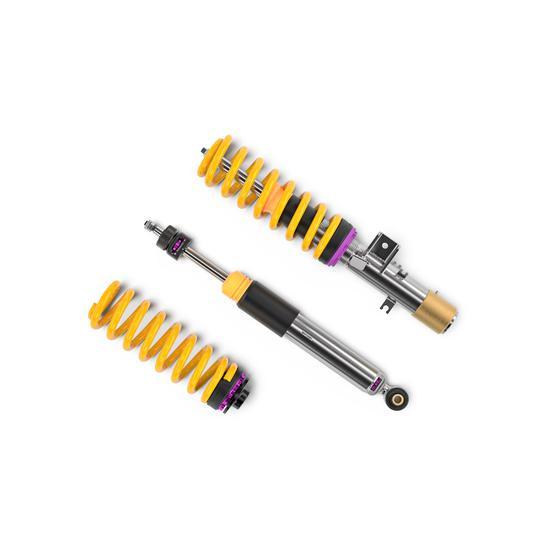

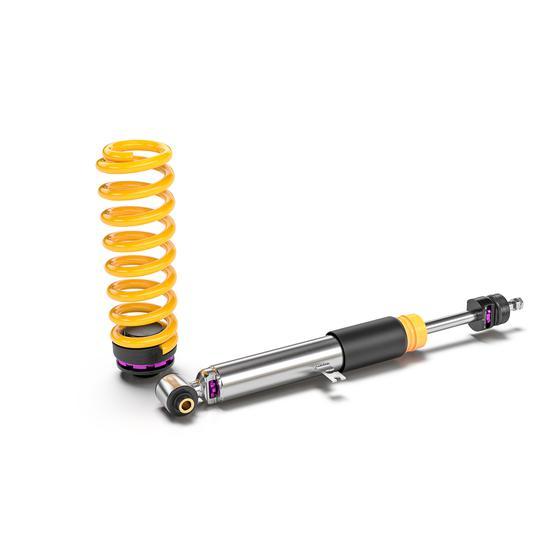

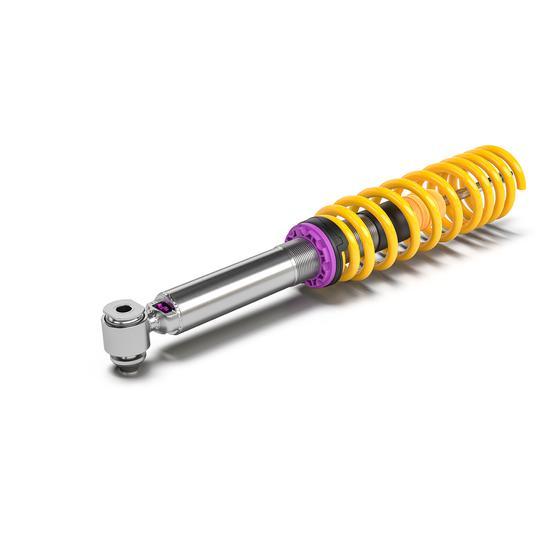

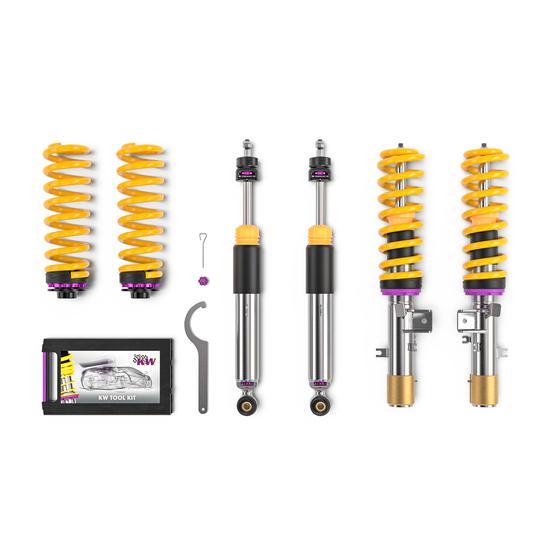

Suspension V3 Leveling

Invisible - but you can feel it!

The KW Leveling suspensions are ideal for drivers who are not looking for maximum lowering, but seeking the driving dynamics and comfort of a KW Coilover suspension in combination with the almost original manufacturer’s series floor clearance.

The KW Leveling suspensions focus on the combination of increased driving dynamics and comfort in connection with a minimum lowering or, if desired, raising of the suspension. The KW Leveling suspensions are the ideal retrofit suspensions for frequent drivers on poorly developed roads or drivers that use their car mainly in metropolises and urban areas than have numerous speed bumps. The progressive suspension springs are designed to give their spring rate a plus in driving comfort. Accordingly, the KW Leveling suspensions have an adjustable, comfort-oriented basic damper tuning. If required, the KW leveling enables an adapted level regulation in the range of + 5 - 20 mm.

The KW V3 Leveling suspension is the ideal retrofit option for drivers who are looking for everyday practicality, increased rolling comfort, and sportiness. The separately adjustable dampers in compression and rebound with their "TVR-A" and "TVC-A" technology allow extensive damper tuning. This makes it easy to additionally influence the steering behavior, directional stability, tire grip, and handling characteristics significantly for safe control at the limit and increased driving comfort.

- Rebound and compression damping adjustable damper technology
- Stainless steel technology "inox-line"
- Individual, continous level regulation
- tested adjustment range
- High quality components for a long life
- Complete documentation for an easy handling
- Adjustable rebound damping with 16 exact clicks
- Adjustable compression damping with 12 exact clicks
- Unique, independent from each other working damping force adjustment

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018316 dSaloonDiesel8519954Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018318 dSaloonDiesel10019954Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018318 dSaloonDiesel11019954Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018320 dSaloonDiesel12019954Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018320 dSaloonDiesel14019954Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018320 iSaloonPetrol13419974Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018320 iSaloonPetrol13519974Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018320 iSaloonPetrol13519984Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018325 dSaloonDiesel15519954Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018325 dSaloonDiesel16519954Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018330 dSaloonDiesel19029936Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018330 dSaloonDiesel21029936Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018330 iSaloonPetrol18519984Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018335 iSaloonPetrol22429796Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018335 iSaloonPetrol22529796Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018335 iSaloonPetrol24029796Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018335 iSaloonPetrol25029796Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018340 iSaloonPetrol24029986Rear Wheel Drive
BMW3 (F30, F80) 3-HY, 3L, M3, M3 GTS 03/2011-10/2018340 iSaloonPetrol26529986Rear Wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 62: Not for cars with electronic damping
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
