KW Shock Kit V3 for 2003+ Chevrolet Corvette Convertible w/ Deactivation For Electronic Dampers

35261020
KW Suspension

Stock: Backorder Available

AU$4,689.00 Inc GST

Description

Description

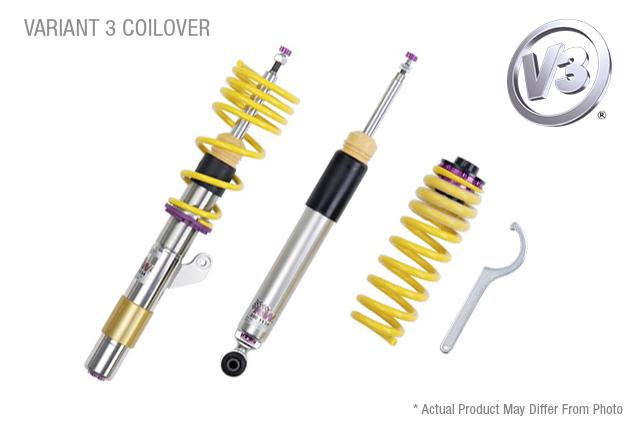

V3 shock kit Corvette (incl. deactivation for electronic dampers)

With our damper set for the Corvette it is possible at any time to adapt the driving behavior individually to your own personal driving demand. As with every KW suspension development, also our adjustable dampers for the Corvette are a vehicle-specific application. The Corvette equipped with adjustable KW dampers receives a much more direct handling, is less unsettled and gets a lot more grip on the rear axle, without an increased tendency to oversteering. Even the residual comfort is increased.

With the integrated compression and rebound adjustment wheel it is easy to individually adjust our recommended basic damper setup. For example, with its 16 clicks, the rebound stage makes it possible to directly take influence on the handling characteristics and ride comfort.If desired, the driving behavior of the Corvette can be further increased by the compression stage valve that is adjustable in twelve clicks. So a higher compression level on the front axle allows an even more direct steering and on the rear axle, higher compression forces counteract the oversteering. Due to the degressive valve assembly of the pre-configured high speed compression valve, the deflection behavior by sudden driving over bumps is affected positively. The wheels can spring promptly and so, for example, jumping over curbs is prevented.

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
CHEVROLETCORVETTE (C6) GMX-245, GMX245A, GMX245S 09/2004-12/20136.0CoupePetrol29859658Rear Wheel Drive
CHEVROLETCORVETTE (C6) GMX-245, GMX245A, GMX245S 09/2004-12/20136.2CoupePetrol31661628Rear Wheel Drive
CHEVROLETCORVETTE (C6) GMX-245, GMX245A, GMX245S 09/2004-12/20136.2CoupePetrol32161628Rear Wheel Drive
CHEVROLETCORVETTE (Y) 01/1997-12/20045.7CoupePetrol25356658Rear Wheel Drive
CHEVROLETCORVETTE (Y) 01/1997-12/20045.7CoupePetrol25756658Rear Wheel Drive
CHEVROLETCORVETTE (Y) 01/1997-12/20045.7CoupePetrol25756668Rear Wheel Drive
CHEVROLETCORVETTE (Y) 01/1997-12/20045.7CoupePetrol26156658Rear-Wheel Drive
CHEVROLETCORVETTE (Y) 01/1997-12/20045.7 Z06CoupePetrol28756658Rear Wheel Drive
CHEVROLETCORVETTE (Y) 01/1997-12/20045.7 Z06CoupePetrol30256658Rear Wheel Drive
CHEVROLETCORVETTE Convertible (C6) GMX-245, GMX245S 09/2004-11/20196.0ConvertiblePetrol29859658Rear Wheel Drive
CHEVROLETCORVETTE Convertible (C6) GMX-245, GMX245S 09/2004-11/20196.2ConvertiblePetrol31661628Rear Wheel Drive
CHEVROLETCORVETTE Convertible (C6) GMX-245, GMX245S 09/2004-11/20196.2ConvertiblePetrol32161628Rear Wheel Drive
CHEVROLETCORVETTE Convertible (Y) 09/1997-09/20045.7ConvertiblePetrol25356658Rear Wheel Drive
CHEVROLETCORVETTE Convertible (Y) 09/1997-09/20045.7ConvertiblePetrol25756658Rear Wheel Drive
CHEVROLETCORVETTE Convertible (Y) 09/1997-09/20045.7ConvertiblePetrol26157358Rear Wheel Drive

Media

Media

Installation Instruction: PDF
Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
  • Note 51: Lowering can be achieved if required by adjusting the standard leaf springs.
