ST Coilover X Kit for 01/1997+ Audi A6 (4B2, C5)

13210011
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

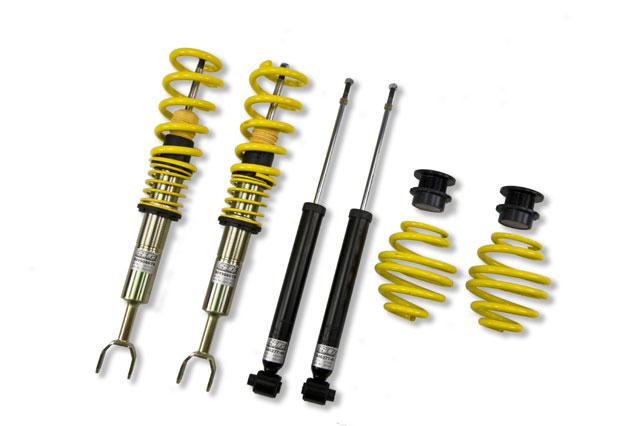

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

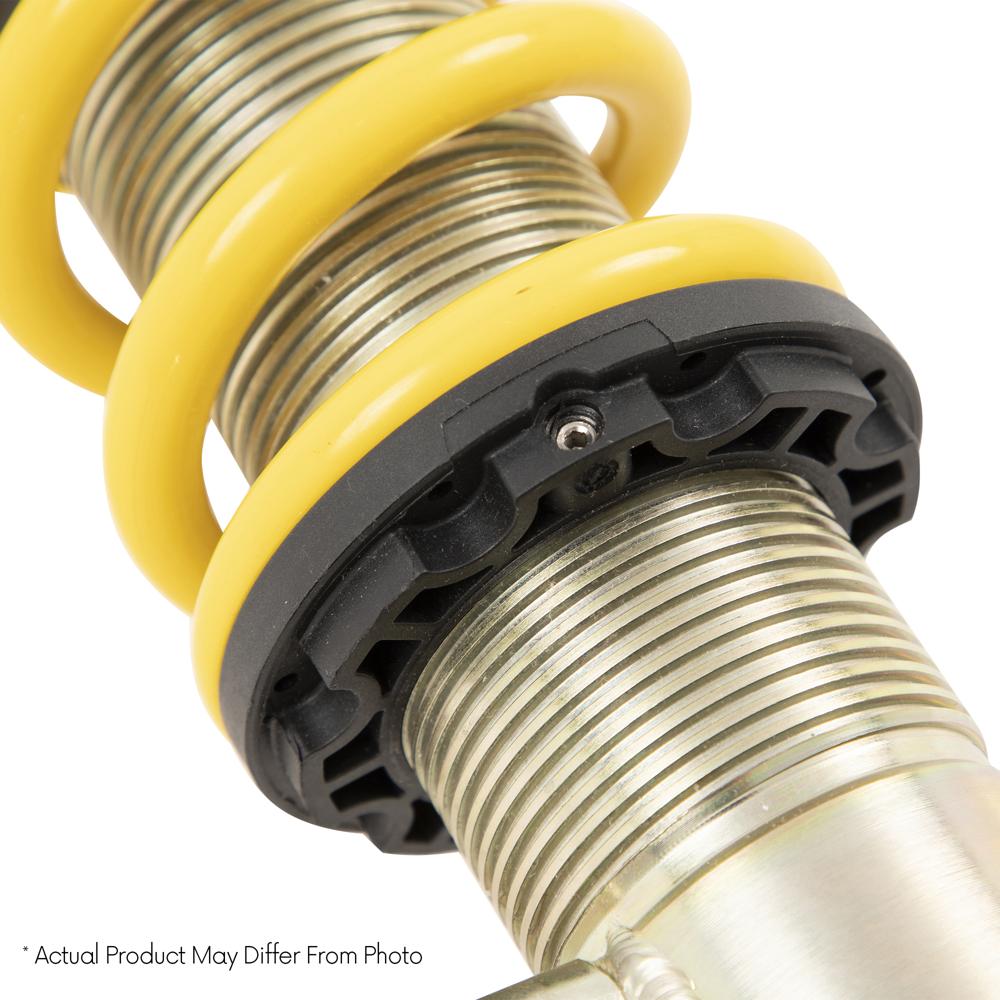

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIA6 (4B) 4B2, C5 01/1997-08/20051.8SaloonPetrol8517814Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20051.8SaloonPetrol9217814Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20051.8 TSaloonPetrol11017814Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20051.8 TSaloonPetrol13217814Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20051.9 TDISaloonDiesel8118964Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20051.9 TDISaloonDiesel8518964Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20051.9 TDISaloonDiesel9618964Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.0SaloonPetrol9619844Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.4SaloonPetrol10023936Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.4SaloonPetrol11523936Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.4SaloonPetrol12023936Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.4SaloonPetrol12123936Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.4SaloonPetrol12523936Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.5 TDISaloonDiesel11024966Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.5 TDISaloonDiesel11424966Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.5 TDISaloonDiesel12024966Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.5 TDISaloonDiesel13224966Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.7 TSaloonPetrol16926716Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.8SaloonPetrol13227716Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.8SaloonPetrol14027716Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.8SaloonPetrol14227716Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20053.0SaloonPetrol16029766Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20053.0SaloonPetrol16229766Front Wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20053.7SaloonPetrol19136978Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20051.8EstatePetrol8517814Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20051.8EstatePetrol9217814Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20051.8 TEstatePetrol11017814Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20051.8 TEstatePetrol13217814Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20051.9 TDIEstateDiesel8118964Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20051.9 TDIEstateDiesel8518964Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20051.9 TDIEstateDiesel9618964Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.0EstatePetrol9619844Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.4EstatePetrol10023936Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.4EstatePetrol11523936Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.4EstatePetrol12023936Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.4EstatePetrol12123936Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.4EstatePetrol12523936Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.5 TDIEstateDiesel11024966Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.5 TDIEstateDiesel11424966Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.5 TDIEstateDiesel12024966Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.5 TDIEstateDiesel13224966Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.7 TEstatePetrol16926716Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.8EstatePetrol13227716Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.8EstatePetrol14027716Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.8EstatePetrol14227716Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20053.0EstatePetrol16029766Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20053.0EstatePetrol16229766Front Wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20053.7EstatePetrol19136978Front Wheel Drive
SKODASUPERB I (3U4) 12/2001-03/20081.8 TSaloonPetrol11017814Front Wheel Drive
SKODASUPERB I (3U4) 12/2001-03/20081.9 TDISaloonDiesel9618964Front Wheel Drive
SKODASUPERB I (3U4) 12/2001-03/20082.0 TDISaloonDiesel10319684Front Wheel Drive
SKODASUPERB I (3U4) 12/2001-03/20082.5 TDISaloonDiesel11424966Front Wheel Drive
SKODASUPERB I (3U4) 12/2001-03/20082.5 TDISaloonDiesel12024966Front Wheel Drive
SKODASUPERB I (3U4) 12/2001-03/20082.8 V6SaloonPetrol14027716Front Wheel Drive
SKODASUPERB I (3U4) 12/2001-03/20082.8 V6SaloonPetrol14227716Front Wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 11: Excluding models with automatic level control, or automatic level system can be adjusted in accordance
  • Note 4: Excluding four wheel drive models
