ST Coilover X Kit for 02/1995+ Audi A4 Avant (8D5, B5)

13210032
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

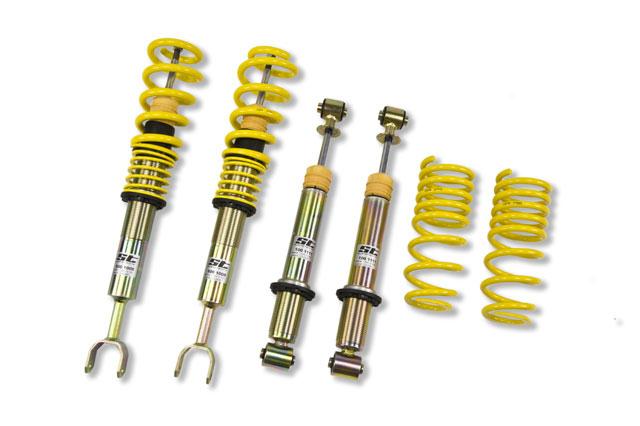

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIA4 (B5) 8D2 11/1994-12/20011.8 quattroSaloonPetrol8517814All-wheel Drive
AUDIA4 (B5) 8D2 11/1994-12/20011.8 T quattroSaloonPetrol12517814All-wheel Drive
AUDIA4 (B5) 8D2 11/1994-12/20012.4 quattroSaloonPetrol12123936All-wheel Drive
AUDIA4 (B5) 8D2 11/1994-12/20012.5 TDI quattroSaloonDiesel11024966All-wheel Drive
AUDIA4 (B5) 8D2 11/1994-12/20012.8 quattroSaloonPetrol12827716All-wheel Drive
AUDIA4 (B5) 8D2 11/1994-12/20012.8 quattroSaloonPetrol14027716All-wheel Drive
AUDIA4 (B5) 8D2 11/1994-12/20012.8 quattroSaloonPetrol14227716All-wheel Drive
AUDIA4 (B5) 8D2 11/1994-12/2001S4 quattroSaloonPetrol18726716All-wheel Drive
AUDIA4 (B5) 8D2 11/1994-12/2001S4 quattroSaloonPetrol19526716All-wheel Drive
AUDIA4 Avant (B5) 8D5, B51 11/1994-12/20021.8 quattroEstatePetrol8517814All-wheel Drive
AUDIA4 Avant (B5) 8D5, B51 11/1994-12/20022.4 quattroEstatePetrol12123936All-wheel Drive
AUDIA4 Avant (B5) 8D5, B51 11/1994-12/20022.5 TDI quattroEstateDiesel11024966All-wheel Drive
AUDIA4 Avant (B5) 8D5, B51 11/1994-12/20022.8 quattroEstatePetrol14027716All-wheel Drive
AUDIA4 Avant (B5) 8D5, B51 11/1994-12/20022.8 quattroEstatePetrol14227716All-wheel Drive
AUDIA4 Avant (B5) 8D5, B51 11/1994-12/2002S4 quattroEstatePetrol18526716All-wheel Drive
AUDIA4 Avant (B5) 8D5, B51 11/1994-12/2002S4 quattroEstatePetrol19526716All-wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 112: Because of the construction of the car the damping adjustment can only made when the damper is not mounted. By modifying the interior trim this problem can be avoided
