ST Coilover X Kit for 02/1997+ Audi A6 (4B2, C5)

13280017
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

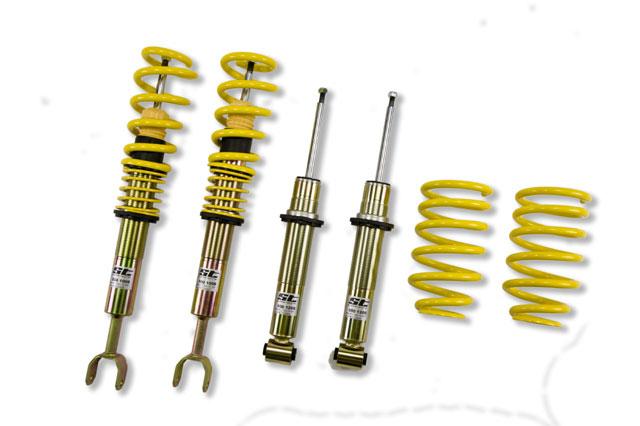

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

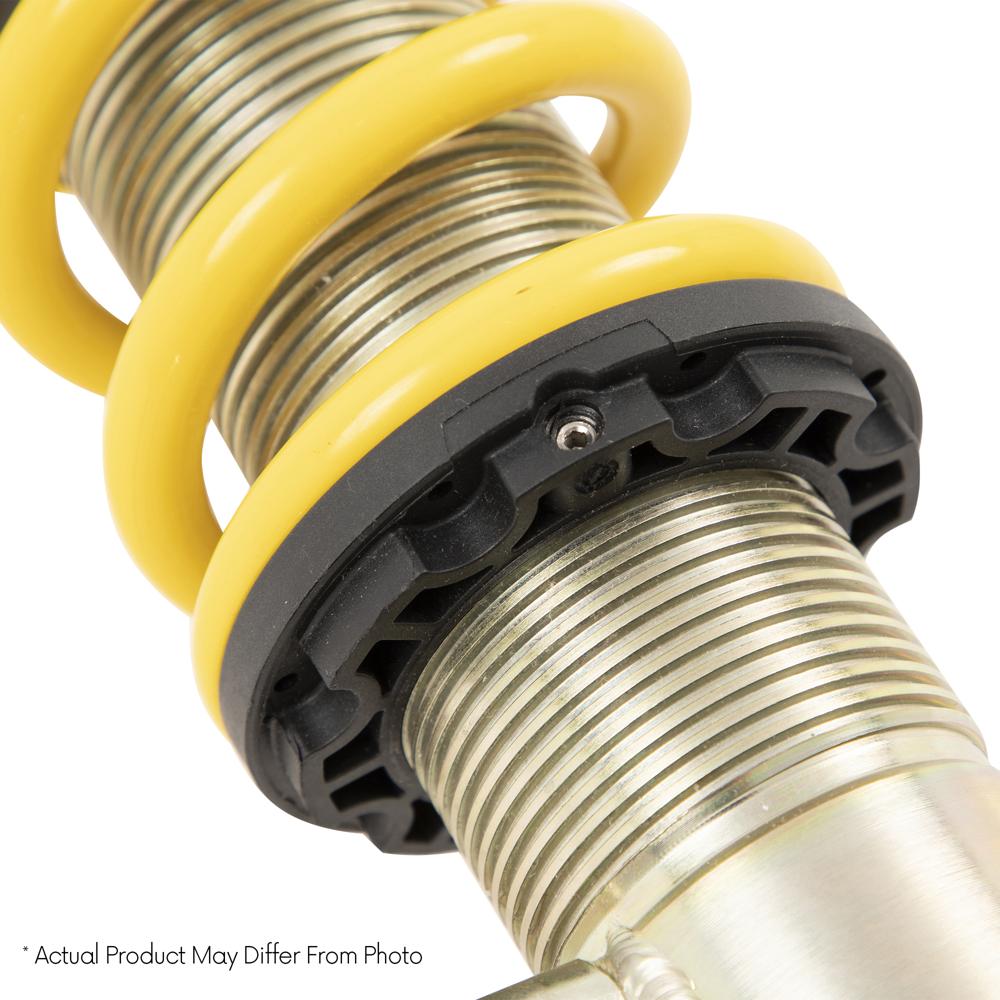

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIA6 (4B) 4B2, C5 01/1997-08/20051.8 T quattroSaloonPetrol11017814All-wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20051.8 T quattroSaloonPetrol13217814All-wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.4 quattroSaloonPetrol11523936All-wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.4 quattroSaloonPetrol12023936All-wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.4 quattroSaloonPetrol12123936All-wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.8 quattroSaloonPetrol13227716All-wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20052.8 quattroSaloonPetrol14027716All-wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20053.0 quattroSaloonPetrol16029766All-wheel Drive
AUDIA6 (4B) 4B2, C5 01/1997-08/20053.0 quattroSaloonPetrol16429766All-wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20051.8 T quattroEstatePetrol11017814All-wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20051.8 T quattroEstatePetrol13217814All-wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20052.4 quattroEstatePetrol11523936All-wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20053.0 quattroEstatePetrol16029766All-wheel Drive
AUDIA6 Avant (4B) 4B5, C5 11/1997-01/20053.0 quattroEstatePetrol16429766All-wheel Drive
VWPASSAT 3B2 (3B) 08/1996-12/20011.8 T SyncroSaloonPetrol11017814All-wheel Drive
VWPASSAT 3B2 (3B) 08/1996-12/20012.5 TDI Syncro/4motionSaloonDiesel11024966All-wheel Drive
VWPASSAT 3B2 (3B) 08/1996-12/20012.8 SyncroSaloonPetrol13227716All-wheel Drive
VWPASSAT 3B2 (3B) 08/1996-12/20012.8 V6 4motionSaloonPetrol14027716All-wheel Drive
VWPASSAT 3B2 (3B) 08/1996-12/20012.8 V6 Syncro/4motionSaloonPetrol14227716All-wheel Drive
VWPASSAT 3B3 (3BG|3BL|3BS) 10/2000-12/20051.8 T 4motionSaloonPetrol12517814All-wheel Drive
VWPASSAT 3B3 (3BG|3BL|3BS) 10/2000-12/20051.9 TDI 4motionSaloonDiesel9618964All-wheel Drive
VWPASSAT 3B3 (3BG|3BL|3BS) 10/2000-12/20052.5 TDI 4motionSaloonDiesel11024966All-wheel Drive
VWPASSAT 3B3 (3BG|3BL|3BS) 10/2000-12/20052.5 TDI 4motionSaloonDiesel13224966All-wheel Drive
VWPASSAT 3B3 (3BG|3BL|3BS) 10/2000-12/20052.8 4motionSaloonPetrol14027716All-wheel Drive
VWPASSAT 3B3 (3BG|3BL|3BS) 10/2000-12/20052.8 4motionSaloonPetrol14227716All-wheel Drive
VWPASSAT Estate 3B5 (3B) 05/1997-12/20011.8 4motionEstatePetrol11217814All-wheel Drive
VWPASSAT Estate 3B5 (3B) 05/1997-12/20012.5 TDI Syncro/4motionEstateDiesel11024966All-wheel Drive
VWPASSAT Estate 3B5 (3B) 05/1997-12/20012.8 V6 4motionEstatePetrol14027716All-wheel Drive
VWPASSAT Estate 3B5 (3B) 05/1997-12/20012.8 V6 Syncro/4motionEstatePetrol14227716All-wheel Drive
VWPASSAT Estate 3B6 (3BG, 3BS) 09/2000-08/20051.8 4motionEstatePetrol12517814All-wheel Drive
VWPASSAT Estate 3B6 (3BG, 3BS) 09/2000-08/20052.5 TDI 4motionEstateDiesel11024966All-wheel Drive
VWPASSAT Estate 3B6 (3BG, 3BS) 09/2000-08/20052.5 TDI 4motionEstateDiesel13224966All-wheel Drive
VWPASSAT Estate 3B6 (3BG, 3BS) 09/2000-08/20052.8 4motionEstatePetrol14027716All-wheel Drive
VWPASSAT Estate 3B6 (3BG, 3BS) 09/2000-08/20052.8 4motionEstatePetrol14227716All-wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 11: Excluding models with automatic level control, or automatic level system can be adjusted in accordance
  • Note 170: Only for 4 wheel drive models (4x4, 4motion, Quattro etc.)
  • Note 112: Because of the construction of the car the damping adjustment can only made when the damper is not mounted. By modifying the interior trim this problem can be avoided
