ST Coilover X Kit for 03/2014+ Audi A3 Convertible (8V7, 8VE)

1328000T
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

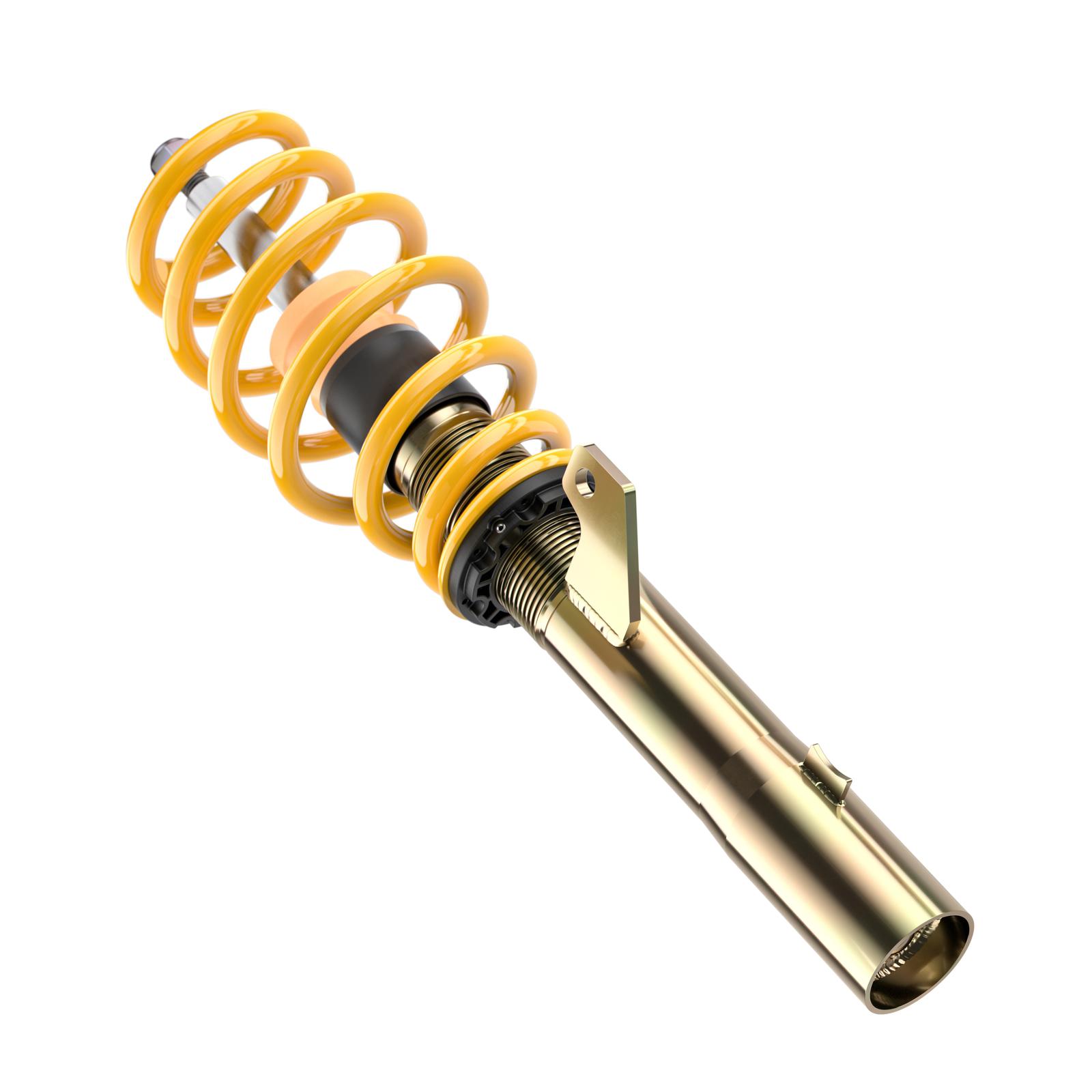

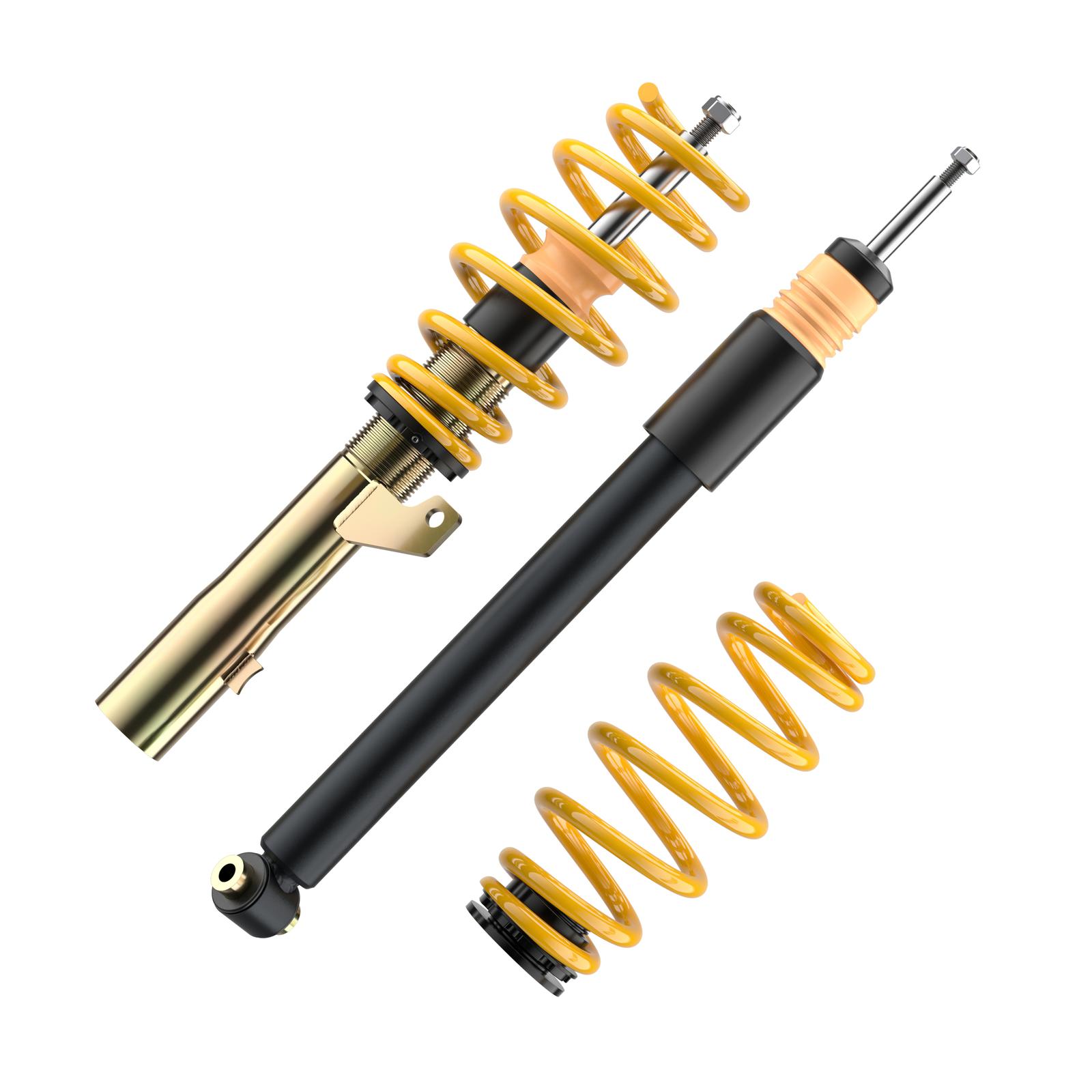

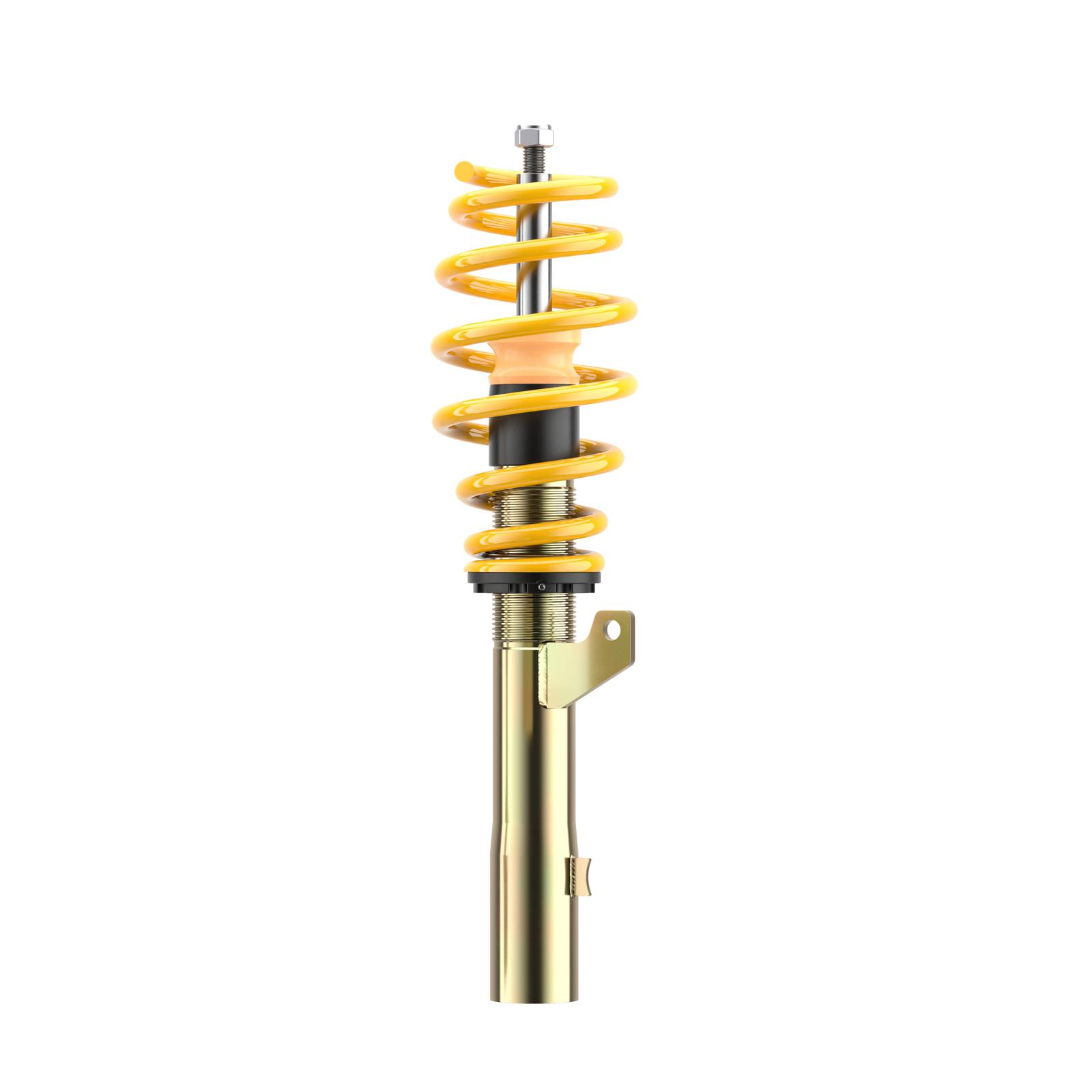

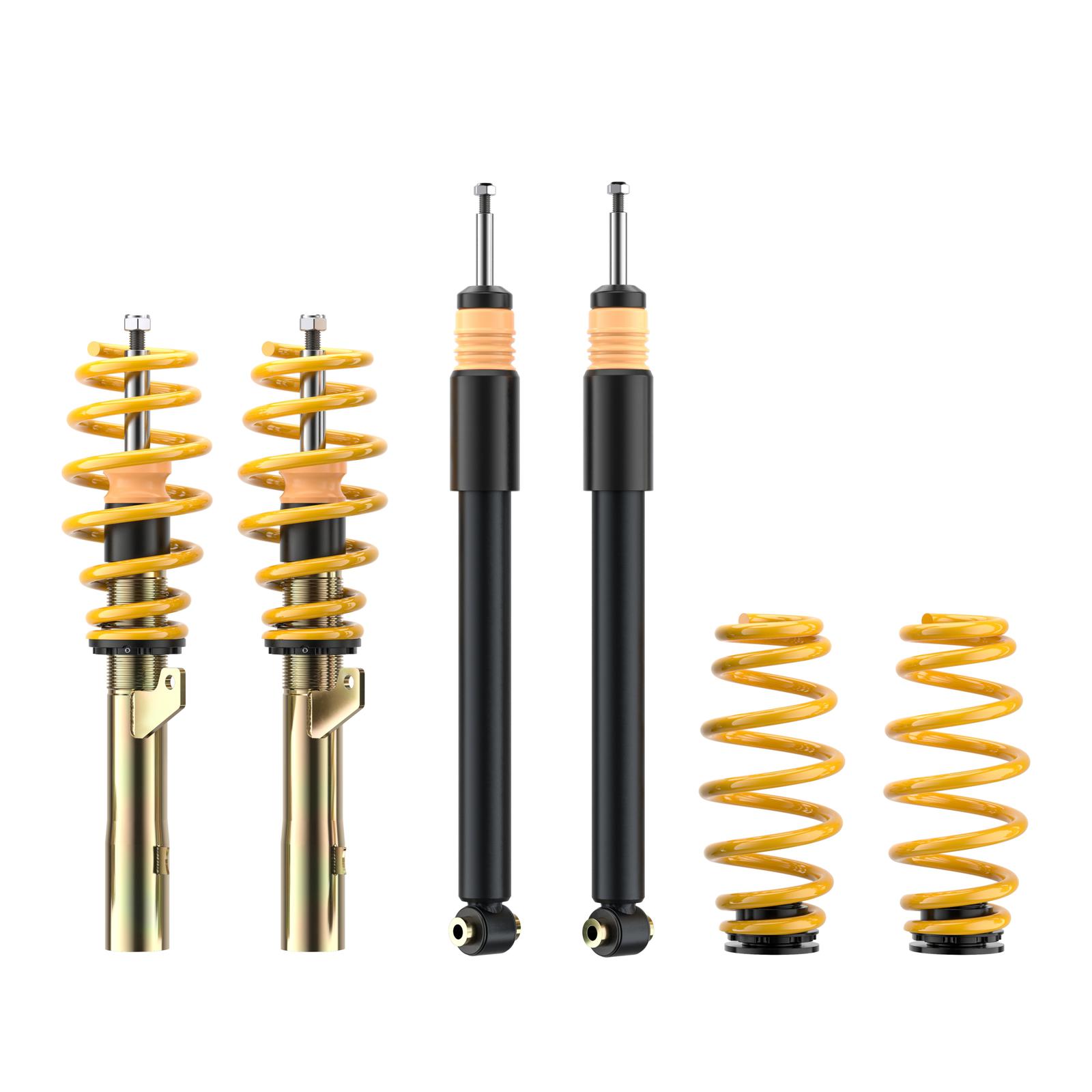

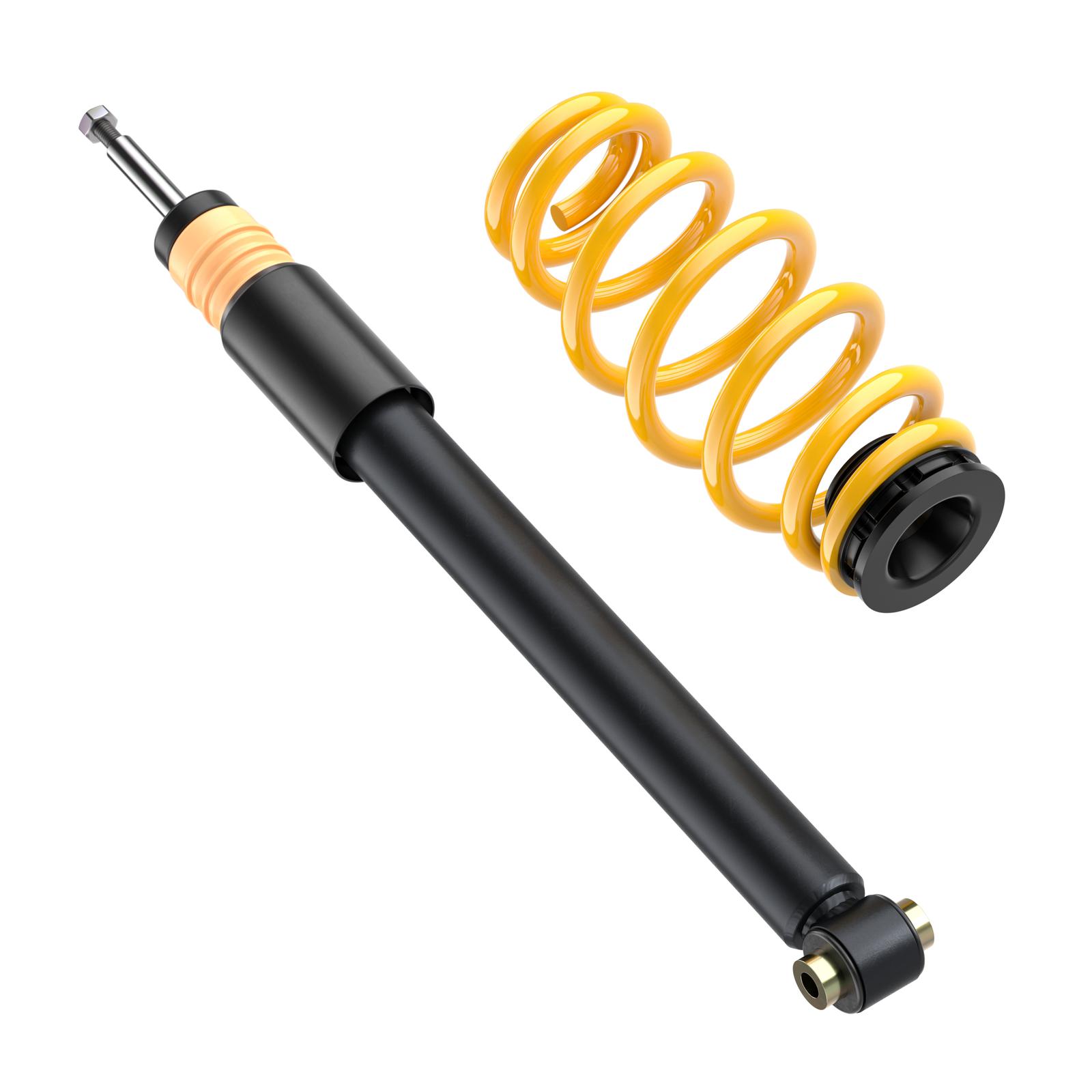

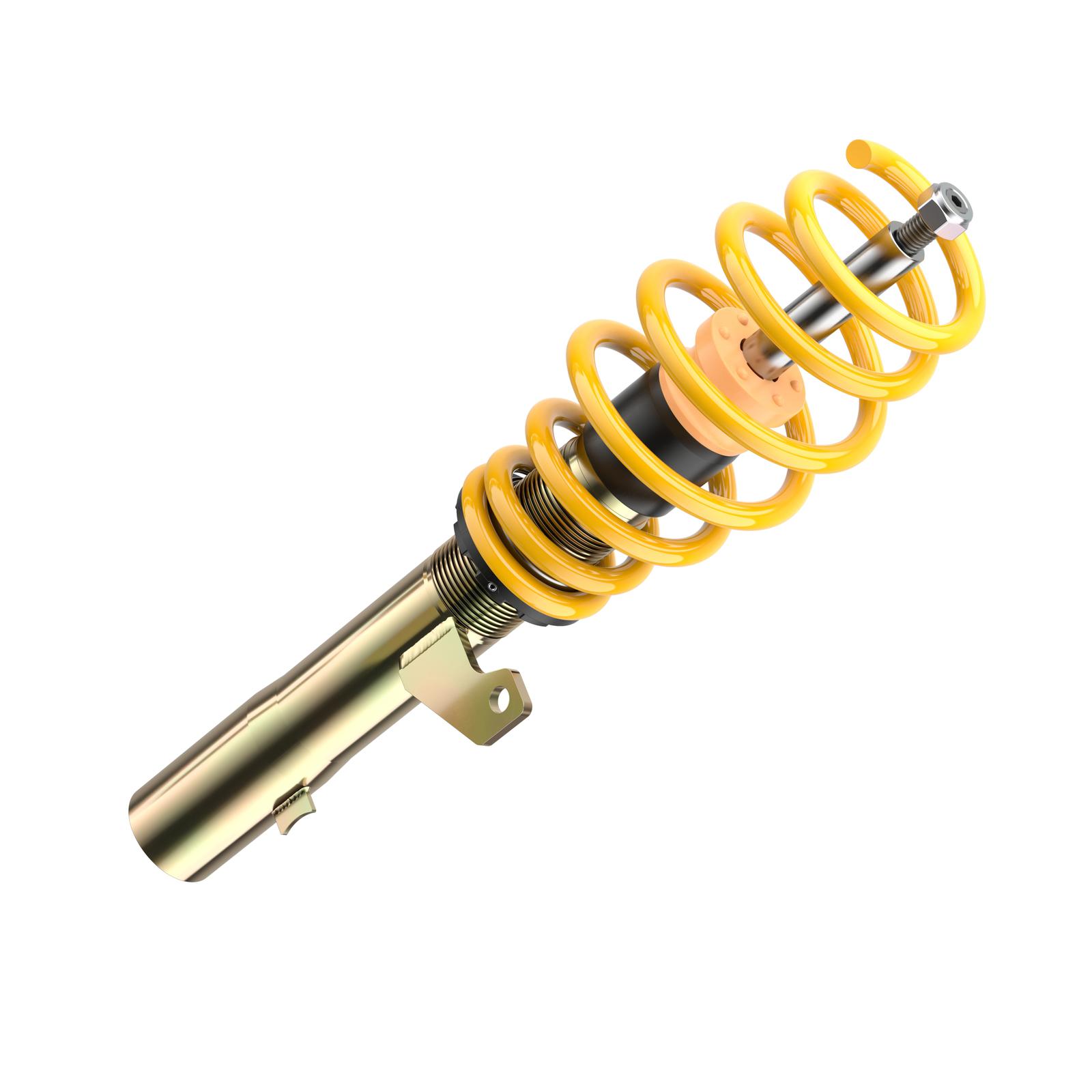

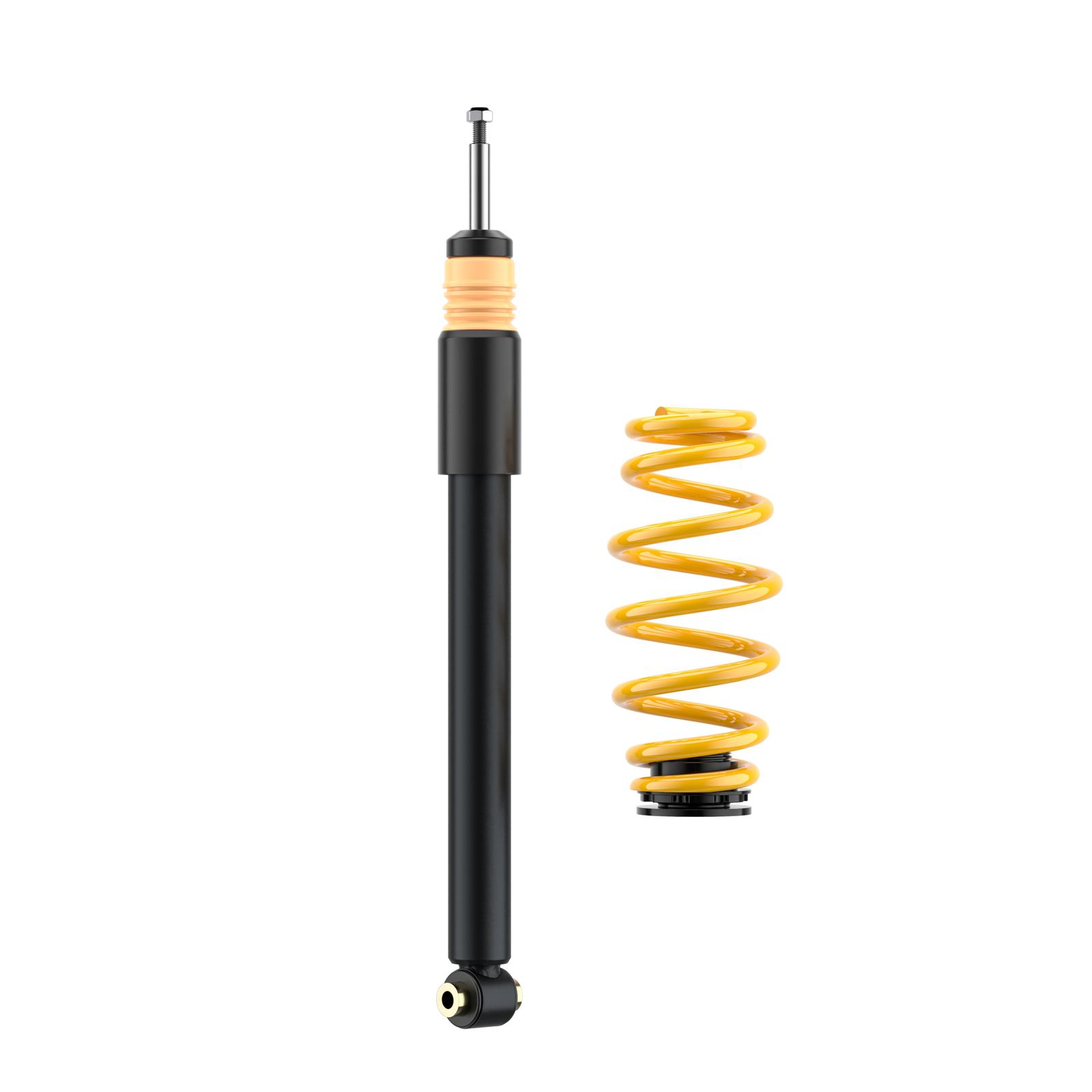

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.4 TFSIConvertiblePetrol8513954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.4 TFSIConvertiblePetrol9213954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.4 TFSIConvertiblePetrol10313954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.4 TSIConvertiblePetrol11013954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.5 TFSIConvertiblePetrol11014954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.8 TFSIConvertiblePetrol12517984Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20202.0 TFSIConvertiblePetrol13719844Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/202035 TFSIConvertiblePetrol11014954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/202040 TFSIConvertiblePetrol14019844Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.0 TSiEstatePetrol639993Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.0 TSIEstatePetrol859993Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.2 TSIEstatePetrol6311974Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.2 TSIEstatePetrol7711974Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.2 TSIEstatePetrol8111974Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.4 TSIEstatePetrol9013954Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.4 TSIEstatePetrol9213954Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.4 TSIEstatePetrol10313954Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.4 TSIEstatePetrol11013954Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.5 TSIEstatePetrol9614954Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.5 TSIEstatePetrol11014954Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.6 TDIEstateDiesel6615984Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.6 TDIEstateDiesel8115984Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.6 TDIEstateDiesel8515984Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20201.8 TSIEstatePetrol13217984Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20202.0 TDIEstateDiesel10519684Front Wheel Drive
SEATLEON ST (5F8) 09/2012-08/20202.0 TSIEstatePetrol14019844Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.0 TSIHatchbackPetrol859993Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.2 TSIHatchbackPetrol6311974Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.2 TSIHatchbackPetrol7711974Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.2 TSIHatchbackPetrol8111974Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.4 TSIHatchbackPetrol10313954Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.4 TSIHatchbackPetrol11013954Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.5 TSIHatchbackPetrol11014954Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.6HatchbackPetrol8115984Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-2.0 TDIHatchbackDiesel10519684Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-2.0 TSIHatchbackPetrol14019844Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.0 TSIEstatePetrol859993Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.2 TSIEstatePetrol6311974Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.2 TSIEstatePetrol7711974Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.2 TSIEstatePetrol8111974Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.4 TSIEstatePetrol10313954Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.4 TSIEstatePetrol11013954Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.5 TSIEstatePetrol11014954Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.6EstatePetrol8115984Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.8 TSIEstatePetrol13217984Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-2.0 TDIEstateDiesel10519684Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-2.0 TSIEstatePetrol14019844Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.0 TSIEstatePetrol639993Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.0 TSIEstatePetrol819993Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.0 TSIEstatePetrol859993Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.2 TSIEstatePetrol6311974Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.2 TSIEstatePetrol7711974Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.2 TSIEstatePetrol8111974Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.4 TSIEstatePetrol9013954Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.4 TSIEstatePetrol9213954Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.4 TSIEstatePetrol10313954Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.4 TSIEstatePetrol11013954Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.5 TSIEstatePetrol9614954Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.5 TSIEstatePetrol11014954Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.6EstatePetrol8115984Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20201.8 TSIEstatePetrol12517984Front Wheel Drive
VWGOLF VII Estate (AUV, BA5, BV5) 04/2013-12/20202.0 GTDEstateDiesel13019684Front Wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 209: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510342
  • Note 226: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510424
  • Note 6: Not for vehicles with electronic damper control
  • Note 71: Only for cars with a clamp diameter of 55 mm on the front axle
