ST Coilover X Kit for 04/2009+ Audi A5 Convertible (8F7)

13210074
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

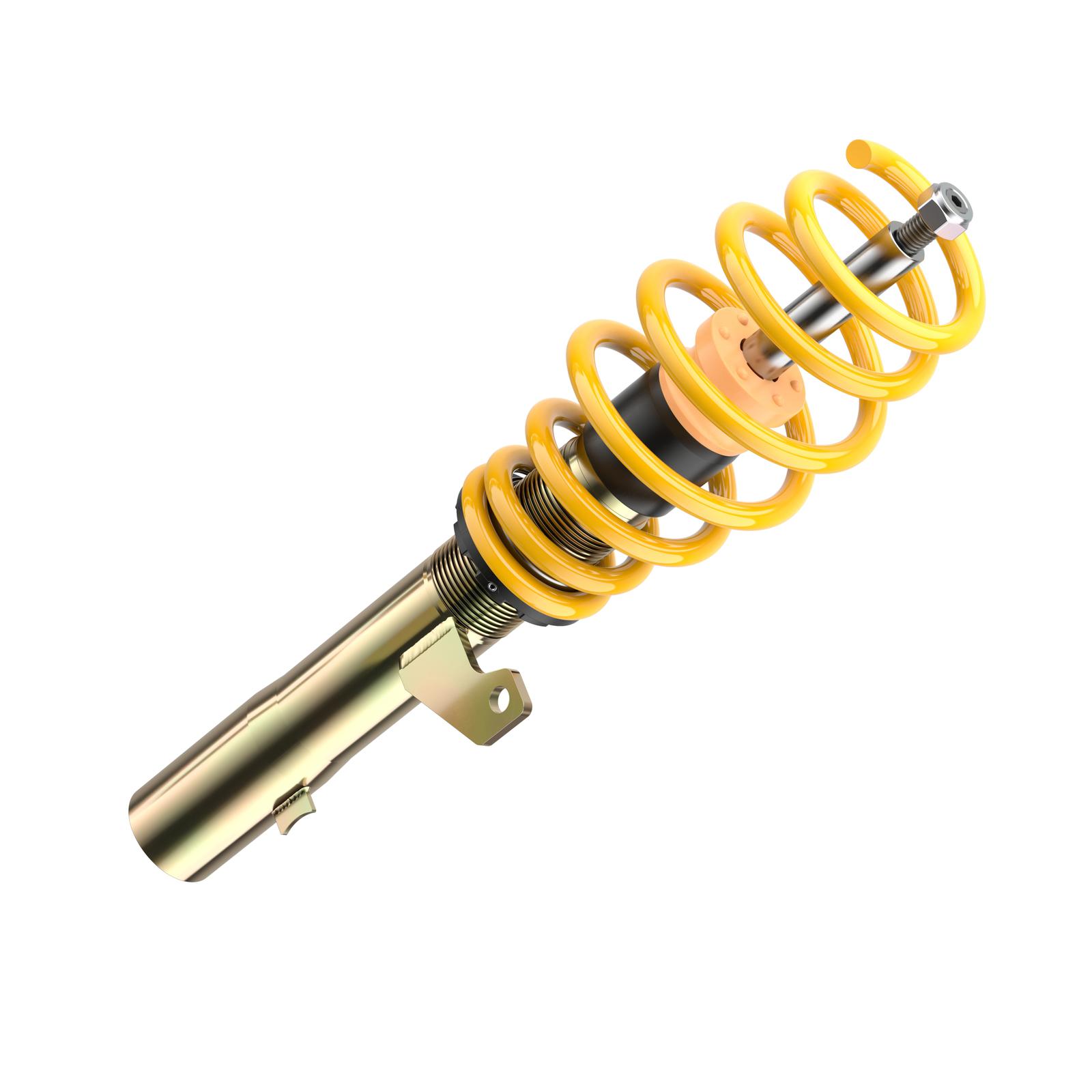

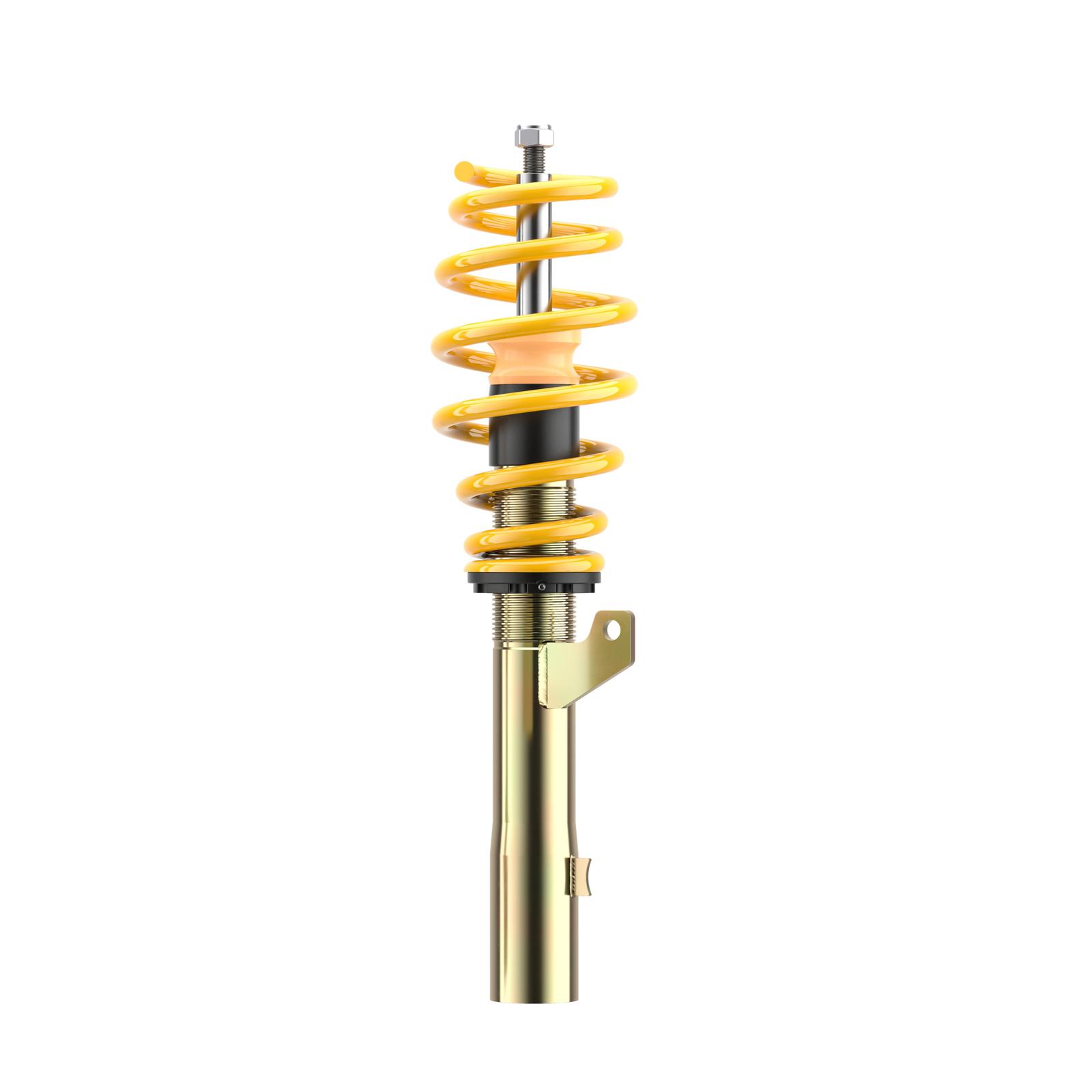

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection

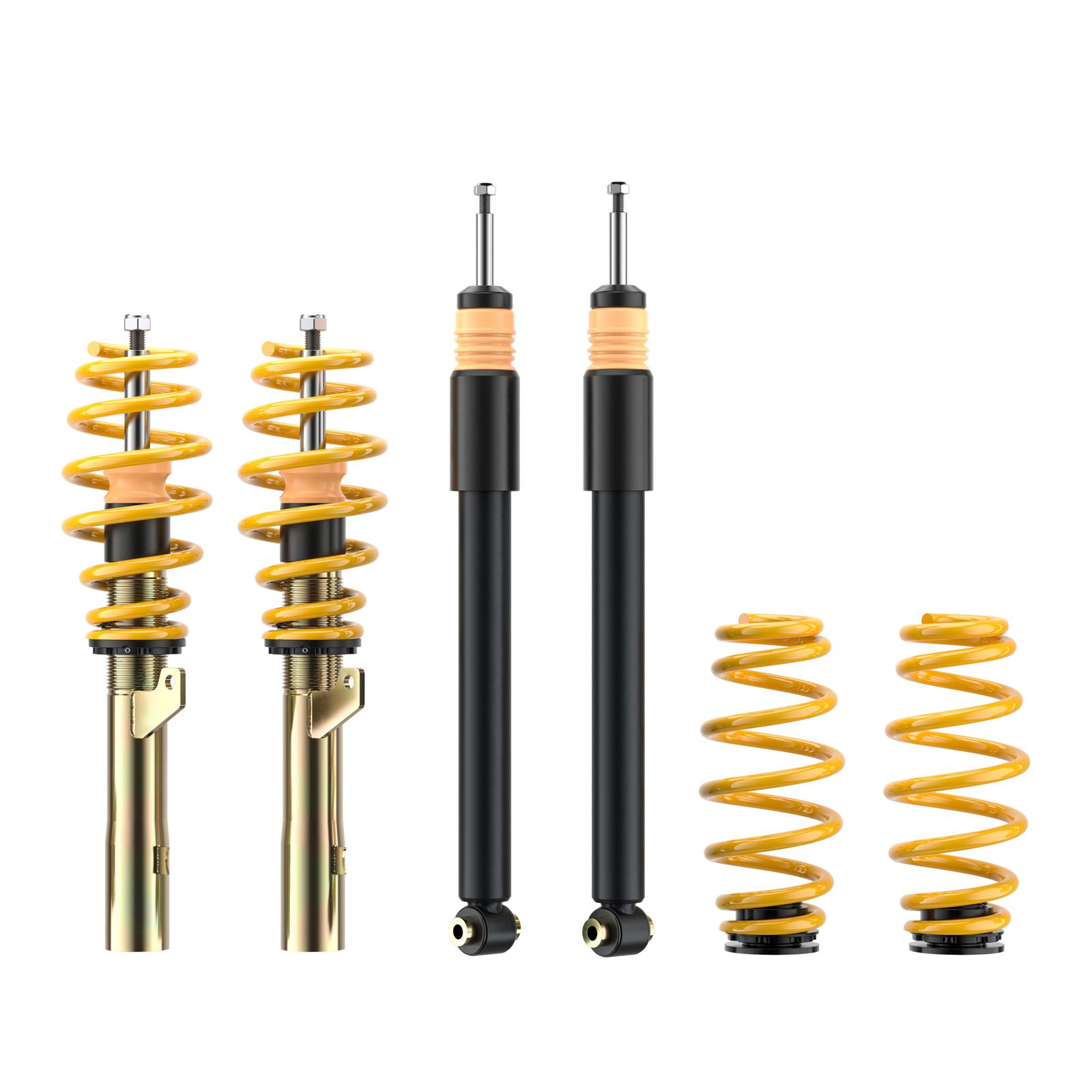

- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIA4 (B8) 8K2 08/2007-12/20151.8 TFSISaloonPetrol8817984Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20151.8 TFSISaloonPetrol11817984Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20151.8 TFSISaloonPetrol12517984Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20151.8 TFSI quattroSaloonPetrol11817984All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20151.8 TFSI quattroSaloonPetrol12517984All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel8819684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel10019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel10519684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel11019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel12019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel12519684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel13019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel14019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSISaloonPetrol13219844Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSISaloonPetrol15519844Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSISaloonPetrol16219844Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSISaloonPetrol16519844Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol13219844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol15519844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol16219844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol16519844All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20171.8 TFSICoupePetrol11817984Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20171.8 TFSICoupePetrol12517984Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20171.8 TFSICoupePetrol13017984Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDICoupeDiesel12019684Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDICoupeDiesel12519684Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDICoupeDiesel13019684Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDI quattroCoupeDiesel12519684All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDI quattroCoupeDiesel13019684All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TFSICoupePetrol13219844Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TFSICoupePetrol15519844Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TFSICoupePetrol16519844Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TFSICoupePetrol16919844Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TFSI quattroCoupePetrol15519844All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TFSI quattroCoupePetrol16219844All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TFSI quattroCoupePetrol16519844All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TFSI quattroCoupePetrol16919844All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.2 FSI quattroCoupePetrol19531976All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20171.8 TFSIConvertiblePetrol11817984Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20171.8 TFSIConvertiblePetrol12517984Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20171.8 TFSIConvertiblePetrol13017984Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol15519844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol16219844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol16519844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol16919844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol16219844All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol16219844All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20171.8 TFSIHatchbackPetrol10617984Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20171.8 TFSIHatchbackPetrol11817984Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20171.8 TFSIHatchbackPetrol12517984Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20171.8 TFSIHatchbackPetrol13017984Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel10019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel10519684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel11019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSIHatchbackPetrol13219844Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSIHatchbackPetrol15519844Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSIHatchbackPetrol16519844Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSIHatchbackPetrol16919844Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSI quattroHatchbackPetrol15519844All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSI quattroHatchbackPetrol16519844All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSI quattroHatchbackPetrol16919844All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.7 TDIHatchbackDiesel12026986Front Wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 11: Excluding models with automatic level control, or automatic level system can be adjusted in accordance
  • Note 189: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510144, Price 299,- EURO incl. VAT
  • Note 4: Excluding four wheel drive models
