ST Coilover X Kit for 10/2007+ BMW 1 Series Coupe (E82)

13220039
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

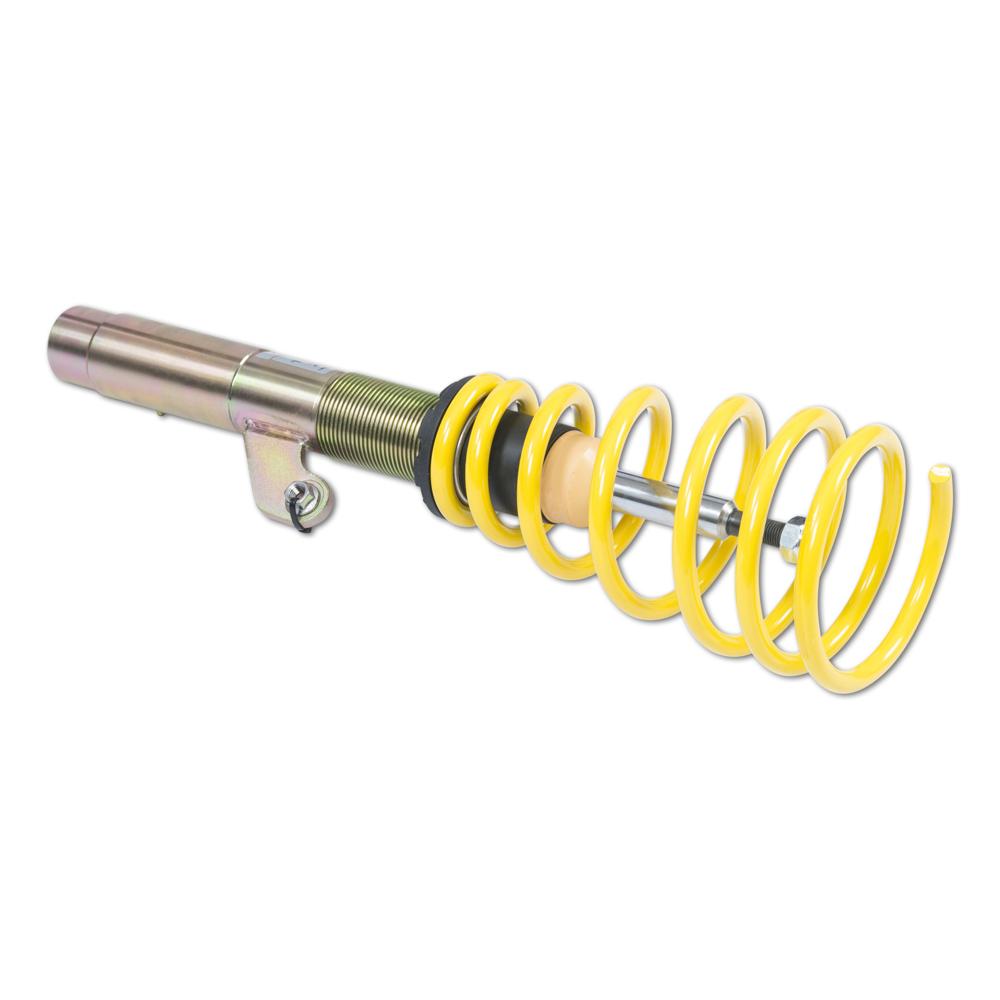

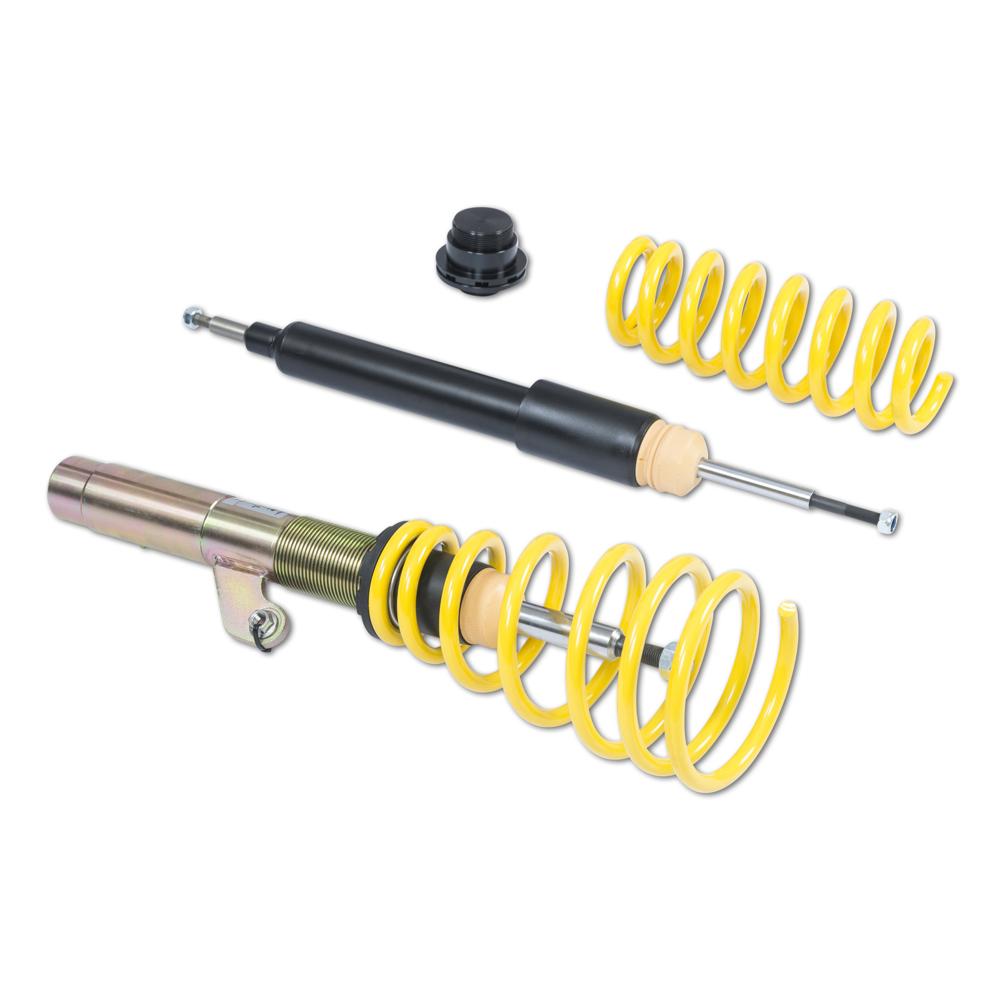

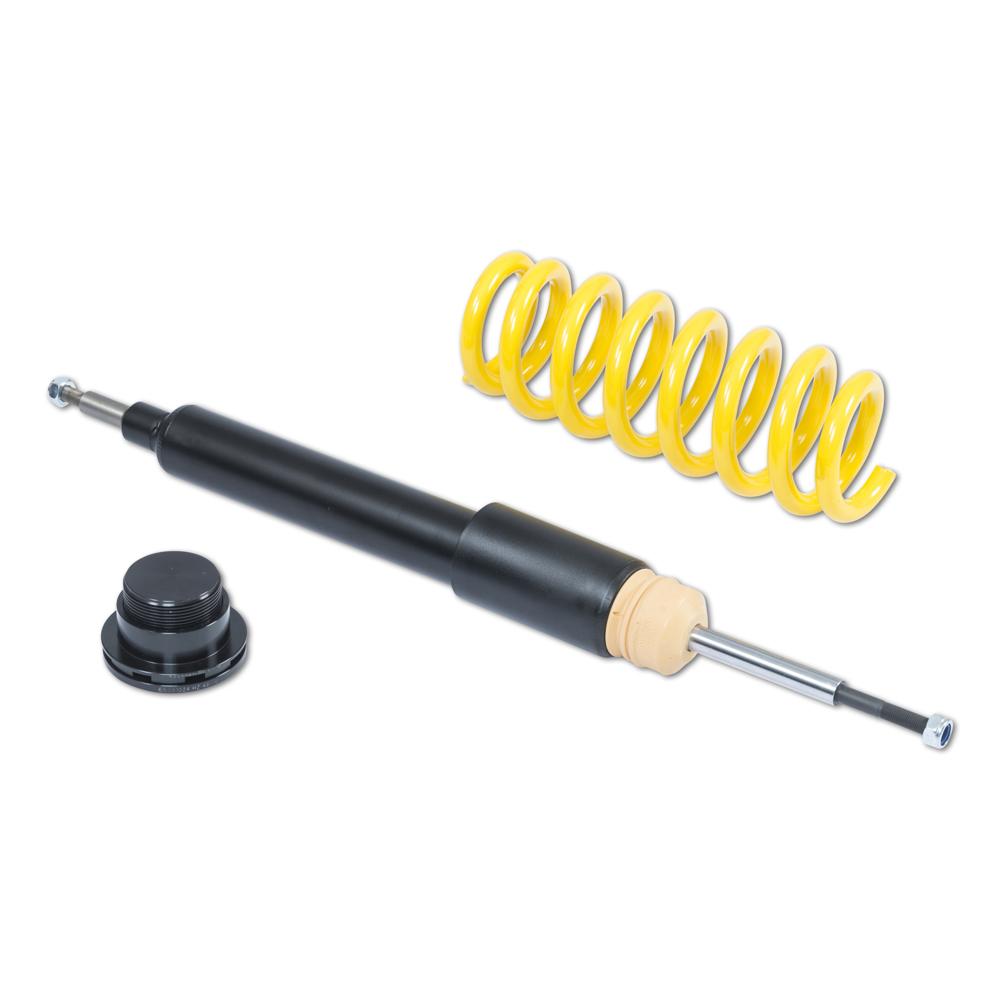

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection

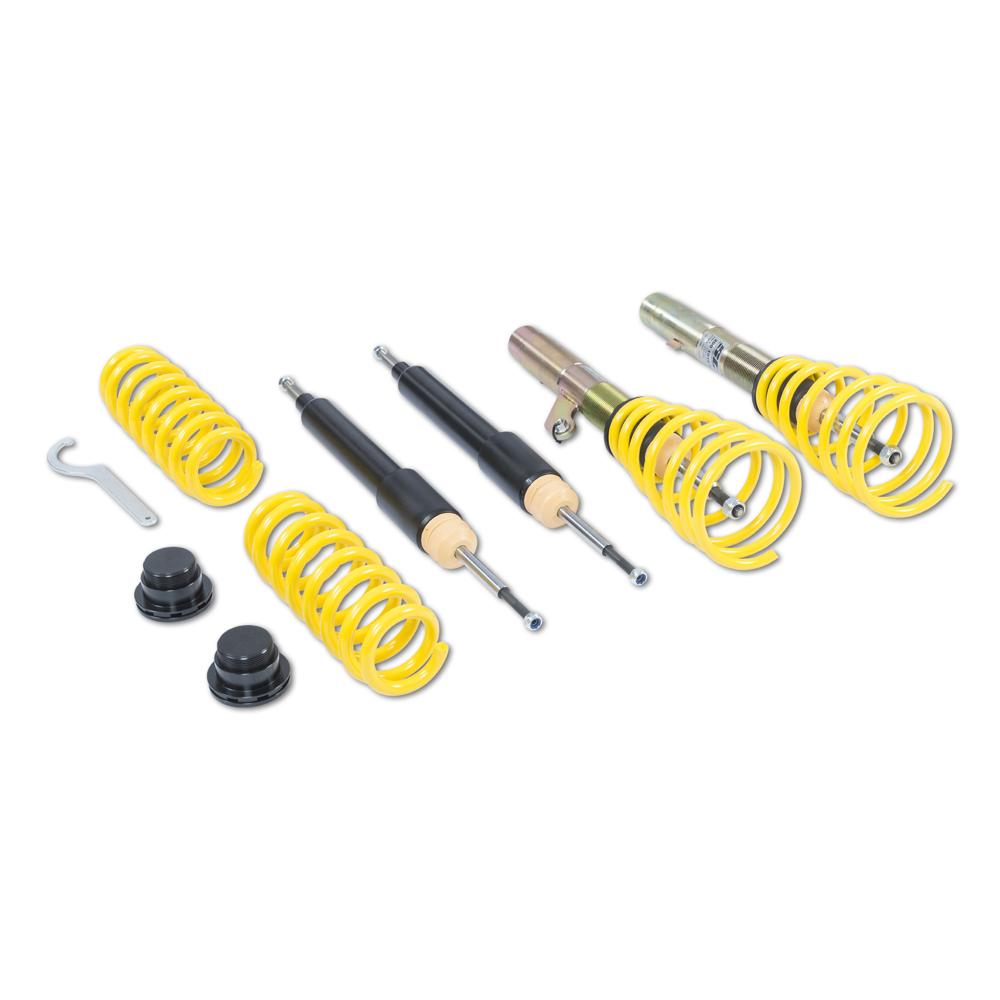

- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
BMW1 (E81) 187, 1K2 09/2006-09/2012116 dHatchbackDiesel6619954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012116 dHatchbackDiesel8519954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012116 iHatchbackPetrol8515964Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012116 iSchrägheckBenzin8915994Heckantrieb
BMW1 (E81) 187, 1K2 09/2006-09/2012116 iHatchbackPetrol9015994Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012116 iHatchbackPetrol9019954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012118 dHatchbackDiesel10019954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012118 dHatchbackDiesel10519954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012118 iHatchbackPetrol9519954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012118 iHatchbackPetrol10019954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012118 iHatchbackPetrol10519954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012120 dHatchbackDiesel12019954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012120 dHatchbackDiesel13019954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012120 dHatchbackDiesel14519954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012120 iHatchbackPetrol11519954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012120 iHatchbackPetrol12019954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012120 iHatchbackPetrol12519954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012123 dHatchbackDiesel15019954Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012130 iHatchbackPetrol19029966Rear Wheel Drive
BMW1 (E81) 187, 1K2 09/2006-09/2012130 iHatchbackPetrol19529966Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013116 dHatchbackDiesel6619954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013116 dHatchbackDiesel8519954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013116 iHatchbackPetrol8515964Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013116 iSchrägheckBenzin8915994Heckantrieb
BMW1 (E87) 187, 1K4 02/2003-01/2013116 iHatchbackPetrol9015994Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013116 iHatchbackPetrol9019954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013118 dHatchbackDiesel9019954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013118 dHatchbackDiesel10019954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013118 dHatchbackDiesel10519954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013118 iHatchbackPetrol9519954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013118 iHatchbackPetrol10019954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013118 iHatchbackPetrol10519954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013118 iHatchbackPetrol12519954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013120 dHatchbackDiesel11019954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013120 dHatchbackDiesel11519954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013120 dHatchbackDiesel12019954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013120 dHatchbackDiesel12519954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013120 dHatchbackDiesel13019954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013120 iHatchbackPetrol11019954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013120 iHatchbackPetrol11519954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013120 iHatchbackPetrol12019954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013120 iHatchbackPetrol12519954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013123 dHatchbackDiesel15019954Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013130 iHatchbackPetrol19029966Rear Wheel Drive
BMW1 (E87) 187, 1K4 02/2003-01/2013130 iHatchbackPetrol19529966Rear Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013118 dCoupeDiesel10019954Rear Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013118 dCoupeDiesel10519954Rear Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013120 dCoupeDiesel12019954Rear Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013120 dCoupeDiesel13019954Rear Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013120 dCoupeDiesel14519954Rear Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013120 iCoupePetrol11519954Rear Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013120 iCoupePetrol12519954Rear Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013123 dCoupeDiesel15019954Rear Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013125 iCoupePetrol16029966Rear Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013128 iCoupePetrol17229966Rear-Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013135 iCoupePetrol22529796Rear Wheel Drive
BMW1 Coupe (E82) 182, 1C, M-V 10/2006-10/2013135 iCoupePetrol24029796Rear Wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 4: Excluding four wheel drive models
  • Note 42: In combination with orginal wheels and tyres, wheelspacers might be necessary
