ST Coilover X Kit for 11/2005-01/2012 BMW 3 Series (E90)

13220048
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

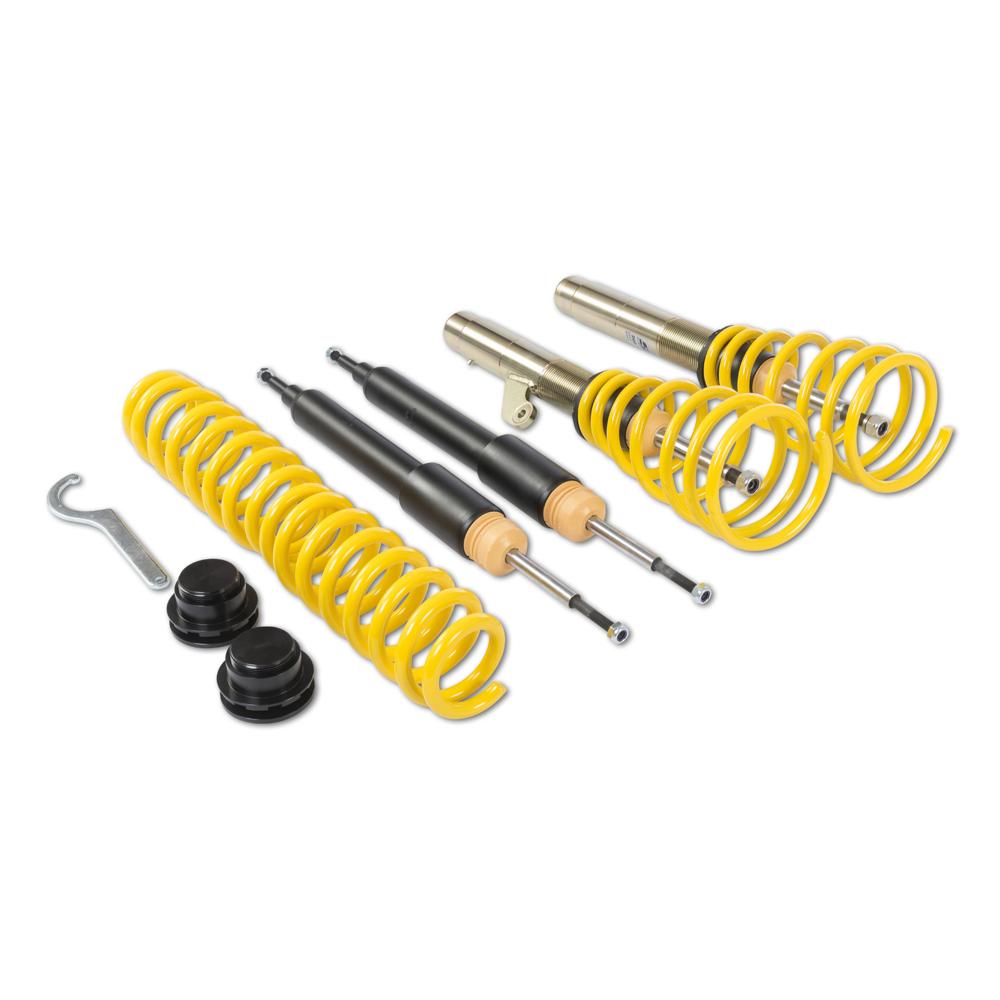

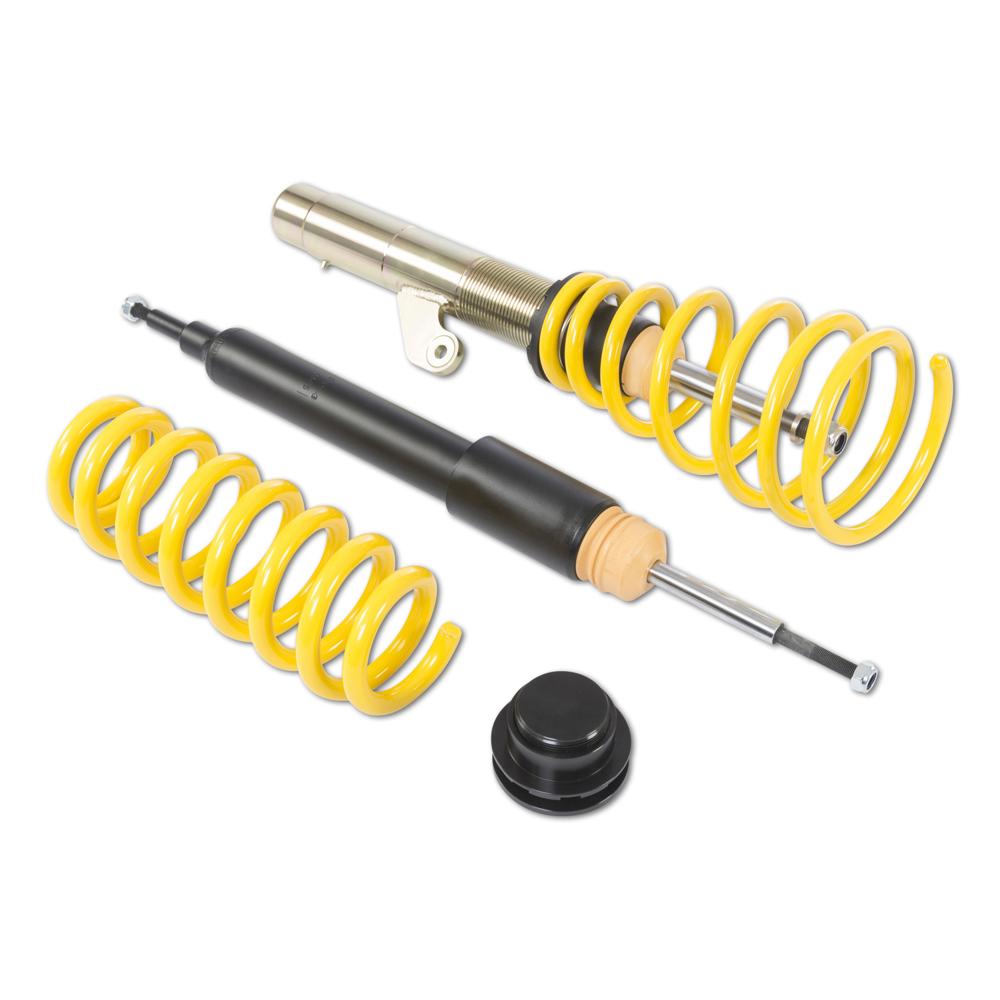

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

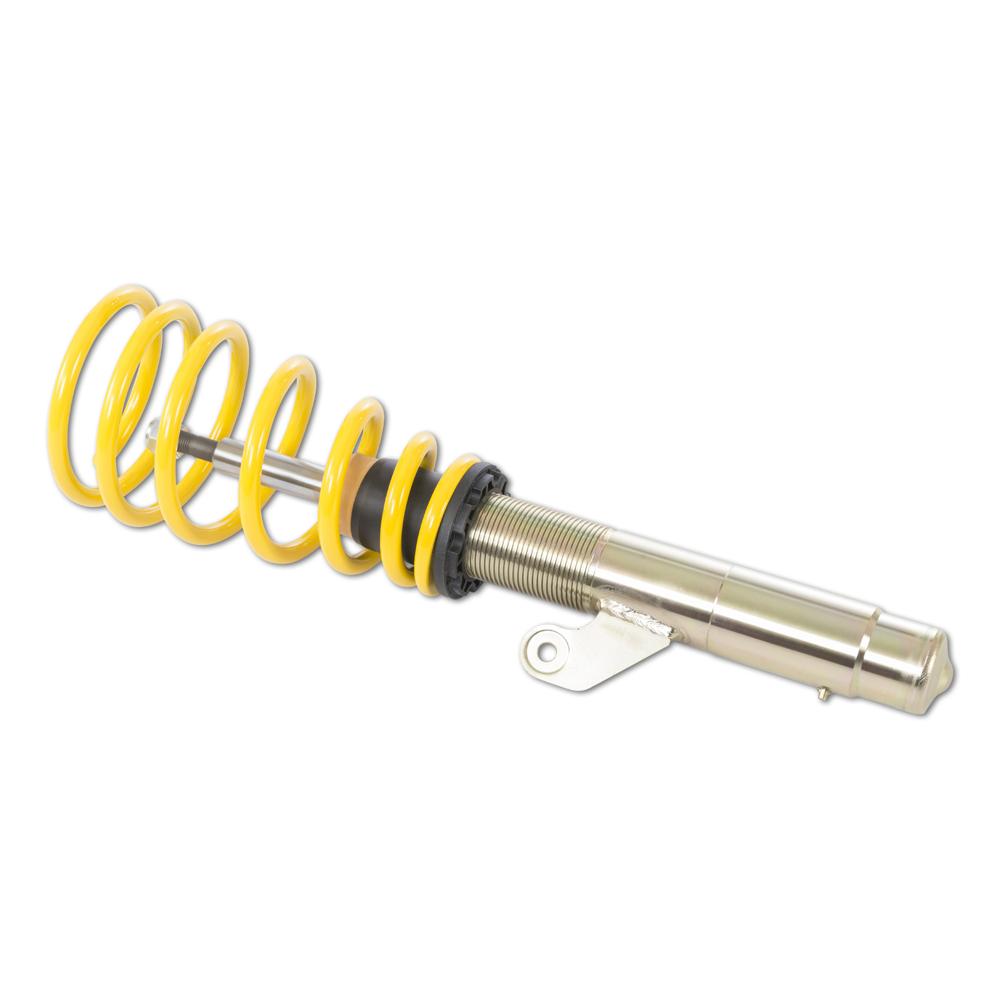

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

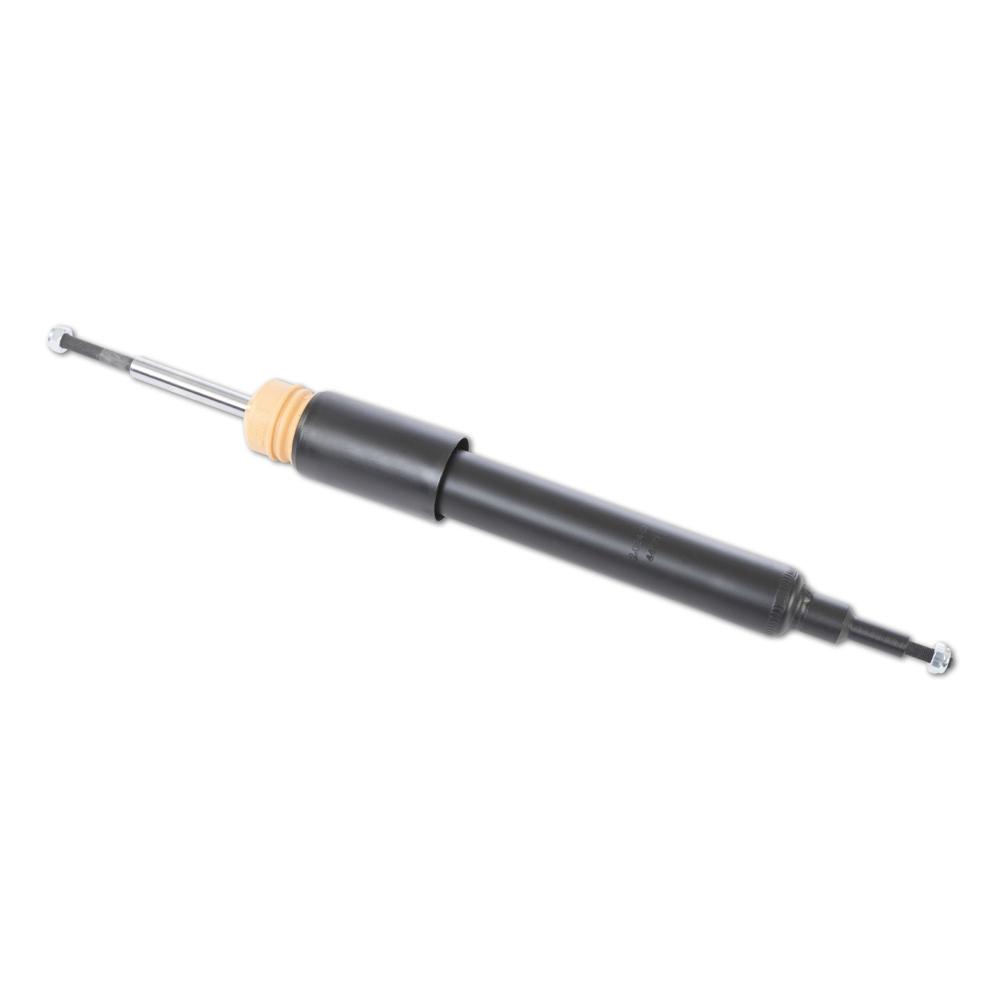

- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 d xDriveSaloonDiesel12019954All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 d xDriveSaloonDiesel13019954All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 d xDriveSaloonDiesel13519954All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 xdSaloonDiesel13019954All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 i xDriveSaloonPetrol15529966All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 i xDriveSaloonPetrol16029966All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 xiSaloonPetrol16024976All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 xiSaloonPetrol16029966All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 xiSaloonPetrol16029966All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012328 i xDriveSaloonPetrol17229966All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012328 xiSaloonPetrol17229966All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 d xDriveSaloonDiesel18029936All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 i xDriveSaloonPetrol20029966All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 xdSaloonDiesel17029936All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 xiSaloonPetrol19029966All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 xiSaloonPetrol20029966All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 i xDriveSaloonPetrol22429796All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 i xDriveSaloonPetrol22529796All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 i xDriveSaloonPetrol24029796All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 xiSaloonPetrol22429796All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 xiSaloonPetrol22529796All-wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 xiSaloonPetrol24029796All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 d xDriveCoupeDiesel12019954All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 d xDriveCoupeDiesel13019954All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 d xDriveCoupeDiesel13519954All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 d xDriveCoupeDiesel14519954All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 d xDriveCoupeDiesel14719954All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 i xDriveCoupePetrol15024976All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 i xDriveCoupePetrol15524976All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 i xDriveCoupePetrol15529966All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 i xDriveCoupePetrol16029966All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 xiCoupePetrol15529966All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 xiCoupePetrol16024976All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 xiCoupePetrol16029966All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013328 i xDriveCoupePetrol17229966All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013328 xiCoupePetrol17229966All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 d xDriveCoupeDiesel18029936All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 i xDriveCoupePetrol20029966All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 xdCoupeDiesel17029936All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 xdCoupeDiesel18029936All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 xiCoupePetrol19029966All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 xiCoupePetrol20029966All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 xiCoupePetrol20029966All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 i xDriveCoupePetrol22529796All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 i xDriveCoupePetrol24029796All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 xiCoupePetrol22529796All-wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 xiCoupePetrol24029796All-wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
