ST Coilover X Kit for 11/2014+ VW Passat Estate (3G5, CB5)

132800AQ
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

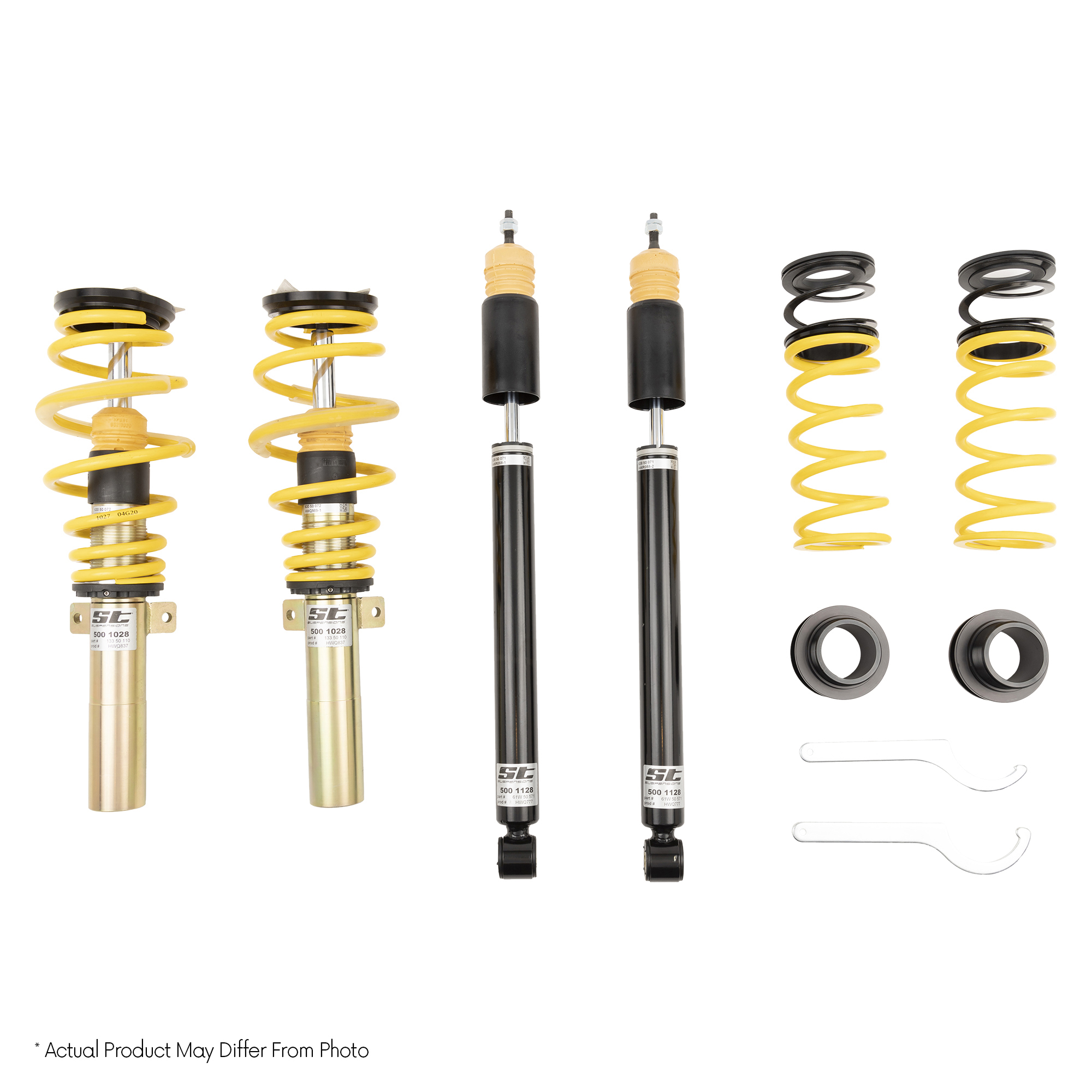

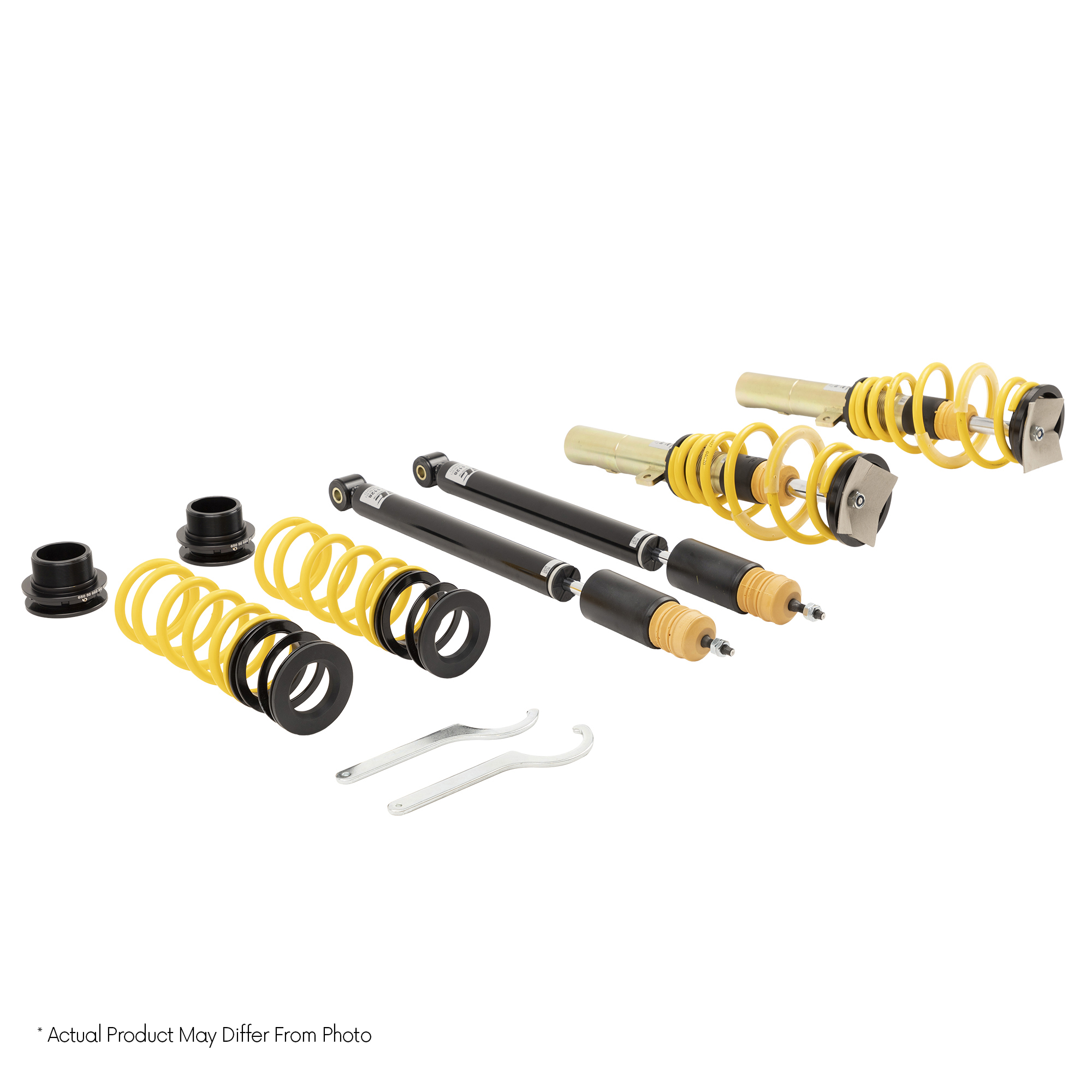

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TDI 4x4HatchbackDiesel11019684All-wheel Drive
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TDI 4x4HatchbackDiesel14019684All-wheel Drive
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TDI 4x4HatchbackDiesel14719684All-wheel Drive
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TSI 4x4HatchbackPetrol20019844All-wheel Drive
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TSI 4x4HatchbackPetrol20619844All-wheel Drive
SKODASUPERB III Estate (3V5, 3T) 03/2015-1.4 TSIEstatePetrol9213954Front Wheel Drive
SKODASUPERB III Estate (3V5, 3T) 03/2015-1.5 TSiEstatePetrol11014954Front Wheel Drive
SKODASUPERB III Estate (3V5, 3T) 03/2015-1.6 TDIEstateDiesel8815984Front Wheel Drive
SKODASUPERB III Estate (3V5, 3T) 03/2015-1.8 TSIEstatePetrol13217984Front Wheel Drive
SKODASUPERB III Estate (3V5, 3T) 03/2015-2.0 TDIEstateDiesel9019684Front Wheel Drive
SKODASUPERB III Estate (3V5, 3T) 03/2015-2.0 TDIEstateDiesel11019684Front Wheel Drive
SKODASUPERB III Estate (3V5, 3T) 03/2015-2.0 TDIEstateDiesel14019684Front Wheel Drive
SKODASUPERB III Estate (3V5, 3T) 03/2015-2.0 TDIEstateDiesel14719684Front Wheel Drive
SKODASUPERB III Estate (3V5, 3T) 03/2015-2.0 TSIEstatePetrol14019844Front Wheel Drive
SKODASUPERB III Estate (3V5, 3T) 03/2015-2.0 TSIEstatePetrol16219844Front Wheel Drive
VWPASSAT 3G2 (3C) 08/2014-2.0 TDI 4motionSaloonDiesel11019684All-wheel Drive
VWPASSAT 3G2 (3C) 08/2014-2.0 TDI 4motionSaloonDiesel14019684All-wheel Drive
VWPASSAT 3G2 (3C) 08/2014-2.0 TDI 4motionSaloonDiesel14719684All-wheel Drive
VWPASSAT 3G2 (3C) 08/2014-2.0 TDI 4motionSaloonDiesel17619684All-wheel Drive
VWPASSAT 3G2 (3C) 08/2014-2.0 TSI 4motionSaloonPetrol20019844All-wheel Drive
VWPASSAT 3G2 (3C) 08/2014-2.0 TSI 4motionSaloonPetrol20619844All-wheel Drive
VWPASSAT Estate 3G5 (3C) 08/2014-1.5 TSIEstatePetrol11014954Front Wheel Drive
VWPASSAT Estate 3G5 (3C) 08/2014-1.6 TDIEstateDiesel8815984Front Wheel Drive
VWPASSAT Estate 3G5 (3C) 08/2014-1.8 TSIEstatePetrol13217984Front Wheel Drive
VWPASSAT Estate 3G5 (3C) 08/2014-2.0 TDIEstateDiesel8119684Front-Wheel Drive
VWPASSAT Estate 3G5 (3C) 08/2014-2.0 TDIEstateDiesel9019684Front Wheel Drive
VWPASSAT Estate 3G5 (3C) 08/2014-2.0 TDIEstateDiesel11019684Front Wheel Drive
VWPASSAT Estate 3G5 (3C) 08/2014-2.0 TDIEstateDiesel13519684Front Wheel Drive
VWPASSAT Estate 3G5 (3C) 08/2014-2.0 TDIEstateDiesel14019684Front Wheel Drive
VWPASSAT Estate 3G5 (3C) 08/2014-2.0 TDIEstateDiesel14719684Front Wheel Drive
VWPASSAT Estate 3G5 (3C) 08/2014-2.0 TSIEstatePetrol14019844Front Wheel Drive
VWPASSAT Estate 3G5 (3C) 08/2014-2.0 TSIEstatePetrol16219844Front Wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 11: Excluding models with automatic level control, or automatic level system can be adjusted in accordance
  • Note 209: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510342
  • Note 71: Only for cars with a clamp diameter of 55 mm on the front axle
