ST Coilover XA Kit for 05/2012+ Audi A3 (8V1, 8VK)

18281027
ST Suspension

Stock: Backorder Available

AU$2,509.00 Inc GST

Description

Description

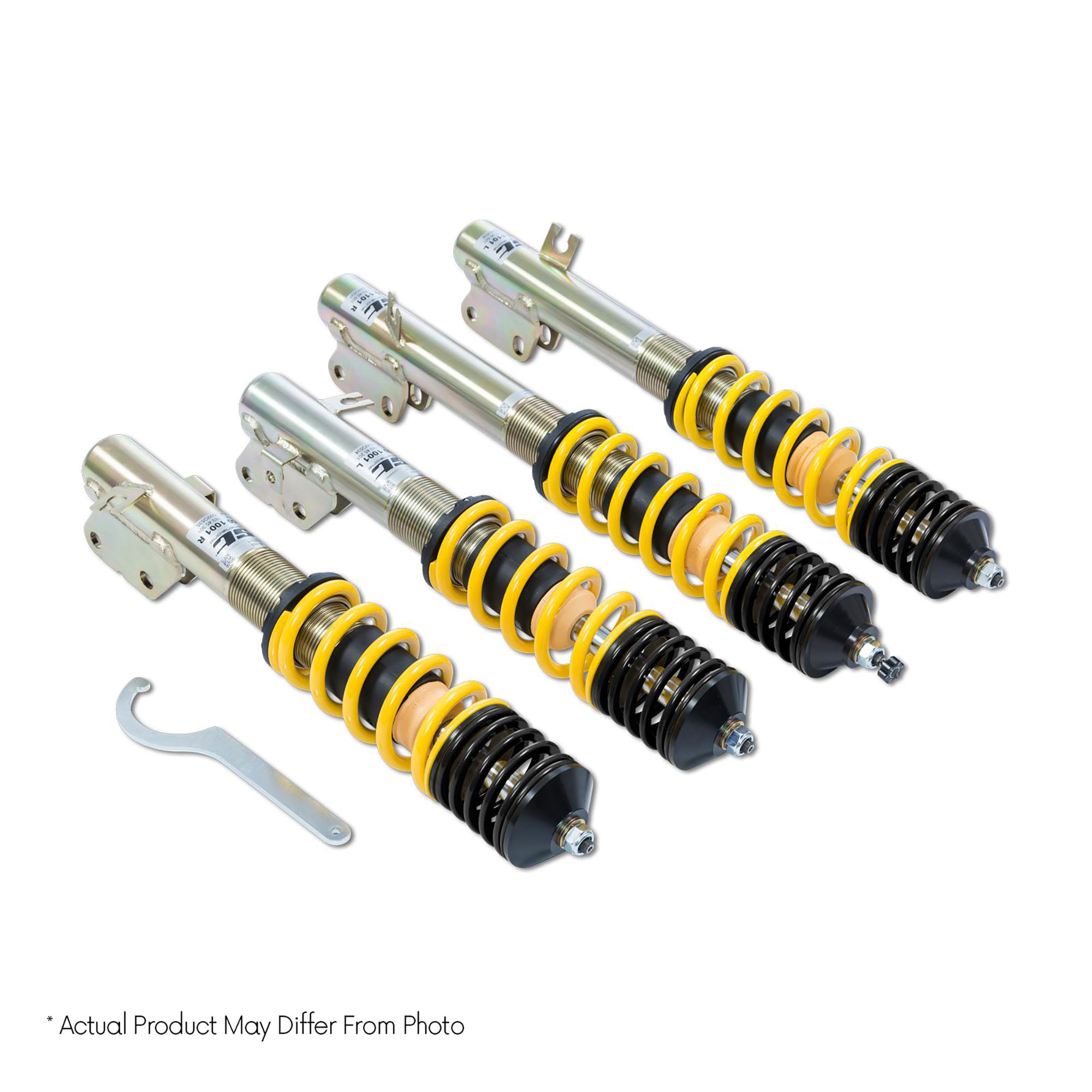

Coilovers ST XA galvanized steel (with damping adjustment)

For drivers wanting more than just ride height adjustment comes the ST XA coilover. Developed alongside KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

Perfect for sporty driving

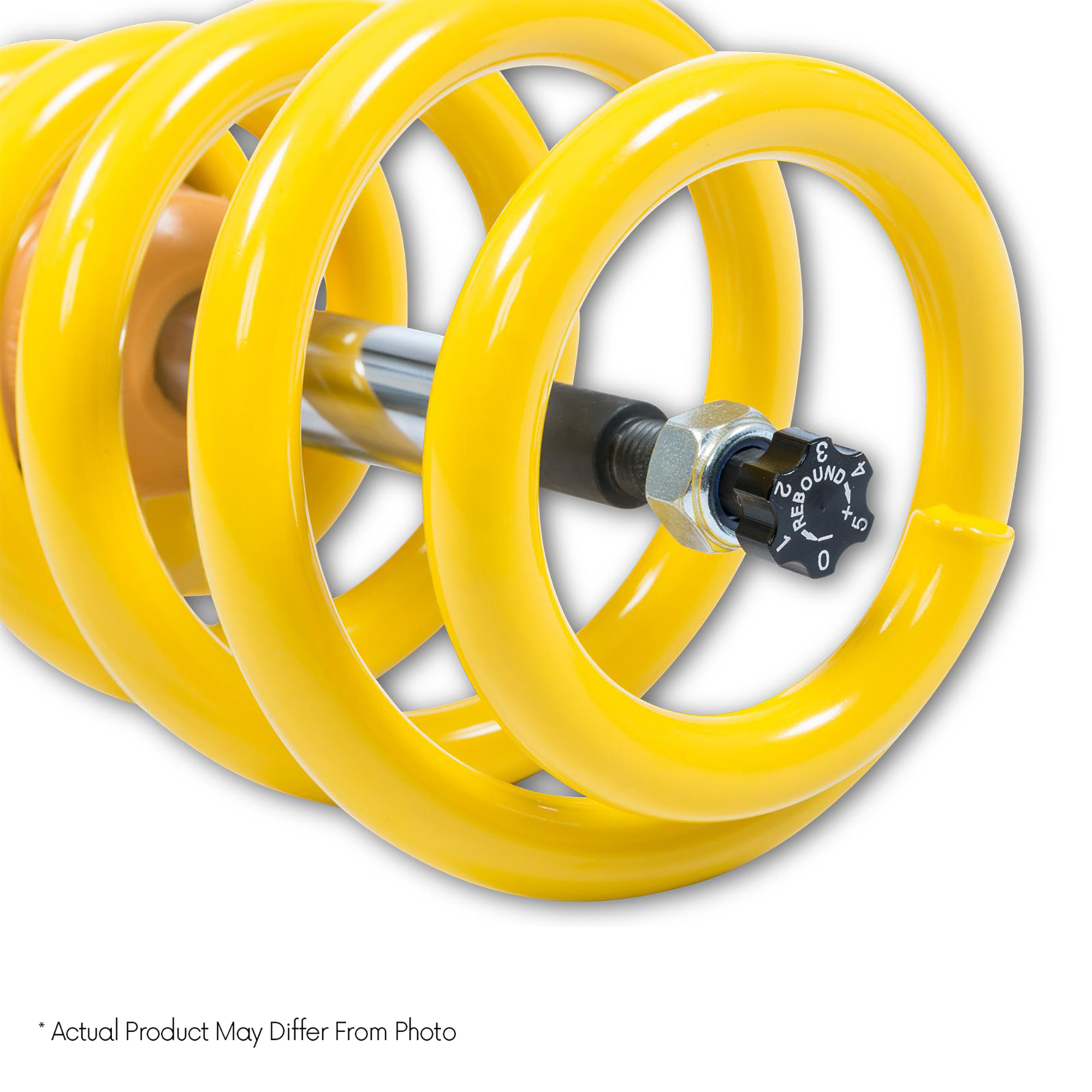

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.

Easy lowering adjustment
Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.

KW Engineering: Exclusive for ST suspension
The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.

- External damper adjustment
- Latest damping technology for maximum longevity
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axle (when possible) with thread adjustment
- Galvanized coilover struts with additional coating for an optimized corrosion protection

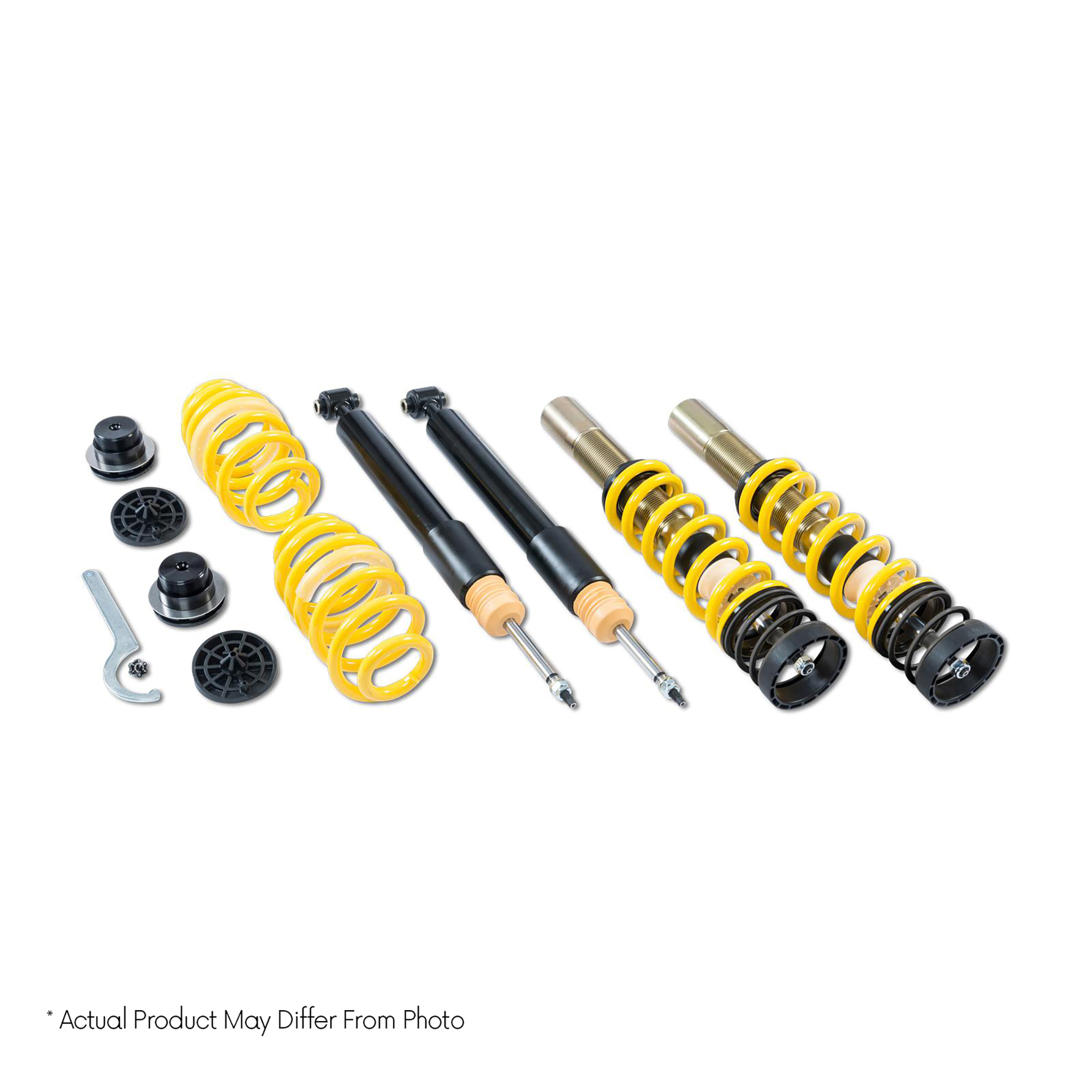

- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.0 TFSIHatchbackPetrol859993Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.2 TFSIHatchbackPetrol7711974Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.2 TFSIHatchbackPetrol8111974Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.4 TFSIHatchbackPetrol9013954Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.4 TFSIHatchbackPetrol9213954Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.4 TFSIHatchbackPetrol10313954Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.4 TSIHatchbackPetrol11013954Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.5 TFSIHatchbackPetrol11014954Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.6 TDIHatchbackDiesel8115984Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.8 TFSIHatchbackPetrol13217984Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20202.0 TDIHatchbackDiesel8119684Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.0 TFSISaloonPetrol859993Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.2 TFSISaloonPetrol7711974Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.2 TFSISaloonPetrol8111974Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.4 TFSISaloonPetrol9013954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.4 TFSISaloonPetrol9213954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.4 TFSISaloonPetrol10313954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.4 TSISaloonPetrol11013954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.5 TFSISaloonPetrol11014954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.8 TFSISaloonPetrol12517984Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TDISaloonDiesel8119684Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TDISaloonDiesel10519684Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TFSISaloonPetrol13719844Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TFSISaloonPetrol16219844Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/202030 TDISaloonDiesel8515984Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/202030 TFSISaloonPetrol859993Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/202035 TFSISaloonPetrol11014954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/202040 TFSISaloonPetrol14019844Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/20201.0 TFSIHatchbackPetrol859993Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/20201.2 TFSIHatchbackPetrol7711974Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/20201.2 TFSIHatchbackPetrol8111974Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/20201.4 TFSIHatchbackPetrol9013954Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/20201.4 TFSIHatchbackPetrol9213954Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/20201.4 TFSIHatchbackPetrol10313954Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/20201.4 TSIHatchbackPetrol11013954Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/20201.5 TFSIHatchbackPetrol11014954Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/20202.0 TDIHatchbackDiesel8119684Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/20202.0 TDIHatchbackDiesel10519684Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/202030 TDIHatchbackDiesel8515984Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/202030 TFSIHatchbackPetrol859993Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/202035 TFSIHatchbackPetrol11014954Front Wheel Drive
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/202040 TFSIHatchbackPetrol14019844Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.0 TSiHatchbackPetrol639993Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.0 TSIHatchbackPetrol859993Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.2 TSIHatchbackPetrol6311974Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.2 TSIHatchbackPetrol7711974Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.2 TSIHatchbackPetrol8111974Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.4 TSIHatchbackPetrol9013954Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.4 TSIHatchbackPetrol9213954Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.4 TSIHatchbackPetrol10313954Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.4 TSIHatchbackPetrol11013954Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.5 TSIHatchbackPetrol9614954Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.5 TSIHatchbackPetrol11014954Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.6 TDIHatchbackDiesel6615984Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.6 TDIHatchbackDiesel8115984Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.6 TDIHatchbackDiesel8515984Front Wheel Drive
SEATLEON (5F1) 09/2012-08/20201.8 TSIHatchbackPetrol13217984Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.0 TSICoupePetrol859993Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.2 TSICoupePetrol6311974Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.2 TSICoupePetrol7711974Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.2 TSICoupePetrol8111974Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.4 TSICoupePetrol9013954Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.4 TSICoupePetrol9213954Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.4 TSICoupePetrol10313954Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.4 TSICoupePetrol11013954Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.6 TDICoupeDiesel6615984Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.6 TDICoupeDiesel8115984Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.6 TDICoupeDiesel8515984Front Wheel Drive
SEATLEON SC (5F5) 01/2013-12/20191.8 TSICoupePetrol13217984Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.0 TSIHatchbackPetrol859993Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.2 TSIHatchbackPetrol6311974Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.2 TSIHatchbackPetrol7711974Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.2 TSIHatchbackPetrol8111974Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.4 TSIHatchbackPetrol10313954Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.4 TSIHatchbackPetrol11013954Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.5 TSIHatchbackPetrol11014954Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-1.6HatchbackPetrol8115984Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-2.0 TDIHatchbackDiesel10519684Front Wheel Drive
SKODAOCTAVIA III (5E3, NL3, NR3) 11/2012-2.0 TSIHatchbackPetrol14019844Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.0 TSIEstatePetrol859993Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.2 TSIEstatePetrol6311974Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.2 TSIEstatePetrol7711974Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.2 TSIEstatePetrol8111974Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.4 TSIEstatePetrol10313954Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.4 TSIEstatePetrol11013954Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.5 TSIEstatePetrol11014954Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.6EstatePetrol8115984Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-1.8 TSIEstatePetrol13217984Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-2.0 TDIEstateDiesel10519684Front Wheel Drive
SKODAOCTAVIA III Combi (5E5, 5E6) 11/2012-2.0 TSIEstatePetrol14019844Front Wheel Drive
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.0 TSIHatchbackPetrol639993Front Wheel Drive
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.0 TSIHatchbackPetrol819993Front Wheel Drive
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.0 TSIHatchbackPetrol859993Front Wheel Drive
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.2 TSIHatchbackPetrol6311974Front Wheel Drive
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.2 TSIHatchbackPetrol7711974Front Wheel Drive
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.2 TSIHatchbackPetrol8111974Front Wheel Drive
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.4 TSIHatchbackPetrol9013954Front Wheel Drive
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.4 TSIHatchbackPetrol9213954Front Wheel Drive
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.4 TSIHatchbackPetrol10313954Front Wheel Drive
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.4 TSIHatchbackPetrol11013954Front Wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 72: Only for cars with a clamp diameter of 50 mm on the front axle
  • Note 209: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510342
  • Note 226: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510424
  • Note 6: Not for vehicles with electronic damper control
