ST Coilover XA Kit for 08/1992-12/2000 Subaru Impreza Sedan (GC)

18245001
ST Suspension

Stock: Backorder Available

AU$2,509.00 Inc GST

Description

Description

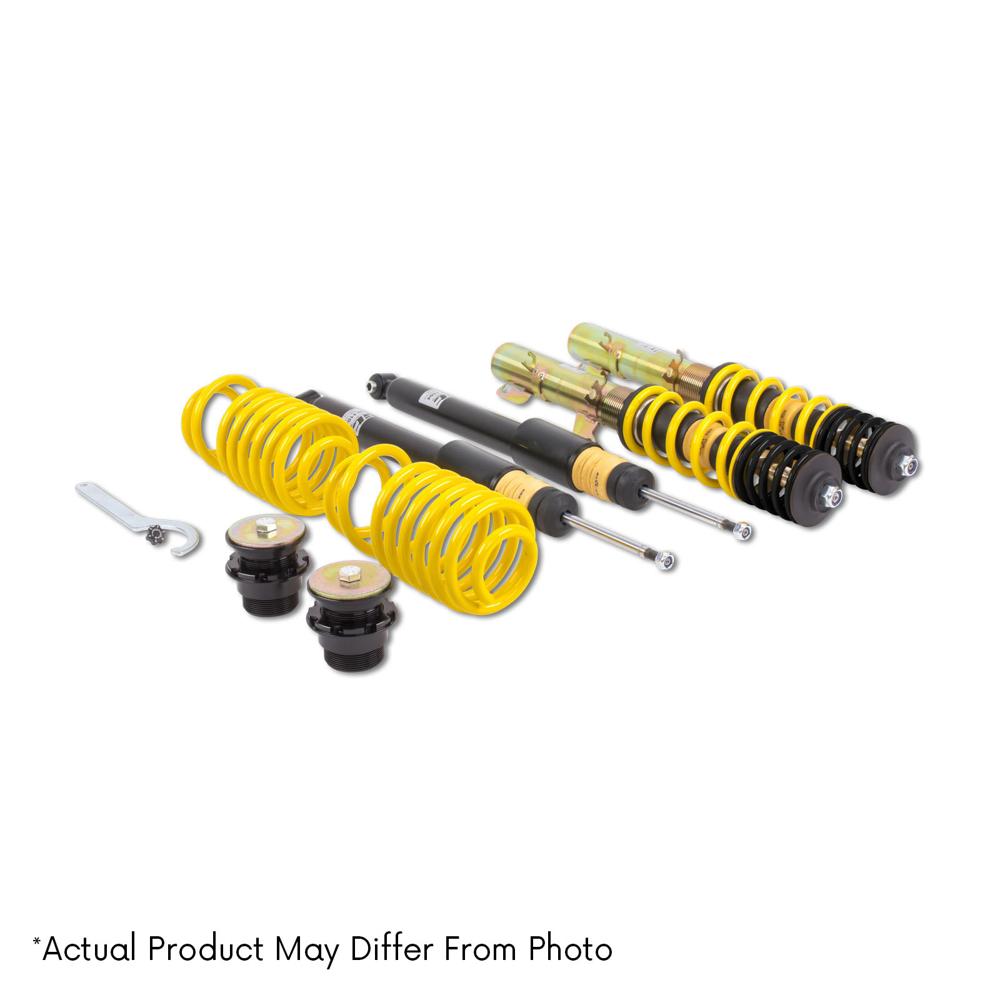

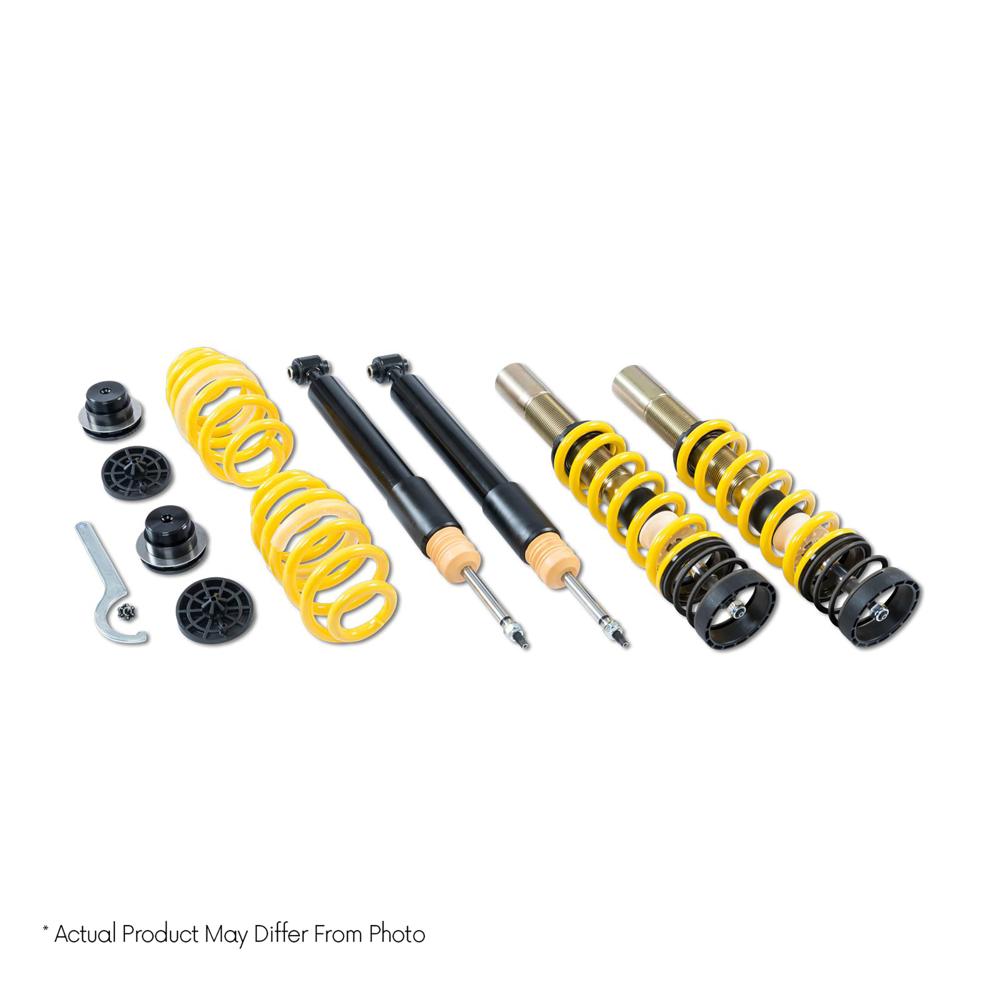

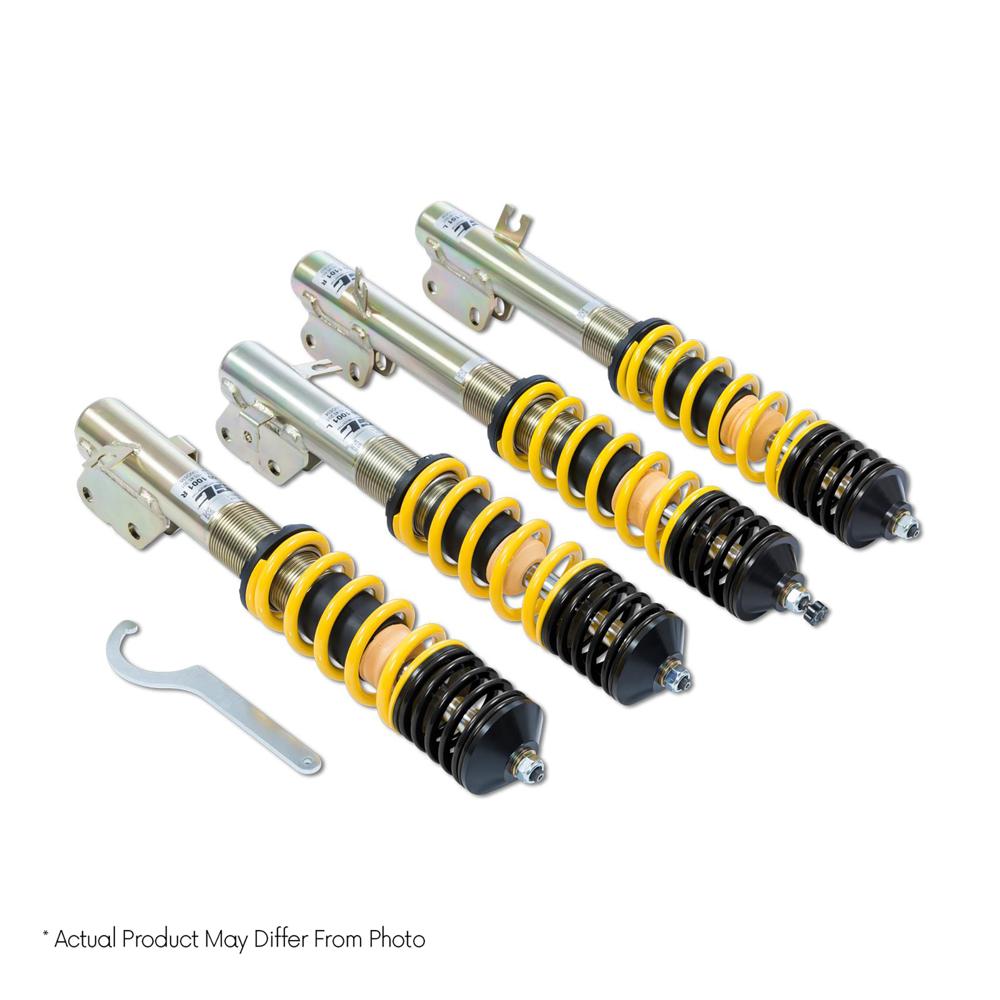

Coilovers ST XA galvanized steel (with damping adjustment)

For drivers wanting more than just ride height adjustment comes the ST XA coilover. Developed alongside KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

Perfect for sporty driving

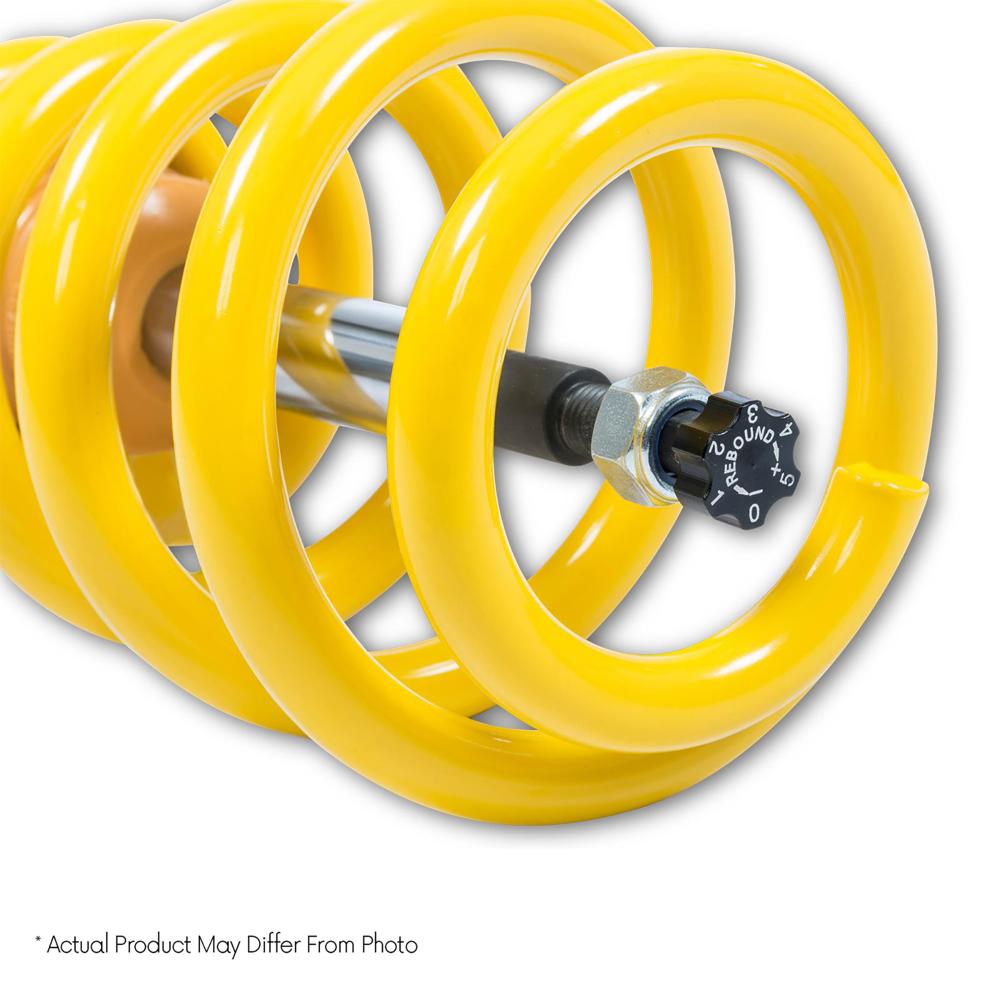

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.

Easy lowering adjustment

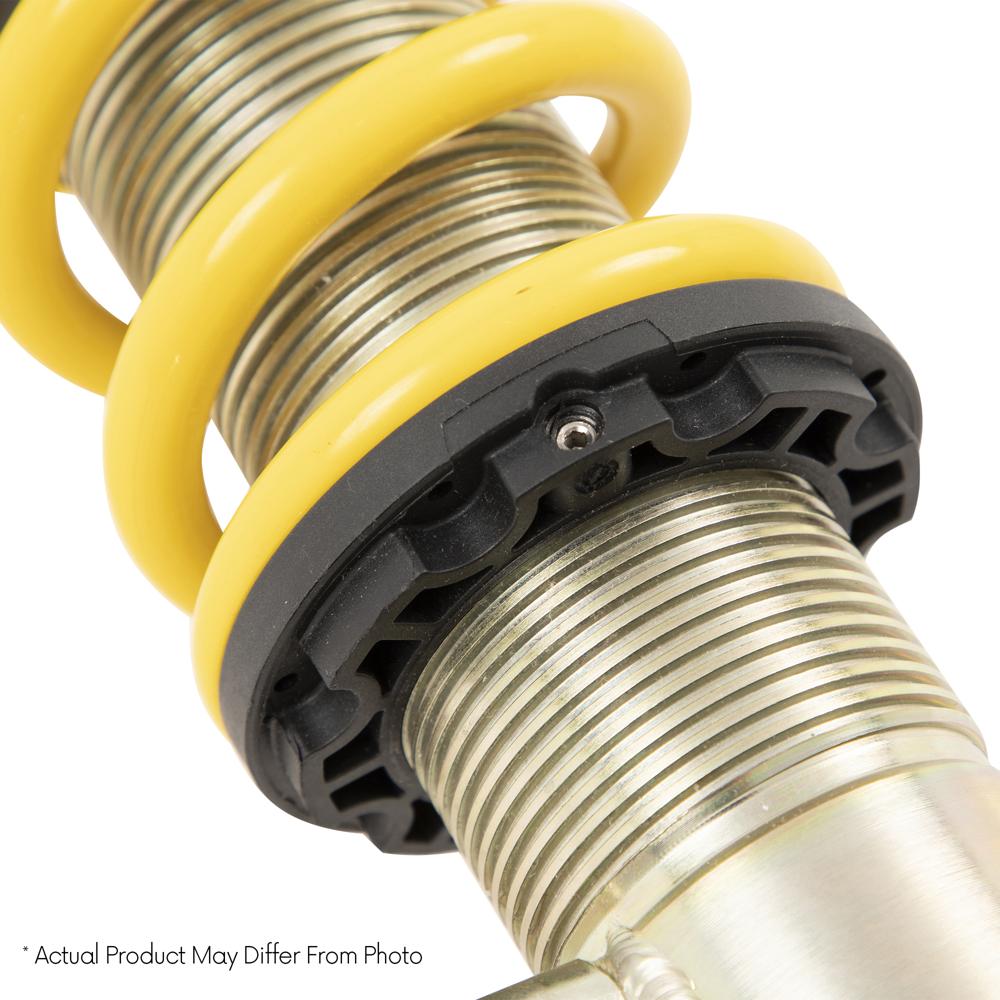

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.

KW Engineering: Exclusive for ST suspension
The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.

- External damper adjustment
- Latest damping technology for maximum longevity
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axle (when possible) with thread adjustment
- Galvanized coilover struts with additional coating for an optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20001.6CoupePetrol6615974Front Wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20001.6CoupePetrol7015974Front Wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20001.6 AWDCoupePetrol6615974All-wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20001.8CoupePetrol7618204Front Wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20001.8CoupePetrol8218204Front Wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20001.8 AWDCoupePetrol8218204All-wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20002.0 (GC8)CoupePetrol9219944Front-Wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20002.0 AWDCoupePetrol8519944All-wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20002.0 iCoupePetrol8519944Front Wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20002.0 Turbo AWDCoupePetrol15519944All-wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20002.0 WRX / WRX STI AWDCoupePetrol20619944All-wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20002.2CoupePetrol10122124Front Wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20002.2 AWDCoupePetrol9622124All-wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20002.2 AWDCoupePetrol10122124All-wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20002.2 AWDCoupePetrol10622124All-wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20002.2 iCoupePetrol9622124Front Wheel Drive
SUBARUIMPREZA Coupe (GC/CF) 01/1993-12/20002.5 AWDCoupePetrol12324584All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20011.5SaloonPetrol7014934Front Wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20011.6 (GC7)SaloonPetrol8815974Front Wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20011.6 i (GC3)SaloonPetrol6615974Front Wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20011.6 i (GC3)SaloonPetrol7015974Front Wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20011.6 i AWDSaloonPetrol6615974All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20011.6 i AWDSaloonPetrol7015974All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20011.8SaloonPetrol8218204Front Wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20011.8 AWDSaloonPetrol8218204All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20011.8 i (GC5)SaloonPetrol7618204Front Wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20011.8 i AWD (GC6)SaloonPetrol7618204All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.0 AWD (GC8)SaloonPetrol20619944All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.0 iSaloonPetrol9219944Front Wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.0 i (GC7)SaloonPetrol8519944Front Wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.0 i AWD (GC7)SaloonPetrol8519944All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.0 i AWD (GC8)SaloonPetrol9219944All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.0 Turbo GT AWD (GC8)SaloonPetrol15519944All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.0 Turbo GT AWD (GC8)SaloonPetrol16019944All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.0 WRX STi AWDSaloonPetrol18419944All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.2SaloonPetrol10122124Front Wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.2 AWDSaloonPetrol10122124All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.2 GX AWDSaloonPetrol9622124All-wheel Drive
SUBARUIMPREZA Saloon GC (GC/GF, GFC) 08/1992-09/20012.2 GX AWDSaloonPetrol9722124All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20001.5 LEstatePetrol6614934Front Wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20001.5 LEstatePetrol7014934Front Wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20001.5 L AWD (GF2)EstatePetrol7014934All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20001.6EstatePetrol6615974Front Wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20001.6 i (GF3)EstatePetrol7015974Front Wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20001.6 i AWDEstatePetrol6615974All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20001.6 i AWDEstatePetrol7015974All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20001.8EstatePetrol8218204Front Wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20001.8 AWDEstatePetrol8218204All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20001.8 i (GF5)EstatePetrol7618204Front Wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20001.8 i AWD (GF6)EstatePetrol7618204All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.0EstatePetrol8519944Front Wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.0 iEstatePetrol9219944Front Wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.0 i 16V AWDEstatePetrol9219944All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.0 i AWD (GF8)EstatePetrol8519944All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.0 i Turbo AWD (GF8)EstatePetrol15519944All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.0 Turbo GT AWD (GF8)EstatePetrol16019944All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.0 WRX AWDEstatePetrol17719944All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.2EstatePetrol10122124Front Wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.2 AWDEstatePetrol10122124All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.2 AWDEstatePetrol10622124All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.2 GX AWDEstatePetrol9622124All-wheel Drive
SUBARUIMPREZA Station Wagon GF (GC/GF,GFC) 08/1992-12/20002.2 GX AWDEstatePetrol9722124All-wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 42: In combination with orginal wheels and tyres, wheelspacers might be necessary
