ST Coilover XA Kit for 09/2006+ BMW 3 Series Coupe (E92)

18220032
ST Suspension

Stock: Backorder Available

AU$2,509.00 Inc GST

Description

Description

Coilovers ST XA galvanized steel (with damping adjustment)

For drivers wanting more than just ride height adjustment comes the ST XA coilover. Developed alongside KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

Perfect for sporty driving

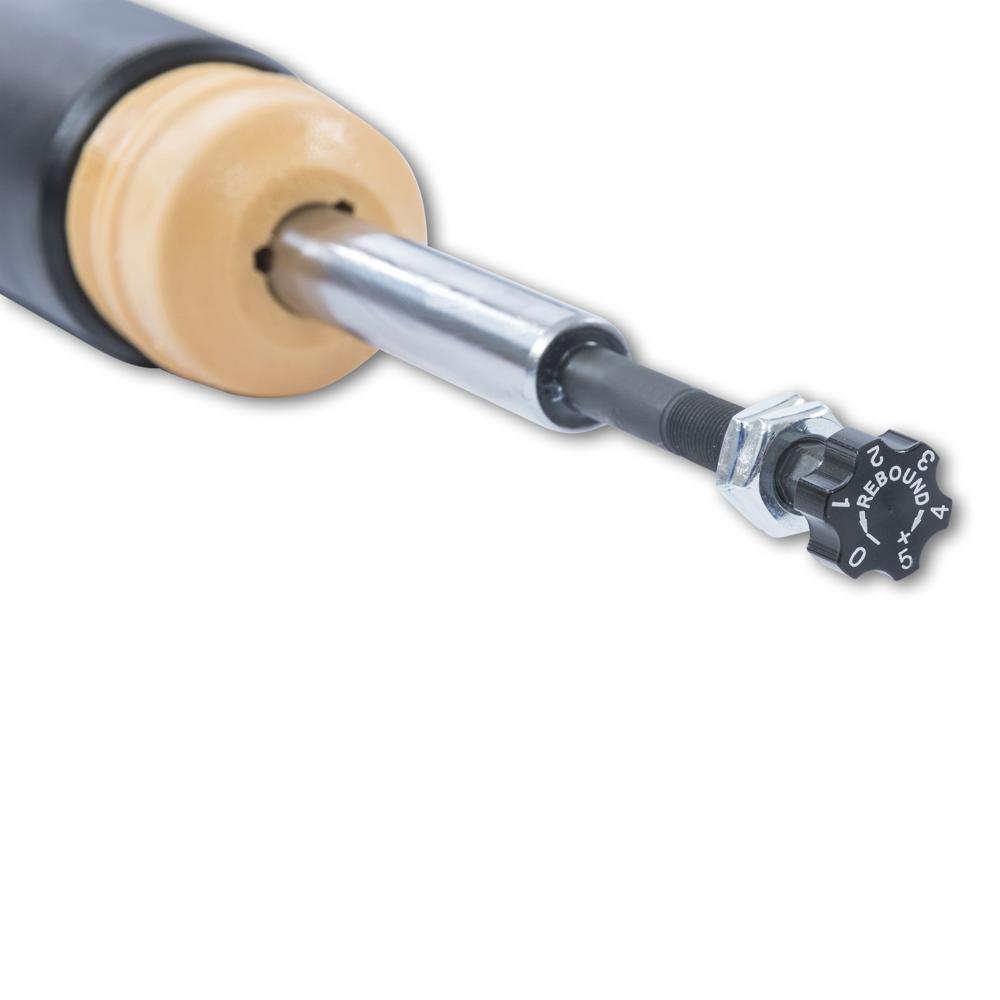

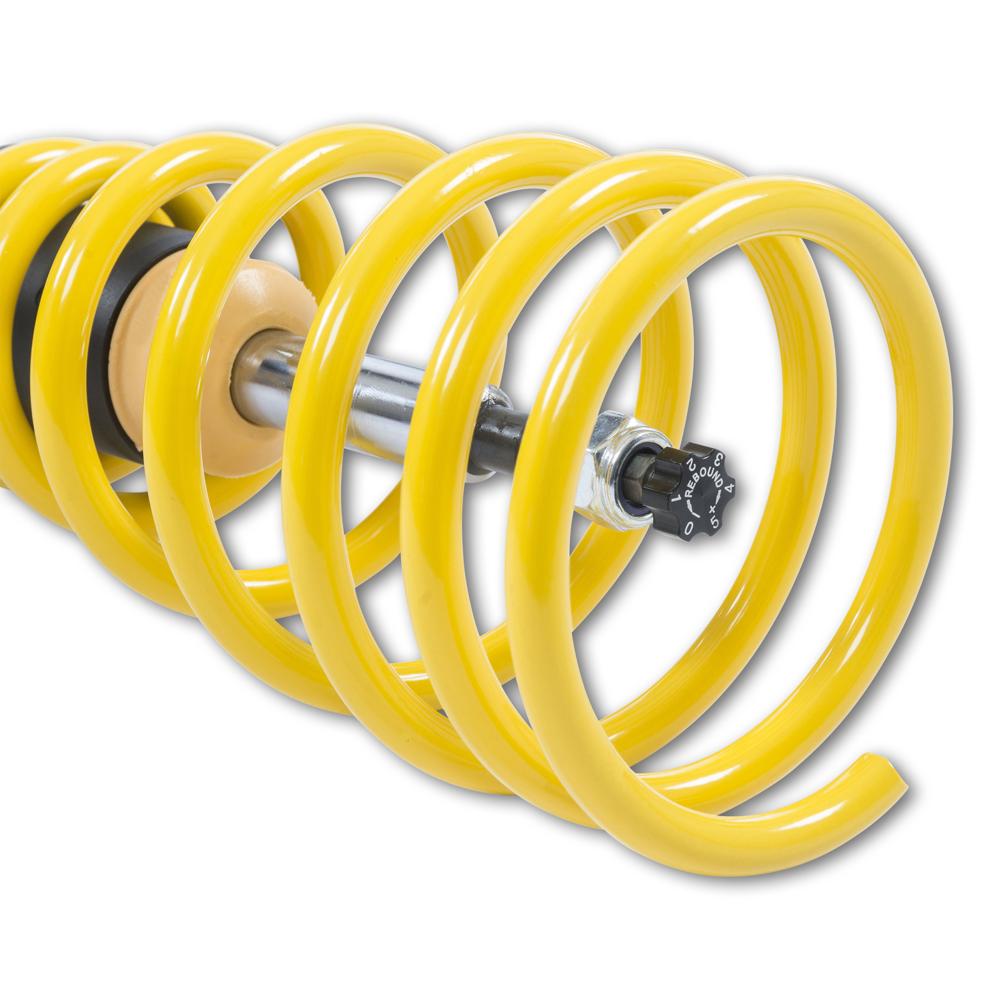

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.

Easy lowering adjustment

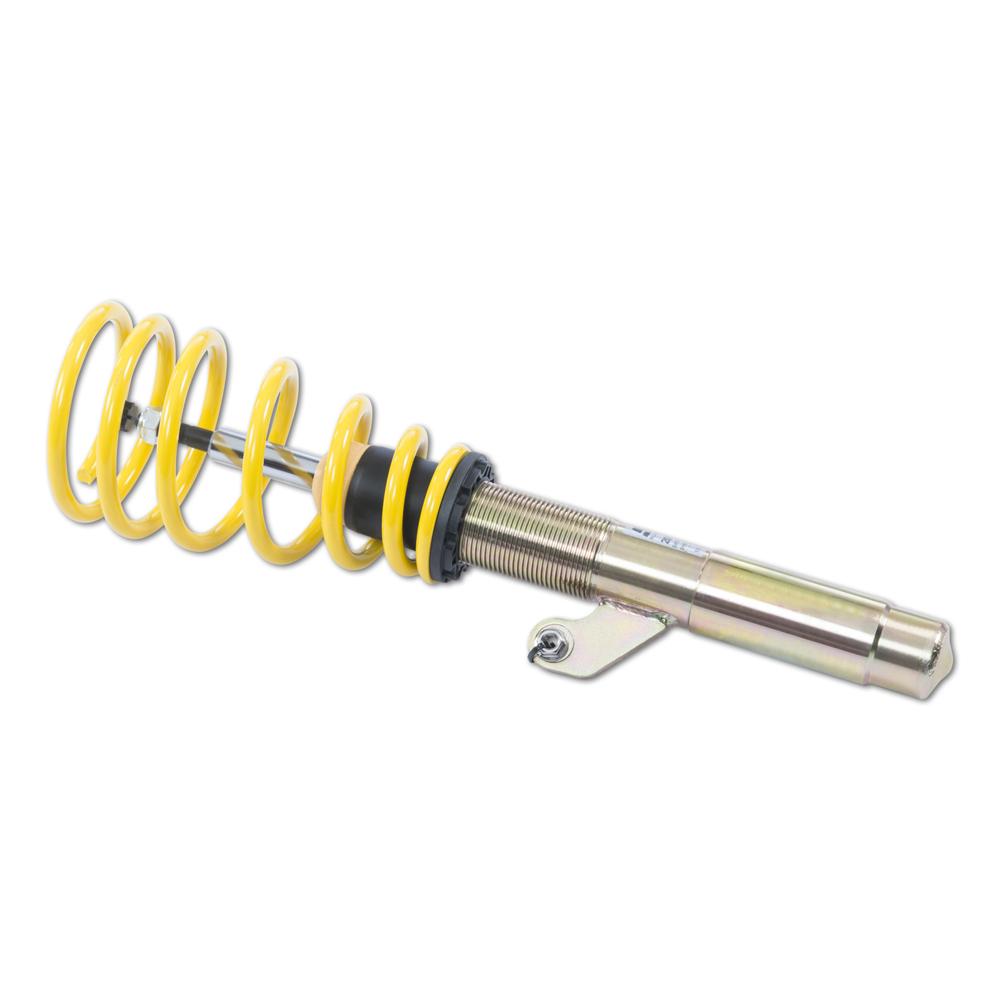

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.

KW Engineering: Exclusive for ST suspension
The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.

- External damper adjustment
- Latest damping technology for maximum longevity
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axle (when possible) with thread adjustment
- Galvanized coilover struts with additional coating for an optimized corrosion protection

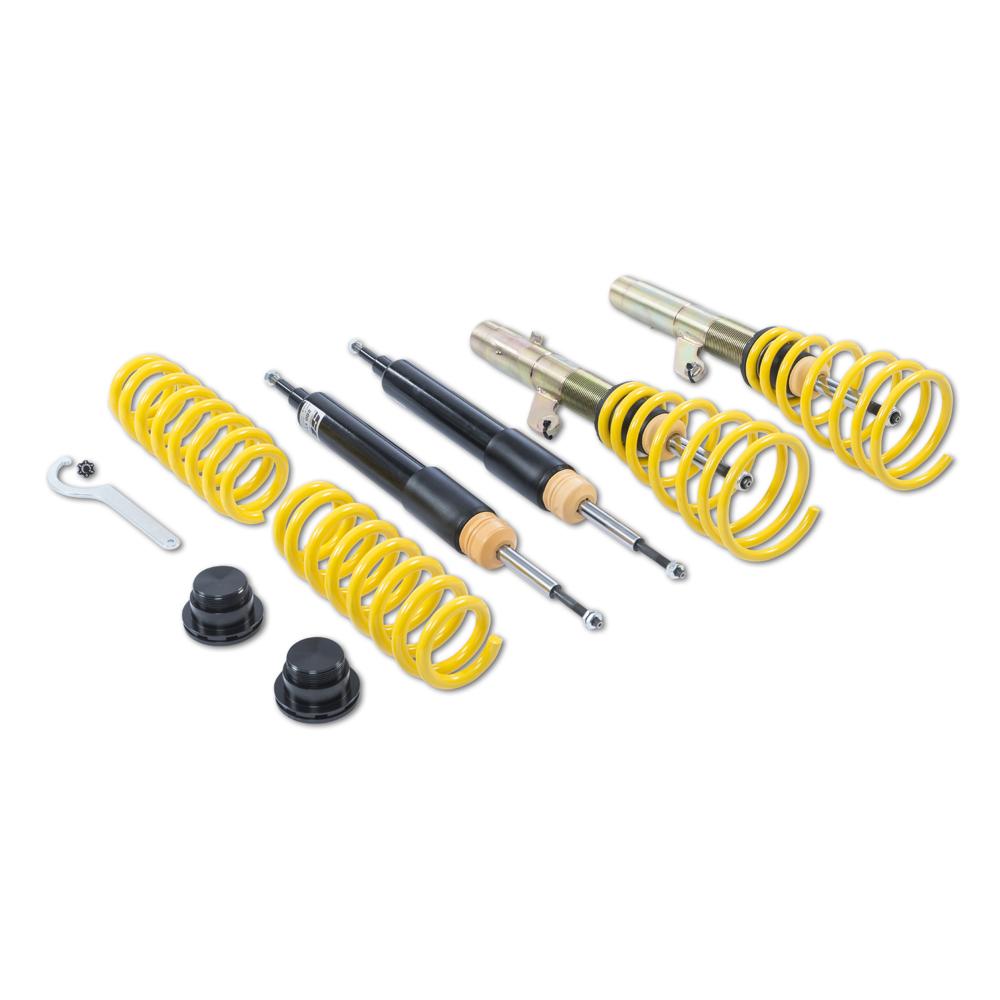

- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012316 dSaloonDiesel8519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012316 iSaloonPetrol8515964Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012316 iSaloonPetrol9015994Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 dSaloonDiesel9019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 dSaloonDiesel10019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 dSaloonDiesel10519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 iSaloonPetrol9519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 iSaloonPetrol10019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012318 iSaloonPetrol10519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel11019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel11519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel12019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel12519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel13019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 dSaloonDiesel13519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 iSaloonPetrol11019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 iSaloonPetrol11519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 iSaloonPetrol12019954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 iSaloonPetrol12519954Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012320 siSaloonPetrol12719974Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012323 iSaloonPetrol13024976Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012323 iSaloonPetrol14024976Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 dSaloonDiesel14529936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 dSaloonDiesel15029936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 iSaloonPetrol15524976Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 iSaloonPetrol15529966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 iSaloonPetrol16024976Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 iSaloonPetrol16029966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012325 iSaloonPetrol16324976Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012328 iSaloonPetrol17229966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 dSaloonDiesel15529936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 dSaloonDiesel17029936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 dSaloonDiesel18029936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 iSaloonPetrol19029966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 iSaloonPetrol20029966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012330 iSaloonPetrol20029966Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 dSaloonDiesel19829936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 dSaloonDiesel21029936Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 iSaloonPetrol22029796Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 iSaloonPetrol22429796Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 iSaloonPetrol22529796Rear Wheel Drive
BMW3 (E90) 390L, 390X, 3L, M3, M3 GTS, M390 02/2004-02/2012335 iSaloonPetrol24029796Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013316 iCoupePetrol9015994Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013318 iCoupePetrol10519954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 dCoupeDiesel12019954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 dCoupeDiesel13019954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 dCoupeDiesel13519954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 dCoupeDiesel14519954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 dCoupeDiesel14719954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 iCoupePetrol11019954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 iCoupePetrol11219954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 iCoupePetrol11519954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 iCoupePetrol12019954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013320 iCoupePetrol12519954Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013323 iCoupePetrol13024976Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013323 iCoupePetrol14024976Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 dCoupeDiesel14529936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 dCoupeDiesel15029936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 dCoupeDiesel15529936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 iCoupePetrol15024976Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 iCoupePetrol15524976Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 iCoupePetrol15529966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 iCoupePetrol16024976Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013325 iCoupePetrol16029966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013328 iCoupePetrol17129966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013328 iCoupePetrol17229966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 dCoupeDiesel17029936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 dCoupeDiesel18029936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 iCoupePetrol19029966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 iCoupePetrol20029966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013330 iCoupePetrol20029966Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 dCoupeDiesel21029936Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 iCoupePetrol22429796Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 iCoupePetrol22529796Rear Wheel Drive
BMW3 Coupe (E92) 390X, 392C, 3C, M-V, M3, M3 GTS, M390 01/2005-12/2013335 iCoupePetrol24029796Rear Wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 4: Excluding four wheel drive models
  • Note 42: In combination with orginal wheels and tyres, wheelspacers might be necessary
