ST Coilover XA Kit for 09/2009-12/2016 Audi A5 Sportback (8TA)

18210075
ST Suspension

Stock: Backorder Available

AU$2,509.00 Inc GST

Description

Description

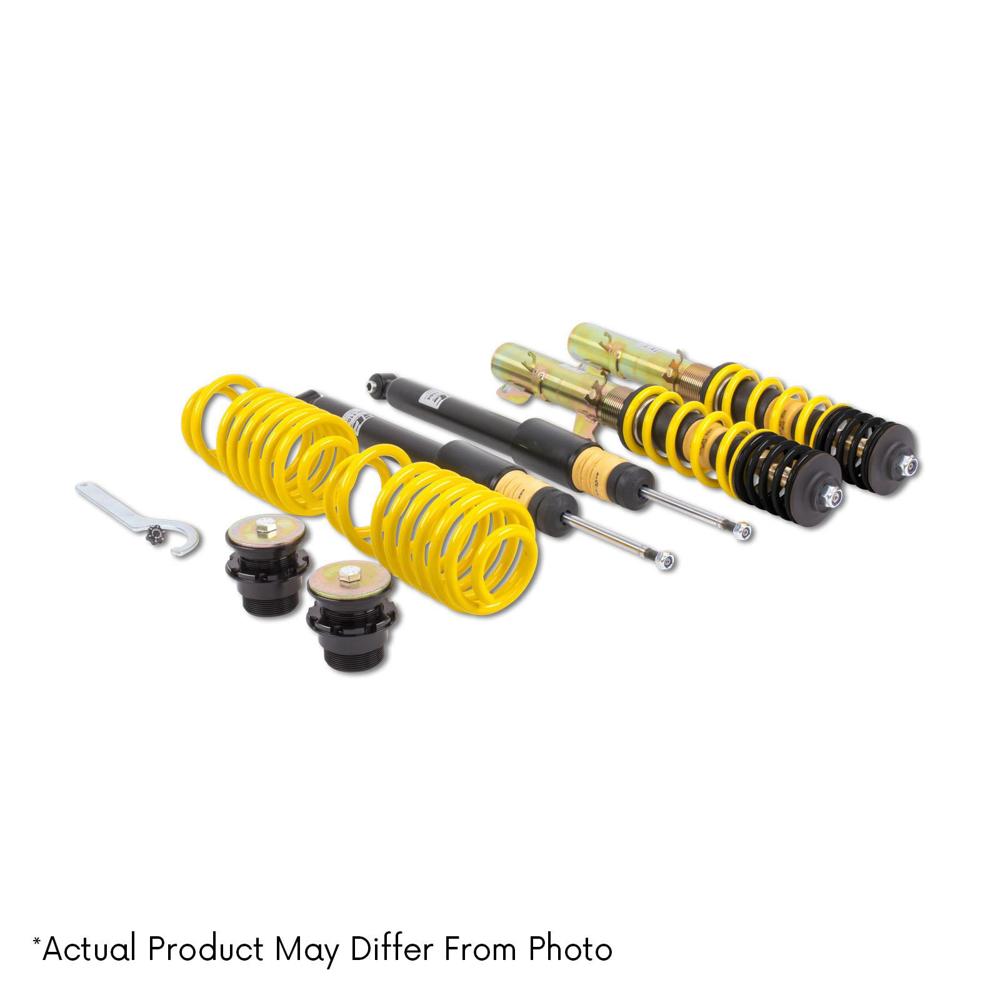

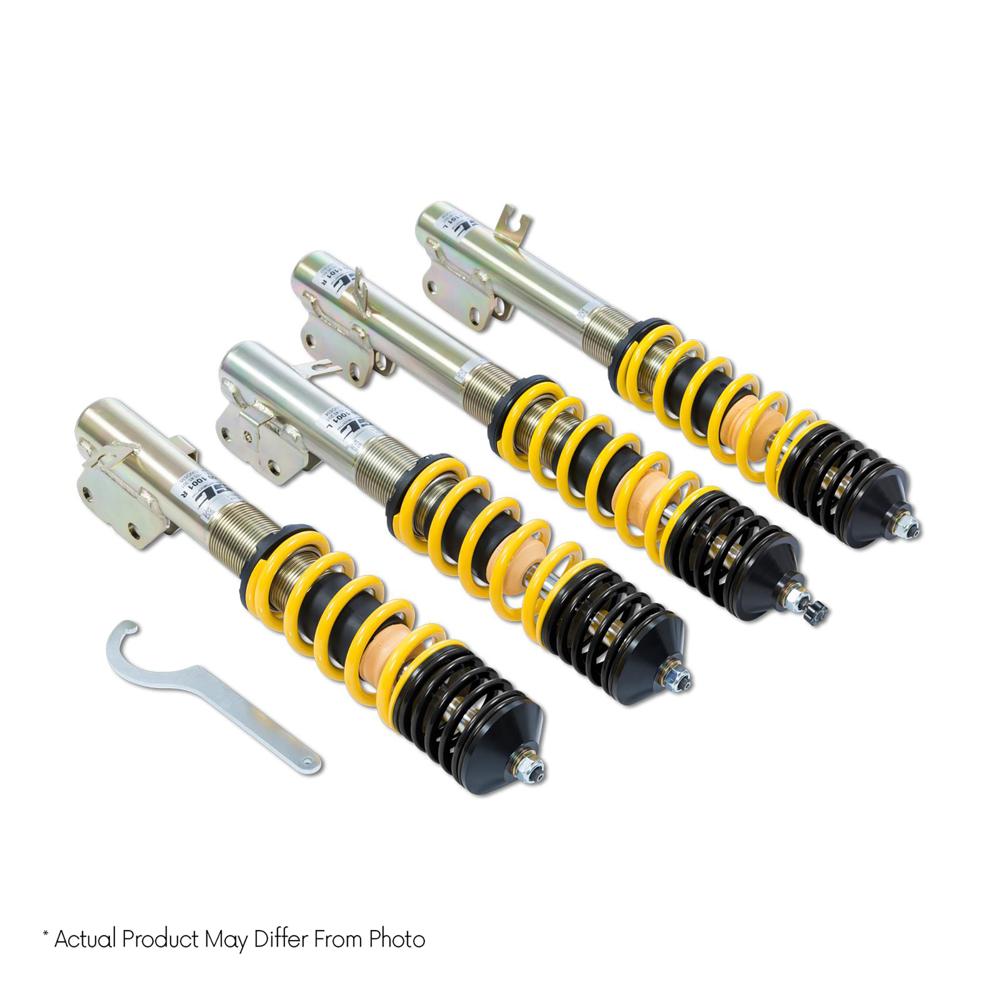

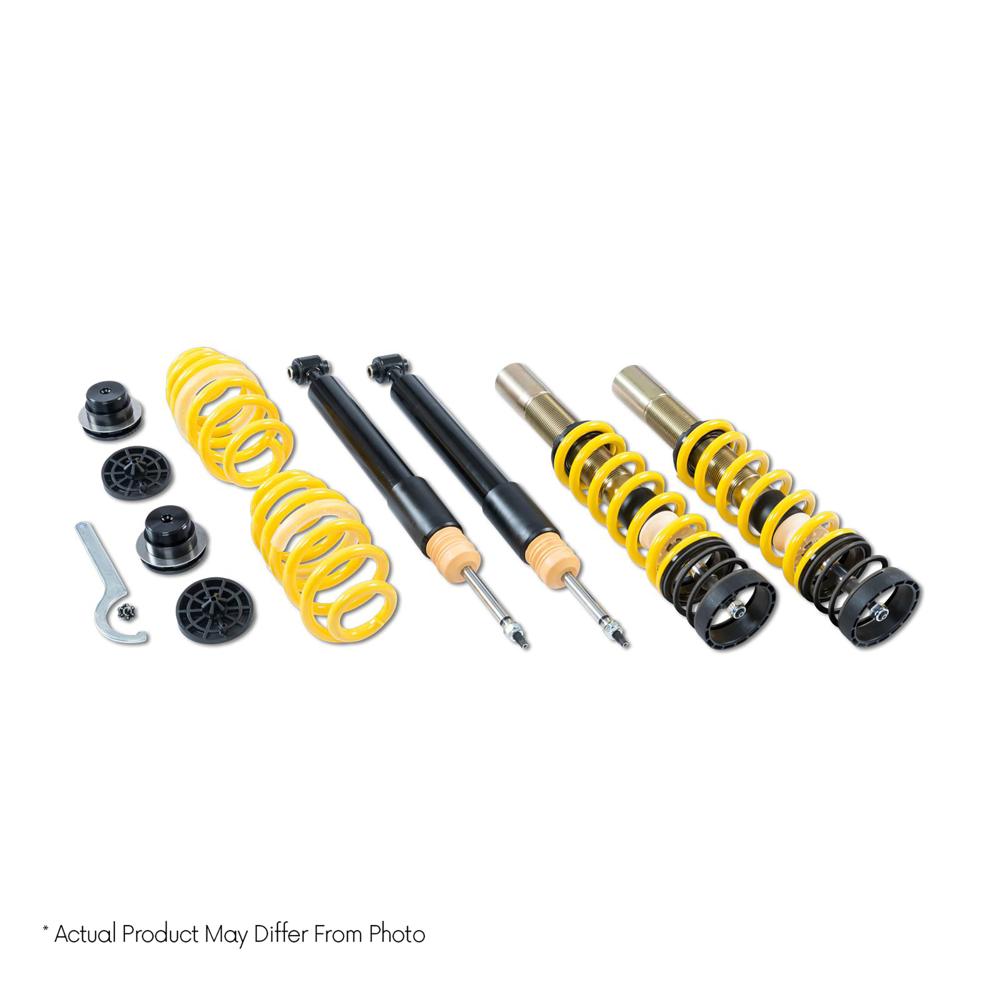

Coilovers ST XA galvanized steel (with damping adjustment)

For drivers wanting more than just ride height adjustment comes the ST XA coilover. Developed alongside KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

Perfect for sporty driving

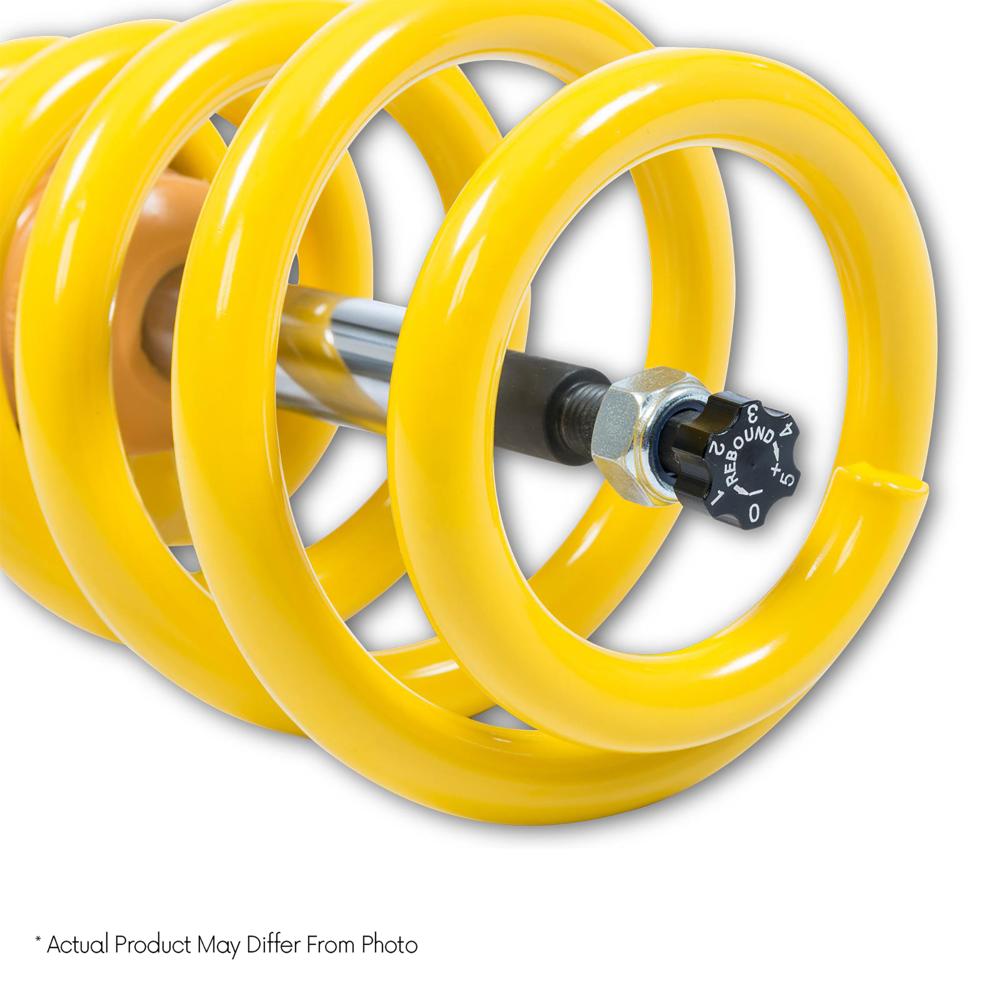

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.

Easy lowering adjustment

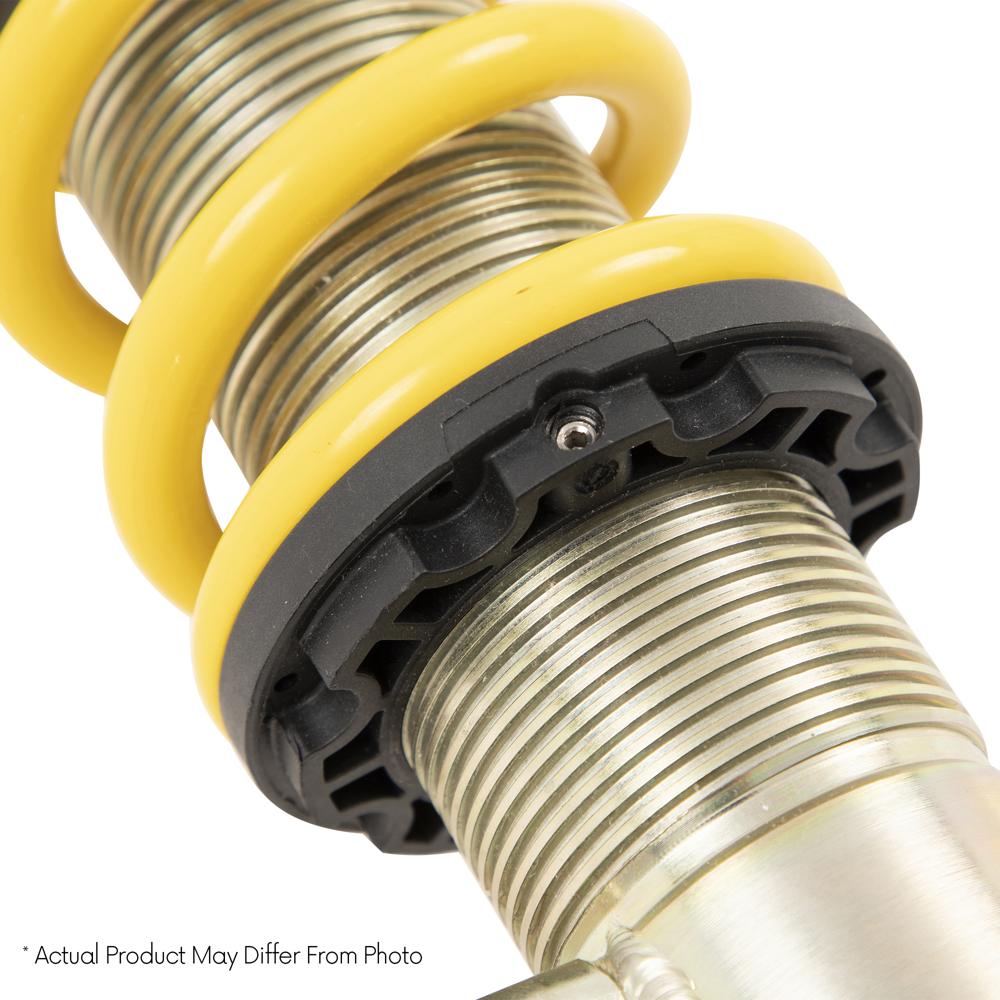

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.

KW Engineering: Exclusive for ST suspension
The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.

- External damper adjustment
- Latest damping technology for maximum longevity
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axle (when possible) with thread adjustment
- Galvanized coilover struts with additional coating for an optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel10019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel10519684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel11019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel12019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel13019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel14019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel10519684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel11019684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel12519684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel13019684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel14019684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSISaloonPetrol16219844Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol13219844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol15519844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol16219844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol16519844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.7 TDISaloonDiesel12026986Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.7 TDISaloonDiesel14026986Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDISaloonDiesel15029676Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDI quattroSaloonDiesel15529676All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDI quattroSaloonDiesel17629676All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDI quattroSaloonDiesel18029676All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TFSI quattroSaloonPetrol20029956All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.2 FSISaloonPetrol19531976Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.2 FSI quattroSaloonPetrol19531976All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/2015S4 quattroSaloonPetrol24529956All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDICoupeDiesel12019684Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDICoupeDiesel13019684Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDICoupeDiesel14019684Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDI quattroCoupeDiesel13019684All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TDI quattroCoupeDiesel14019684All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.0 TFSI quattroCoupePetrol16219844All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.7 TDICoupeDiesel12026986Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20172.7 TDICoupeDiesel14026986Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TDICoupeDiesel15029676Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TDI quattroCoupeDiesel15529676All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TDI quattroCoupeDiesel16029676All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TDI quattroCoupeDiesel17629676All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TDI quattroCoupeDiesel18029676All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.0 TFSI quattroCoupePetrol20029956All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.2 FSICoupePetrol19531976Front Wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/20173.2 FSI quattroCoupePetrol19531976All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/2017RS5 quattroCoupePetrol33141638All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/2017S5 quattroCoupePetrol24529956All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/2017S5 quattroCoupePetrol24929956All-wheel Drive
AUDIA5 (B8) 8T3 06/2007-01/2017S5 quattroCoupePetrol26041638All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20171.8 TFSIConvertiblePetrol12517984Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20171.8 TFSIConvertiblePetrol13017984Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel10519684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel11019684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel12019684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel12519684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel13019684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDIConvertibleDiesel14019684Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDI quattroConvertibleDiesel13019684All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TDI quattroConvertibleDiesel14019684All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol13219844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol15519844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol16219844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol16519844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSIConvertiblePetrol16919844Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol15519844All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol16219844All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol16219844All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol16519844All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.0 TFSI quattroConvertiblePetrol16919844All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.7 TDIConvertibleDiesel12026986Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20172.7 TDIConvertibleDiesel14026986Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.0 TDIConvertibleDiesel15029676Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.0 TDI quattroConvertibleDiesel16029676All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.0 TDI quattroConvertibleDiesel17629676All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.0 TDI quattroConvertibleDiesel18029676All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.0 TFSI quattroConvertiblePetrol20029956All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.2 FSIConvertiblePetrol19531976Front Wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/20173.2 FSI quattroConvertiblePetrol19531976All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/2017RS5 quattroConvertiblePetrol33141638All-wheel Drive
AUDIA5 Convertible (B8) 8F7 02/2009-01/2017S5 quattroConvertiblePetrol24529956All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel10019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel10519684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel11019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel12019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel12519684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel13019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDIHatchbackDiesel14019684Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDI quattroHatchbackDiesel12519684All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDI quattroHatchbackDiesel13019684All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TDI quattroHatchbackDiesel14019684All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSI quattroHatchbackPetrol15519844All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSI quattroHatchbackPetrol16519844All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.0 TFSI quattroHatchbackPetrol16919844All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.7 TDIHatchbackDiesel12026986Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20172.7 TDIHatchbackDiesel14026986Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.0 TDIHatchbackDiesel15029676Front Wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.0 TDI quattroHatchbackDiesel16029676All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.0 TDI quattroHatchbackDiesel17629676All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.0 TDI quattroHatchbackDiesel18029676All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.0 TFSI quattroHatchbackPetrol20029956All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/20173.2 FSI quattroHatchbackPetrol19531976All-wheel Drive
AUDIA5 Sportback (B8) 8TA 07/2007-01/2017S5 quattroHatchbackPetrol24529956All-wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 222: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510358
  • Note 11: Excluding models with automatic level control, or automatic level system can be adjusted in accordance
  • Note 189: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510144, Price 299,- EURO incl. VAT
  • Note 4: Excluding four wheel drive models
