Wheel Spacer System AZX 60mm Axle 5x112

56060260
ST Suspension

Stock: Backorder Available

AU$439.00 Inc GST
  • ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.

Description

Description

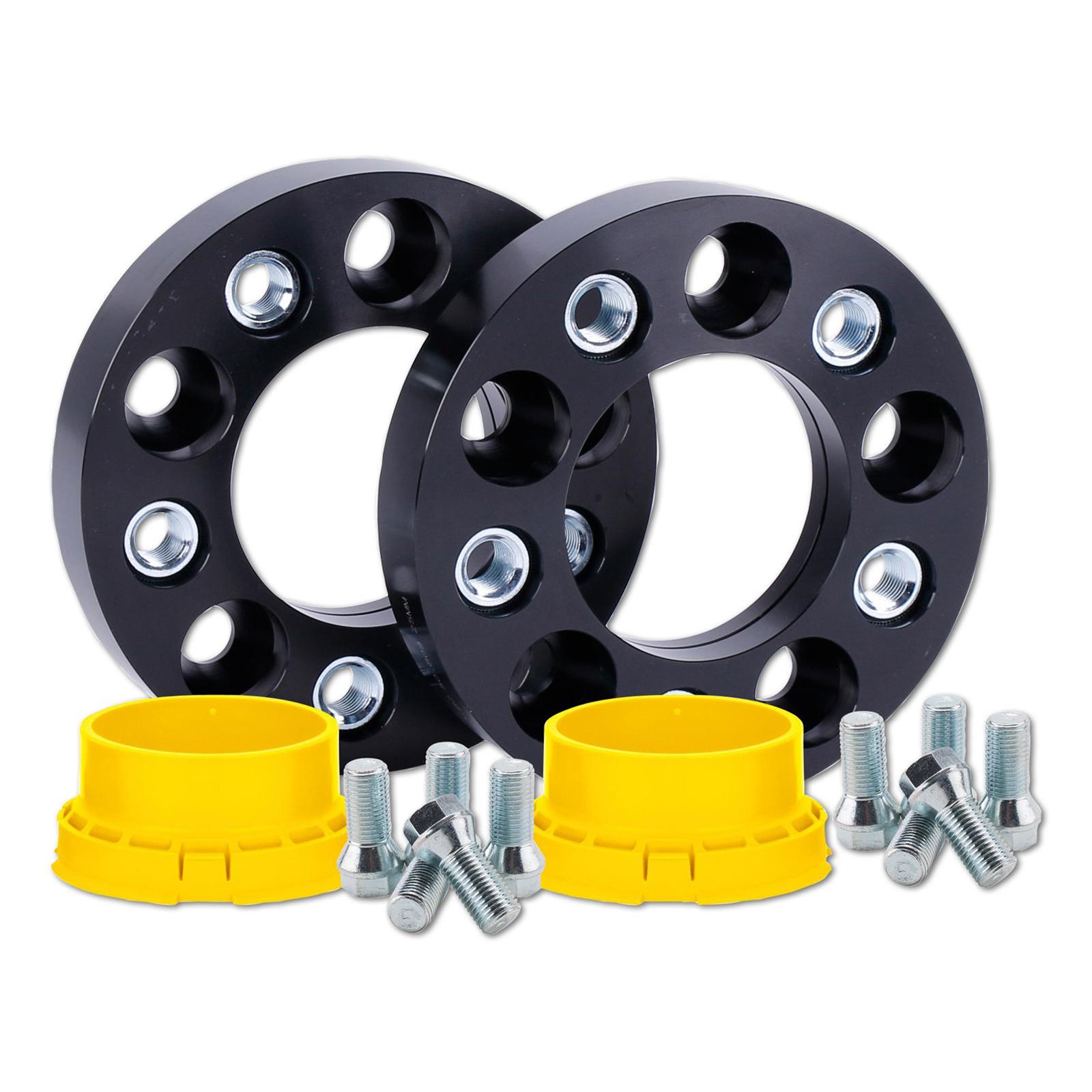

Wheel Spacer System AZX 60mm Axle 5x112

System - AZX

25, 30 or 35 mm per wheel

Screw on system with plastic adapter rings for a double centering for vehicles with wheel bolts AND wheel studs. By the double centering, the system guarantees an optimal run. With replaceable plastic adapter rings, different hub centerings can be covered. The wheel spacer has to be attached to the wheel hub by the included mounting material. For vehicles with studs, the ST double threaded studs are used to mount the rim with the original nuts on the wheel spacers. For vehicles with wheel bolts, M14x1,5 screws are used to mount the rim on the wheel spacer. By using ST double threaded studs, also a refitting from wheel bolts to studs is possible.

- Delivery content: 2 wheel spacers System AZX, 2 adapter rings System AZX, including mounting material
- Made of high quality aluminum
- Black anodized for perfect corrosion protection
- Dynamical performance of the vehicle / perfect appearance
- Improved driving dynamics by larger track width
- Retrofitting from wheel bolts to wheel studs possible by the double threaded studs

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIA4 (B8) 8K2 08/2007-12/20151.8 TFSISaloonPetrol8817984Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20151.8 TFSISaloonPetrol11817984Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20151.8 TFSISaloonPetrol12517984Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20151.8 TFSI quattroSaloonPetrol11817984All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20151.8 TFSI quattroSaloonPetrol12517984All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel8819684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel10019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel10519684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel11019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel12019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel12519684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel13019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDISaloonDiesel14019684Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel10519684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel11019684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel12519684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel13019684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TDI quattroSaloonDiesel14019684All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSISaloonPetrol13219844Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSISaloonPetrol15519844Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSISaloonPetrol16219844Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSISaloonPetrol16519844Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI Flexfuel quattroSaloonPetrol/Ethanol15519844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI Flexfuel quattroSaloonPetrol/Ethanol16219844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI flexible fuelSaloonPetrol/Ethanol13219844Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI flexible fuel quattroSaloonPetrol/Ethanol13219844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol13219844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol15519844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol16219844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.0 TFSI quattroSaloonPetrol16519844All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.7 TDISaloonDiesel12026986Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20152.7 TDISaloonDiesel14026986Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDISaloonDiesel15029676Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDI quattroSaloonDiesel15529676All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDI quattroSaloonDiesel17629676All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TDI quattroSaloonDiesel18029676All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.0 TFSI quattroSaloonPetrol20029956All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.2 FSISaloonPetrol19531976Front Wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/20153.2 FSI quattroSaloonPetrol19531976All-wheel Drive
AUDIA4 (B8) 8K2 08/2007-12/2015S4 quattroSaloonPetrol24529956All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-1.4 TFSISaloonPetrol11013954Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TDISaloonDiesel9019684Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TDISaloonDiesel10019684Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TDISaloonDiesel11019684Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TDISaloonDiesel14019684Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TDI quattroSaloonDiesel11019684All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TDI quattroSaloonDiesel12019684All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TDI quattroSaloonDiesel14019684All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TFSISaloonPetrol14019844Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TFSISaloonPetrol18319844Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TFSISaloonPetrol18519844Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TFSI Mild HybridSaloonPetrol/Electric18519844Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TFSI Mild Hybrid quattroSaloonPetrol/Electric18519844All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TFSI quattroSaloonPetrol18319844All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-2.0 TFSI quattroSaloonPetrol18519844All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-3.0 TDISaloonDiesel16029676Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-3.0 TDI quattroSaloonDiesel16029676All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-3.0 TDI quattroSaloonDiesel20029676All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-30 TDISaloonDiesel9019684Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-30 TDI Mild HybridSaloonDiesel/Electro10019684Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-35 TDISaloonDiesel11019684Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-35 TDI Mild HybridSaloonDiesel/Electro12019684Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-35 TFSI Mild HybridSaloonPetrol/Electric11019844Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-40 TDISaloonDiesel14019684Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-40 TDI Mild HybridSaloonDiesel/Electro15019684Front-Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-40 TDI Mild Hybrid quattroSaloonDiesel/Electro15019684All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-40 TDI quattroSaloonDiesel14019684All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-40 TFSI Mild HybridSaloonPetrol/Electric14019844Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-40 TFSI Mild HybridSaloonPetrol/Electric15019844Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-40 TFSI Mild Hybrid quattroSaloonPetrol/Electric15019844All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-45 TDI quattroSaloonDiesel17029676All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-45 TFSI Mild HybridSaloonPetrol/Electric18019844Front Wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-45 TFSI Mild Hybrid quattroSaloonPetrol/Electric18019844All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-45 TFSI Mild Hybrid quattroSaloonPetrol/Electric18319844All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-45 TFSI Mild Hybrid quattroSaloonPetrol/Electric19519844All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-50 TDI Mild Hybrid quattroSaloonDiesel/Electro21029676All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-50 TDI quattroSaloonDiesel21029676All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-S4 quattroSaloonPetrol26029956All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-S4 TDI Mild Hybrid quattroSaloonDiesel/Electro25129676All-wheel Drive
AUDIA4 (B9) 8W2, B8 05/2015-S4 TDI Mild Hybrid quattroSaloonDiesel/Electro25529676All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel10019684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel10519684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel11019684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel12019684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel12519684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel13019684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TDI quattroEstateDiesel14019684All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TFSI Flexfuel quattroEstatePetrol/Ethanol15519844All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TFSI Flexfuel quattroEstatePetrol/Ethanol16219844All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TFSI quattroEstatePetrol15519844All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TFSI quattroEstatePetrol16219844All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20162.0 TFSI quattroEstatePetrol16519844All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20163.0 TDI quattroEstateDiesel17629676All-wheel Drive
AUDIA4 Allroad (B8) 8KH 04/2009-05/20163.0 TDI quattroEstateDiesel18029676All-wheel Drive
AUDIA4 Allroad (B9) 8WH 01/2016-2.0 TDI quattroEstateDiesel10019684All-wheel Drive
AUDIA4 Allroad (B9) 8WH 01/2016-2.0 TDI quattroEstateDiesel11019684All-wheel Drive
AUDIA4 Allroad (B9) 8WH 01/2016-2.0 TDI quattroEstateDiesel12019684All-wheel Drive
AUDIA4 Allroad (B9) 8WH 01/2016-2.0 TDI quattroEstateDiesel14019684All-wheel Drive
AUDIA4 Allroad (B9) 8WH 01/2016-2.0 TFSI Mild Hybrid quattroEstatePetrol/Electric18519844All-wheel Drive
AUDIA4 Allroad (B9) 8WH 01/2016-2.0 TFSI quattroEstatePetrol18319844All-wheel Drive

Media

Media

Installation Instruction: PDF
Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 329: Please consider the maximum total offset and all mentioned notes and restrictions in the certificate. The total offset is the result of the difference of the offset at the used wheel and the thickness of the wheel spacers (for example rim offset+35mm & wheel spacers 15mm = total offset +20mm)
