Wheel Spacer System AZX 70mm Axle 5x114.3

56060405
ST Suspension

Stock: Backorder Available

AU$449.00 Inc GST
  • ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.

Description

Description

Wheel Spacer System AZX 70mm Axle 5x114,3

System - AZX

25, 30 or 35 mm per wheel

Screw on system with plastic adapter rings for a double centering for vehicles with wheel bolts AND wheel studs. By the double centering, the system guarantees an optimal run. With replaceable plastic adapter rings, different hub centerings can be covered. The wheel spacer has to be attached to the wheel hub by the included mounting material. For vehicles with studs, the ST double threaded studs are used to mount the rim with the original nuts on the wheel spacers. For vehicles with wheel bolts, M14x1,5 screws are used to mount the rim on the wheel spacer. By using ST double threaded studs, also a refitting from wheel bolts to studs is possible.

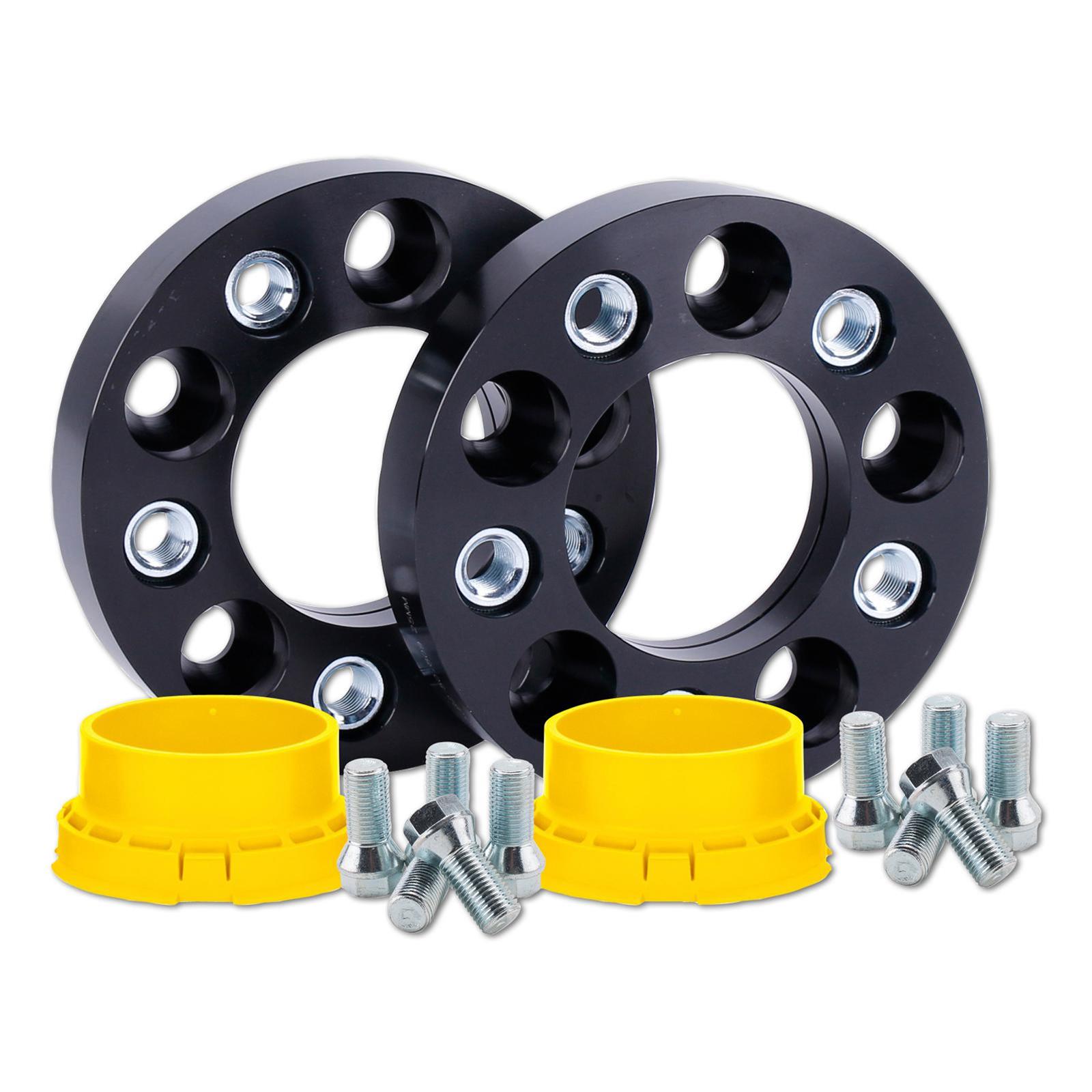

- Delivery content: 2 wheel spacers System AZX, 2 adapter rings System AZX, including mounting material
- Made of high quality aluminum
- Black anodized for perfect corrosion protection
- Dynamical performance of the vehicle / perfect appearance
- Improved driving dynamics by larger track width
- Retrofitting from wheel bolts to wheel studs possible by the double threaded studs

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
OPELVIVARO B Box (X82) X83 06/2014-12/20191.6 CDTI (05)BoxDiesel6615984Front Wheel Drive
OPELVIVARO B Box (X82) X83 06/2014-12/20191.6 CDTI (05)BoxDiesel7015984Front Wheel Drive
OPELVIVARO B Box (X82) X83 06/2014-12/20191.6 CDTI (05)BoxDiesel8515984Front Wheel Drive
OPELVIVARO B Box (X82) X83 06/2014-12/20191.6 CDTI (05)BoxDiesel8815984Front Wheel Drive
OPELVIVARO B Box (X82) X83 06/2014-12/20191.6 CDTI (05)BoxDiesel8915984Front Wheel Drive
OPELVIVARO B Box (X82) X83 06/2014-12/20191.6 CDTI (05)BoxDiesel9215984Front Wheel Drive
OPELVIVARO B Box (X82) X83 06/2014-12/20191.6 CDTI (05)BoxDiesel10315984Front Wheel Drive
OPELVIVARO B Box (X82) X83 06/2014-12/20191.6 CDTI (05)BoxDiesel10715984Front Wheel Drive
OPELVIVARO B Combi (X82) X83 06/2014-1.6 CDTI (06)BusDiesel6615984Front Wheel Drive
OPELVIVARO B Combi (X82) X83 06/2014-1.6 CDTI (06)BusDiesel7015984Front Wheel Drive
OPELVIVARO B Combi (X82) X83 06/2014-1.6 CDTI (06)BusDiesel8515984Front Wheel Drive
OPELVIVARO B Combi (X82) X83 06/2014-1.6 CDTI (06)BusDiesel8815984Front Wheel Drive
OPELVIVARO B Combi (X82) X83 06/2014-1.6 CDTI (06)BusDiesel8915984Front Wheel Drive
OPELVIVARO B Combi (X82) X83 06/2014-1.6 CDTI (06)BusDiesel9215984Front Wheel Drive
OPELVIVARO B Combi (X82) X83 06/2014-1.6 CDTI (06)BusDiesel10315984Front Wheel Drive
OPELVIVARO B Combi (X82) X83 06/2014-1.6 CDTI (06)BusDiesel10715984Front Wheel Drive
RENAULTESPACE V (JR_, RFC) 02/2015-1.6 dCi 130MPVDiesel9615984Front Wheel Drive
RENAULTESPACE V (JR_, RFC) 02/2015-1.6 dCi 160MPVDiesel11815984Front Wheel Drive
RENAULTESPACE V (JR_, RFC) 02/2015-1.6 TCe 200MPVPetrol14716184Front Wheel Drive
RENAULTESPACE V (JR_, RFC) 02/2015-1.8 TCe 225MPVPetrol16517984Front Wheel Drive
RENAULTESPACE V (JR_, RFC) 02/2015-2.0 Blue dCi 160 (JRAM)MPVDiesel11819974Front Wheel Drive
RENAULTESPACE V (JR_, RFC) 02/2015-2.0 Blue dCi 190MPVDiesel13919974Front-Wheel Drive
RENAULTESPACE V (JR_, RFC) 02/2015-2.0 Blue dCi 200 (JRAL)MPVDiesel14719974Front Wheel Drive
RENAULTLAGUNA Coupe (T, DT0/1) 09/2008-12/20151.5 dCiCoupeDiesel8114614Front Wheel Drive
RENAULTLAGUNA Coupe (T, DT0/1) 09/2008-12/20152.0 16V TurboCoupePetrol12519984Front Wheel Drive
RENAULTLAGUNA Coupe (T, DT0/1) 09/2008-12/20152.0 dCi (DT01, DT08, DT09, DT0K, DT12, DT1C, DT1D, DT1M,...CoupeDiesel11019954Front Wheel Drive
RENAULTLAGUNA Coupe (T, DT0/1) 09/2008-12/20152.0 dCi (DT0M, DT0N, DT0S, DT19, DT1F)CoupeDiesel12719954Front Wheel Drive
RENAULTLAGUNA Coupe (T, DT0/1) 09/2008-12/20152.0 dCi GT (DT11, DT1E, DT1N)CoupeDiesel13119954Front Wheel Drive
RENAULTLAGUNA Coupe (T, DT0/1) 09/2008-12/20152.0 GTCoupePetrol15019984Front Wheel Drive
RENAULTLAGUNA Coupe (T, DT0/1) 09/2008-12/20153.0 dCiCoupeDiesel17729986Front Wheel Drive
RENAULTLAGUNA Coupe (T, DT0/1) 09/2008-12/20153.0 dCi (DT03)CoupeDiesel17329986Front Wheel Drive
RENAULTLAGUNA Coupe (T, DT0/1) 09/2008-12/20153.5 V6 (DT0P, DT0C)CoupePetrol17734986Front Wheel Drive
RENAULTLAGUNA Coupe (T, DT0/1) 09/2008-12/20153.5 V6 (DT0P)CoupePetrol17534986Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20151.5 dCi (BT00, BT0A, BT0T, BT1J)HatchbackDiesel8114614Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20151.6 16V (BT04, BT0D, BT0U)HatchbackPetrol8115984Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20152.0 16V (BT05, BT0F, BT0W)HatchbackPetrol10319984Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20152.0 16V Hi-Flex (BT1H)HatchbackPetrol/Ethanol10319974Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20152.0 16V TurboHatchbackPetrol12519984Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20152.0 dCi (BT01, BT08, BT09, BT0E, BT0K, BT12, BT1C, BT1D,...HatchbackDiesel11019954Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20152.0 dCi (BT07, BT0J, BT14, BT1A, BT1S)HatchbackDiesel9619954Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20152.0 dCi (BT0M, BT0N, BT0S, BT19, BT1F)HatchbackDiesel12719954Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20152.0 dCi GT (BT11, BT1E, BT1N)HatchbackDiesel13119954Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20152.0 GTHatchbackPetrol15019984Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20153.0 dCi (BT03, BT13)HatchbackDiesel17329986Front Wheel Drive
RENAULTLAGUNA III (T, BT0/1) 10/2007-12/20153.5 V6 (BT0C, BT0P)HatchbackPetrol17534986Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20151.5 dCi (KT0A)EstateDiesel8114614Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20151.6 16V (KT0D)EstatePetrol8115984Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20152.0 16V (KT0F, KT0W)EstatePetrol10319984Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20152.0 16V Hi-Flex (KT1H)EstatePetrol/Ethanol10319974Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20152.0 16V TurboEstatePetrol12519984Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20152.0 dCi (KT01, KT08, KT09, KT0K, KT12, KT1D, KT1W)EstateDiesel11019954Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20152.0 dCi (KT07, KT0J, KT14, KT1A, KT1S)EstateDiesel9619954Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20152.0 dCi (KT0M, KT0N, KT0S, KT19, KT1F)EstateDiesel12719954Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20152.0 dCi GT (KT11, KT1E, KT1N)EstateDiesel13119954Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20152.0 GTEstatePetrol15019984Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20153.0 dCi (KT03, KT13)EstateDiesel17329986Front Wheel Drive
RENAULTLAGUNA III Grandtour (T, KT0/1) 10/2007-12/20153.5 V6 (KT0C, KT0P)EstatePetrol17534986Front Wheel Drive

Media

Media

Installation Instruction: PDF
Strength Proof: PDF
