Wheel Spacer System AZX 70mm Axle 5x114.3

56060507
ST Suspension

Stock: Backorder Available

AU$449.00 Inc GST
  • ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.

Description

Description

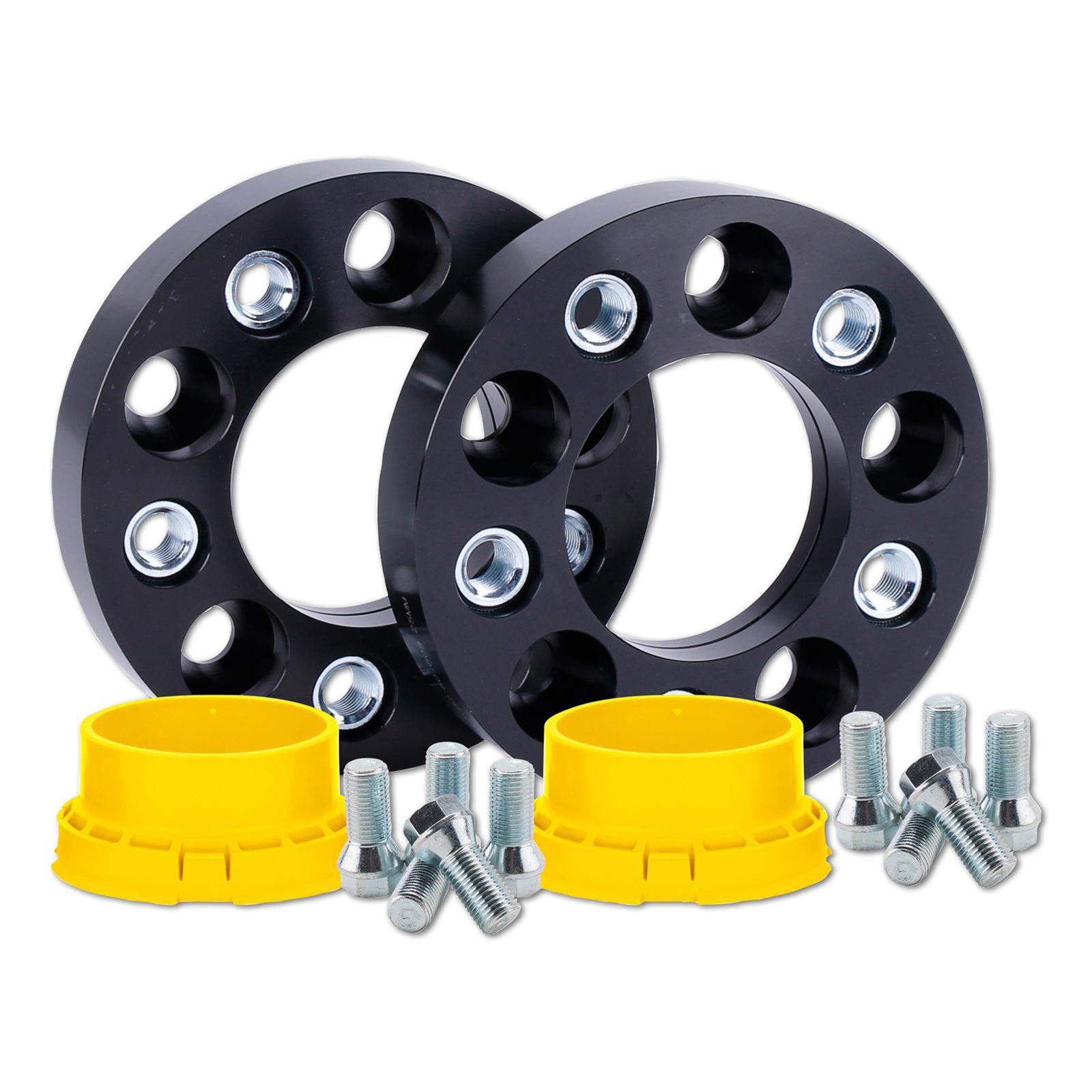

Wheel Spacer System AZX 70mm Axle 5x114,3

System - AZX

25, 30 or 35 mm per wheel

Screw on system with plastic adapter rings for a double centering for vehicles with wheel bolts AND wheel studs. By the double centering, the system guarantees an optimal run. With replaceable plastic adapter rings, different hub centerings can be covered. The wheel spacer has to be attached to the wheel hub by the included mounting material. For vehicles with studs, the ST double threaded studs are used to mount the rim with the original nuts on the wheel spacers. For vehicles with wheel bolts, M14x1,5 screws are used to mount the rim on the wheel spacer. By using ST double threaded studs, also a refitting from wheel bolts to studs is possible.

- Delivery content: 2 wheel spacers System AZX, 2 adapter rings System AZX, including mounting material
- Made of high quality aluminum
- Black anodized for perfect corrosion protection
- Dynamical performance of the vehicle / perfect appearance
- Improved driving dynamics by larger track width
- Retrofitting from wheel bolts to wheel studs possible by the double threaded studs

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
CHRYSLER300 M (LR) 07/1998-09/20042.7 V6 24VSaloonPetrol14927366Front Wheel Drive
CHRYSLER300 M (LR) 07/1998-09/20042.7 V6 24VSaloonPetrol15027366Front Wheel Drive
CHRYSLER300 M (LR) 07/1998-09/20043.5 V6 24VSaloonPetrol18535186Front Wheel Drive
CHRYSLER300 M (LR) 07/1998-09/20043.5 V6 24VSaloonPetrol18735186Front Wheel Drive
CHRYSLERNEW YORKER (LH) 01/1992-09/19983.5SaloonPetrol16035186Front Wheel Drive
CHRYSLERNEW YORKER (LH) 01/1992-09/19983.5 i 24VSaloonPetrol15535186Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20012.0 iMPVPetrol9819954Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20012.4 AWDMPVPetrol11124294All-wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20012.4 iMPVPetrol11124294Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20012.5 TDMPVDiesel8524994Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20012.5 TDiC AWDMPVDiesel8524994All-wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.0MPVPetrol11229726Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.3MPVPetrol11833016Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.3 AWDMPVPetrol11833016All-wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.3 FlexfuelMPVPetrol/Ethanol11833016Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.3 FlexfuelMPVPetrol13433016Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.3 Flexfuel AWDMPVPetrol/Ethanol11833016All-wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.3 iMPVPetrol11633016Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.3 iMPVPetrol13433016Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.8MPVPetrol12137786Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.8MPVPetrol12237786Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.8MPVPetrol12437786Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.8MPVPetrol13137786Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.8MPVPetrol13437786Front Wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.8 AWDMPVPetrol12437786All-wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.8 AWDMPVPetrol13437786All-wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.8 i AWDMPVPetrol12237786All-wheel Drive
CHRYSLERTACUMA Mk II (GS) 01/1995-03/20013.8 i AWDMPVPetrol13137786All-wheel Drive
CHRYSLERVISION (LH) 09/1993-12/19973.5 TSiSaloonPetrol15535186Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20082.4MPVPetrol10824294Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20082.4MPVPetrol11124294Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20082.5 CRDMPVDiesel8824994Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20082.5 CRDMPVDiesel10524994Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20082.8 CRDMPVDiesel11027764Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.3MPVPetrol12733016Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.3MPVPetrol12833016Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.3MPVPetrol13133016Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.3MPVPetrol13433016Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.3 AWDMPVPetrol12833016All-wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.3 AWDMPVPetrol13433016All-wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.3 FlexfuelMPVPetrol/Ethanol12733016Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.3 FlexfuelMPVPetrol/Ethanol13233016Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.3 Flexfuel AWDMPVPetrol/Ethanol13433016All-wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.8MPVPetrol14937786Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.8MPVPetrol15437786Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.8MPVPetrol16037786Front Wheel Drive
CHRYSLERVOYAGER Mk III (RG, RS) 09/1999-12/20083.8 AWDMPVPetrol16037786All-wheel Drive

Media

Media

Installation Instruction: PDF
Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 321: For system AZX ST threaded bolts have to be ordered separately. The thread of the ST threaded bolts has to be similar to the one of the original knurled studs
