Wheel Spacer System DZX 10mm Axle 4-and 5-hole

56050103
ST Suspension

Stock: Backorder Available

AU$259.00 Inc GST
  • Attention! Additionally please order longer wheel bolts or shaft nuts!

Description

Description

Wheel Spacer System DZX 10mm Axle 4-and 5-hole

System DZX
12,5, 15, 17,5, 20, 22,5, 25, 27,5, 30, 32,5 or 35mm per wheel

Through-hole wheel spacer system with multi PCD bolt-holes and fiber-reinforced, interchangeable composite center adapters. The wheel spacer accurately centers on the wheel hub by the self-centering adapter. The multi-bolt holes enable the spacer to be used on cars with both 4 and 5 stud mountings and up to seven different pitch circle diameters. The interchangeable center hub adapter allows the spacer to be used on many different hub center bore sizes. Longer wheel bolts are required.

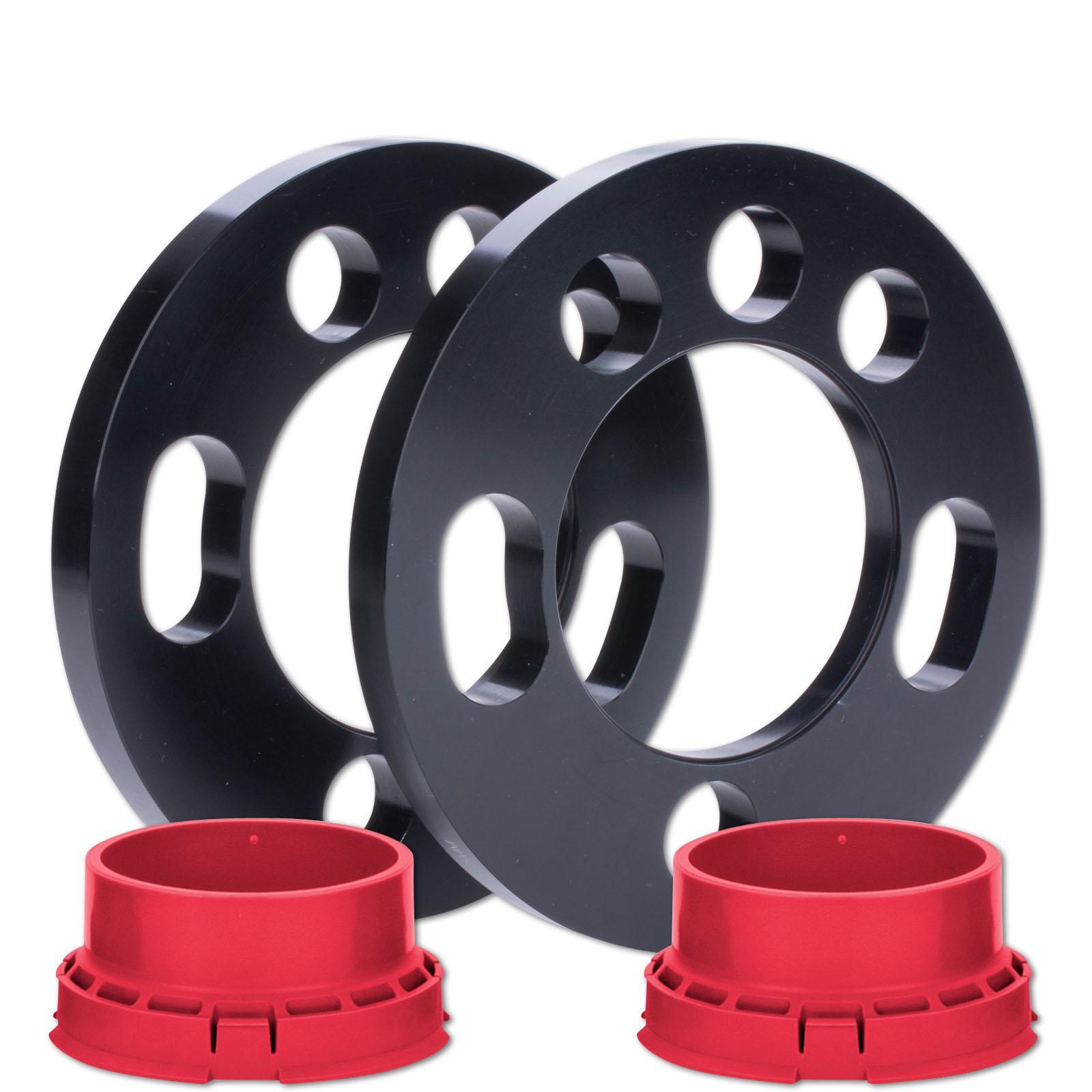

- Scope of delivery: 2 wheel spacers System DZX, 2 adapter rings System DZX
- Made of high-quality Aluminium
- Black anodized for perfect corrosion protection
- Dynamic performance of the vehicle / perfect look
- Improved driving dynamics by larger track width
- Matching wheel bolts available (in black and silver)

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-2.0 BiTDIPickupDiesel12019684Rear Wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-2.0 BiTDIPickupDiesel13219684Rear Wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-2.0 BiTDI 4motionPickupDiesel12019684All-wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-2.0 BiTDI 4motionPickupDiesel13219684All-wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-2.0 TDIPickupDiesel9019684Rear Wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-2.0 TDIPickupDiesel10319684Rear Wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-2.0 TDI 4motionPickupDiesel9019684All-wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-2.0 TDI 4motionPickupDiesel10319684All-wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-2.0 TSIPickupPetrol11819844Rear Wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-2.0 TSI 4motionPickupPetrol11819844All-wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-3.0 TDIPickupDiesel12029676Rear Wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-3.0 TDI 4motionPickupDiesel12029676All-wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-3.0 TDI 4motionPickupDiesel15029676All-wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-3.0 TDI 4motionPickupDiesel16529676All-wheel Drive
VWAMAROK (2H_, S1B, S6B, S7_) 09/2010-3.0 TDI 4motionPickupDiesel19029676All-wheel Drive
VWTOUAREG (7L_) 10/2002-01/20132.5 R5 TDISUVDiesel12024615All-wheel Drive
VWTOUAREG (7L_) 10/2002-01/20132.5 R5 TDISUVDiesel12824615All-wheel Drive

Media

Media

Installation Instruction: PDF
Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 310: Please be careful with fitting. There must be enough centering on the wheel hub (approx 2mm)
