Wheel Spacer System DZX 10mm Axle 4-and 5-hole

56050238
ST Suspension

Stock: Backorder Available

AU$259.00 Inc GST
  • Attention! Additionally please order longer wheel bolts or shaft nuts!

Description

Description

Wheel Spacer System DZX 10mm Axle 4-and 5-hole

System DZX
12,5, 15, 17,5, 20, 22,5, 25, 27,5, 30, 32,5 or 35mm per wheel

Through-hole wheel spacer system with multi PCD bolt-holes and fiber-reinforced, interchangeable composite center adapters. The wheel spacer accurately centers on the wheel hub by the self-centering adapter. The multi-bolt holes enable the spacer to be used on cars with both 4 and 5 stud mountings and up to seven different pitch circle diameters. The interchangeable center hub adapter allows the spacer to be used on many different hub center bore sizes. Longer wheel bolts are required.

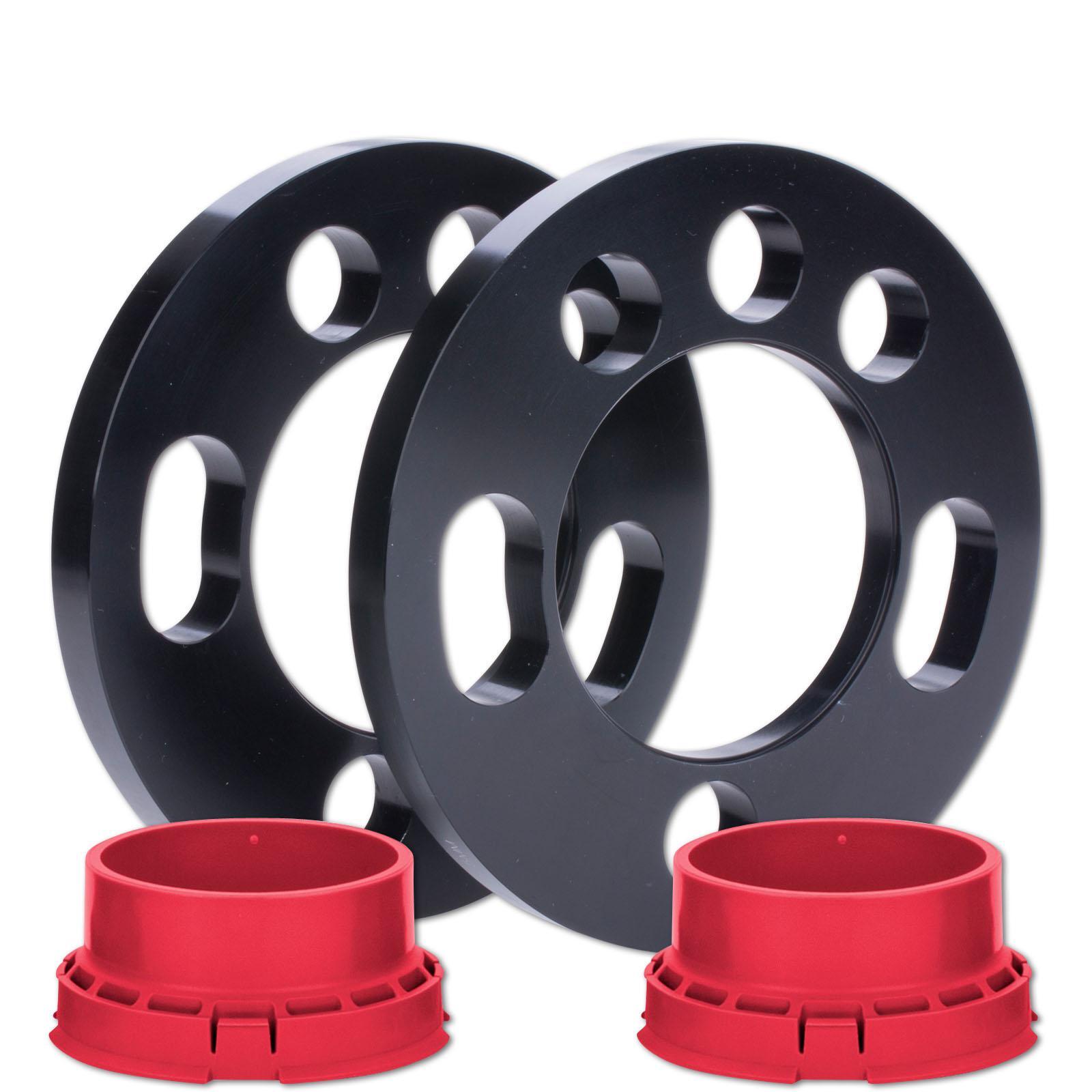

- Scope of delivery: 2 wheel spacers System DZX, 2 adapter rings System DZX
- Made of high-quality Aluminium
- Black anodized for perfect corrosion protection
- Dynamic performance of the vehicle / perfect look
- Improved driving dynamics by larger track width
- Matching wheel bolts available (in black and silver)

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
FORDB-MAX (JK) 10/2012-09/20171.0 EcoBoostMPVPetrol749983Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.0 EcoBoostMPVPetrol889983Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.0 EcoBoostMPVPetrol929983Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.0 EcoBoostMPVPetrol1039983Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.4MPVPetrol6613884Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.4 LPGMPVPetrol/Liquified Petroleum Gas (LPG)6413884Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.4 LPGMPVPetrol/Liquified Petroleum Gas (LPG)6613884Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.5 TDCiMPVDiesel5514994Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.5 TDCiMPVDiesel7014994Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.6 TDCiMPVDiesel7015604Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.6 TiMPVPetrol7715964Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.6MPVPetrol7415964Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.6MPVPetrol8515964Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.6 TDCiMPVDiesel6615604Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.6 TDCiMPVDiesel7415604Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.6 TDCiMPVDiesel8015604Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.8MPVPetrol9017984Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.8MPVPetrol9217984Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.8 FlexifuelMPVPetrol/Ethanol9217984Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.8 TDCiMPVDiesel8517534Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0MPVPetrol10719994Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0 CNGMPVPetrol/Compressed Natural Gas (CNG)10719994Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0 LPGMPVPetrol/Liquified Petroleum Gas (LPG)10719994Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0 TDCiMPVDiesel8119974Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0 TDCiMPVDiesel9819974Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0 TDCiMPVDiesel10019974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.0 EcoBoostMPVPetrol749983Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.0 EcoBoostMPVPetrol749993Front-Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.0 EcoBoostMPVPetrol929983Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.0 EcoBoostMPVPetrol929993Front-Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.5 EcoBoostMPVPetrol11014984Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.5 EcoBoostMPVPetrol13414984Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.5 TDCiMPVDiesel7014994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.5 TDCiMPVDiesel8814994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.5 TDCi ECOneticMPVDiesel7714994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 CNGMPVPetrol/Compressed Natural Gas (CNG)8615964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 EcoBoostMPVPetrol11015964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 EcoBoostMPVPetrol13415964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 FlexifuelMPVPetrol/Ethanol8815964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 LPGMPVPetrol/Liquified Petroleum Gas (LPG)8615964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 LPGMPVPetrol/Liquified Petroleum Gas (LPG)8815964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TDCiMPVDiesel7015604Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TDCiMPVDiesel8515604Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TiMPVPetrol6315964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TiMPVPetrol7715964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TiMPVPetrol8815964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TiMPVPetrol9215964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 EnergiMPVPetrol/Electric10319994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 EnergiMPVPetrol/Electric13619994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 HybridMPVPetrol/Electro14019994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel8519974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel10019974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel10319974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel11019974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel12019974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel12519974Front Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741300CoupePetrol3713054Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741300CoupePetrol3812984Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741300CoupePetrol3912984Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741300CoupePetrol3913054Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741300CoupePetrol4012974Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741300CoupePetrol4112984Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741300CoupePetrol4312974Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741300CoupePetrol5312984Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741500CoupePetrol4414984Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741500CoupePetrol4814884Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741600CoupePetrol5315934Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741600CoupePetrol6515934Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741600 GTCoupePetrol6015994Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19741700CoupePetrol5516994Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19742000CoupePetrol6319856Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19742000CoupePetrol6619986Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19742300CoupePetrol7922936Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19742300CoupePetrol9222946Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19742600CoupePetrol9225506Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19742600 RSCoupePetrol11026386Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19743000CoupePetrol9429946Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19743000CoupePetrol10129946Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19743000CoupePetrol10329456Rear Wheel Drive
FORDCAPRI (ECJ, ECK) 12/1968-02/19743000CoupePetrol10329946Rear Wheel Drive
FORDCAPRI II (ECJ, GECP) 02/1974-12/19771.3CoupePetrol4012984Rear Wheel Drive
FORDCAPRI II (ECJ, GECP) 02/1974-12/19771.3CoupePetrol4212984Rear Wheel Drive
FORDCAPRI II (ECJ, GECP) 02/1974-12/19771.6CoupePetrol5015934Rear Wheel Drive
FORDCAPRI II (ECJ, GECP) 02/1974-12/19771.6CoupePetrol5315934Rear Wheel Drive
FORDCAPRI II (ECJ, GECP) 02/1974-12/19771.6CoupePetrol6515934Rear Wheel Drive
FORDCAPRI II (ECJ, GECP) 02/1974-12/19772.0CoupePetrol6619996Rear Wheel Drive
FORDCAPRI II (ECJ, GECP) 02/1974-12/19772.0CoupePetrol7219934Rear Wheel Drive
FORDCAPRI II (ECJ, GECP) 02/1974-12/19772.3CoupePetrol7922946Rear Wheel Drive
FORDCAPRI II (ECJ, GECP) 02/1974-12/19773.0CoupePetrol10129936Rear Wheel Drive
FORDCAPRI II (ECJ, GECP) 02/1974-12/19773.0CoupePetrol10129946Rear Wheel Drive
FORDCAPRI Mk III (GECP) 01/1978-04/19871.3CoupePetrol4012984Rear Wheel Drive
FORDCAPRI Mk III (GECP) 01/1978-04/19871.6CoupePetrol5415934Rear Wheel Drive
FORDCAPRI Mk III (GECP) 01/1978-04/19871.6CoupePetrol6715934Rear-Wheel Drive
FORDCAPRI Mk III (GECP) 01/1978-04/19872.0CoupePetrol6419944Rear Wheel Drive
FORDCAPRI Mk III (GECP) 01/1978-04/19872.0CoupePetrol6619996Rear Wheel Drive
FORDCAPRI Mk III (GECP) 01/1978-04/19872.0CoupePetrol7419934Rear Wheel Drive
FORDCAPRI Mk III (GECP) 01/1978-04/19872.3 SuperCoupePetrol8422946Rear Wheel Drive
FORDCAPRI Mk III (GECP) 01/1978-04/19872.8 i TurboCoupePetrol13827926Rear Wheel Drive
FORDCAPRI Mk III (GECP) 01/1978-04/19872.8 Super InjectionCoupePetrol11827926Rear Wheel Drive
FORDCAPRI Mk III (GECP) 01/1978-04/19873.0CoupePetrol10129946Rear Wheel Drive

Media

Media

Installation Instruction: PDF
Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 323: Attention: Due to the flat seated rim holes, the ST shaft lug nuts equipped with 60° taper seat can not be used. Instead, longer wheel studs have to be used for mounting the rim with the original flat seated wheel nuts
  • Note 320: ST shaft nuts with a 60° taper seat must be used to mount the wheel. The mounting holes of the wheel must have 60° taper seat, too. Additionally please check before assembly if the shaft of the ST shaft nut fits through the mounting holes of the wheel. ST shaft nuts can only be used in combination with system DZX. ST shaft nuts must be ordered seperately. ATTENTION! Pleases consider minimum thread engagement. M12x1.25 at least 12.0 turns (15mm supporting thread) M12x1.50 at least 10.0 turns (15mm supporting thread) M14x1.50 at least 12.5 turns (19mm supporting thread) 1/2“ at least 12.0 turns (16mm supporting thread)
