Wheel Spacer System DZX 10mm Axle 4-and 5-hole

56050244
ST Suspension

Stock: Backorder Available

AU$259.00 Inc GST
  • Attention! Additionally please order longer wheel bolts or shaft nuts!

Description

Description

Wheel Spacer System DZX 10mm Axle 4-and 5-hole

System DZX
12,5, 15, 17,5, 20, 22,5, 25, 27,5, 30, 32,5 or 35mm per wheel

Through-hole wheel spacer system with multi PCD bolt-holes and fiber-reinforced, interchangeable composite center adapters. The wheel spacer accurately centers on the wheel hub by the self-centering adapter. The multi-bolt holes enable the spacer to be used on cars with both 4 and 5 stud mountings and up to seven different pitch circle diameters. The interchangeable center hub adapter allows the spacer to be used on many different hub center bore sizes. Longer wheel bolts are required.

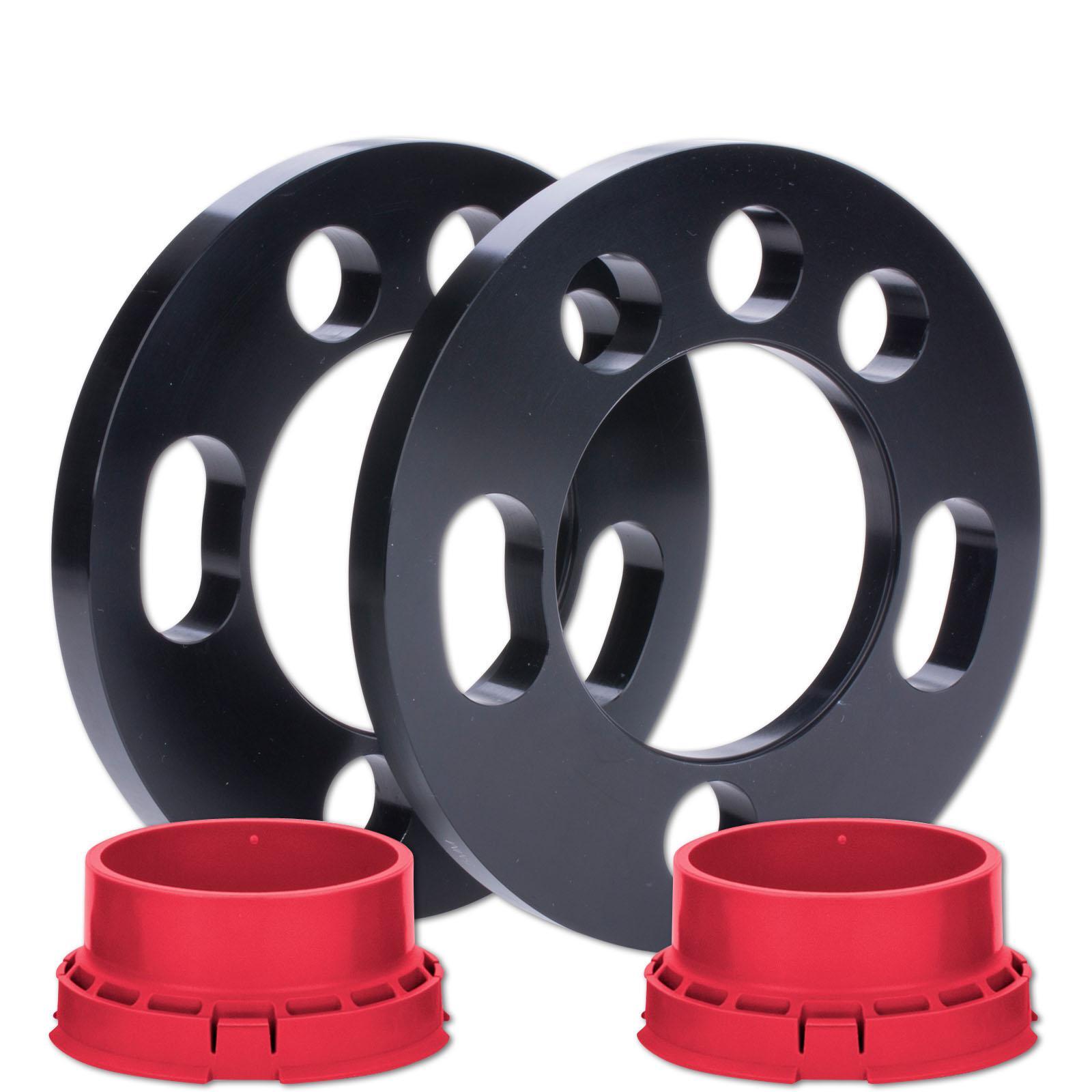

- Scope of delivery: 2 wheel spacers System DZX, 2 adapter rings System DZX
- Made of high-quality Aluminium
- Black anodized for perfect corrosion protection
- Dynamic performance of the vehicle / perfect look
- Improved driving dynamics by larger track width
- Matching wheel bolts available (in black and silver)

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
VOLVOXC90 I (275, C) 06/2002-01/20152.5SUVPetrol15325215Front Wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/20152.5 AWDSUVPetrol15325215All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/20152.5 T AWDSUVPetrol15424975All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/20152.5 T AWDSUVPetrol15425215All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/20153.2SUVPetrol17531926Front Wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/20153.2SUVPetrol17931926Front Wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/20153.2 AWDSUVPetrol17531926All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/20153.2 AWDSUVPetrol17931926All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/2015D3 / D5SUVDiesel12024005Front Wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/2015D5 AWDSUVDiesel12024005All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/2015D5 AWDSUVDiesel12024015All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/2015D5 AWDSUVDiesel13624015All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/2015D5 AWDSUVDiesel14724005All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/2015D5 AWDSUVDiesel15524005All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/2015T6 AWDSUVPetrol20029226All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/2015V8 AWDSUVPetrol23244148All-wheel Drive
VOLVOXC90 I (275, C) 06/2002-01/2015V8 AWDSUVPetrol23544148All-wheel Drive

Media

Media

Installation Instruction: PDF
Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 310: Please be careful with fitting. There must be enough centering on the wheel hub (approx 2mm)
