Wheel Spacer System DZX+ 10mm Axle 4- and 5-hole / 56.6 with 13mm wheel hub ext

56015015
ST Suspension

Stock: Backorder Available

AU$329.00 Inc GST

Description

Description

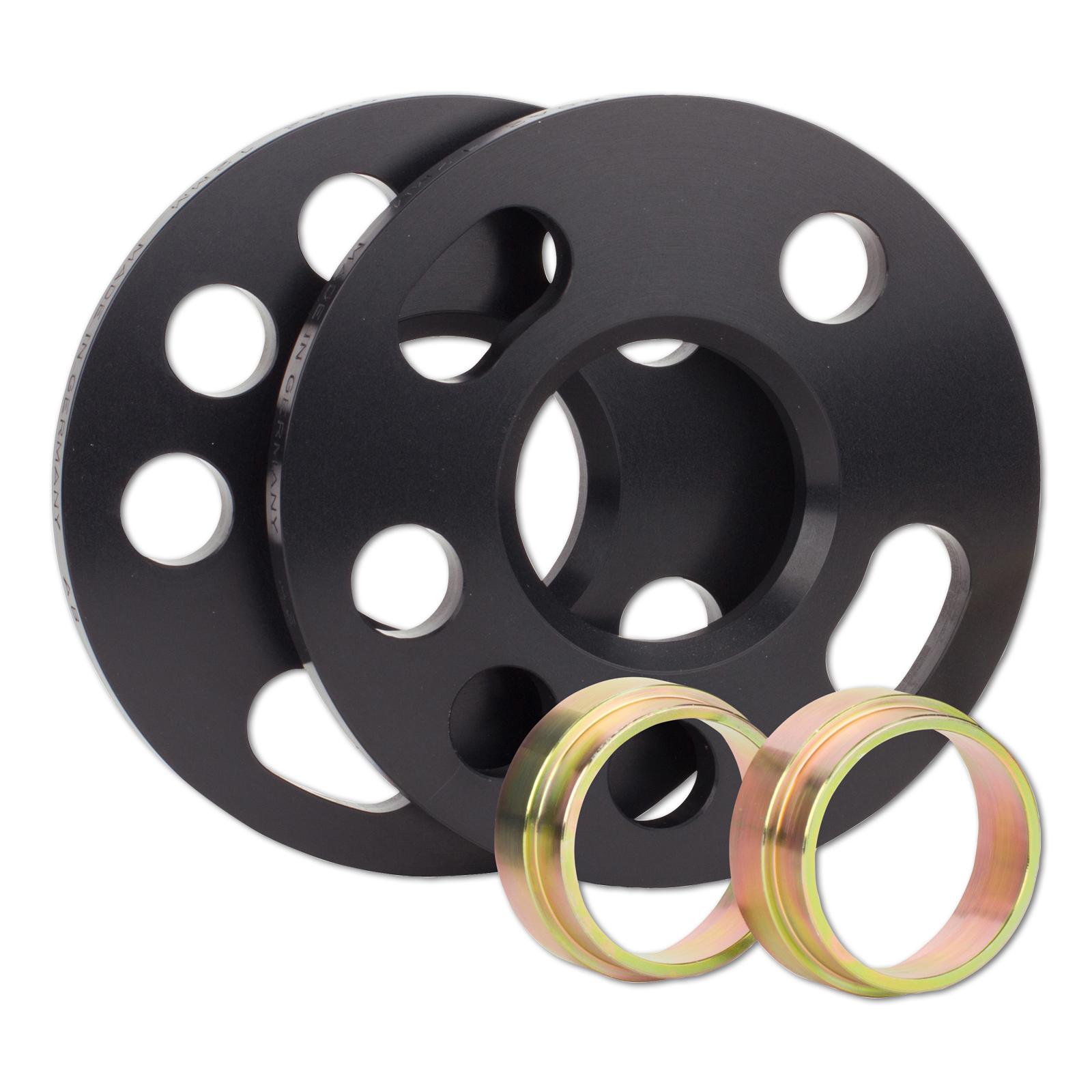

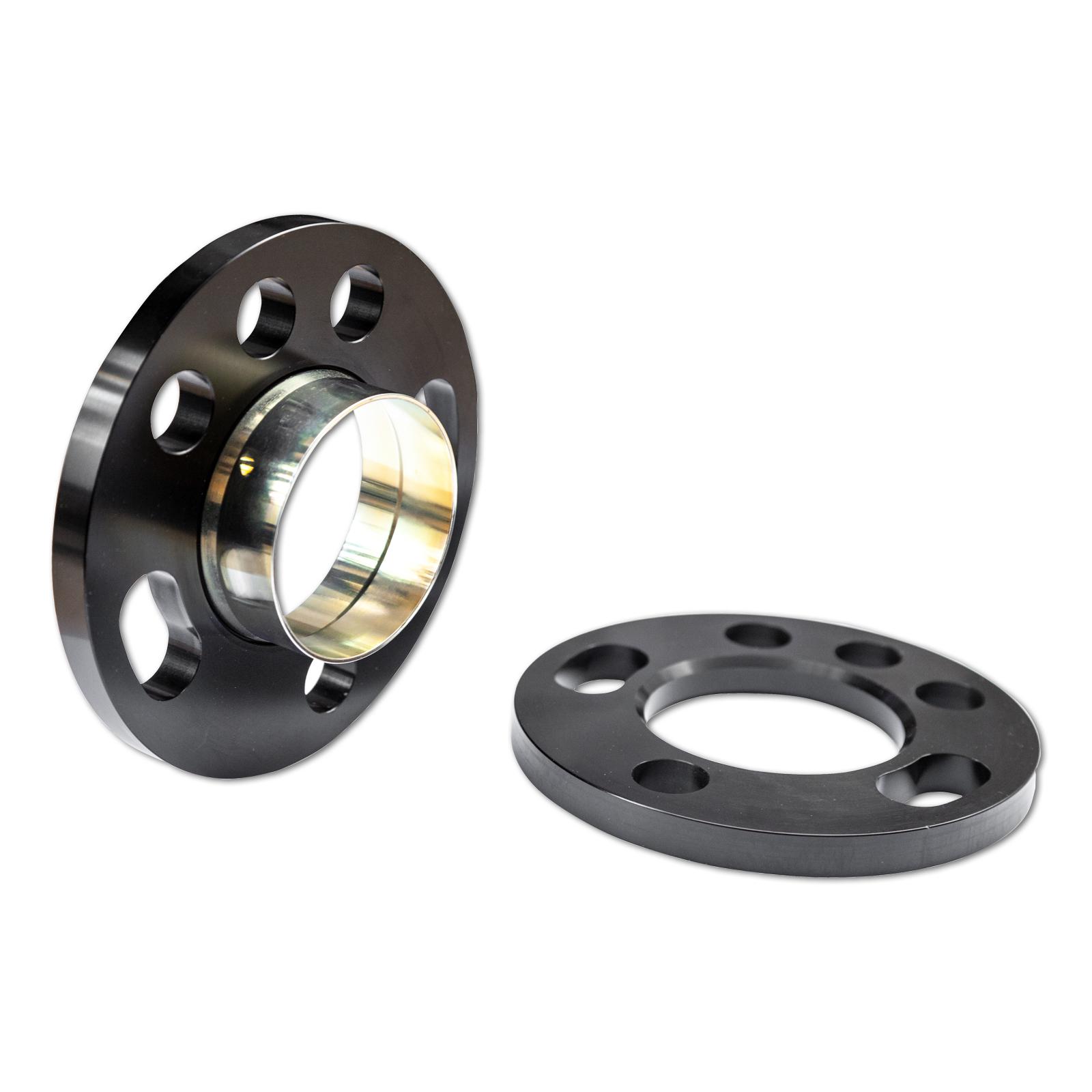

Wheel Spacer System DZX+ 10mm Axle 4- and 5-hole / 56,6 with 13mm wheel hub extension

System DZX+ 5, 7.5 and 10mm per wheel

DZX bolt-thorugh system with polyamide adapter ring and additional centering sleeve for wheel hub extension. This spacer system is used for cars with construction related issues of the wheel centering. With the DZX + system, the wheel is no longer centered on the wheel spacer, as the wheel hub centering of the axle is extended and so wider spacer widths can be used. Longer wheel bolts have to be ordered separately.

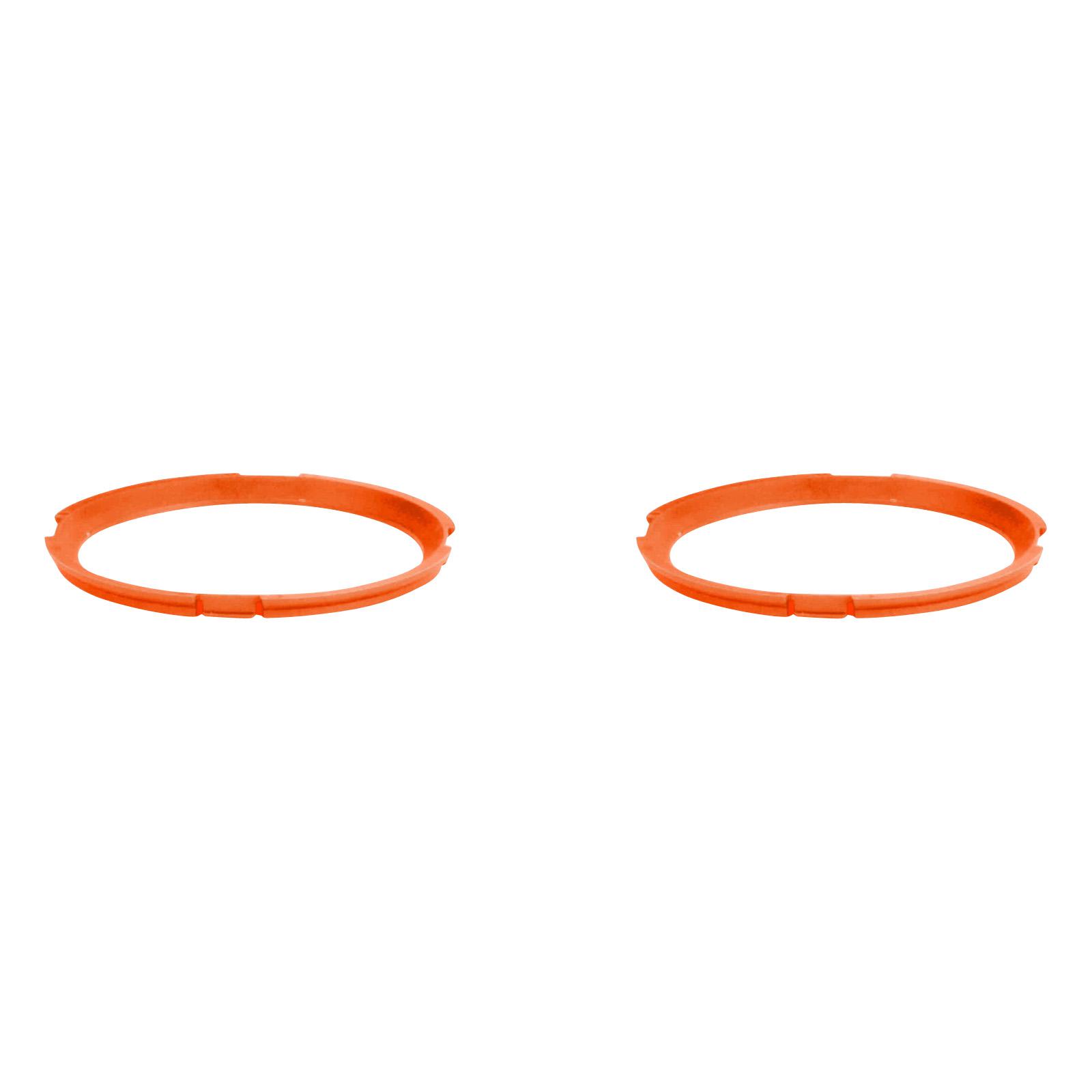

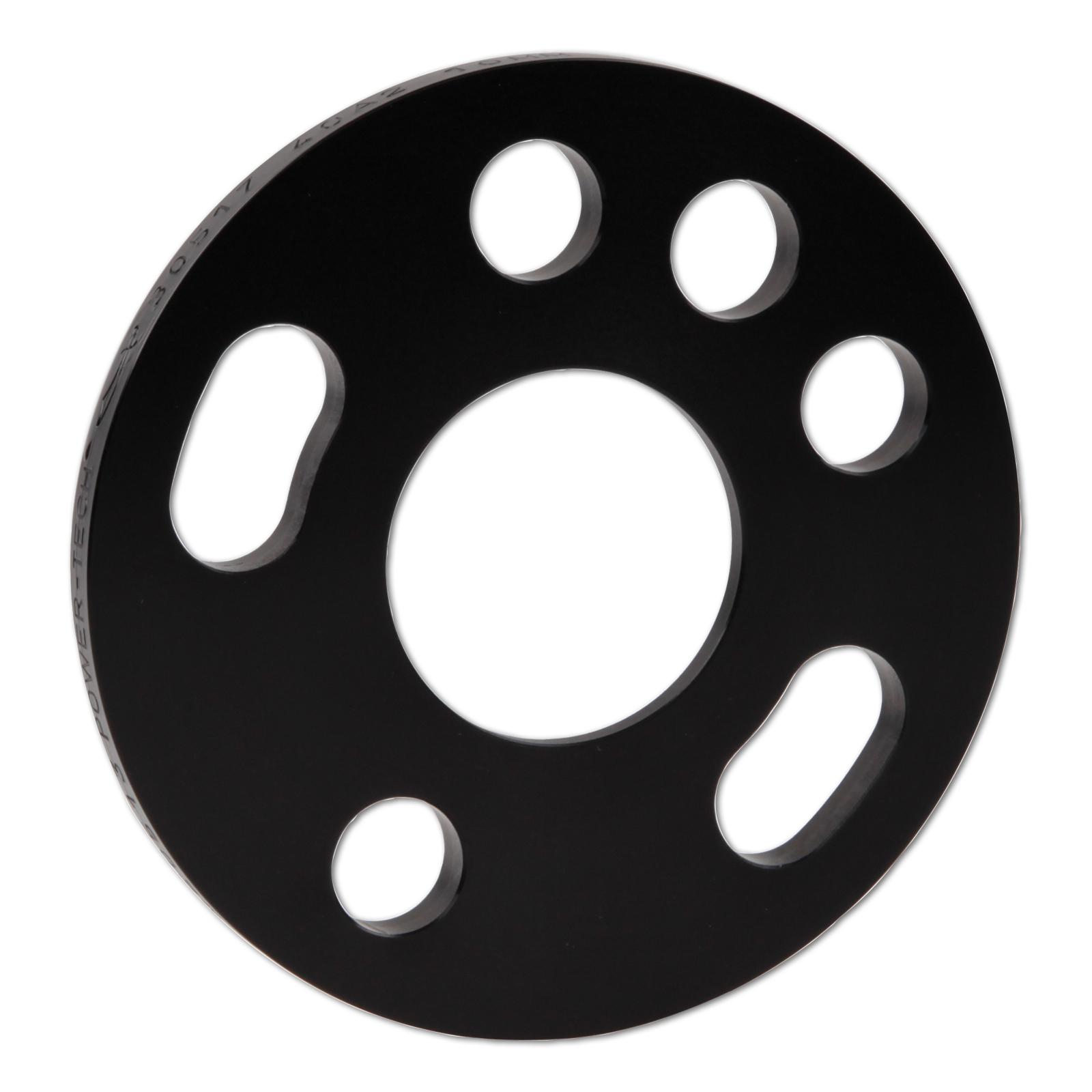

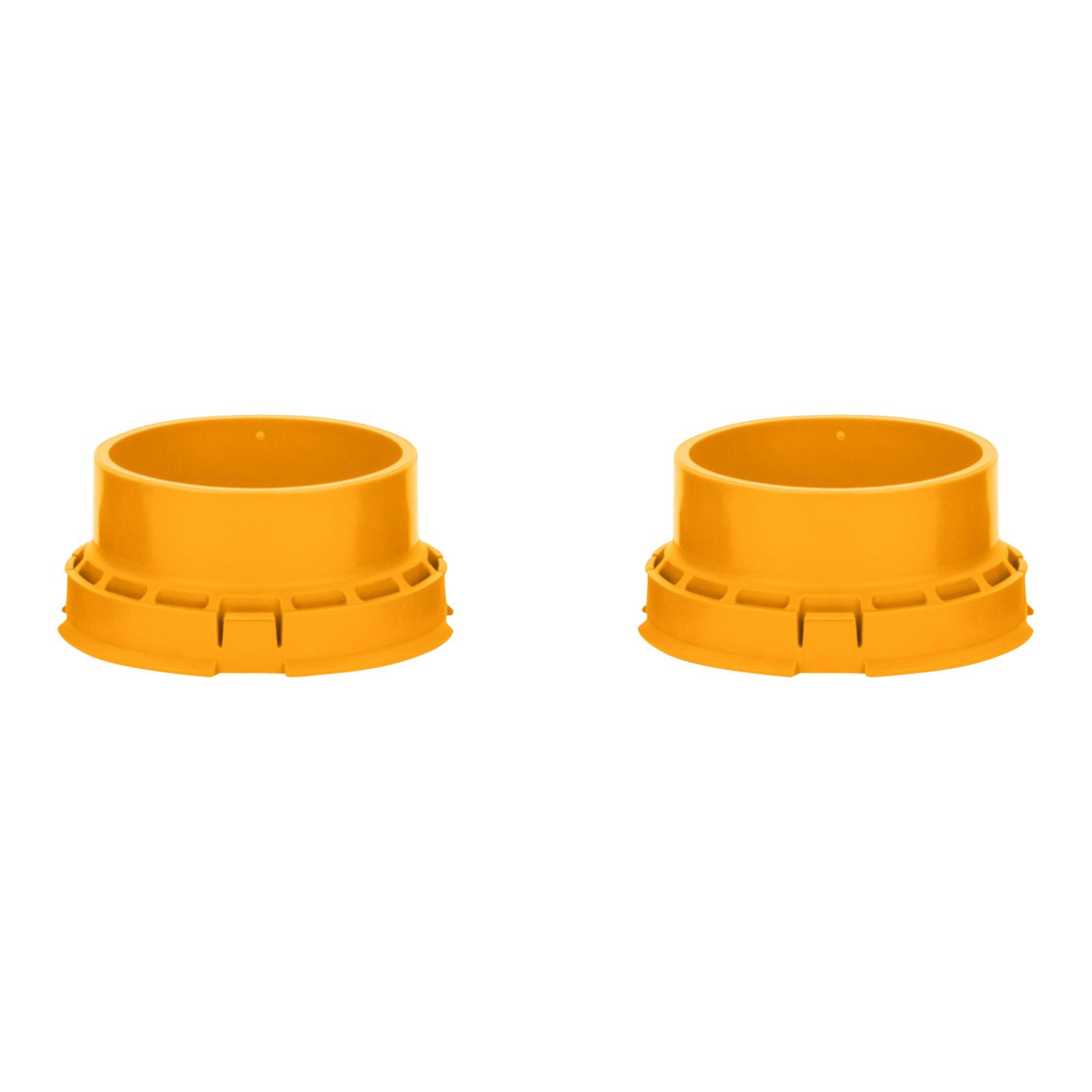

- Scope of delivery: 2 spacer discs system DZX, 2 DZX adapter rings narrow, 2 centering sleeves
- Made of high quality aluminium
- Black anodized for maximum corrosion protection
- Dynamic car appearance
- Improved driving dynamics thanks to wider track width
- Matching wheel bolts available in black and silver

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
ABARTHGRANDE PUNTO (199_) 12/2007-12/20121.4 AbarthHatchbackPetrol11413684Front Wheel Drive
ABARTHGRANDE PUNTO (199_) 12/2007-12/20121.4 AbarthHatchbackPetrol13213684Front Wheel Drive
ABARTHPUNTO (199_) 03/2012-1.4 AbarthHatchbackPetrol12013684Front Wheel Drive
ABARTHPUNTO (199_) 03/2012-1.4 AbarthHatchbackPetrol13213684Front Wheel Drive
ABARTHPUNTO EVO (199_) 07/2008-02/20121.4 (199.AXX1B)HatchbackPetrol12013684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-1.6SchrägheckBenzin8515984Frontantrieb
FIATGRANDE PUNTO (199_) 06/2005-12/20151.2HatchbackPetrol4812424Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.2HatchbackPetrol5011724Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.2HatchbackPetrol5112424Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.2 LPGHatchbackPetrol/Liquified Petroleum Gas (LPG)5112424Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D MultijetHatchbackDiesel5112484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D MultijetHatchbackDiesel5512484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D MultijetHatchbackDiesel5612484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D MultijetHatchbackDiesel6212484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D MultijetHatchbackDiesel6812484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D Multijet (199.AXD11, 199.AXD1A, 199.AXD1B,...HatchbackDiesel6612484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 (199AXB11, 199AXB1A, 199BXB1A, 199AXL1A)HatchbackPetrol5713684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 (199AXB1A)HatchbackPetrol5513684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 16VHatchbackPetrol6613684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 16VHatchbackPetrol11213684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 16V (199BXG1B, 199AXG1B)HatchbackPetrol7013684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 LPGHatchbackPetrol/Liquified Petroleum Gas (LPG)5713684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 Natural PowerHatchbackPetrol/Compressed Natural Gas (CNG)5713684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 T-Jet (199AXM1A, 199BXM1A, 199BXN1A)HatchbackPetrol8813684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.6 D MultijetHatchbackDiesel8815984Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.9 D MultijetHatchbackDiesel8519104Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.9 D MultijetHatchbackDiesel8819104Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.9 D MultijetHatchbackDiesel9619104Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20180.9HatchbackPetrol748752Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20180.9HatchbackPetrol778752Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20180.9 Bifuel (BYA1_, AYA1_)HatchbackLPG638752Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20180.9 Twinair TurboHatchbackPetrol638752Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.2 (199AXZ1A, 199BXZ1A)HatchbackPetrol5112424Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.2 (199AYL1A, 199BYL1A)HatchbackPetrol4912424Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.2 FIRE (199BXZ1A)HatchbackPetrol5011724Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.3 D MultijetHatchbackDiesel5512484Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.3 D MultijetHatchbackDiesel5912484Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.3 D MultijetHatchbackDiesel6212484Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.3 D MultijetHatchbackDiesel7012484Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.3 JTD Multijet (199.AYR1A, 199.BYR1A)HatchbackDiesel6612484Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4HatchbackPetrol10113684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 (199AXB1A, 199BXB1A, 199BXB11, 199AXB11)HatchbackPetrol5713684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 (199AXH1A, 199BXH1A)HatchbackPetrol5513684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 BifuelHatchbackPetrol/Liquified Petroleum Gas (LPG)5713684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 Multi AirHatchbackPetrol7713684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 Natural PowerHatchbackPetrol/Compressed Natural Gas (CNG)5713684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 Turbo Multi AirHatchbackPetrol9913684Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.2HatchbackPetrol4812424Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.2HatchbackPetrol5112424Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.2 (199BXL1A)HatchbackPetrol5011724Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.3 D MultijetHatchbackDiesel5112484Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.3 D MultijetHatchbackDiesel6212484Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.3 D MultijetHatchbackDiesel6812484Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.3 D MultijetHatchbackDiesel7012484Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.3 D Multijet (199AXC1A, 199BXC1A, 199AXT1A, 199BXT1A)HatchbackDiesel5512484Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.3 D Multijet (199AXD1B, 199AXD1A, 199BXD1B, 199BXD1A,...HatchbackDiesel6612484Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.3 D Multijet (199BXC1A)HatchbackDiesel5612484Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.4HatchbackPetrol6613684Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.4 (199AXB1A)HatchbackPetrol5713684Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.4 (199AXH1A)HatchbackPetrol5513684Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.4 16VHatchbackPetrol7713684Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.4 16V (199AXW1A)HatchbackPetrol9913684Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.4 LPGHatchbackPetrol/Liquified Petroleum Gas (LPG)5713684Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.4 Natural PowerHatchbackPetrol/Compressed Natural Gas (CNG)5713684Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.6 D MultijetHatchbackDiesel8815984Front Wheel Drive
OPELADAM (M13) S-D 10/2012-02/20191.0SchrägheckBenzin509963Frontantrieb
OPELADAM (M13) S-D 10/2012-02/20191.0HatchbackPetrol669993Front Wheel Drive
OPELADAM (M13) S-D 10/2012-02/20191.0HatchbackPetrol859993Front Wheel Drive
OPELADAM (M13) S-D 10/2012-02/20191.2HatchbackPetrol5112294Front Wheel Drive
OPELADAM (M13) S-D 10/2012-02/20191.2HatchbackPetrol6912424Front Wheel Drive
OPELADAM (M13) S-D 10/2012-02/20191.4HatchbackPetrol6413984Front Wheel Drive
OPELADAM (M13) S-D 10/2012-02/20191.4HatchbackPetrol7413984Front Wheel Drive
OPELADAM (M13) S-D 10/2012-02/20191.4 LPGHatchbackPetrol/Liquified Petroleum Gas (LPG)6413984Front Wheel Drive
OPELADAM ROCKS 07/2014-1HatchbackPetrol669993Front Wheel Drive
OPELADAM ROCKS 07/2014-1HatchbackPetrol859993Front Wheel Drive
OPELADAM ROCKS 07/2014-1.2HatchbackPetrol5112294Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.0 (F08, F68)HatchbackPetrol439733Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.0 (F08, F68)HatchbackPetrol449983Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.2 (F08, F68)HatchbackPetrol5511994Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.2 Twinport (F08, F68)HatchbackPetrol5912294Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.3 CDTI (F08, F68)HatchbackDiesel5112484Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.4 (F08, F68)SchrägheckBenzin6013894Frontantrieb
OPELCORSA C (X01) 09/2000-12/20091.4 (F08, F68)HatchbackPetrol6613894Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.4 Twinport (F08, F68)HatchbackPetrol6613644Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.6 (F08, F68)HatchbackPetrol6215984Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.6 (F08, F68)HatchbackPetrol6915984Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.7 DI (F08, F68)HatchbackDiesel4816864Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.7 DTI (F08, F68)HatchbackDiesel5516864Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.8 (F08, F68)HatchbackPetrol7917964Front Wheel Drive
OPELCORSA C (X01) 09/2000-12/20091.8 (F08, F68)HatchbackPetrol9217964Front Wheel Drive
OPELCORSA D (S07, S-D) 07/2006-08/20141.0 (L08, L68)HatchbackPetrol449983Front Wheel Drive
OPELCORSA D (S07, S-D) 07/2006-08/20141.0 (L08, L68)HatchbackPetrol489983Front Wheel Drive
OPELCORSA D (S07, S-D) 07/2006-08/20141.2 (L08, L68)HatchbackPetrol5112294Front Wheel Drive
OPELCORSA D (S07, S-D) 07/2006-08/20141.2 (L08, L68)HatchbackPetrol5912294Front Wheel Drive
OPELCORSA D (S07, S-D) 07/2006-08/20141.2 (L08, L68)HatchbackPetrol6312294Front Wheel Drive
OPELCORSA D (S07, S-D) 07/2006-08/20141.2 LPG (L08, L68)HatchbackPetrol/Liquified Petroleum Gas (LPG)5512294Front Wheel Drive
OPELCORSA D (S07, S-D) 07/2006-08/20141.2 LPG (L08, L68)HatchbackPetrol/Liquified Petroleum Gas (LPG)5912294Front Wheel Drive
OPELCORSA D (S07, S-D) 07/2006-08/20141.2 LPG (L08, L68)HatchbackPetrol/Liquified Petroleum Gas (LPG)6112294Front Wheel Drive
OPELCORSA D (S07, S-D) 07/2006-08/20141.2 LPG (L08, L68)HatchbackPetrol/Liquified Petroleum Gas (LPG)6312294Front Wheel Drive
OPELCORSA D (S07, S-D) 07/2006-08/20141.3 CDTI (L08, L68)HatchbackDiesel5512484Front Wheel Drive

Media

Media

Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 325: Steel cores have to be mounted for extending the centering. If the car is serially equipped with grease caps, they have to be removed before mounting the steel core and fixed to the cores afterwards. The steel cores are included in the scope of delivery
  • Note 308: Only for rear axle
