Wheel Spacer System DZX+ 10mm Axle 4- and 5-hole / 57.1 with 13mm wheel hub ext

56015027
ST Suspension

Stock: Backorder Available

AU$329.00 Inc GST

Description

Description

Wheel Spacer System DZX+ 10mm Axle 4- and 5-hole / 57,1 with 13mm wheel hub extension

System DZX+ 5, 7.5 and 10mm per wheel

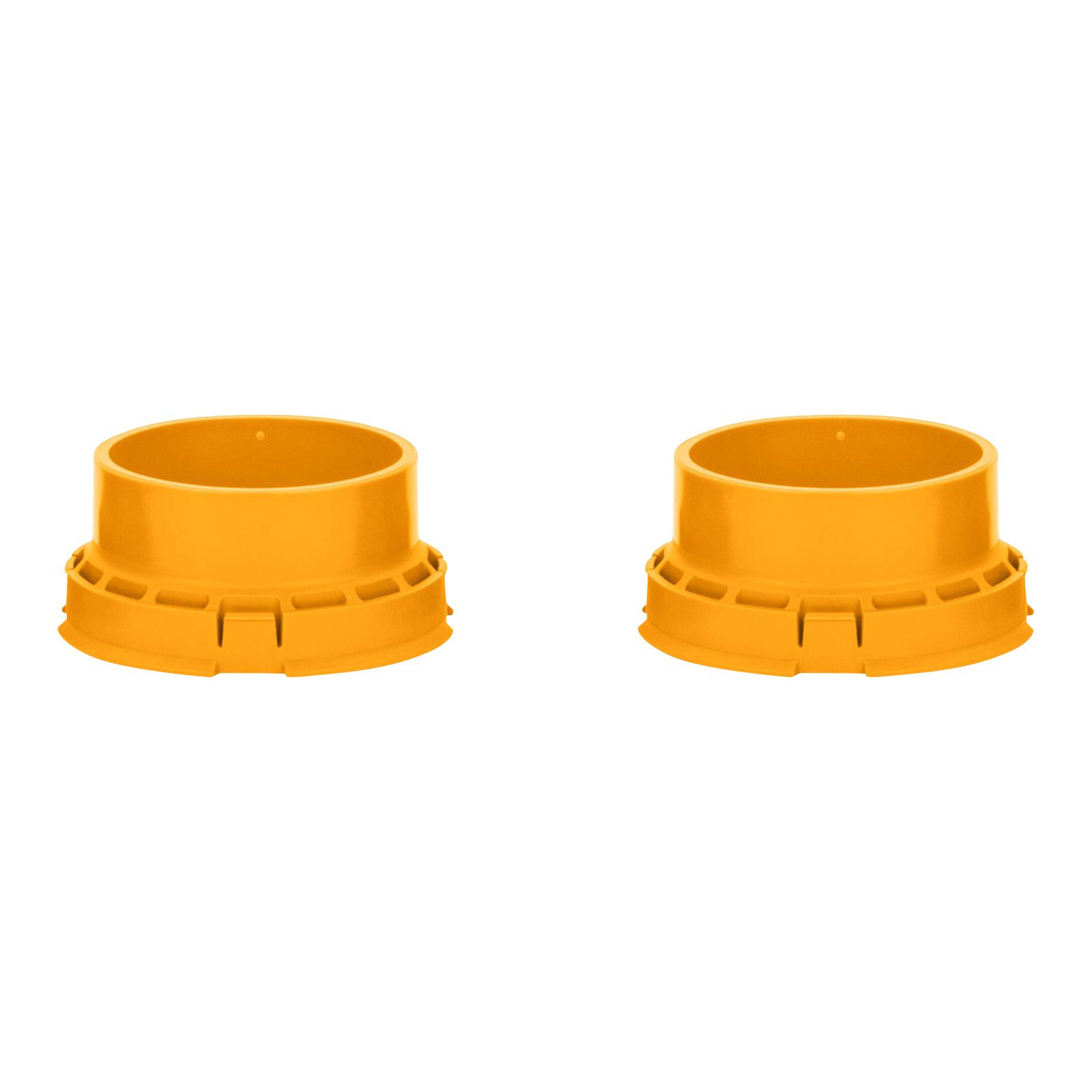

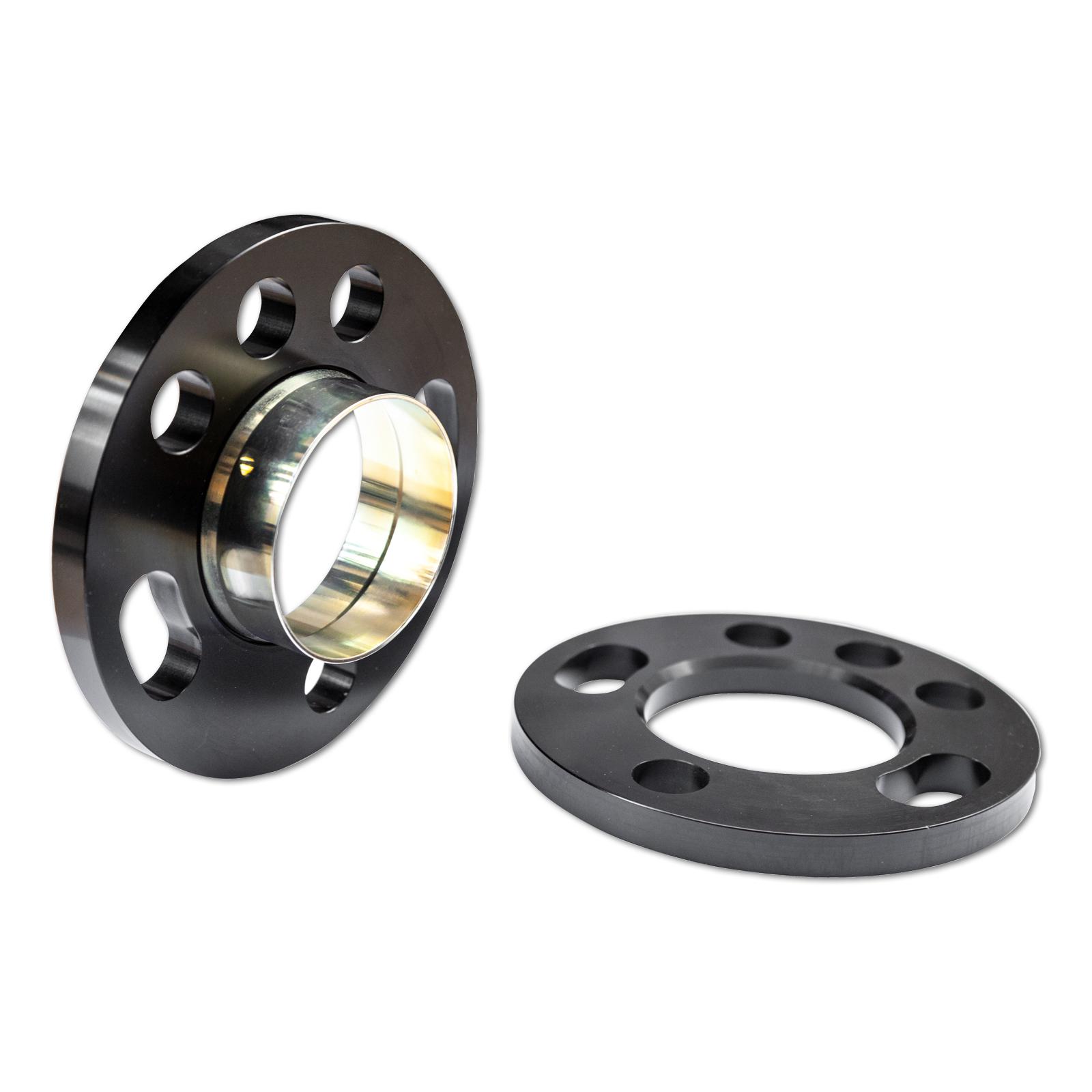

DZX bolt-thorugh system with polyamide adapter ring and additional centering sleeve for wheel hub extension. This spacer system is used for cars with construction related issues of the wheel centering. With the DZX + system, the wheel is no longer centered on the wheel spacer, as the wheel hub centering of the axle is extended and so wider spacer widths can be used. Longer wheel bolts have to be ordered separately.

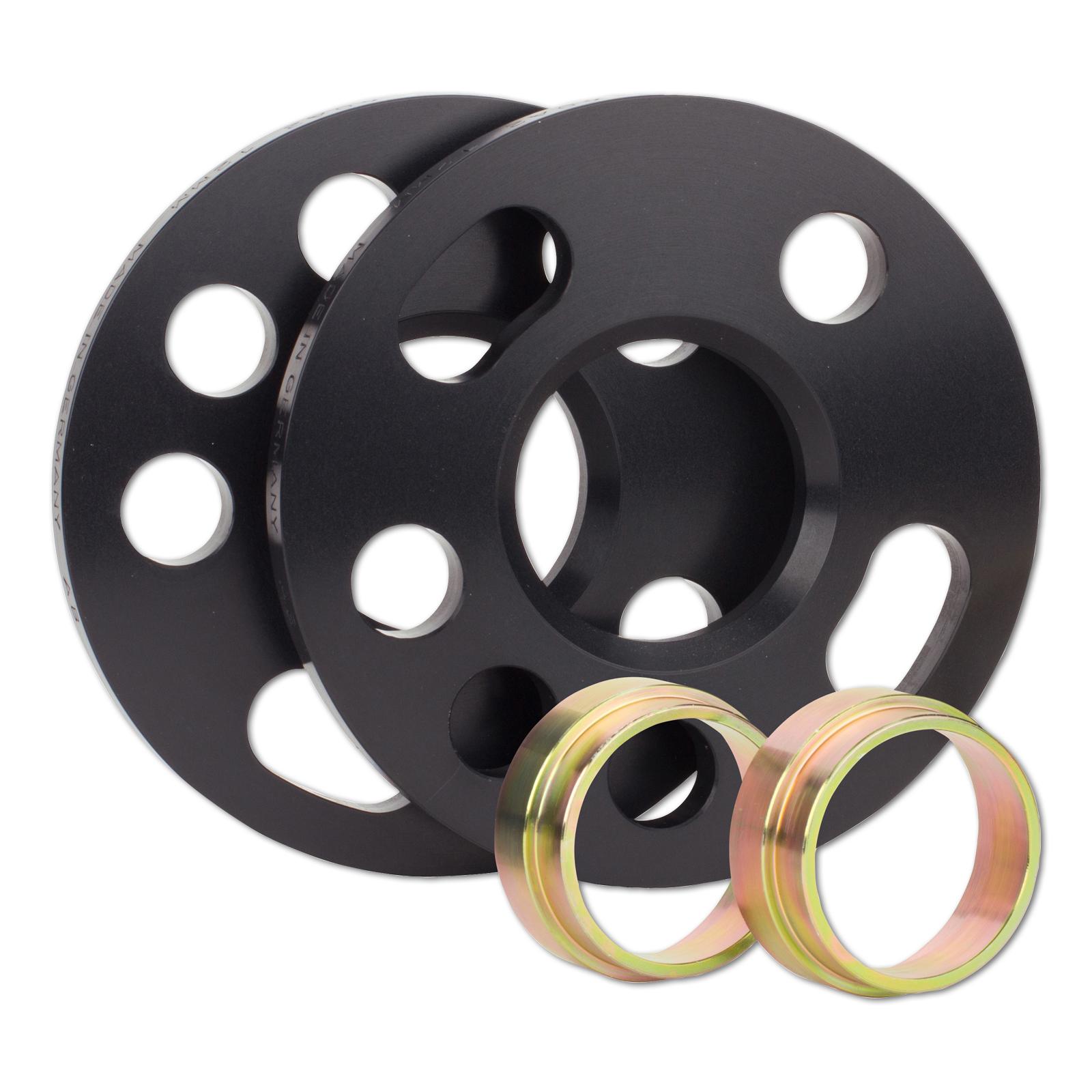

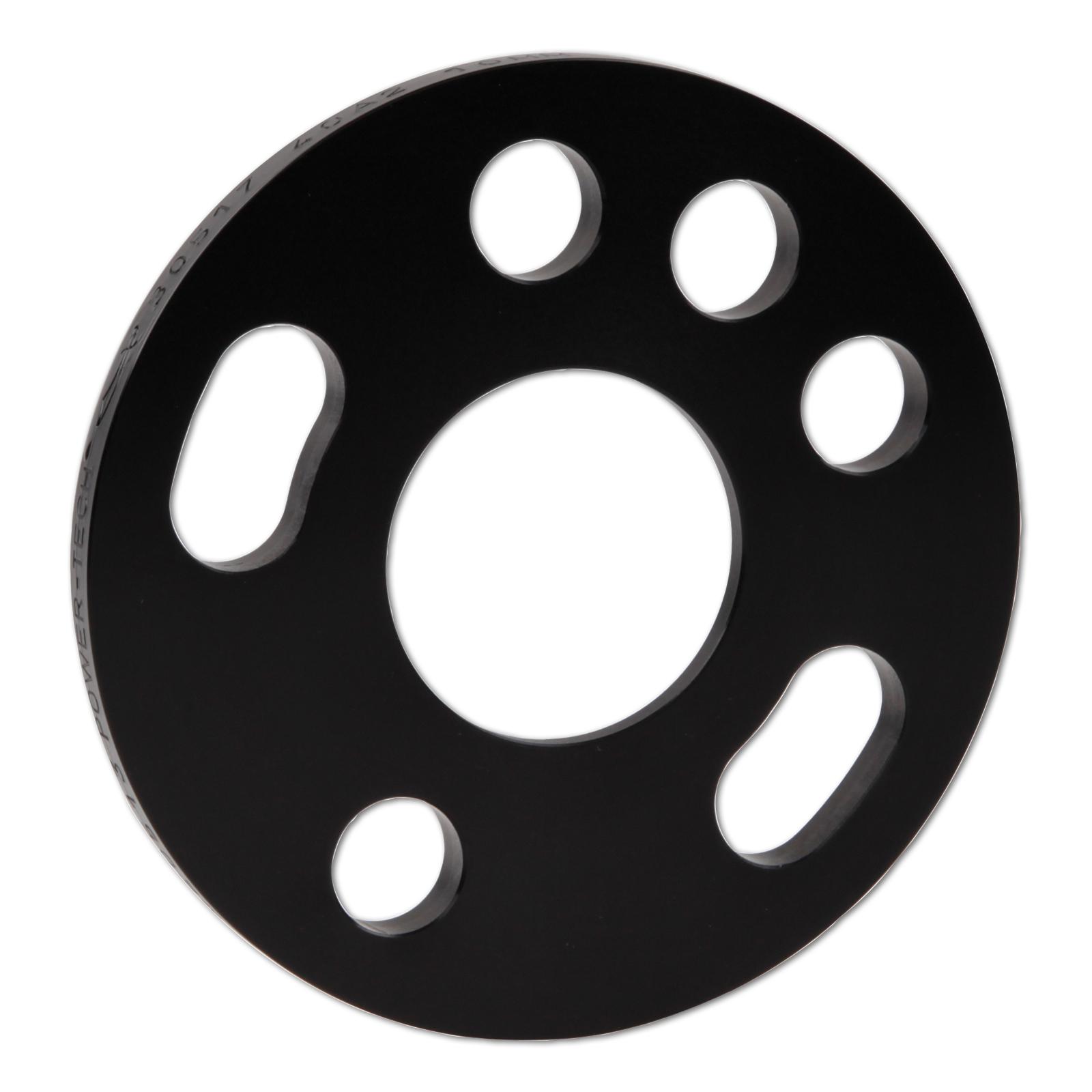

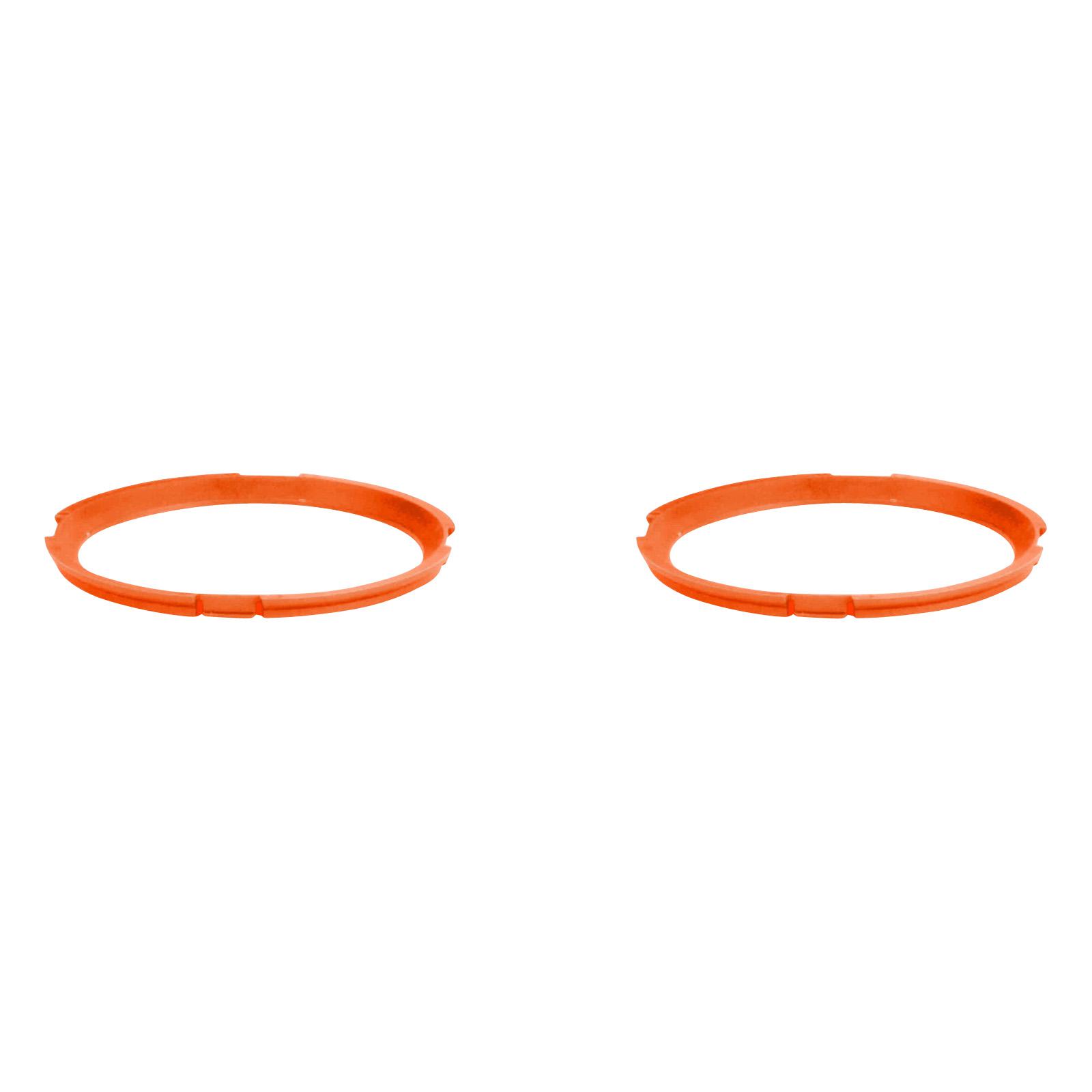

- Scope of delivery: 2 spacer discs system DZX, 2 DZX adapter rings narrow, 2 centering sleeves
- Made of high quality aluminium
- Black anodized for maximum corrosion protection
- Dynamic car appearance
- Improved driving dynamics thanks to wider track width
- Matching wheel bolts available in black and silver

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
AUDIA1 Sportback (GB) GBA 07/2018-25 TFSIHatchbackPetrol709993Front Wheel Drive
AUDIA1 Sportback (GB) GBA 07/2018-30 TFSIHatchbackPetrol819993Front Wheel Drive
AUDIA1 Sportback (GB) GBA 07/2018-30 TFSIHatchbackPetrol859993Front Wheel Drive
AUDIA1 Sportback (GB) GBA 07/2018-35 TFSIHatchbackPetrol11014954Front Wheel Drive
AUDIA1 Sportback (GB) GBA 07/2018-40 TFSIHatchbackPetrol14719844Front Wheel Drive
AUDIA1 Sportback (GB) GBA 07/2018-40 TFSIHatchbackPetrol15219844Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.0 TFSIHatchbackPetrol859993Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.2 TFSIHatchbackPetrol7711974Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.2 TFSIHatchbackPetrol8111974Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.4 TFSIHatchbackPetrol9013954Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.4 TFSIHatchbackPetrol9213954Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.4 TFSIHatchbackPetrol10313954Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.4 TSIHatchbackPetrol11013954Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.5 TFSIHatchbackPetrol11014954Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.6 TDIHatchbackDiesel7715984Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.6 TDIHatchbackDiesel8115984Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.6 TDIHatchbackDiesel8515984Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.8 TFSIHatchbackPetrol13217984Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20201.8 TFSI quattroHatchbackPetrol13217984All-wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20202.0 TDIHatchbackDiesel8119684Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20202.0 TDIHatchbackDiesel10019684Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20202.0 TDIHatchbackDiesel10519684Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20202.0 TDIHatchbackDiesel11019684Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20202.0 TDIHatchbackDiesel13519684Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20202.0 TDI quattroHatchbackDiesel11019684All-wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20202.0 TDI quattroHatchbackDiesel13519684All-wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20202.0 TFSIHatchbackPetrol14019844Front Wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/20202.0 TFSI quattroHatchbackPetrol14019844All-wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/2020S3 quattroHatchbackPetrol20619844All-wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/2020S3 quattroHatchbackPetrol21019844All-wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/2020S3 quattroHatchbackPetrol21319844All-wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/2020S3 quattroHatchbackPetrol22119844All-wheel Drive
AUDIA3 (8V) 8V1, 8VK 04/2012-10/2020S3 quattroHatchbackPetrol22819844All-wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.4 TFSIConvertiblePetrol8513954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.4 TFSIConvertiblePetrol9213954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.4 TFSIConvertiblePetrol10313954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.4 TSIConvertiblePetrol11013954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.5 TFSIConvertiblePetrol11014954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.6 TDIConvertibleDiesel8115984Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.6 TDIConvertibleDiesel8515984Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.8 TFSIConvertiblePetrol12517984Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.8 TFSIConvertiblePetrol13217984Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20201.8 TFSI quattroConvertiblePetrol13217984All-wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20202.0 TDIConvertibleDiesel10019684Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20202.0 TDIConvertibleDiesel11019684Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20202.0 TDIConvertibleDiesel13519684Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20202.0 TDI quattroConvertibleDiesel11019684All-wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20202.0 TDI quattroConvertibleDiesel13519684All-wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20202.0 TFSIConvertiblePetrol13719844Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20202.0 TFSIConvertiblePetrol14019844Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20202.0 TFSI quattroConvertiblePetrol14019844All-wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20202.0 TFSI quattroConvertiblePetrol16219844All-wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/20202.0 TFSI quattroConvertiblePetrol17019844All-wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/202035 TFSIConvertiblePetrol11014954Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/202040 TFSIConvertiblePetrol14019844Front Wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/202040 TFSI quattroConvertiblePetrol14019844All-wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/2020S3 quattroConvertiblePetrol21019844All-wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/2020S3 quattroConvertiblePetrol21319844All-wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/2020S3 quattroConvertiblePetrol22119844All-wheel Drive
AUDIA3 Convertible (8V) 8V7, 8VE 10/2013-10/2020S3 quattroConvertiblePetrol22819844All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.0 TFSISaloonPetrol859993Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.2 TFSISaloonPetrol7711974Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.2 TFSISaloonPetrol8111974Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.4 TFSISaloonPetrol9013954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.4 TFSISaloonPetrol9213954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.4 TFSISaloonPetrol10313954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.4 TSISaloonPetrol11013954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.5 TFSISaloonPetrol11014954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.6 TDISaloonDiesel7715984Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.6 TDISaloonDiesel8115984Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.6 TDISaloonDiesel8515984Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.6 TDI quattroSaloonDiesel8115984All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.8 TFSISaloonPetrol12517984Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.8 TFSISaloonPetrol13217984Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20201.8 TFSI quattroSaloonPetrol13217984All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TDISaloonDiesel8119684Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TDISaloonDiesel10019684Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TDISaloonDiesel10519684Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TDISaloonDiesel11019684Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TDISaloonDiesel13519684Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TDI quattroSaloonDiesel11019684All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TDI quattroSaloonDiesel13519684All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TFSISaloonPetrol13719844Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TFSISaloonPetrol14019844Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TFSISaloonPetrol16219844Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TFSI quattroSaloonPetrol14019844All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TFSI quattroSaloonPetrol16219844All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/20202.0 TFSI quattroSaloonPetrol17019844All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/202030 TDISaloonDiesel8515984Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/202030 TFSISaloonPetrol859993Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/202035 TDISaloonDiesel11019684Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/202035 TFSISaloonPetrol11014954Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/202040 TDI quattroSaloonDiesel13519684All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/202040 TFSISaloonPetrol14019844Front Wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/202040 TFSI quattroSaloonPetrol14019844All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/2020S3 quattroSaloonPetrol20619844All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/2020S3 quattroSaloonPetrol21019844All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/2020S3 quattroSaloonPetrol21319844All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/2020S3 quattroSaloonPetrol21519844All-wheel Drive
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/2020S3 quattroSaloonPetrol22119844All-wheel Drive

Media

Media

Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 322: Not for vehicles with 4WD
  • Note 313: Chamfer of the rim at least 5x45°, length of wheel hub max. 13,0mm
  • Note 325: Steel cores have to be mounted for extending the centering. If the car is serially equipped with grease caps, they have to be removed before mounting the steel core and fixed to the cores afterwards. The steel cores are included in the scope of delivery
  • Note 308: Only for rear axle
