Wheel Spacer System DZX 20mm Axle 4-and 5-hole

56050234
ST Suspension

Stock: Backorder Available

AU$269.01 Inc GST
  • Attention! Additionally please order longer wheel bolts or shaft nuts!

Description

Description

Wheel Spacer System DZX 20mm Axle 4-and 5-hole

System DZX
12,5, 15, 17,5, 20, 22,5, 25, 27,5, 30, 32,5 or 35mm per wheel

Through-hole wheel spacer system with multi PCD bolt-holes and fiber-reinforced, interchangeable composite center adapters. The wheel spacer accurately centers on the wheel hub by the self-centering adapter. The multi-bolt holes enable the spacer to be used on cars with both 4 and 5 stud mountings and up to seven different pitch circle diameters. The interchangeable center hub adapter allows the spacer to be used on many different hub center bore sizes. Longer wheel bolts are required.

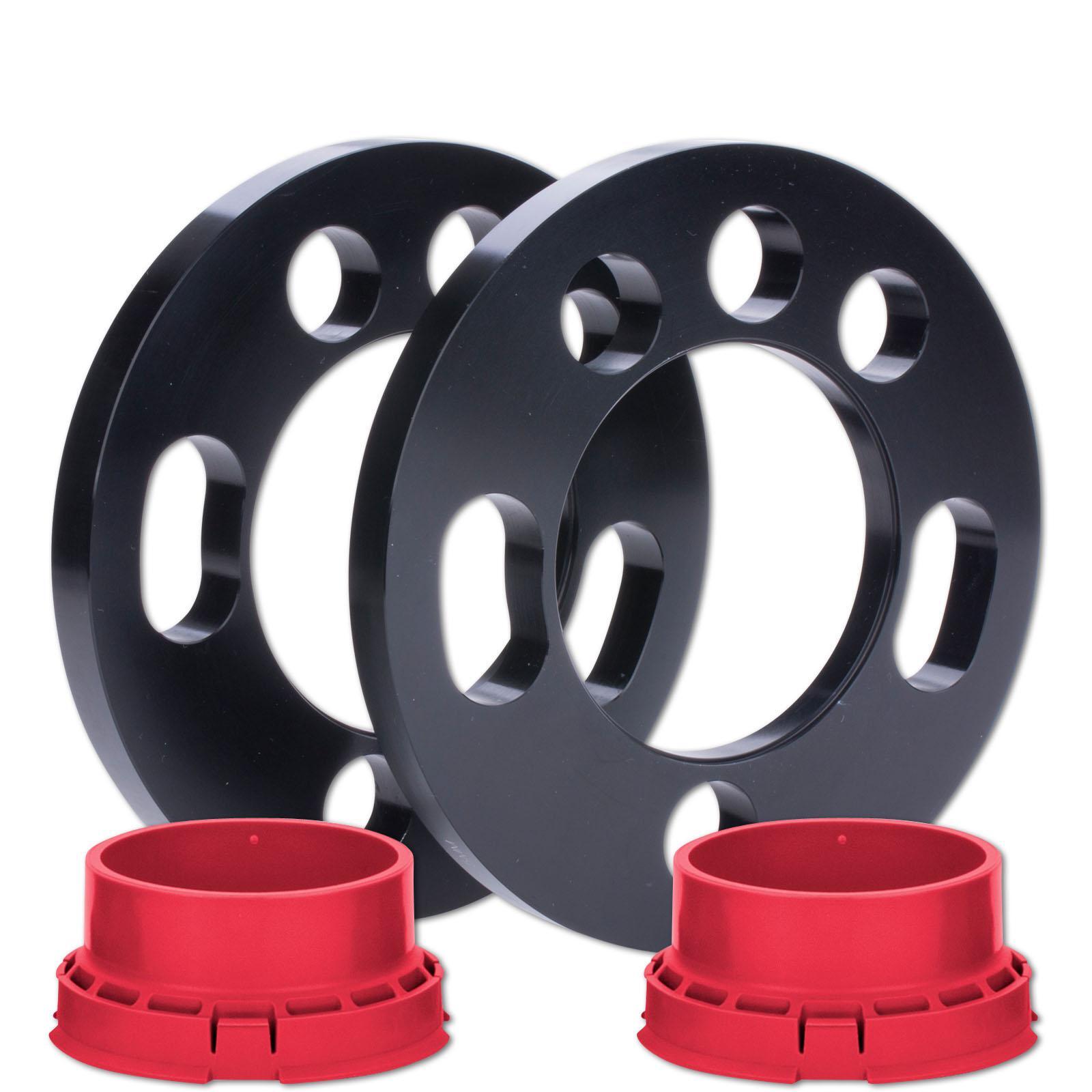

- Scope of delivery: 2 wheel spacers System DZX, 2 adapter rings System DZX
- Made of high-quality Aluminium
- Black anodized for perfect corrosion protection
- Dynamic performance of the vehicle / perfect look
- Improved driving dynamics by larger track width
- Matching wheel bolts available (in black and silver)

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
MGMG ZR (F, RF) 06/2001-04/2005105HatchbackPetrol7613964Front Wheel Drive
MGMG ZR (F, RF) 06/2001-04/2005120HatchbackPetrol8617964Front Wheel Drive
MGMG ZR (F, RF) 06/2001-04/2005160HatchbackPetrol11817964Front Wheel Drive
MGMG ZR (F, RF) 06/2001-04/20052.0 TDHatchbackDiesel7419944Front Wheel Drive
MGMG ZR (F, RF) 06/2001-04/20052.0 TDHatchbackDiesel8319944Front Wheel Drive
MGMG ZS (RT, T) 07/2001-04/20051.6SaloonPetrol7915884Front Wheel Drive
MGMG ZS (RT, T) 07/2001-04/2005120SaloonPetrol8617964Front Wheel Drive
MGMG ZS (RT, T) 07/2001-04/2005180SaloonPetrol13024976Front Wheel Drive
MGMG ZS (RT, T) 07/2001-04/20052.0 TDSaloonDiesel7419944Front Wheel Drive
MGMG ZS (RT, T) 07/2001-04/20052.0 TDSaloonDiesel8319944Front Wheel Drive
MGMG ZS Hatchback (RT, T) 07/2001-10/20051.6HatchbackPetrol8215904Front Wheel Drive
MGMG ZS Hatchback (RT, T) 07/2001-10/20051.6 (RT)HatchbackPetrol7915884Front Wheel Drive
MGMG ZS Hatchback (RT, T) 07/2001-10/2005120HatchbackPetrol8617964Front Wheel Drive
MGMG ZS Hatchback (RT, T) 07/2001-10/2005180HatchbackPetrol13024976Front Wheel Drive
MGMG ZS Hatchback (RT, T) 07/2001-10/20052.0 TDHatchbackDiesel7419944Front Wheel Drive
MGMG ZS Hatchback (RT, T) 07/2001-10/20052.0 TDHatchbackDiesel8319944Front Wheel Drive
MGMG ZT (J, RJ, RX, X) 06/2001-10/20051.8 16VSaloonPetrol8817954Front Wheel Drive
MGMG ZT (J, RJ, RX, X) 06/2001-10/20051.8 T 16VSaloonPetrol11817954Front Wheel Drive
MGMG ZT (J, RJ, RX, X) 06/2001-10/2005160SaloonPetrol11824976Front Wheel Drive
MGMG ZT (J, RJ, RX, X) 06/2001-10/2005180SaloonPetrol13024976Front Wheel Drive
MGMG ZT (J, RJ, RX, X) 06/2001-10/2005180 (RJ)SaloonPetrol13324976Front Wheel Drive
MGMG ZT (J, RJ, RX, X) 06/2001-10/2005190SaloonPetrol14024976Front Wheel Drive
MGMG ZT (J, RJ, RX, X) 06/2001-10/2005190SaloonPetrol16524976Front Wheel Drive
MGMG ZT (J, RJ, RX, X) 06/2001-10/20052.0 CDTiSaloonDiesel8519514Front Wheel Drive
MGMG ZT (J, RJ, RX, X) 06/2001-10/20052.0 CDTiSaloonDiesel9619514Front Wheel Drive
MGMG ZT (J, RJ, RX, X) 06/2001-10/2005260SaloonPetrol19146018Rear Wheel Drive
MGMG ZT- T (J, RJ, RX, X) 10/2001-10/20051.8 16VEstatePetrol8817954Front Wheel Drive
MGMG ZT- T (J, RJ, RX, X) 10/2001-10/20051.8 T 16VEstatePetrol11817954Front Wheel Drive
MGMG ZT- T (J, RJ, RX, X) 10/2001-10/2005160EstatePetrol11824976Front Wheel Drive
MGMG ZT- T (J, RJ, RX, X) 10/2001-10/2005180EstatePetrol13024976Front Wheel Drive
MGMG ZT- T (J, RJ, RX, X) 10/2001-10/2005190EstatePetrol14024976Front Wheel Drive
MGMG ZT- T (J, RJ, RX, X) 10/2001-10/20052.0 CDTiEstateDiesel8519514Front Wheel Drive
MGMG ZT- T (J, RJ, RX, X) 10/2001-10/20052.0 CDTiEstateDiesel9619514Front Wheel Drive
MGMG ZT- T (J, RJ, RX, X) 10/2001-10/2005260EstatePetrol19146018Rear Wheel Drive

Media

Media

Installation Instruction: PDF
Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 320: ST shaft nuts with a 60° taper seat must be used to mount the wheel. The mounting holes of the wheel must have 60° taper seat, too. Additionally please check before assembly if the shaft of the ST shaft nut fits through the mounting holes of the wheel. ST shaft nuts can only be used in combination with system DZX. ST shaft nuts must be ordered seperately. ATTENTION! Pleases consider minimum thread engagement. M12x1.25 at least 12.0 turns (15mm supporting thread) M12x1.50 at least 10.0 turns (15mm supporting thread) M14x1.50 at least 12.5 turns (19mm supporting thread) 1/2“ at least 12.0 turns (16mm supporting thread)
