Wheel Spacer System DZX+ 20mm Axle 4- and 5-hole / 60.1 with 13mm wheel hub ext

56015020
ST Suspension

Stock: Backorder Available

AU$359.00 Inc GST

Description

Description

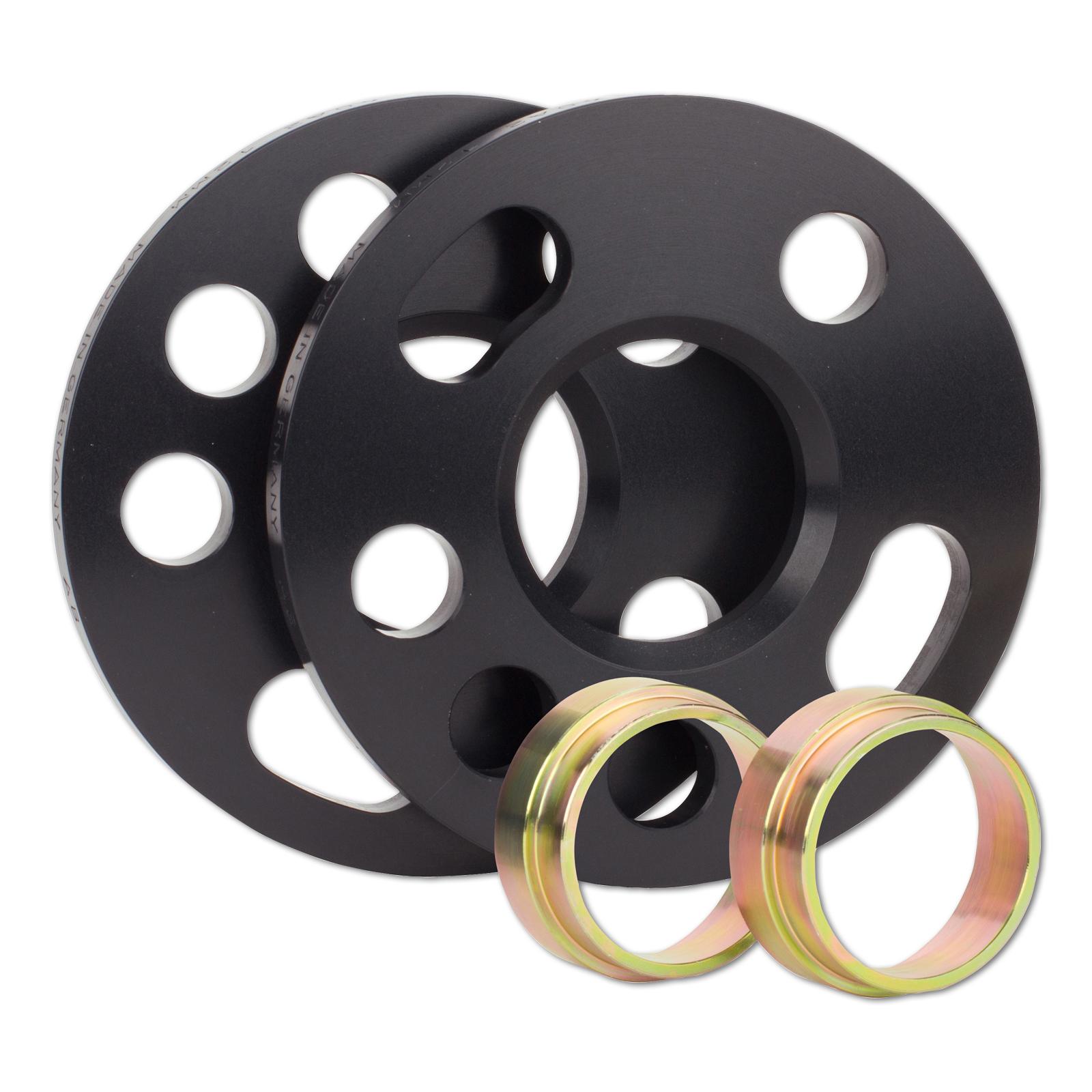

Wheel Spacer System DZX+ 20mm Axle 4- and 5-hole / 60,1 with 13mm wheel hub extension

System DZX+ 5, 7.5 and 10mm per wheel

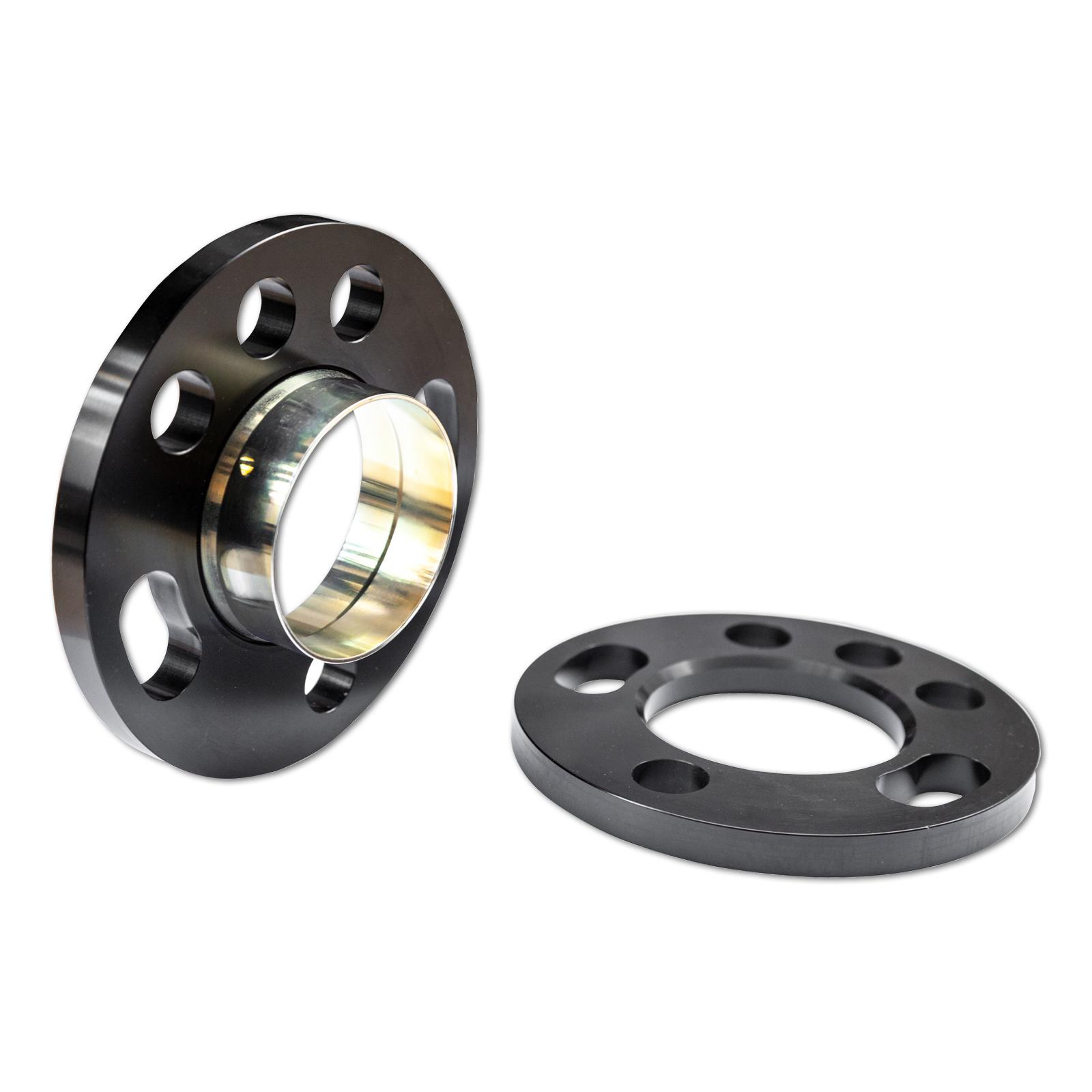

DZX bolt-thorugh system with polyamide adapter ring and additional centering sleeve for wheel hub extension. This spacer system is used for cars with construction related issues of the wheel centering. With the DZX + system, the wheel is no longer centered on the wheel spacer, as the wheel hub centering of the axle is extended and so wider spacer widths can be used. Longer wheel bolts have to be ordered separately.

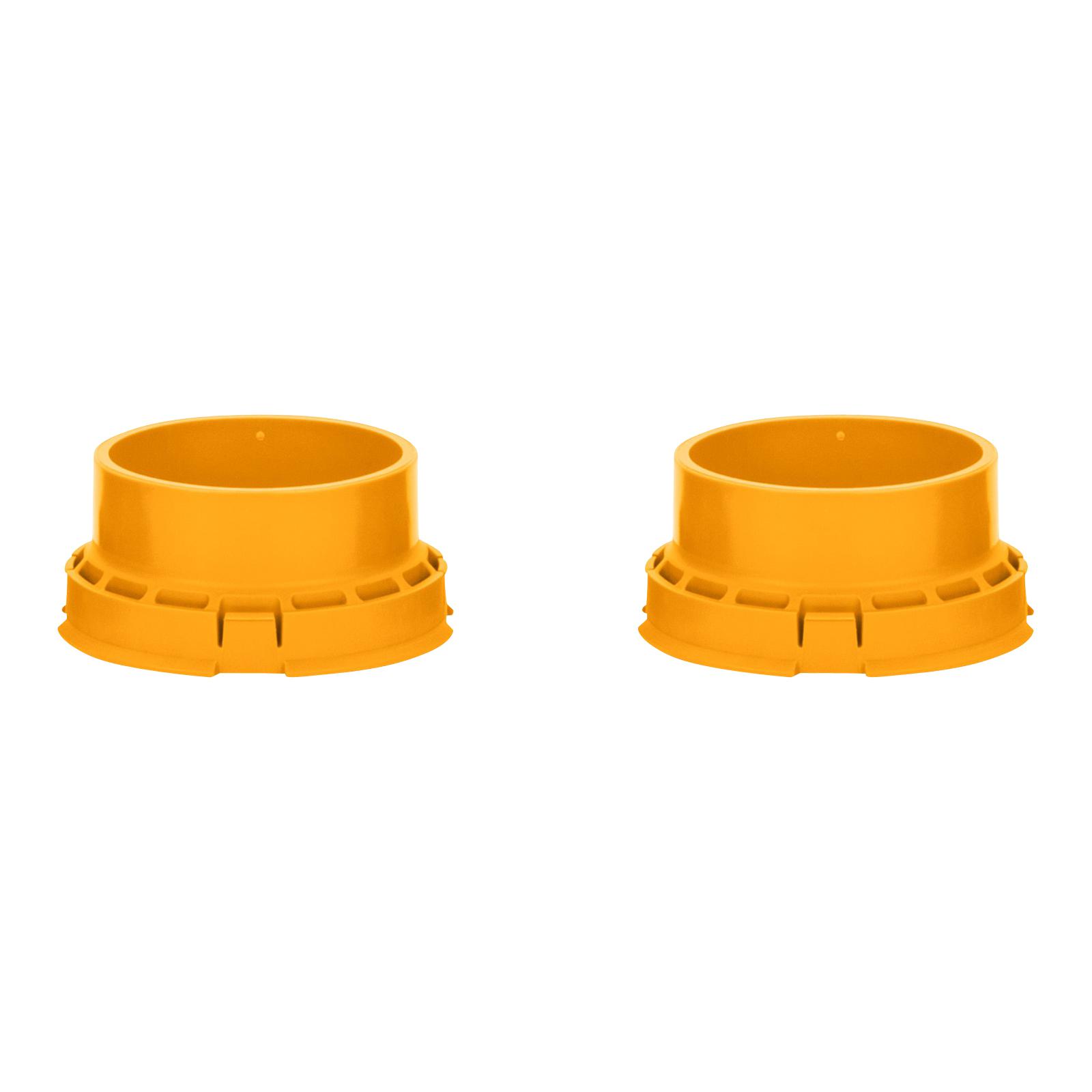

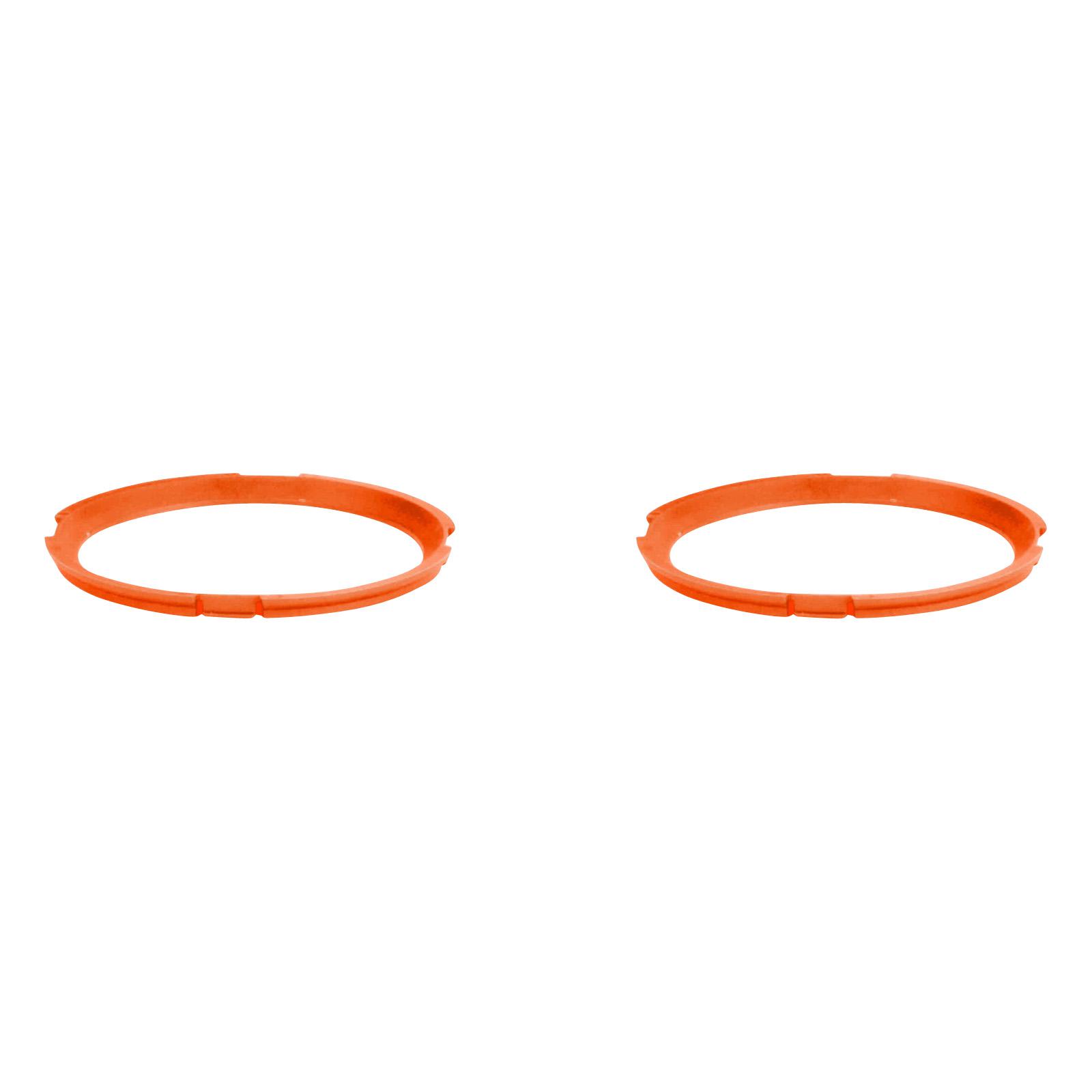

- Scope of delivery: 2 spacer discs system DZX, 2 DZX adapter rings narrow, 2 centering sleeves
- Made of high quality aluminium
- Black anodized for maximum corrosion protection
- Dynamic car appearance
- Improved driving dynamics thanks to wider track width
- Matching wheel bolts available in black and silver

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
RENAULTCLIO IV (BH_, R) 11/2012-12/20190.9 TCe 75 (BHNP)HatchbackPetrol568983Front Wheel Drive
RENAULTCLIO IV (BH_, R) 11/2012-12/20190.9 TCe 90HatchbackPetrol668983Front Wheel Drive
RENAULTCLIO IV (BH_, R) 11/2012-12/20190.9 TCe 90 LPGHatchbackPetrol/Liquified Petroleum Gas (LPG)668983Front Wheel Drive
RENAULTCLIO IV (BH_, R) 11/2012-12/20191.2 16VHatchbackPetrol5411494Front Wheel Drive
RENAULTCLIO IV (BH_, R) 11/2012-12/20191.2 16V (BHA1, BHAK, BHMG, BHMK)HatchbackPetrol5511494Front Wheel Drive
RENAULTCLIO IV (BH_, R) 11/2012-12/20191.2 LPG (BHMG)HatchbackPetrol/Liquified Petroleum Gas (LPG)5311494Front Wheel Drive
RENAULTCLIO IV (BH_, R) 11/2012-12/20191.2 LPG 16VHatchbackPetrol/Liquified Petroleum Gas (LPG)5411494Front Wheel Drive
RENAULTCLIO IV (BH_, R) 11/2012-12/20191.2 TCe 120 (BHAU)HatchbackPetrol8711974Front Wheel Drive
RENAULTCLIO IV (BH_, R) 11/2012-12/20191.2 TCe 120 (BHM0)HatchbackPetrol8811974Front Wheel Drive
RENAULTCLIO IV (BH_, R) 11/2012-12/20191.5 dCi 110HatchbackDiesel8114614Front Wheel Drive
RENAULTCLIO IV (BH_, R) 11/2012-12/20191.5 dCi 75HatchbackDiesel5514614Front Wheel Drive
RENAULTCLIO IV (BH_, R) 11/2012-12/20191.5 dCi 90HatchbackDiesel6614614Front Wheel Drive
RENAULTCLIO IV Grandtour (KH_, R) 01/2013-12/20190.9 TCe 75 (KHNP)EstatePetrol568983Front Wheel Drive
RENAULTCLIO IV Grandtour (KH_, R) 01/2013-12/20190.9 TCe 90EstatePetrol668983Front Wheel Drive
RENAULTCLIO IV Grandtour (KH_, R) 01/2013-12/20191.2 16VEstatePetrol5411494Front Wheel Drive
RENAULTCLIO IV Grandtour (KH_, R) 01/2013-12/20191.2 TCe 120 (KHAU)EstatePetrol8711974Front Wheel Drive
RENAULTCLIO IV Grandtour (KH_, R) 01/2013-12/20191.2 TCe 120 (KHM0)EstatePetrol8811974Front Wheel Drive
RENAULTCLIO IV Grandtour (KH_, R) 01/2013-12/20191.5 dCi 110EstateDiesel8114614Front Wheel Drive
RENAULTCLIO IV Grandtour (KH_, R) 01/2013-12/20191.5 dCi 75EstateDiesel5514614Front Wheel Drive
RENAULTCLIO IV Grandtour (KH_, R) 01/2013-12/20191.5 dCi 90EstateDiesel6614614Front Wheel Drive

Media

Media

Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 325: Steel cores have to be mounted for extending the centering. If the car is serially equipped with grease caps, they have to be removed before mounting the steel core and fixed to the cores afterwards. The steel cores are included in the scope of delivery
  • Note 308: Only for rear axle
