Wheel Spacer System DZX 25mm Axle 4-and 5-hole

56050061

Stock: Backorder Available

AU$299.00 Inc GST

Qty:

Attention! Additionally please order longer wheel bolts or shaft nuts!

Description

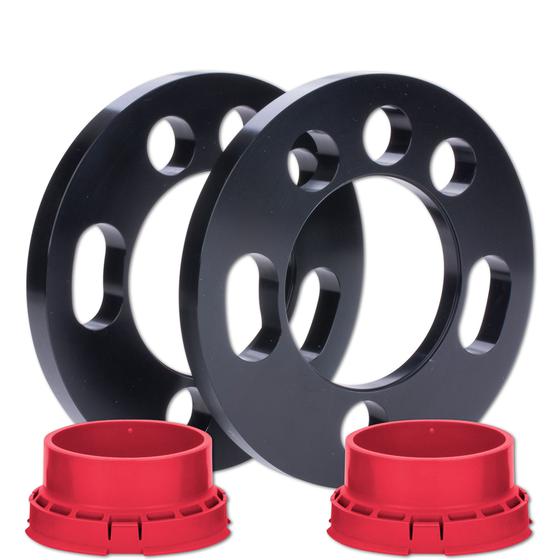

Wheel Spacer System DZX 25mm Axle 4-and 5-hole

System DZX
12,5, 15, 17,5, 20, 22,5, 25, 27,5, 30, 32,5 or 35mm per wheel

Through-hole wheel spacer system with multi PCD bolt-holes and fiber-reinforced, interchangeable composite center adapters. The wheel spacer accurately centers on the wheel hub by the self-centering adapter. The multi-bolt holes enable the spacer to be used on cars with both 4 and 5 stud mountings and up to seven different pitch circle diameters. The interchangeable center hub adapter allows the spacer to be used on many different hub center bore sizes. Longer wheel bolts are required.

- Scope of delivery: 2 wheel spacers System DZX, 2 adapter rings System DZX
- Made of high-quality Aluminium
- Black anodized for perfect corrosion protection
- Dynamic performance of the vehicle / perfect look
- Improved driving dynamics by larger track width
- Matching wheel bolts available (in black and silver)

Fitment

Make	Model	Type	Body Type	Aspiration	KW	CCM	Cyl	Drivetrain
NISSAN	KUBISTAR Box (X76) F1 08/2003-12/2009	1.2	Box	Petrol	44	1149	4	Front Wheel Drive
NISSAN	KUBISTAR Box (X76) F1 08/2003-12/2009	1.2 16V	Box	Petrol	55	1149	4	Front Wheel Drive
NISSAN	KUBISTAR Box (X76) F1 08/2003-12/2009	1.4	Box	Petrol	55	1390	4	Front Wheel Drive
NISSAN	KUBISTAR Box (X76) F1 08/2003-12/2009	1.5 dCi	Box	Diesel	42	1461	4	Front Wheel Drive
NISSAN	KUBISTAR Box (X76) F1 08/2003-12/2009	1.5 dCi	Box	Diesel	45	1461	4	Front Wheel Drive
NISSAN	KUBISTAR Box (X76) F1 08/2003-12/2009	1.5 dCi	Box	Diesel	48	1461	4	Front Wheel Drive
NISSAN	KUBISTAR Box (X76) F1 08/2003-12/2009	1.5 dCi	Box	Diesel	60	1461	4	Front Wheel Drive
NISSAN	KUBISTAR Box (X76) F1 08/2003-12/2009	1.5 dCi 70	Box	Diesel	50	1461	4	Front Wheel Drive
NISSAN	KUBISTAR Box (X76) F1 08/2003-12/2009	1.6 16V	Box	Petrol	70	1598	4	Front Wheel Drive
NISSAN	KUBISTAR Box (X76) F1 08/2003-12/2009	dCi 85	Box	Diesel	62	1461	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.0 16V	Hatchback	Petrol	48	998	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.2	Hatchback	Petrol	66	1240	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.2	Hatchback	Petrol	80	1240	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.2	Hatchback	Petrol	81	1240	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.2 16V	Hatchback	Petrol	48	1240	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.2 16V	Hatchback	Petrol	59	1240	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.2 LPG	Hatchback	Petrol/Liquified Petroleum Gas (LPG)	59	1240	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.3	Hatchback	Petrol	60	1348	4	Front-Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.4	Hatchback	Petrol	72	1386	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.4 16V	Hatchback	Petrol	65	1386	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.4 4WD (BNK12)	Hatchback	Petrol	71	1386	4	All-wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.5 160 SR (YK12)	Hatchback	Petrol	80	1498	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.5 dCi	Hatchback	Diesel	48	1461	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.5 dCi	Hatchback	Diesel	50	1461	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.5 dCi	Hatchback	Diesel	60	1461	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	1.5 dCi	Hatchback	Diesel	63	1461	4	Front Wheel Drive
NISSAN	MICRA III (K12) 03/2002-06/2010	160 SR	Hatchback	Petrol	81	1598	4	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.2	Hatchback	Petrol	56	1198	3	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.2	Hatchback	Petrol	57	1198	3	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.2	Hatchback	Petrol	58	1198	3	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.2	Hatchback	Petrol	59	1198	3	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.2 4WD	Hatchback	Petrol	59	1198	3	All-wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.2 Active	Hatchback	Petrol	50	1198	3	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.2 DIG-S	Hatchback	Petrol	72	1198	3	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.2 LPG	Hatchback	Petrol/Liquified Petroleum Gas (LPG)	59	1198	3	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.5	Hatchback	Petrol	74	1498	4	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.5	Hatchback	Petrol	75	1498	4	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.5 D	Hatchback	Diesel	47	1461	4	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.5 D	Hatchback	Diesel	73	1461	4	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.5 NISMO S	Hatchback	Petrol	85	1498	4	Front Wheel Drive
NISSAN	MICRA IV (K13_) 05/2010-	1.6	Hatchback	Petrol	81	1598	4	Front Wheel Drive
NISSAN	MICRA V (K14) 12/2016-	0.9 IG-T	Hatchback	Petrol	66	898	3	Front Wheel Drive
NISSAN	MICRA V (K14) 12/2016-	0.9 LPG	Hatchback	Petrol/Liquified Petroleum Gas (LPG)	64	898	3	Front Wheel Drive
NISSAN	MICRA V (K14) 12/2016-	1.0	Hatchback	Petrol	52	998	3	Front Wheel Drive
NISSAN	MICRA V (K14) 12/2016-	1.0	Hatchback	Petrol	54	998	3	Front Wheel Drive
NISSAN	MICRA V (K14) 12/2016-	1.0 DIG-T 117	Hatchback	Petrol	86	999	3	Front Wheel Drive
NISSAN	MICRA V (K14) 12/2016-	1.0 IG-T	Hatchback	Petrol	68	999	3	Front Wheel Drive
NISSAN	MICRA V (K14) 12/2016-	1.0 IG-T 100	Hatchback	Petrol	74	999	3	Front Wheel Drive
NISSAN	MICRA V (K14) 12/2016-	1.0 LPG	Hatchback	Petrol/Liquified Petroleum Gas (LPG)	66	999	3	Front-Wheel Drive
NISSAN	MICRA V (K14) 12/2016-	1.5 DCI	Hatchback	Diesel	66	1461	4	Front Wheel Drive
NISSAN	NOTE (E12) 09/2012-12/2020	1.2	MPV	Petrol	58	1198	3	Front Wheel Drive
NISSAN	NOTE (E12) 09/2012-12/2020	1.2	MPV	Petrol	59	1198	3	Front Wheel Drive
NISSAN	NOTE (E12) 09/2012-12/2020	1.2 4WD	MPV	Petrol	59	1198	3	All-wheel Drive
NISSAN	NOTE (E12) 09/2012-12/2020	1.2 DIG-S	MPV	Petrol	65	1198	3	Front Wheel Drive
NISSAN	NOTE (E12) 09/2012-12/2020	1.2 DIG-S	MPV	Petrol	72	1198	3	Front Wheel Drive
NISSAN	NOTE (E12) 09/2012-12/2020	1.2 GPL	MPV	LPG	56	1198	3	Front Wheel Drive
NISSAN	NOTE (E12) 09/2012-12/2020	1.2 Hybrid e-Power	MPV	Petrol/Electric	58	1198	3	Front Wheel Drive
NISSAN	NOTE (E12) 09/2012-12/2020	1.5 dCi	MPV	Diesel	66	1461	4	Front Wheel Drive
NISSAN	NOTE (E12) 09/2012-12/2020	1.6	MPV	Petrol	80	1598	4	Front Wheel Drive
NISSAN	NOTE (E12) 09/2012-12/2020	1.6	MPV	Petrol	81	1598	4	Front Wheel Drive
NISSAN	NOTE (E12) 09/2012-12/2020	1.6 NISMO S	MPV	Petrol	103	1598	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.2	Hatchback	Petrol	40	1237	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.4	Hatchback	Petrol	55	1390	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.4	Hatchback	Petrol	59	1390	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.4 (B/C53P)	Hatchback	Petrol	43	1397	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.4 Cat (B/C532)	Hatchback	Petrol	43	1397	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.7	Hatchback	Petrol	68	1721	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.7	Hatchback	Petrol	69	1721	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.7	Hatchback	Petrol	79	1721	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.7 (B/C53B)	Hatchback	Petrol	54	1721	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.7 (B/C53C)	Hatchback	Petrol	66	1721	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.8	Hatchback	Petrol	67	1794	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.8 16V	Hatchback	Petrol	101	1764	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.8 16V (B/C53D)	Hatchback	Petrol	99	1764	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.9 D (B/C534, B/C53J)	Hatchback	Diesel	47	1870	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.9 DT	Hatchback	Diesel	66	1870	4	Front Wheel Drive
RENAULT	19 (B/C53_) 01/1988-09/1994	1.9 DT	Hatchback	Diesel	68	1870	4	Front Wheel Drive
RENAULT	19 Cabriolet (D53_) 07/1991-04/1992	1.7	Convertible	Petrol	55	1721	4	Front Wheel Drive
RENAULT	19 Cabriolet (D53_) 07/1991-04/1992	1.7	Convertible	Petrol	66	1721	4	Front Wheel Drive
RENAULT	19 Cabriolet (D53_) 07/1991-04/1992	1.7	Convertible	Petrol	70	1721	4	Front Wheel Drive
RENAULT	19 Cabriolet (D53_) 07/1991-04/1992	1.8 16V (D53D)	Convertible	Petrol	101	1764	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.2	Saloon	Petrol	40	1237	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.4	Saloon	Petrol	55	1390	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.4	Saloon	Petrol	57	1390	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.4	Saloon	Petrol	58	1390	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.4 (L532, L53P)	Saloon	Petrol	43	1397	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.7	Saloon	Petrol	69	1721	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.7 (L533)	Saloon	Petrol	68	1721	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.7 (L53B)	Saloon	Petrol	54	1721	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.7 (L53C)	Saloon	Petrol	66	1721	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.7 (L53F)	Saloon	Petrol	79	1721	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.8 16V	Saloon	Petrol	101	1764	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.8 16V (L53D)	Saloon	Petrol	99	1764	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.9 D (L534, L53J)	Saloon	Diesel	47	1870	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.9 DT	Saloon	Diesel	66	1870	4	Front Wheel Drive
RENAULT	19 Chamade (L53_) 01/1988-12/1992	1.9 TD (L53K)	Saloon	Diesel	68	1870	4	Front Wheel Drive
RENAULT	19 Mk II (B/C53_) 01/1991-06/2001	1.2	Hatchback	Petrol	40	1237	4	Front Wheel Drive
RENAULT	19 Mk II (B/C53_) 01/1991-06/2001	1.2	Hatchback	Petrol	44	1171	4	Front Wheel Drive
RENAULT	19 Mk II (B/C53_) 01/1991-06/2001	1.4	Hatchback	Petrol	57	1390	4	Front Wheel Drive
RENAULT	19 Mk II (B/C53_) 01/1991-06/2001	1.4	Hatchback	Petrol	59	1390	4	Front Wheel Drive

Media

Installation Instruction:

Strength Proof:

Disclaimer

Product Disclaimers:

Note 320: ST shaft nuts with a 60° taper seat must be used to mount the wheel. The mounting holes of the wheel must have 60° taper seat, too. Additionally please check before assembly if the shaft of the ST shaft nut fits through the mounting holes of the wheel. ST shaft nuts can only be used in combination with system DZX. ST shaft nuts must be ordered seperately. ATTENTION! Pleases consider minimum thread engagement. M12x1.25 at least 12.0 turns (15mm supporting thread) M12x1.50 at least 10.0 turns (15mm supporting thread) M14x1.50 at least 12.5 turns (19mm supporting thread) 1/2“ at least 12.0 turns (16mm supporting thread)
Note 313: Chamfer of the rim at least 5x45°, length of wheel hub max. 13,0mm
