Wheel Spacer System DZX 25mm Axle 4-and 5-hole

56050136
ST Suspension

Stock: Backorder Available

AU$299.00 Inc GST
  • Attention! Additionally please order longer wheel bolts or shaft nuts!

Description

Description

Wheel Spacer System DZX 25mm Axle 4-and 5-hole

System DZX
12,5, 15, 17,5, 20, 22,5, 25, 27,5, 30, 32,5 or 35mm per wheel

Through-hole wheel spacer system with multi PCD bolt-holes and fiber-reinforced, interchangeable composite center adapters. The wheel spacer accurately centers on the wheel hub by the self-centering adapter. The multi-bolt holes enable the spacer to be used on cars with both 4 and 5 stud mountings and up to seven different pitch circle diameters. The interchangeable center hub adapter allows the spacer to be used on many different hub center bore sizes. Longer wheel bolts are required.

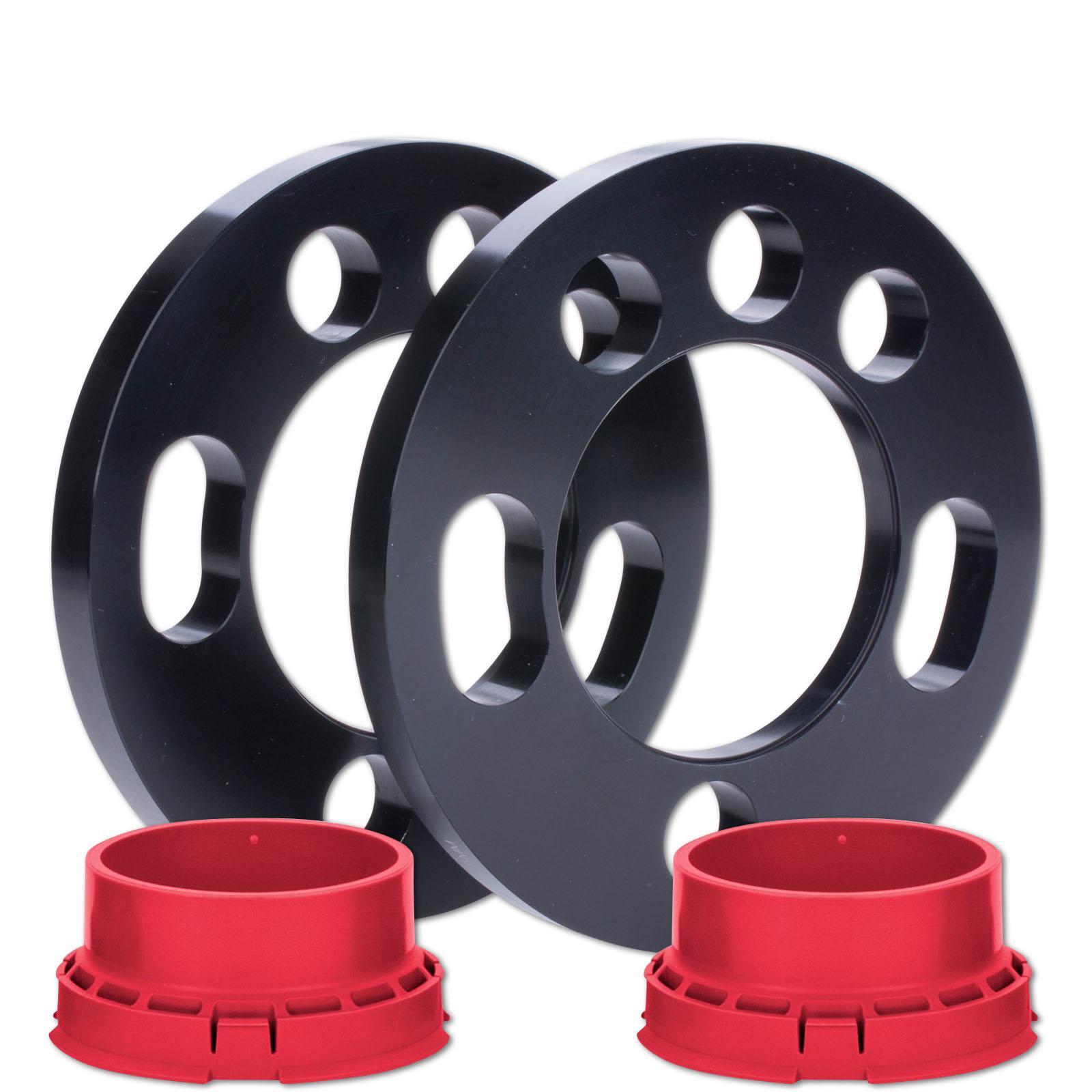

- Scope of delivery: 2 wheel spacers System DZX, 2 adapter rings System DZX
- Made of high-quality Aluminium
- Black anodized for perfect corrosion protection
- Dynamic performance of the vehicle / perfect look
- Improved driving dynamics by larger track width
- Matching wheel bolts available (in black and silver)

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
FORDB-MAX (JK) 10/2012-09/20171.0 EcoBoostMPVPetrol749983Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.0 EcoBoostMPVPetrol889983Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.0 EcoBoostMPVPetrol929983Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.0 EcoBoostMPVPetrol1039983Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.4MPVPetrol6613884Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.4 LPGMPVPetrol/Liquified Petroleum Gas (LPG)6413884Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.4 LPGMPVPetrol/Liquified Petroleum Gas (LPG)6613884Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.5 TDCiMPVDiesel5514994Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.5 TDCiMPVDiesel7014994Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.6 TDCiMPVDiesel7015604Front Wheel Drive
FORDB-MAX (JK) 10/2012-09/20171.6 TiMPVPetrol7715964Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.6MPVPetrol7415964Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.6MPVPetrol8515964Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.6 TDCiMPVDiesel6615604Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.6 TDCiMPVDiesel7415604Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.6 TDCiMPVDiesel8015604Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.8MPVPetrol9017984Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.8MPVPetrol9217984Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.8 FlexifuelMPVPetrol/Ethanol9217984Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20101.8 TDCiMPVDiesel8517534Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0MPVPetrol10719994Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0 CNGMPVPetrol/Compressed Natural Gas (CNG)10719994Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0 LPGMPVPetrol/Liquified Petroleum Gas (LPG)10719994Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0 TDCiMPVDiesel8119974Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0 TDCiMPVDiesel9819974Front Wheel Drive
FORDC-MAX (DM2) 02/2007-09/20102.0 TDCiMPVDiesel10019974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.0 EcoBoostMPVPetrol749983Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.0 EcoBoostMPVPetrol749993Front-Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.0 EcoBoostMPVPetrol929983Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.0 EcoBoostMPVPetrol929993Front-Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.5 EcoBoostMPVPetrol11014984Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.5 EcoBoostMPVPetrol13414984Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.5 TDCiMPVDiesel7014994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.5 TDCiMPVDiesel8814994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.5 TDCi ECOneticMPVDiesel7714994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 CNGMPVPetrol/Compressed Natural Gas (CNG)8615964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 EcoBoostMPVPetrol11015964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 EcoBoostMPVPetrol13415964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 FlexifuelMPVPetrol/Ethanol8815964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 LPGMPVPetrol/Liquified Petroleum Gas (LPG)8615964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 LPGMPVPetrol/Liquified Petroleum Gas (LPG)8815964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TDCiMPVDiesel7015604Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TDCiMPVDiesel8515604Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TiMPVPetrol6315964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TiMPVPetrol7715964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TiMPVPetrol8815964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20191.6 TiMPVPetrol9215964Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 EnergiMPVPetrol/Electric10319994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 EnergiMPVPetrol/Electric13619994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 HybridMPVPetrol/Electro14019994Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel8519974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel10019974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel10319974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel11019974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel12019974Front Wheel Drive
FORDC-MAX II (DXA/CB7, DXA/CEU) 04/2010-12/20192.0 TDCiMPVDiesel12519974Front Wheel Drive
FORDCOUGAR (EC_) BCV 08/1998-12/20012.0 16VCoupePetrol9619884Front Wheel Drive
FORDCOUGAR (EC_) BCV 08/1998-12/20012.5 ST 200CoupePetrol15124956Front Wheel Drive
FORDCOUGAR (EC_) BCV 08/1998-12/20012.5 V6 24VCoupePetrol12524956Front Wheel Drive
FORDCOUGAR (EC_) BCV 08/1998-12/20012.5 V6 24VCoupePetrol12525446Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.0 EcoBoostSUVPetrol709983Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.0 EcoBoostSUVPetrol749983Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.0 EcoBoostSUVPetrol929983Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.0 EcoBoostSUVPetrol1039983Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.5 EcoBlue TDCiSUVDiesel7014994Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.5 EcoBlue TDCiSUVDiesel7414994Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.5 TDCiSUVDiesel6614994Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.5 TDCiSUVDiesel6714994Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.5 TDCiSUVDiesel7414994Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.5 TDCi EcoBlueSUVDiesel8814994Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.5 TDCi EcoBlueSUVDiesel9214994Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.5 TDCi EcoBlue 4x4SUVDiesel9214994All-wheel Drive
FORDECOSPORT (JK8) 09/2011-1.5 TiSUVPetrol8214994Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.5 Ti-VCTSUVPetrol8114984Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.5 Ti-VCTSUVPetrol9014963Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-1.6 Ti-VCTSUVPetrol9015964Front Wheel Drive
FORDECOSPORT (JK8) 09/2011-2.0 4x4SUVPetrol10319994All-wheel Drive
FORDECOSPORT (JK8) 09/2011-2.0 Ti-VCT 4x4SUVPetrol11019994All-wheel Drive
FORDECOSPORT (JK8) 09/2011-2.0 Ti-VCT 4x4Closed Off-Road VehiclePetrol12419994All-wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.1HatchbackPetrol3711174Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.1HatchbackPetrol4011174Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.1HatchbackPetrol4311174Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.3HatchbackPetrol4313414Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.3HatchbackPetrol5112964Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6HatchbackPetrol4815554Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6HatchbackPetrol5815974Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6HatchbackPetrol7115974Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6 DHatchbackDiesel4016084Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6 i (GAA)HatchbackPetrol6615974Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6 RS TurboHatchbackPetrol9715974Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6 XR3iHatchbackPetrol7715974Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/1986RS 1600iHatchbackPetrol8515974Front Wheel Drive
FORDESCORT Mk III Convertible (ALD) 09/1983-12/19851.3ConvertiblePetrol5112964Front Wheel Drive
FORDESCORT Mk III Convertible (ALD) 09/1983-12/19851.6ConvertiblePetrol5815974Front Wheel Drive
FORDESCORT Mk III Convertible (ALD) 09/1983-12/19851.6 iConvertiblePetrol7715974Front Wheel Drive
FORDESCORT Mk III Turnier (AWA) 09/1980-12/19851.1EstatePetrol3711174Front Wheel Drive
FORDESCORT Mk III Turnier (AWA) 09/1980-12/19851.1EstatePetrol4011174Front Wheel Drive
FORDESCORT Mk III Turnier (AWA) 09/1980-12/19851.3EstatePetrol5112964Front Wheel Drive
FORDESCORT Mk III Turnier (AWA) 09/1980-12/19851.6EstatePetrol5815974Front Wheel Drive
FORDESCORT Mk III Turnier (AWA) 09/1980-12/19851.6 DEstateDiesel4016084Front Wheel Drive

Media

Media

Installation Instruction: PDF
Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 323: Attention: Due to the flat seated rim holes, the ST shaft lug nuts equipped with 60° taper seat can not be used. Instead, longer wheel studs have to be used for mounting the rim with the original flat seated wheel nuts
  • Note 320: ST shaft nuts with a 60° taper seat must be used to mount the wheel. The mounting holes of the wheel must have 60° taper seat, too. Additionally please check before assembly if the shaft of the ST shaft nut fits through the mounting holes of the wheel. ST shaft nuts can only be used in combination with system DZX. ST shaft nuts must be ordered seperately. ATTENTION! Pleases consider minimum thread engagement. M12x1.25 at least 12.0 turns (15mm supporting thread) M12x1.50 at least 10.0 turns (15mm supporting thread) M14x1.50 at least 12.5 turns (19mm supporting thread) 1/2“ at least 12.0 turns (16mm supporting thread)
