Wheel Spacer System DZX 25mm Axle 4-and 5-hole

56050154

Stock: Backorder Available

AU$299.00 Inc GST
  • Attention! Additionally please order longer wheel bolts or shaft nuts!

Description

Description

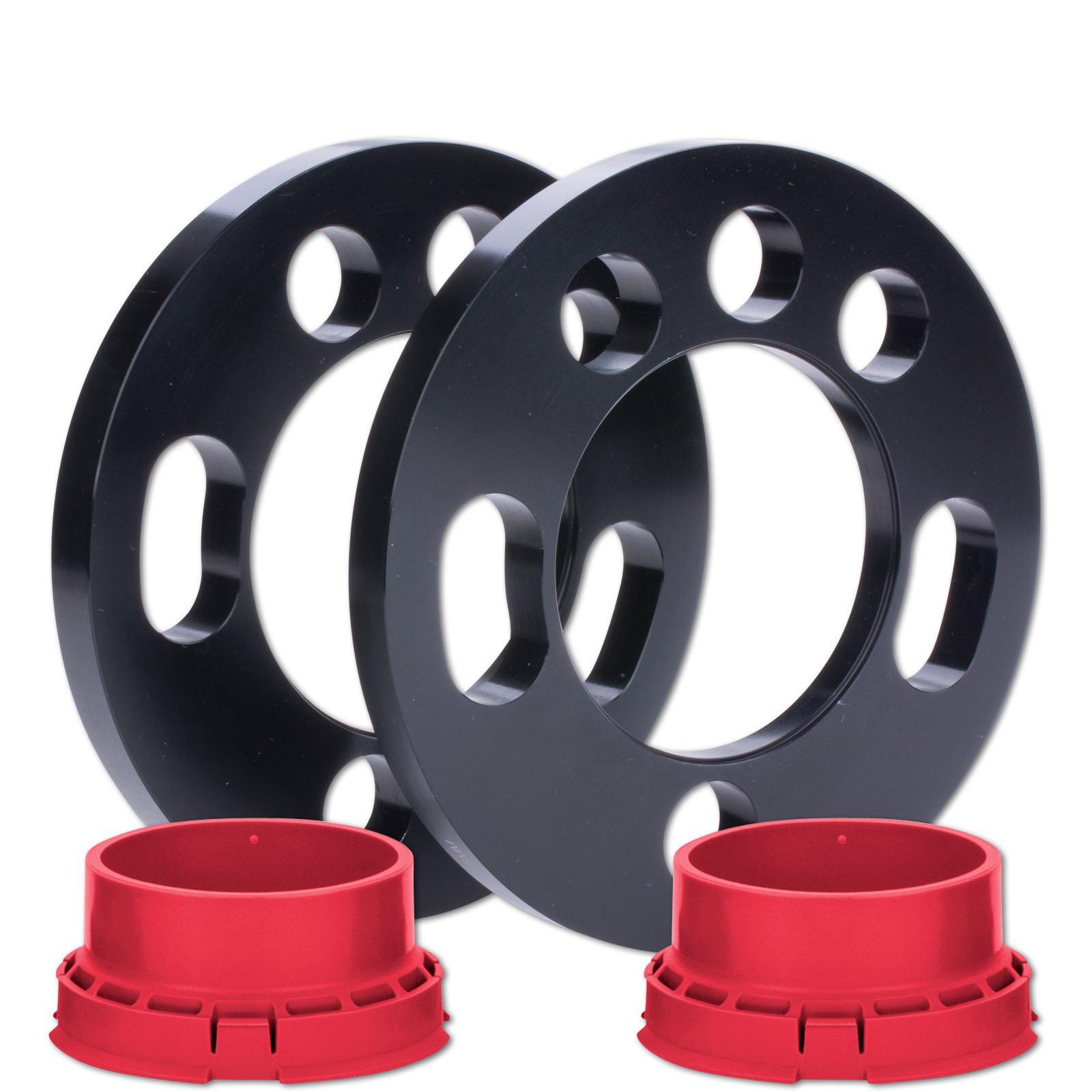

Wheel Spacer System DZX 25mm Axle 4-and 5-hole

System DZX
12,5, 15, 17,5, 20, 22,5, 25, 27,5, 30, 32,5 or 35mm per wheel

Through-hole wheel spacer system with multi PCD bolt-holes and fiber-reinforced, interchangeable composite center adapters. The wheel spacer accurately centers on the wheel hub by the self-centering adapter. The multi-bolt holes enable the spacer to be used on cars with both 4 and 5 stud mountings and up to seven different pitch circle diameters. The interchangeable center hub adapter allows the spacer to be used on many different hub center bore sizes. Longer wheel bolts are required.

- Scope of delivery: 2 wheel spacers System DZX, 2 adapter rings System DZX
- Made of high-quality Aluminium
- Black anodized for perfect corrosion protection
- Dynamic performance of the vehicle / perfect look
- Improved driving dynamics by larger track width
- Matching wheel bolts available (in black and silver)

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
SUBARUIMPREZA Hatchback (G3, GR, GH) 03/2007-05/20142.5 STI CS400 AWDHatchbackPetrol29424574All-wheel Drive
SUBARUIMPREZA Hatchback (G3, GR, GH) 03/2007-05/20142.5 WRX STI AWD (GRF)HatchbackPetrol22124574All-wheel Drive
SUBARUIMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/20092.5 i WRX STI AWDSaloonPetrol19524574All-wheel Drive
SUBARUIMPREZA Saloon GD (GD/GG, GD/GGS) 09/1999-06/20092.5 WRX STi AWD (GDF)SaloonPetrol20624574All-wheel Drive
SUBARUIMPREZA Saloon GR (G3) 01/2007-2.5 WRX STI AWDSaloonPetrol22124574All-wheel Drive
SUBARUSVX (CX) 09/1992-12/19973.3CoupePetrol17133196Front Wheel Drive
SUBARUSVX (CX) 09/1992-12/19973.3 AWDCoupePetrol17133196All-wheel Drive
SUBARUSVX (CX) 09/1992-12/19973.3 AWDCoupePetrol18433196All-wheel Drive
SUBARUSVX (CX) 09/1992-12/19973.3 i 24V 4WD (CXW)CoupePetrol16233196All-wheel Drive
SUBARUSVX (CX) 09/1992-12/19973.3 i 24V 4WD (CXW)CoupePetrol16933196All-wheel Drive
SUBARUWRX Saloon (GJ, V1) 07/2011-2,5 WRX STi AWDSaloonPetrol22124574All-wheel Drive
SUBARUWRX Saloon (GJ, V1) 07/2011-STi 2.0 AWDSaloonPetrol22719944All-wheel Drive
SUBARUWRX Saloon (GJ, V1) 07/2011-STi 2.5 AWDSaloonPetrol22724574All-wheel Drive

Media

Media

Installation Instruction: PDF

Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 320: ST shaft nuts with a 60° taper seat must be used to mount the wheel. The mounting holes of the wheel must have 60° taper seat, too. Additionally please check before assembly if the shaft of the ST shaft nut fits through the mounting holes of the wheel. ST shaft nuts can only be used in combination with system DZX. ST shaft nuts must be ordered seperately. ATTENTION! Pleases consider minimum thread engagement. M12x1.25 at least 12.0 turns (15mm supporting thread) M12x1.50 at least 10.0 turns (15mm supporting thread) M14x1.50 at least 12.5 turns (19mm supporting thread) 1/2“ at least 12.0 turns (16mm supporting thread)
