Wheel Spacer System DZX 35mm Axle 4-and 5-hole

56050069
ST Suspension

Stock: Backorder Available

AU$329.00 Inc GST
  • Attention! Additionally please order longer wheel bolts or shaft nuts!

Description

Description

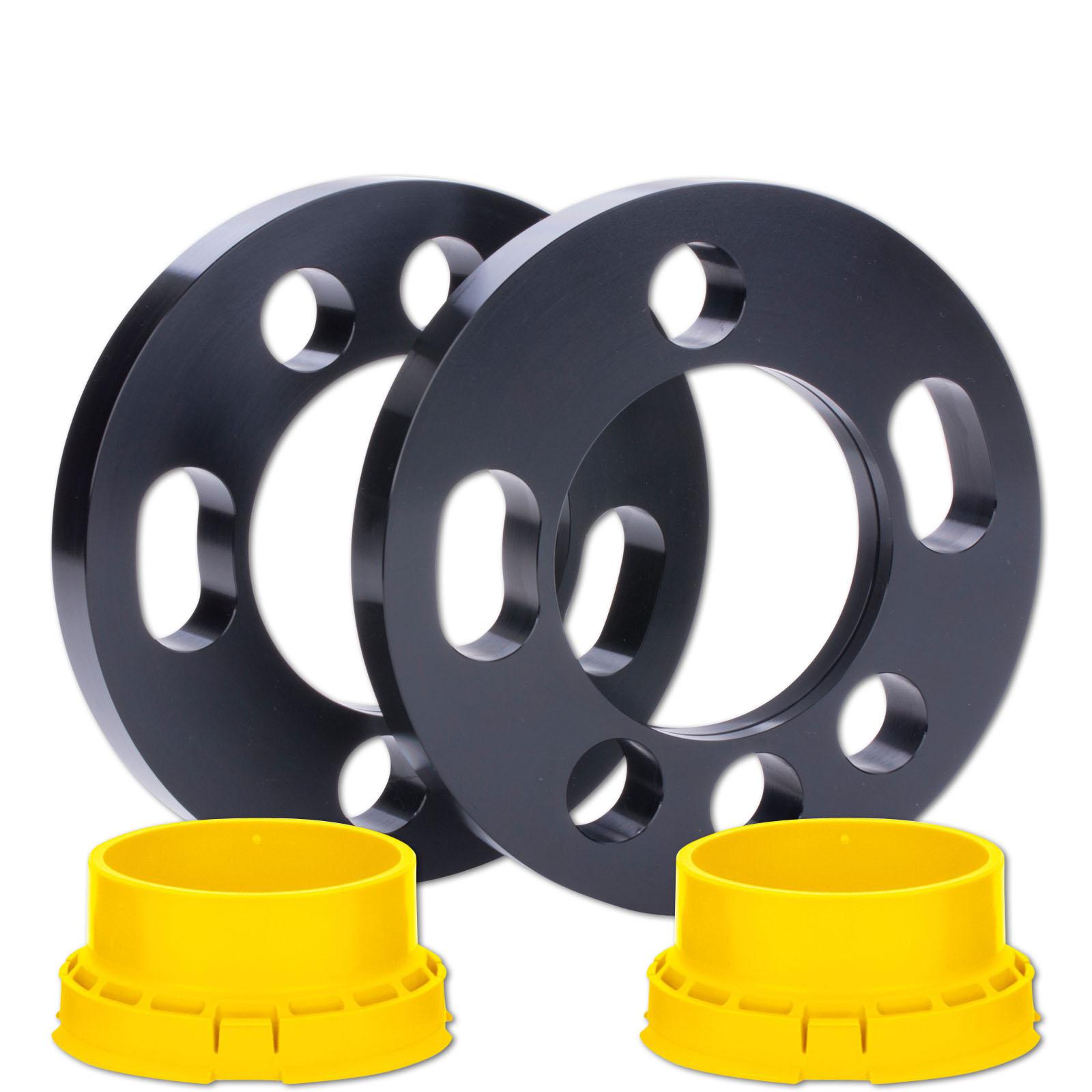

Wheel Spacer System DZX 35mm Axle 4-and 5-hole

System DZX
12,5, 15, 17,5, 20, 22,5, 25, 27,5, 30, 32,5 or 35mm per wheel

Through-hole wheel spacer system with multi PCD bolt-holes and fiber-reinforced, interchangeable composite center adapters. The wheel spacer accurately centers on the wheel hub by the self-centering adapter. The multi-bolt holes enable the spacer to be used on cars with both 4 and 5 stud mountings and up to seven different pitch circle diameters. The interchangeable center hub adapter allows the spacer to be used on many different hub center bore sizes. Longer wheel bolts are required.

- Scope of delivery: 2 wheel spacers System DZX, 2 adapter rings System DZX
- Made of high-quality Aluminium
- Black anodized for perfect corrosion protection
- Dynamic performance of the vehicle / perfect look
- Improved driving dynamics by larger track width
- Matching wheel bolts available (in black and silver)

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
FIATSEDICI (FY_) 06/2006-10/20141.6 16VSUVPetrol7915864Front Wheel Drive
FIATSEDICI (FY_) 06/2006-10/20141.6 16VSUVPetrol8815864Front Wheel Drive
FIATSEDICI (FY_) 06/2006-10/20141.6 16V 4x4SUVPetrol7915864All-wheel Drive
FIATSEDICI (FY_) 06/2006-10/20141.6 16V 4x4SUVPetrol8815864All-wheel Drive
FIATSEDICI (FY_) 06/2006-10/20141.9 D MultijetSUVDiesel8819104Front Wheel Drive
FIATSEDICI (FY_) 06/2006-10/20141.9 D Multijet 4x4SUVDiesel8819104All-wheel Drive
FIATSEDICI (FY_) 06/2006-10/20142.0 D MultijetSUVDiesel9919564Front Wheel Drive
FIATSEDICI (FY_) 06/2006-10/20142.0 D Multijet 4x4SUVDiesel9919564All-wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-1.6Geländewagen geschlossenBenzin8815864Frontantrieb
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-1.6 (JB416)Closed Off-Road VehiclePetrol7815864Rear Wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-1.6 All-wheel Drive (JB416)Closed Off-Road VehiclePetrol7715864All-wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-1.6 All-wheel Drive (JB416)Closed Off-Road VehiclePetrol7815864All-wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-1.6 All-wheel Drive (TA74, JB416)Closed Off-Road VehiclePetrol7315864All-wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-1.6 AllradGeländewagen geschlossenBenzin8815864Allrad
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-1.9 DDiS (JB419WD, JB419XD)Closed Off-Road VehicleDiesel9518704Rear Wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-1.9 DDiS All-wheel Drive (JT419, TD44, JB419WD, JB419XD)Closed Off-Road VehicleDiesel9518704All-wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-2.0 (JB420)Closed Off-Road VehiclePetrol10319954Rear Wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-2.0 (JB420)Closed Off-Road VehiclePetrol10719954All-wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-2.0 All-wheel Drive (TD54, JB420)Closed Off-Road VehiclePetrol10319954All-wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-2.0 Allrad (JB420)Geländewagen geschlossenBenzin9519954Allrad
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-2.4 (JB424)Closed Off-Road VehiclePetrol12223934Rear Wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-2.4 (JB424)Closed Off-Road VehiclePetrol12423934Rear Wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-2.4 All-wheel Drive (JB424)Closed Off-Road VehiclePetrol12423934All-wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-2.4 All-wheel Drive (JT424, JB424)Closed Off-Road VehiclePetrol12223934All-wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-2.7 (JB627)Closed Off-Road VehiclePetrol13827366Rear Wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-3.2 (JB632)Closed Off-Road VehiclePetrol17131956Rear Wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-3.2 All-wheel Drive (JB632)Closed Off-Road VehiclePetrol16531956All-wheel Drive
SUZUKIGRAND VITARA II (JT, TE, TD) 04/2005-3.2 All-wheel Drive (TDB4, JT632, JB632)Closed Off-Road VehiclePetrol17131956All-wheel Drive
SUZUKIKIZASHI (FR) 10/2010-12/20152.4 (A6B 424)SaloonPetrol13123934Front Wheel Drive
SUZUKIKIZASHI (FR) 10/2010-12/20152.4 (A6B 424)SaloonPetrol13423934Front Wheel Drive
SUZUKIKIZASHI (FR) 10/2010-12/20152.4 (A6B 424)SaloonPetrol13523934Front Wheel Drive
SUZUKIKIZASHI (FR) 10/2010-12/20152.4 (A6B 424)SaloonPetrol13623934Front Wheel Drive
SUZUKIKIZASHI (FR) 10/2010-12/20152.4 (A6B 424)SaloonPetrol13823934Front Wheel Drive
SUZUKIKIZASHI (FR) 10/2010-12/20152.4 4WD (A6B 424)SaloonPetrol13823934All-wheel Drive
SUZUKIKIZASHI (FR) 10/2010-12/20152.4 4x4 (A6B 424)SaloonPetrol13123934All-wheel Drive
SUZUKIKIZASHI (FR) 10/2010-12/20152.4 AWD (A6B 424)SaloonPetrol13423934All-wheel Drive
SUZUKIKIZASHI (FR) 10/2010-12/20152.4 AWD (A6B 424)SaloonPetrol13523934All-wheel Drive
SUZUKIKIZASHI (FR) 10/2010-12/20152.4 LPG 4x4 (A6B42)SaloonPetrol/Liquified Petroleum Gas (LPG)13123934All-wheel Drive
SUZUKISWIFT III (FZ, NZ) 10/2010-1.6 (AZG 416, AZH 416, RS416)HatchbackPetrol10015864Front Wheel Drive
SUZUKISWIFT III (MZ, EZ) 02/2005-1.6 (RS 416)HatchbackPetrol9215864Front Wheel Drive
SUZUKISX4 (EY, GY) 06/2006-12/20151.5 (RW 415)HatchbackPetrol7314904Front Wheel Drive
SUZUKISX4 (EY, GY) 06/2006-12/20151.6 DDIS (RW 416D)HatchbackDiesel6615604Front Wheel Drive
SUZUKISX4 (EY, GY) 06/2006-12/20151.6 VVTHatchbackPetrol8115864Front-Wheel Drive
SUZUKISX4 (EY, GY) 06/2006-12/20151.6 VVT (RW 416)HatchbackPetrol8815864Front Wheel Drive
SUZUKISX4 (EY, GY) 06/2006-12/20151.6 VVT 4x4HatchbackPetrol8115864All-wheel Drive
SUZUKISX4 (EY, GY) 06/2006-12/20151.6 VVT 4x4 (RW 416)HatchbackPetrol7915864All-wheel Drive
SUZUKISX4 (EY, GY) 06/2006-12/20151.6 VVT 4x4 (RW 416)HatchbackPetrol8815864All-wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.0 (AKK 310)HatchbackPetrol829983Front Wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.0 AllGrip (AKK 310)HatchbackPetrol829983All-wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.4 Hybrid (Mild Hybrid) (AKK 414)HatchbackPetrol/Electric9513734Front Wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.4 Hybrid (Mild Hybrid) AllGrip (AKK 414)HatchbackPetrol/Electric9513734All-wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.4 T (AKK 414)HatchbackPetrol10313734Front Wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.4 T AllGrip (AKK 414)HatchbackPetrol10313734All-wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.4 Turbo 4StyleHatchbackPetrol10713734Front Wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.6 (AKK 416)HatchbackPetrol8615864Front Wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.6 (AKK 416)HatchbackPetrol8815864Front Wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.6 (AKK416)HatchbackPetrol8515864Front Wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.6 AllGrip (AKK 416)HatchbackPetrol8615864All-wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.6 AllGrip (AKK 416)HatchbackPetrol8815864All-wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.6 AllGrip (AKK416)HatchbackPetrol8515864All-wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.6 DDiS (AKK 416D)HatchbackDiesel8815984Front Wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.6 DDiS AllGrip (AKK 416D)HatchbackDiesel8815984All-wheel Drive
SUZUKISX4 S-Cross (JY) 08/2013-1.6 VVTHatchbackPetrol9315864Front Wheel Drive
SUZUKISX4 Saloon (GY, RW) 10/2007-12/20141.6 (RW 416)SaloonPetrol7915864Front Wheel Drive
SUZUKISX4 Saloon (GY, RW) 10/2007-12/20141.6 (RW 416)SaloonPetrol8815864Front Wheel Drive

Media

Media

Installation Instruction: PDF
Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 320: ST shaft nuts with a 60° taper seat must be used to mount the wheel. The mounting holes of the wheel must have 60° taper seat, too. Additionally please check before assembly if the shaft of the ST shaft nut fits through the mounting holes of the wheel. ST shaft nuts can only be used in combination with system DZX. ST shaft nuts must be ordered seperately. ATTENTION! Pleases consider minimum thread engagement. M12x1.25 at least 12.0 turns (15mm supporting thread) M12x1.50 at least 10.0 turns (15mm supporting thread) M14x1.50 at least 12.5 turns (19mm supporting thread) 1/2“ at least 12.0 turns (16mm supporting thread)
