Wheel Spacer System DZX 40mm Axle 4-and 5-hole

56050139
ST Suspension

Stock: Backorder Available

AU$349.00 Inc GST
  • Attention! Additionally please order longer wheel bolts or shaft nuts!

Description

Description

Wheel Spacer System DZX 40mm Axle 4-and 5-hole

System DZX
12,5, 15, 17,5, 20, 22,5, 25, 27,5, 30, 32,5 or 35mm per wheel

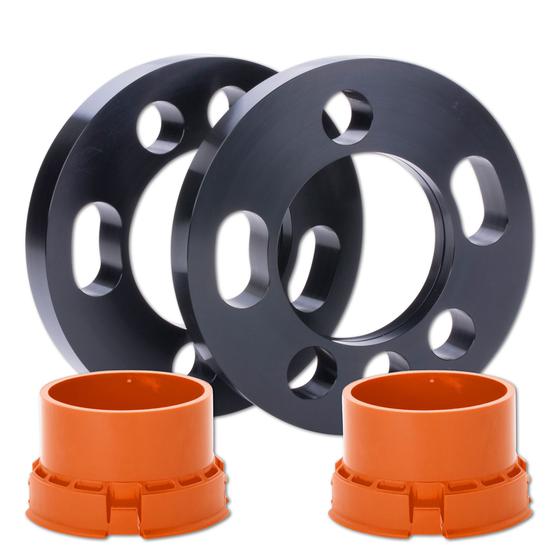

Through-hole wheel spacer system with multi PCD bolt-holes and fiber-reinforced, interchangeable composite center adapters. The wheel spacer accurately centers on the wheel hub by the self-centering adapter. The multi-bolt holes enable the spacer to be used on cars with both 4 and 5 stud mountings and up to seven different pitch circle diameters. The interchangeable center hub adapter allows the spacer to be used on many different hub center bore sizes. Longer wheel bolts are required.

- Scope of delivery: 2 wheel spacers System DZX, 2 adapter rings System DZX
- Made of high-quality Aluminium
- Black anodized for perfect corrosion protection
- Dynamic performance of the vehicle / perfect look
- Improved driving dynamics by larger track width
- Matching wheel bolts available (in black and silver)

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.1HatchbackPetrol3711174Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.1HatchbackPetrol4011174Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.1HatchbackPetrol4311174Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.3HatchbackPetrol4313414Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.3HatchbackPetrol5112964Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6HatchbackPetrol4815554Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6HatchbackPetrol5815974Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6HatchbackPetrol7115974Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6 DHatchbackDiesel4016084Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6 i (GAA)HatchbackPetrol6615974Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6 RS TurboHatchbackPetrol9715974Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/19861.6 XR3iHatchbackPetrol7715974Front Wheel Drive
FORDESCORT III (GAA, AWA, ABET) 09/1980-07/1986RS 1600iHatchbackPetrol8515974Front Wheel Drive
FORDESCORT Mk III Turnier (AWA) 09/1980-12/19851.1EstatePetrol3711174Front Wheel Drive
FORDESCORT Mk III Turnier (AWA) 09/1980-12/19851.1EstatePetrol4011174Front Wheel Drive
FORDESCORT Mk III Turnier (AWA) 09/1980-12/19851.3EstatePetrol5112964Front Wheel Drive
FORDESCORT Mk III Turnier (AWA) 09/1980-12/19851.6EstatePetrol5815974Front Wheel Drive
FORDESCORT Mk III Turnier (AWA) 09/1980-12/19851.6 DEstateDiesel4016084Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.1HatchbackPetrol3711174Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.3HatchbackPetrol4412974Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.3HatchbackPetrol5112964Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.3 (GAF)HatchbackPetrol4612974Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.4HatchbackPetrol5113924Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.4HatchbackPetrol5413924Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.4HatchbackPetrol5513924Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.6HatchbackPetrol5815974Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.6HatchbackPetrol6515984Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.6 DHatchbackDiesel4016084Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.6 iHatchbackPetrol6615984Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.6 iHatchbackPetrol7515974Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.6 Turbo RSHatchbackPetrol9715974Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.6 XR3iHatchbackPetrol7715974Front Wheel Drive
FORDESCORT Mk IV (GAF, AWF, ABFT) 03/1983-10/19901.8 DHatchbackDiesel4417534Front Wheel Drive
FORDFIESTA I (GFBT, WFBT) 05/1976-08/19830.9HatchbackPetrol299574Front Wheel Drive
FORDFIESTA I (GFBT, WFBT) 05/1976-08/19830.9HatchbackPetrol339574Front Wheel Drive
FORDFIESTA I (GFBT, WFBT) 05/1976-08/19831.1HatchbackPetrol3911174Front Wheel Drive
FORDFIESTA I (GFBT, WFBT) 05/1976-08/19831.1 (WFBT)HatchbackPetrol4011174Front Wheel Drive
FORDFIESTA I (GFBT, WFBT) 05/1976-08/19831.3HatchbackPetrol4912974Front Wheel Drive
FORDFIESTA I (GFBT, WFBT) 05/1976-08/19831.6HatchbackPetrol6115984Rear Wheel Drive
FORDFIESTA I (GFBT, WFBT) 05/1976-08/19831.6 XR2HatchbackPetrol6215984Front Wheel Drive
FORDFIESTA I (GFBT, WFBT) 05/1976-08/19831.6 XR2HatchbackPetrol7115984Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.0 (FBD)HatchbackPetrol339574Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.1 (FBD)HatchbackPetrol3611174Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.1 (FBD)HatchbackPetrol3711174Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.3HatchbackPetrol5112974Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.3 (FBD)HatchbackPetrol5112984Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.4HatchbackPetrol5113924Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.4 (FBD)HatchbackPetrol5213924Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.4 (FBD)HatchbackPetrol5413924Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.4 (FBD)HatchbackPetrol5513924Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.6HatchbackPetrol5815974Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.6 D (FBD)HatchbackDiesel4016084Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.6 XR2 (FBD)HatchbackPetrol7015974Front Wheel Drive
FORDFIESTA Mk II (FBD) 09/1983-11/19891.6 XR2 (FBD)HatchbackPetrol7115974Front Wheel Drive
FORDORION   (AFD) 07/1983-03/19861.3SaloonPetrol5112964Front Wheel Drive
FORDORION   (AFD) 07/1983-03/19861.6SaloonPetrol5815974Front Wheel Drive
FORDORION   (AFD) 07/1983-03/19861.6 DSaloonDiesel4016084Front Wheel Drive
FORDORION   (AFD) 07/1983-03/19861.6 iSaloonPetrol7715974Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.3SaloonPetrol4412974Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.3SaloonPetrol5112964Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.4SaloonPetrol5213924Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.4SaloonPetrol5413924Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.4SaloonPetrol5513924Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.4 CatSaloonPetrol5413924Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.6SaloonPetrol6515974Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.6SaloonPetrol6615974Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.6 DSaloonDiesel4016084Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.6 iSaloonPetrol7515974Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.6 iSaloonPetrol7715974Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.6 i CatSaloonPetrol6615974Front Wheel Drive
FORDORION Mk II (AFF) 12/1985-07/19901.8 DSaloonDiesel4417534Front Wheel Drive
FORDPUMA 09/2019-1.0 EcoBoostSUVPetrol709983Front Wheel Drive
FORDPUMA 09/2019-1.0 EcoBoostSUVPetrol929983Front Wheel Drive
FORDPUMA 09/2019-1.0 EcoBoost mHEVSUVPetrol/Electric929983Front Wheel Drive
FORDPUMA 09/2019-1.0 EcoBoost mHEVSUVPetrol/Electric1149983Front Wheel Drive
FORDPUMA 09/2019-1.0 EcoBoost mHEVSUVPetrol/Electric1189993Front-Wheel Drive
FORDPUMA 09/2019-1.0 FlexifuelSUVPetrol/Ethanol929993Front-Wheel Drive
FORDPUMA 09/2019-1.0 ST EcoBoost mHEVSUVPetrol/Electric1259993Front-Wheel Drive
FORDPUMA 09/2019-1.5 EcoBlueSUVDiesel8814994Front Wheel Drive
FORDPUMA 09/2019-ST 1.5 EcoBoostSUVPetrol14714963Front Wheel Drive
SMART#1 (HX11) JL7000 06/2022-EVSUVElectric20000Rear-Wheel Drive
SMART#1 (HX11) JL7000 06/2022-EV All-wheel DriveSUVElectric31500All-wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20181.5 T2SaloonPetrol9014984Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20181.5 T3SaloonPetrol11214984Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.0 D2SaloonDiesel8819694Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.0 D3SaloonDiesel11019694Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.0 D4SaloonDiesel14019694Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.0 D5SaloonDiesel16519694Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.0 Polestar AWDSaloonPetrol27019694All-wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.0 TSaloonPetrol13219845Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.0 TSaloonPetrol14919994Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.0 T3SaloonPetrol11219694Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.0 T4SaloonPetrol14019694Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.0 T5 DRIVeSaloonPetrol18019994Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.4 D4 AWDSaloonDiesel14024005All-wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.5 TSaloonPetrol18324975Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.5 T5SaloonPetrol18625215Front Wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20182.5 T5 AWDSaloonPetrol18625215All-wheel Drive
VOLVOS60 II (134, F) 04/2010-12/20183.0 T AWDSaloonPetrol25829536All-wheel Drive
VOLVOS60 II (134, F) 04/2010-12/2018D3SaloonDiesel10019845Front Wheel Drive

Media

Media

Installation Instruction: PDF
Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 329: Please consider the maximum total offset and all mentioned notes and restrictions in the certificate. The total offset is the result of the difference of the offset at the used wheel and the thickness of the wheel spacers (for example rim offset+35mm & wheel spacers 15mm = total offset +20mm)
  • Note 320: ST shaft nuts with a 60° taper seat must be used to mount the wheel. The mounting holes of the wheel must have 60° taper seat, too. Additionally please check before assembly if the shaft of the ST shaft nut fits through the mounting holes of the wheel. ST shaft nuts can only be used in combination with system DZX. ST shaft nuts must be ordered seperately. ATTENTION! Pleases consider minimum thread engagement. M12x1.25 at least 12.0 turns (15mm supporting thread) M12x1.50 at least 10.0 turns (15mm supporting thread) M14x1.50 at least 12.5 turns (19mm supporting thread) 1/2“ at least 12.0 turns (16mm supporting thread)
