Wheel Spacer System DZX 45mm Axle 4-and 5-hole

56050134
ST Suspension

Stock: Backorder Available

AU$359.00 Inc GST
  • Attention! Additionally please order longer wheel bolts or shaft nuts!

Description

Description

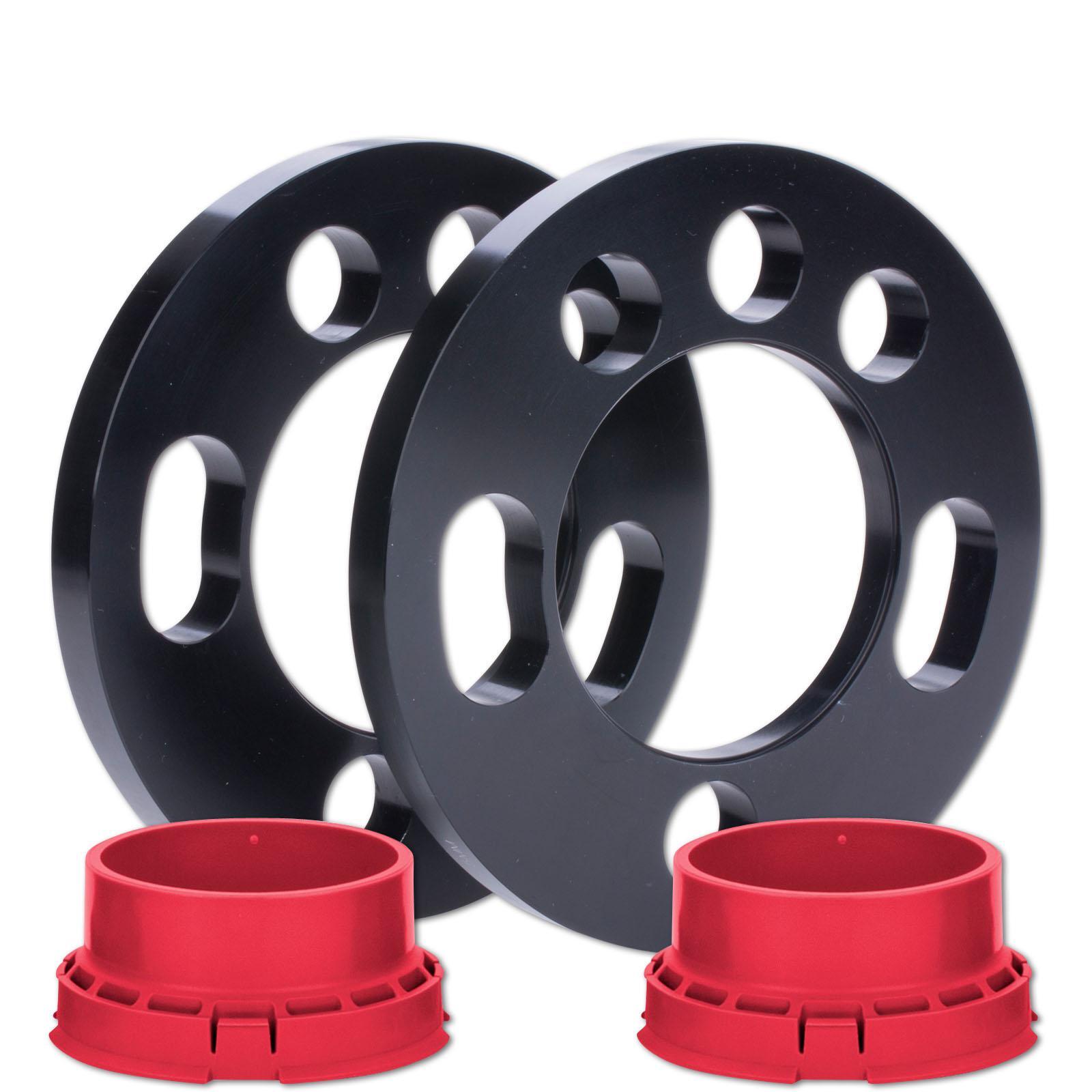

Wheel Spacer System DZX 45mm Axle 4-and 5-hole

System DZX
12,5, 15, 17,5, 20, 22,5, 25, 27,5, 30, 32,5 or 35mm per wheel

Through-hole wheel spacer system with multi PCD bolt-holes and fiber-reinforced, interchangeable composite center adapters. The wheel spacer accurately centers on the wheel hub by the self-centering adapter. The multi-bolt holes enable the spacer to be used on cars with both 4 and 5 stud mountings and up to seven different pitch circle diameters. The interchangeable center hub adapter allows the spacer to be used on many different hub center bore sizes. Longer wheel bolts are required.

- Scope of delivery: 2 wheel spacers System DZX, 2 adapter rings System DZX
- Made of high-quality Aluminium
- Black anodized for perfect corrosion protection
- Dynamic performance of the vehicle / perfect look
- Improved driving dynamics by larger track width
- Matching wheel bolts available (in black and silver)

Fitment

Fitment

MakeModelTypeBody TypeAspirationKWCCMCylDrivetrain
ABARTHGRANDE PUNTO (199_) 12/2007-12/20121.4 AbarthHatchbackPetrol11413684Front Wheel Drive
ABARTHGRANDE PUNTO (199_) 12/2007-12/20121.4 AbarthHatchbackPetrol13213684Front Wheel Drive
ABARTHPUNTO (199_) 03/2012-1.4 (199.BX)HatchbackPetrol10713684Front Wheel Drive
ABARTHPUNTO (199_) 03/2012-1.4 AbarthHatchbackPetrol12013684Front Wheel Drive
ABARTHPUNTO (199_) 03/2012-1.4 AbarthHatchbackPetrol13213684Front Wheel Drive
ABARTHPUNTO EVO (199_) 07/2008-02/20121.4 (199.AXX1B)HatchbackPetrol12013684Front Wheel Drive
DAEWOOESPERO (KLEJ) 10/1991-09/19991.5SaloonPetrol5514984Front Wheel Drive
DAEWOOESPERO (KLEJ) 10/1991-09/19991.5 16VSaloonPetrol6514984Front Wheel Drive
DAEWOOESPERO (KLEJ) 10/1991-09/19991.5 16VSaloonPetrol6614984Front Wheel Drive
DAEWOOESPERO (KLEJ) 10/1991-09/19991.8SaloonPetrol6617964Front Wheel Drive
DAEWOOESPERO (KLEJ) 10/1991-09/19991.8SaloonPetrol7017964Front Wheel Drive
DAEWOOESPERO (KLEJ) 10/1991-09/19992.0SaloonPetrol7419984Front Wheel Drive
DAEWOOESPERO (KLEJ) 10/1991-09/19992.0SaloonPetrol7719984Front Wheel Drive
DAEWOOESPERO (KLEJ) 10/1991-09/19992.0SaloonPetrol8119984Front Wheel Drive
DAEWOOESPERO (KLEJ) 10/1991-09/19992.0SaloonPetrol8419984Front Wheel Drive
DAEWOOLANOS (KLAT) 04/1997-12/20021.3HatchbackPetrol5513494Front Wheel Drive
DAEWOOLANOS (KLAT) 04/1997-12/20021.5HatchbackPetrol6314984Front Wheel Drive
DAEWOOLANOS (KLAT) 04/1997-12/20021.5HatchbackPetrol7314984Front Wheel Drive
DAEWOOLANOS (KLAT) 04/1997-12/20021.6 16VHatchbackPetrol7815984Front Wheel Drive
DAEWOOLANOS Saloon (KLAT) 02/1997-12/20021.3SaloonPetrol5513494Front Wheel Drive
DAEWOOLANOS Saloon (KLAT) 02/1997-12/20021.5SaloonPetrol6314984Front Wheel Drive
DAEWOOLANOS Saloon (KLAT) 02/1997-12/20021.5SaloonPetrol7314984Front Wheel Drive
DAEWOOLANOS Saloon (KLAT) 02/1997-12/20021.6 16VSaloonPetrol7815984Front Wheel Drive
DAEWOONEXIA (KLETN) 02/1995-08/19971.5 (08, 68)HatchbackPetrol4414984Front Wheel Drive
DAEWOONEXIA (KLETN) 02/1995-08/19971.5 (08, 68)HatchbackPetrol5214984Front Wheel Drive
DAEWOONEXIA (KLETN) 02/1995-08/19971.5 (08, 68)HatchbackPetrol5514984Front Wheel Drive
DAEWOONEXIA (KLETN) 02/1995-08/19971.5 16V (08, 68)HatchbackPetrol6614984Front Wheel Drive
DAEWOONEXIA Saloon (KLETN) 02/1995-06/20081.5 (19)SaloonPetrol4414984Front Wheel Drive
DAEWOONEXIA Saloon (KLETN) 02/1995-06/20081.5 (19)SaloonPetrol5214984Front Wheel Drive
DAEWOONEXIA Saloon (KLETN) 02/1995-06/20081.5 (19)SaloonPetrol5514984Front Wheel Drive
DAEWOONEXIA Saloon (KLETN) 02/1995-06/20081.5 (19)SaloonPetrol5914984Front Wheel Drive
DAEWOONEXIA Saloon (KLETN) 02/1995-06/20081.5 16V (19)SaloonPetrol6614984Front Wheel Drive
DAEWOONEXIA Saloon (KLETN) 02/1995-06/20081.6 (19)SaloonPetrol6815984Front Wheel Drive
DAEWOONEXIA Saloon (KLETN) 02/1995-06/20081.6 (19)SaloonPetrol8015984Front Wheel Drive
DAEWOONEXIA Saloon (KLETN) 02/1995-06/20081.8 (19)SaloonPetrol7417964Front Wheel Drive
DAEWOONUBIRA (J100) KLAJ 04/1997-07/20031.6HatchbackPetrol7615984Front Wheel Drive
DAEWOONUBIRA (J100) KLAJ 04/1997-07/20031.6 16VHatchbackPetrol7815984Front Wheel Drive
DAEWOONUBIRA (J100) KLAJ 04/1997-07/20032.0HatchbackPetrol9619984Front Wheel Drive
DAEWOONUBIRA (J100) KLAJ 04/1997-07/20032.0 16VHatchbackPetrol9819984Front Wheel Drive
DAEWOONUBIRA (J100) KLAJ 04/1997-07/20032.0 CDXHatchbackPetrol9319984Front Wheel Drive
DAEWOONUBIRA Saloon (J100) KLAJ 04/1997-07/20031.6 16VSaloonPetrol7615984Front Wheel Drive
DAEWOONUBIRA Saloon (J100) KLAJ 04/1997-07/20031.6 16VSaloonPetrol7815984Front Wheel Drive
DAEWOONUBIRA Saloon (J100) KLAJ 04/1997-07/20031.8 16VSaloonPetrol10017964Front Wheel Drive
DAEWOONUBIRA Saloon (J100) KLAJ 04/1997-07/20032.0SaloonPetrol8119984Front Wheel Drive
DAEWOONUBIRA Saloon (J100) KLAJ 04/1997-07/20032.0SaloonPetrol9619984Front Wheel Drive
DAEWOONUBIRA Saloon (J100) KLAJ 04/1997-07/20032.0 16VSaloonPetrol9319984Front Wheel Drive
DAEWOONUBIRA Saloon (J100) KLAJ 04/1997-07/20032.0 16VSaloonPetrol9819984Front Wheel Drive
DAEWOONUBIRA Wagon (J100) KLAJ 04/1997-12/20021.6 16VEstatePetrol6615984Front Wheel Drive
DAEWOONUBIRA Wagon (J100) KLAJ 04/1997-12/20021.6 16VEstatePetrol7615984Front Wheel Drive
DAEWOONUBIRA Wagon (J100) KLAJ 04/1997-12/20021.6 16VEstatePetrol7815984Front Wheel Drive
DAEWOONUBIRA Wagon (J100) KLAJ 04/1997-12/20022.0EstatePetrol9619984Front Wheel Drive
DAEWOONUBIRA Wagon (J100) KLAJ 04/1997-12/20022.0 16VEstatePetrol9319984Front Wheel Drive
DAEWOONUBIRA Wagon (J100) KLAJ 04/1997-12/20022.0 16VEstatePetrol9819984Front Wheel Drive
DAEWOONUBIRA Wagon (J100) KLAJ 04/1997-12/20022.0 LPGEstatePetrol/Liquified Petroleum Gas (LPG)9819984Front-Wheel Drive
DAEWOORACER Hatchback (KLET) 01/1986-12/19971.5HatchbackPetrol5214984Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-1.6SchrägheckBenzin8515984Frontantrieb
FIATGRANDE PUNTO (199_) 06/2005-12/20151.2HatchbackPetrol4812424Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.2HatchbackPetrol5011724Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.2HatchbackPetrol5112424Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.2 LPGHatchbackPetrol/Liquified Petroleum Gas (LPG)5112424Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D MultijetHatchbackDiesel5112484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D MultijetHatchbackDiesel5512484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D MultijetHatchbackDiesel5612484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D MultijetHatchbackDiesel6212484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D MultijetHatchbackDiesel6812484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.3 D Multijet (199.AXD11, 199.AXD1A, 199.AXD1B,...HatchbackDiesel6612484Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 (199AXB11, 199AXB1A, 199BXB1A, 199AXL1A)HatchbackPetrol5713684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 (199AXB1A)HatchbackPetrol5513684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 16VHatchbackPetrol6613684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 16VHatchbackPetrol11213684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 16V (199BXG1B, 199AXG1B)HatchbackPetrol7013684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 LPGHatchbackPetrol/Liquified Petroleum Gas (LPG)5713684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 Natural PowerHatchbackPetrol/Compressed Natural Gas (CNG)5713684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.4 T-Jet (199AXM1A, 199BXM1A, 199BXN1A)HatchbackPetrol8813684Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.6 D MultijetHatchbackDiesel8815984Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.9 D MultijetHatchbackDiesel8519104Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.9 D MultijetHatchbackDiesel8819104Front Wheel Drive
FIATGRANDE PUNTO (199_) 06/2005-12/20151.9 D MultijetHatchbackDiesel9619104Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20180.9HatchbackPetrol748752Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20180.9HatchbackPetrol778752Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20180.9 Bifuel (BYA1_, AYA1_)HatchbackLPG638752Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20180.9 Twinair TurboHatchbackPetrol638752Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.2 (199AXZ1A, 199BXZ1A)HatchbackPetrol5112424Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.2 (199AYL1A, 199BYL1A)HatchbackPetrol4912424Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.2 FIRE (199BXZ1A)HatchbackPetrol5011724Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.3 D MultijetHatchbackDiesel5512484Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.3 D MultijetHatchbackDiesel5912484Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.3 D MultijetHatchbackDiesel6212484Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.3 D MultijetHatchbackDiesel7012484Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.3 JTD Multijet (199.AYR1A, 199.BYR1A)HatchbackDiesel6612484Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4HatchbackPetrol10113684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 (199AXB1A, 199BXB1A, 199BXB11, 199AXB11)HatchbackPetrol5713684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 (199AXH1A, 199BXH1A)HatchbackPetrol5513684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 BifuelHatchbackPetrol/Liquified Petroleum Gas (LPG)5713684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 Multi AirHatchbackPetrol7713684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 Natural PowerHatchbackPetrol/Compressed Natural Gas (CNG)5713684Front Wheel Drive
FIATPUNTO (199_) 01/2012-08/20181.4 Turbo Multi AirHatchbackPetrol9913684Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.2HatchbackPetrol4812424Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.2HatchbackPetrol5112424Front Wheel Drive
FIATPUNTO EVO (199_) 07/2008-02/20121.2 (199BXL1A)HatchbackPetrol5011724Front Wheel Drive

Media

Media

Installation Instruction: PDF
Strength Proof: PDF
